5 Pin Gold Plated Magnetic Connector 12V2A 5V2A Male and Female Charger Pogo Pin Connector
$2.10
≥50 piece
$1.90
≥500 piece
$1.70
≥5000 piece
Options:
- datasheet
- Photo
- EDA/CAD Models
- Other
- original manufacturer
Get Latest Price
You might also like
$2.30
200 piece (MOQ)
Basic Info
| Model Number | SM-100-5 PIN |
|---|---|
| type | Other |
| Place of Origin | Guangdong, China |
| Brand | xinteng |
| Color | Black |
Show More
Product description
Product features:
1.Product male and female automatic suction, automatic alignment,
2.Dumb-proof design to prevent short-circuit risk
3.Suction interface is easy to remove，Will not drive the local machine.
4.The shape structure is customized, which can realize the charging and signal function.
5.Convenient and reliable connection

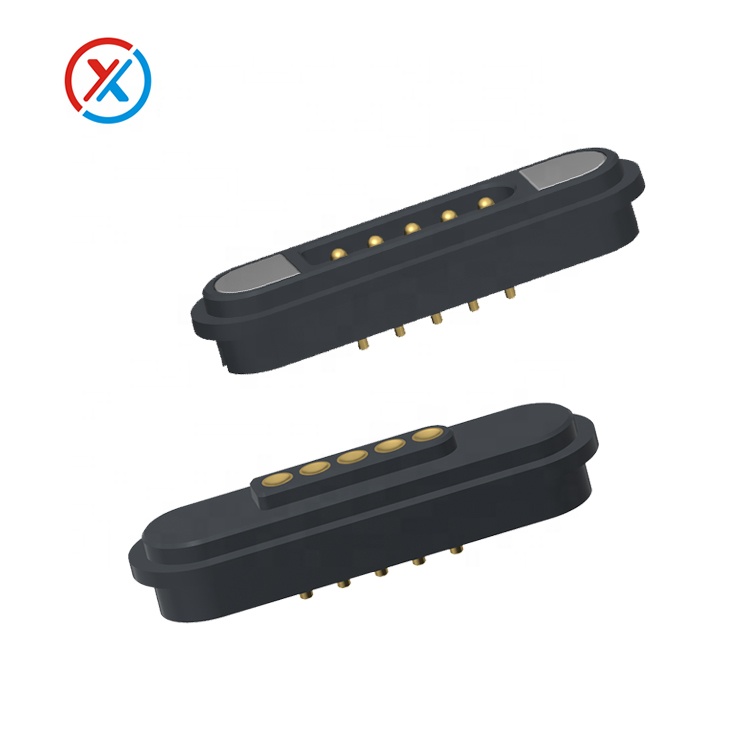

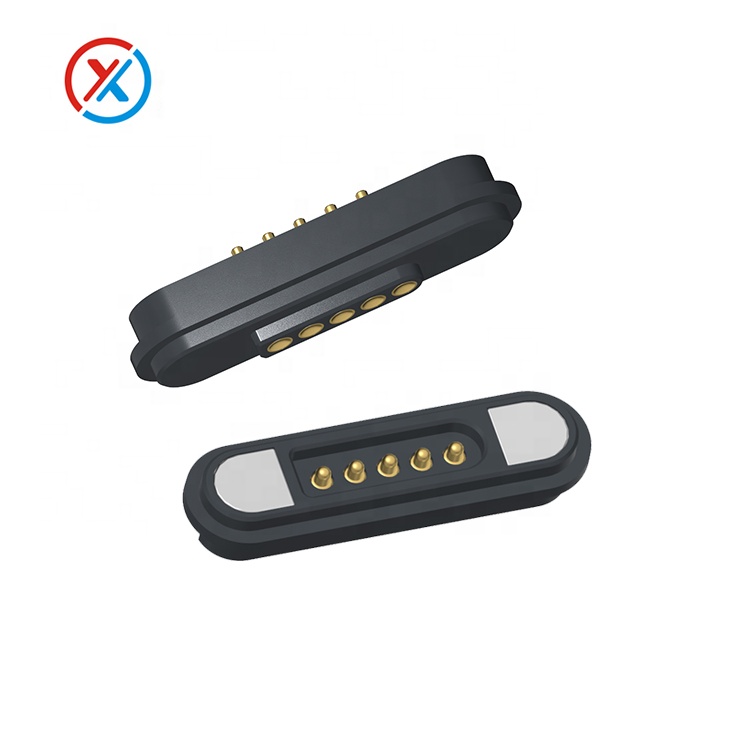

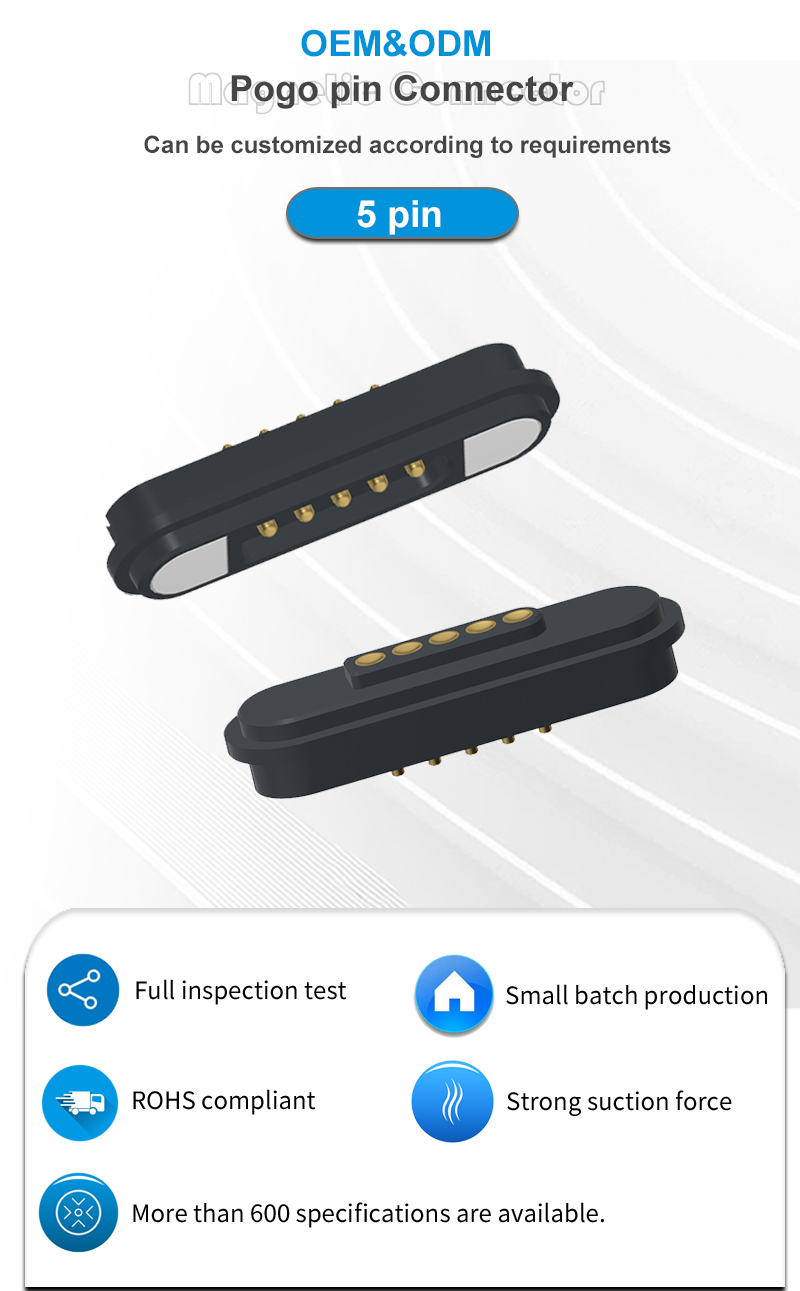

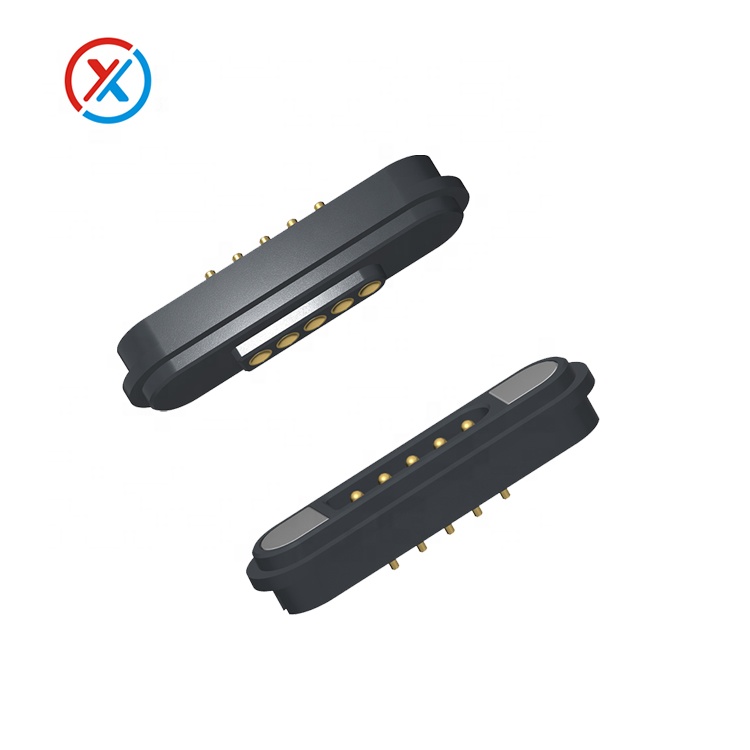

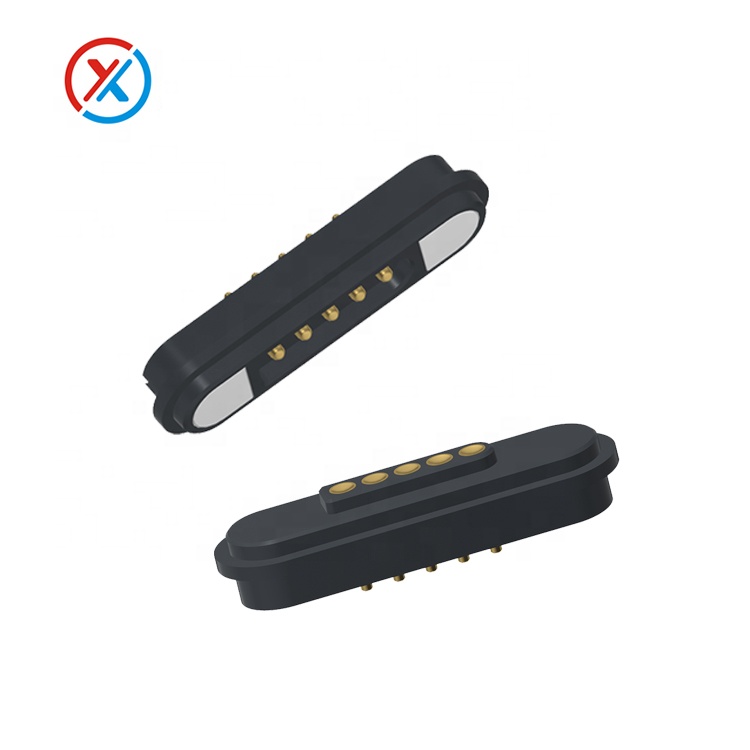

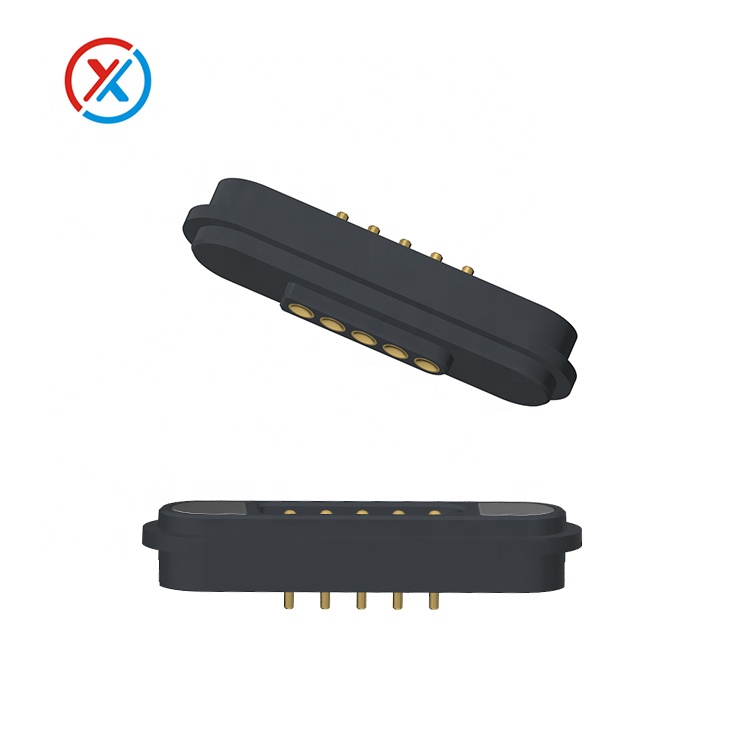

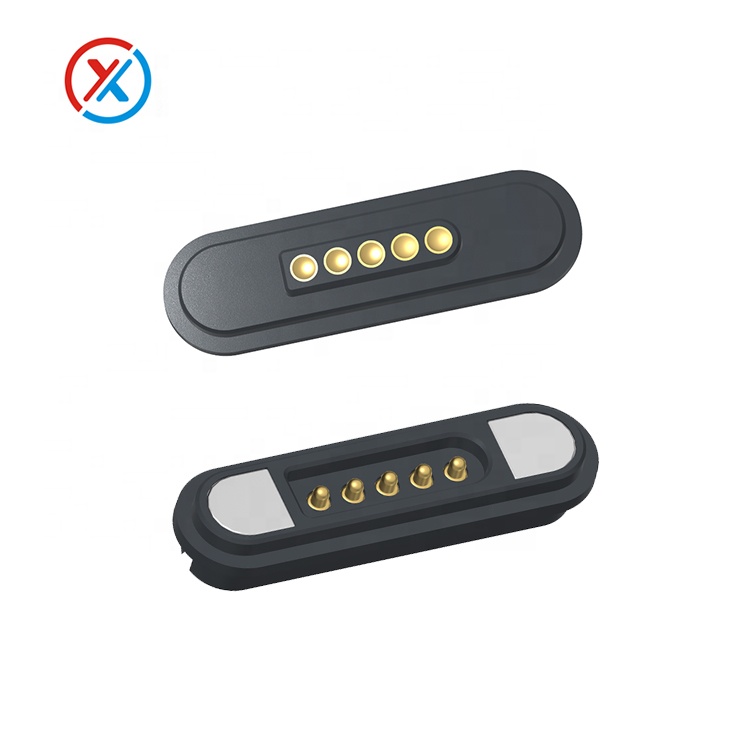

This is a 5pin male and female magnetic connector, pluggable board welding, suitable for: medical equipment, handheld terminal pda,VR game controller, VR glasses, VR handle, trolley, projection lamp | ||
ITEM | DATA #1 | |
Model | SM-100-5PIN | |
PIN number | 5pin | |
Metallic materials | Brass C6801 | |
PIN electroplating | Au 0.125um~0.75um | |
Housing | HTN | |
Magnet | N52 | |
Contact resistance of spring pin | 50mOhm Max. | |
Rated voltage | 12V | |
Rated current | 2.0A? ?3.0A | |
Mechanical life | 10,000 cycle Min | |
Salt spray test | 48H | |
Suction force | 500g±20%? 800±20% | |
Function | Charging and signal transmission | |
Packing | Bubble cotton | |
Material and coating conform to ROHS and REACH standards | ||
lf you have any question about the products, feel free to contact us.
We will reply to you immediately!
