60x60 Surface Mounted LED Panel Light Frame

1 / 6

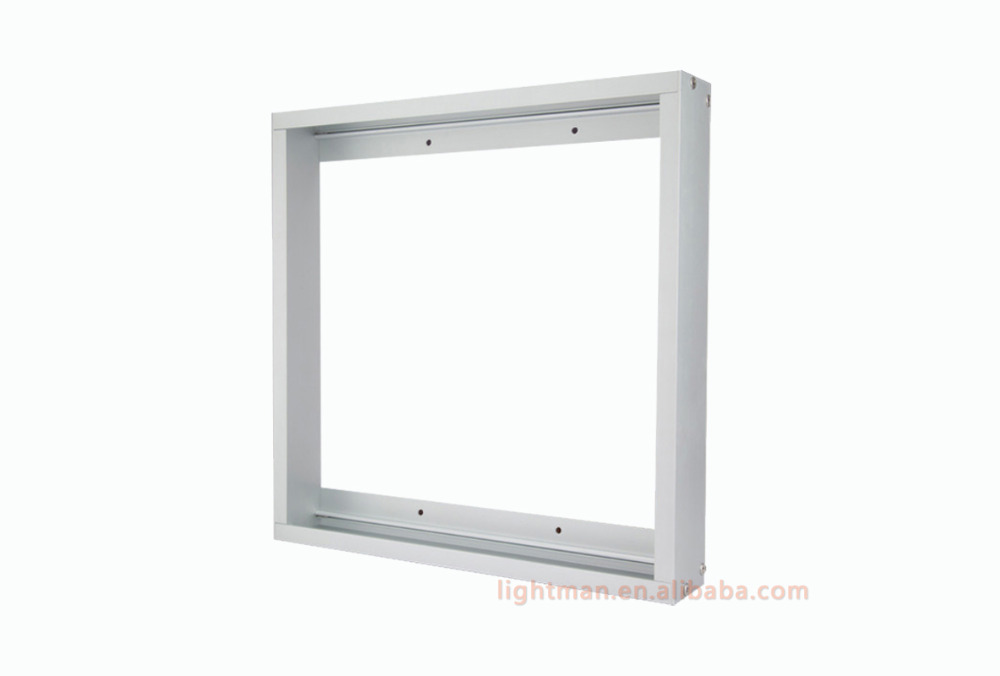

60x60 Surface Mounted LED Panel Light Frame

$6.50

≥2 piece
$6.00

≥500 piece
$5.00

≥1000 piece
$4.50

≥2000 piece

Options:

PL-SMK6060
Others
Others

Get Latest Price

You might also like

Screwless Surface Mount Frame for LED Panel Light - 60x60, 30x120, 60x120, 30x60, 30x30

1 piece (MOQ)

Screwless Surface Mount Frame Kit for 60x60 LED Panel Light

1 piece (MOQ)

Screwless Surface Mount Frame Kit 600x600

1 piece (MOQ)

White Aluminum Surface Mounted Frame Kit 600x1200

1 piece (MOQ)

White Color 30x120 LED Panel Light with Surface Mounted Frame

1 piece (MOQ)

Aluminium White Surface Mount Frame Kit 600x600

1 piece (MOQ)

60x60 Surface Mounted LED Panel Light Frame

1 piece (MOQ)

Aluminum Surface Mounted Frame Kit for 30x30 LED Panel Light

1 piece (MOQ)

Aluminum Silver White 600x600 LED Panel Light - Surface Mounted Frame

$7.50

20 piece (MOQ)

120x60 White Surface Mount Frame Kit with LED Ceiling Panel Light (595x1195)

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Color Temperature(CCT)	6000K (Daylight Alert)
Input Voltage(V)	AC 85-265V
Lamp Luminous Efficiency(lm/w)	80
Warranty(Year)	3
Color Rendering Index(Ra)	80
Support Dimmer	NO
Color	White, Silver, White for option
Lighting solutions service	Lighting and circuitry design, LitePro DLX layout, Project Installation
Lifespan (hours)	20000
Product Weight（kg）	1
Type	Led
light source	Led
Frame Dimension	602x605x50mm
Weight	0.85kg
Fit Panel Size	595595mm Panel Light and 600600mm Panel Light
Usage	to mount led panel lighting in the ceiling without grid

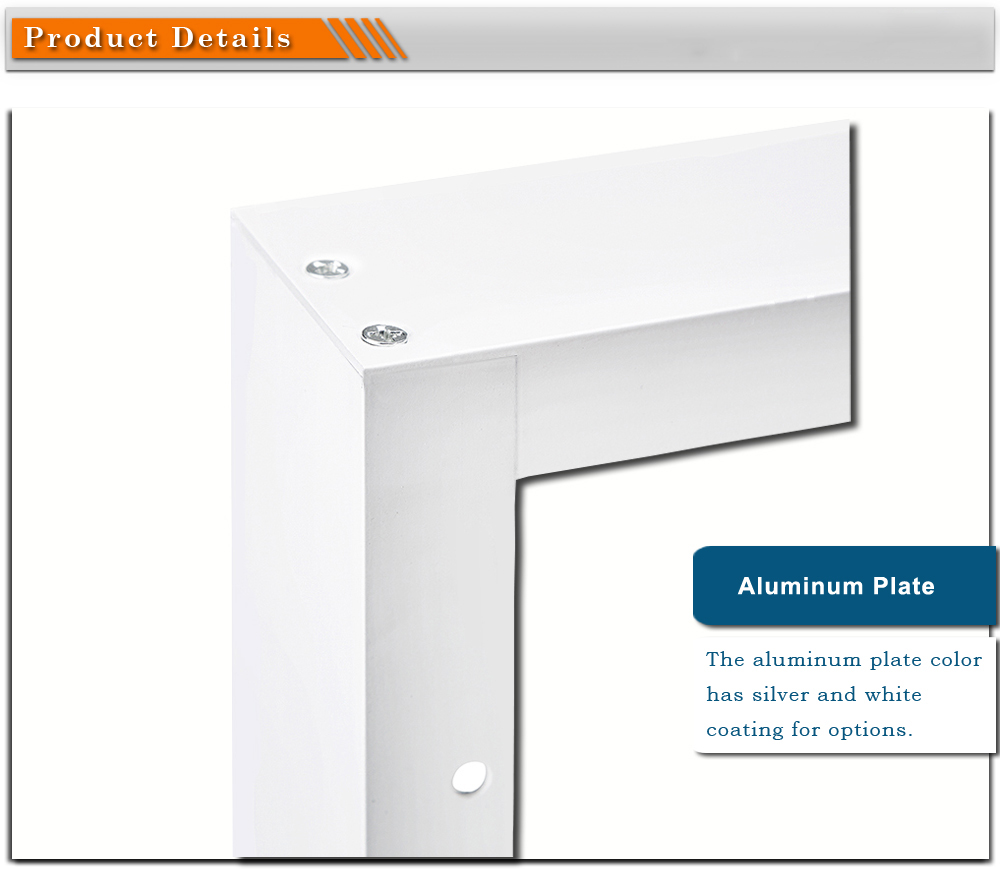

Material	Aluminum
Application	Office,School,Hospital,Shopping Mall etc
Product Name	surface mounted frame for led panel
Feature	square led panel light surface mounted
Working Time (hours)	20000

Product description

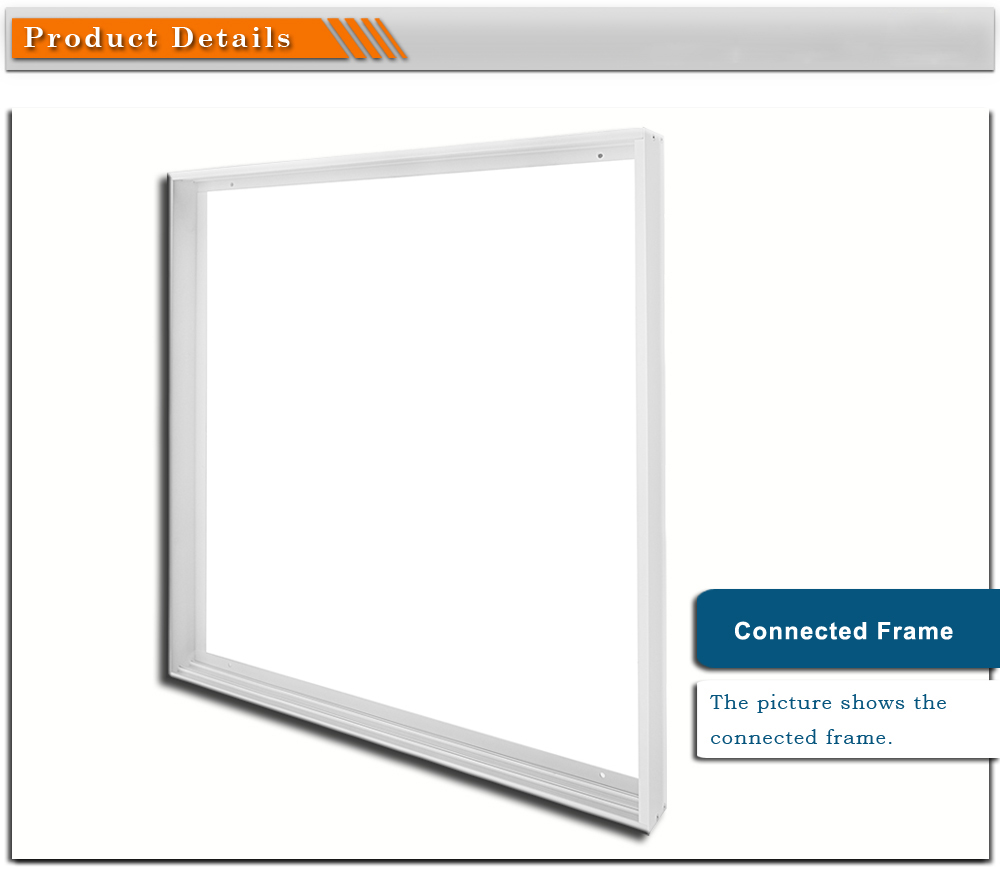

Surface Mounted Frame for LED Panel Light 60x60

Product Description

?You are here: Home > Product Categories >? LED Panel Light Accessory > Surface Mount Ceiling Frame Kit

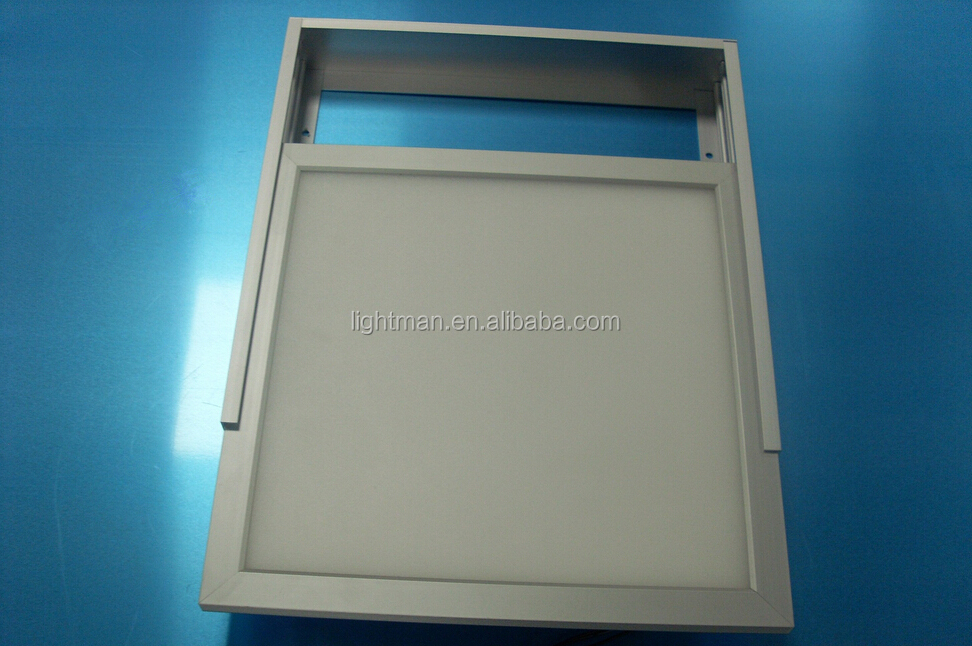

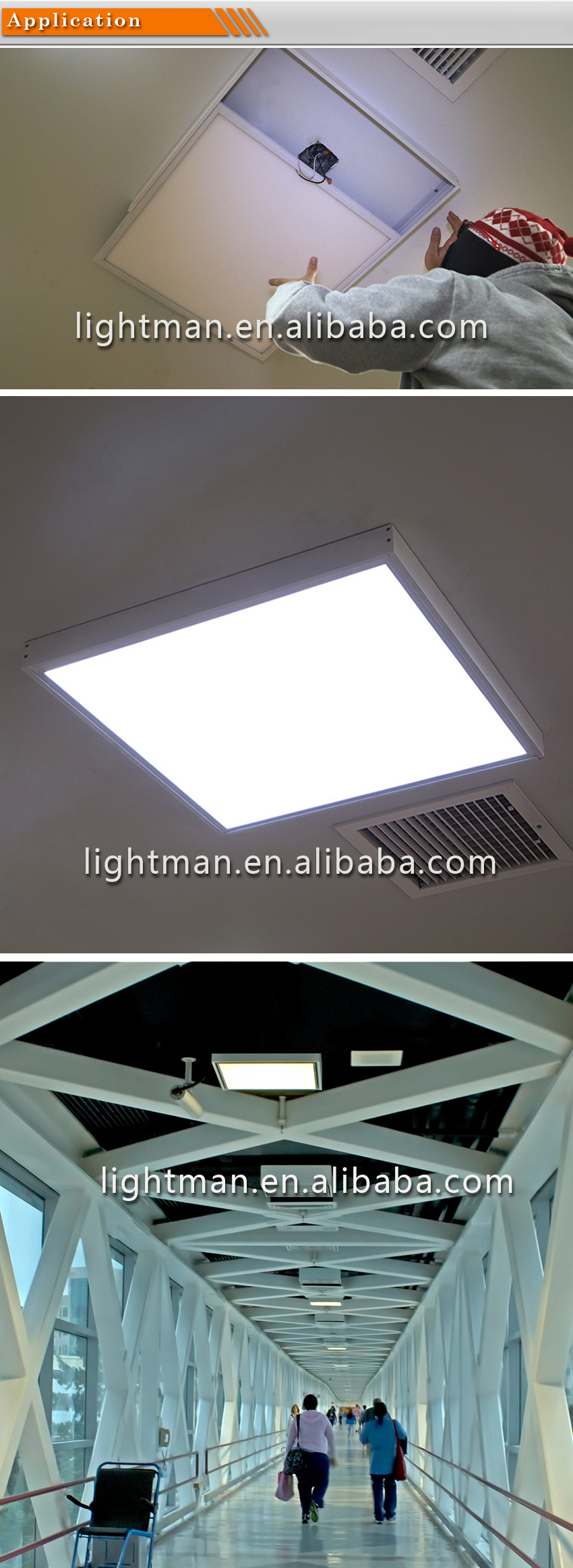

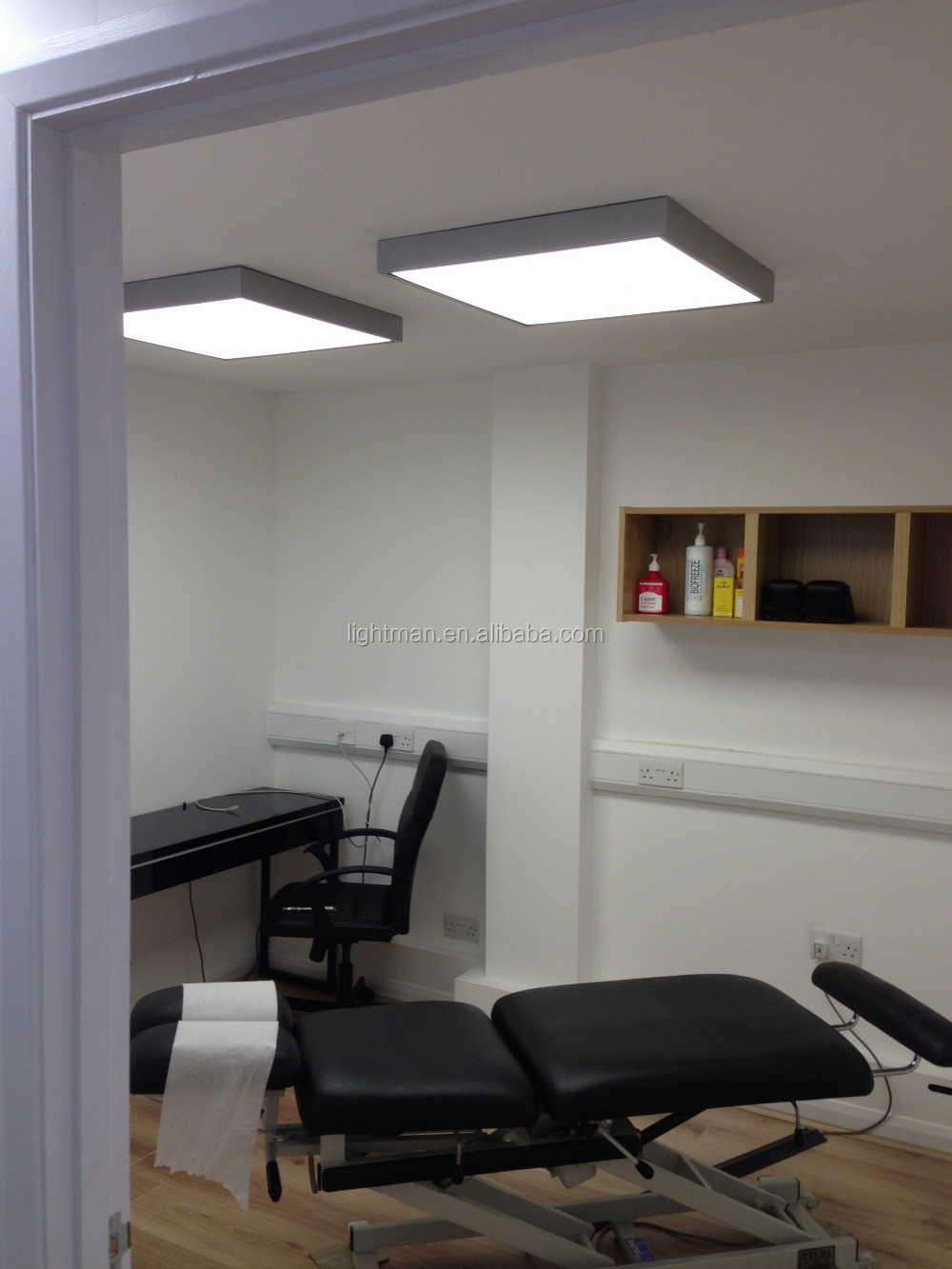

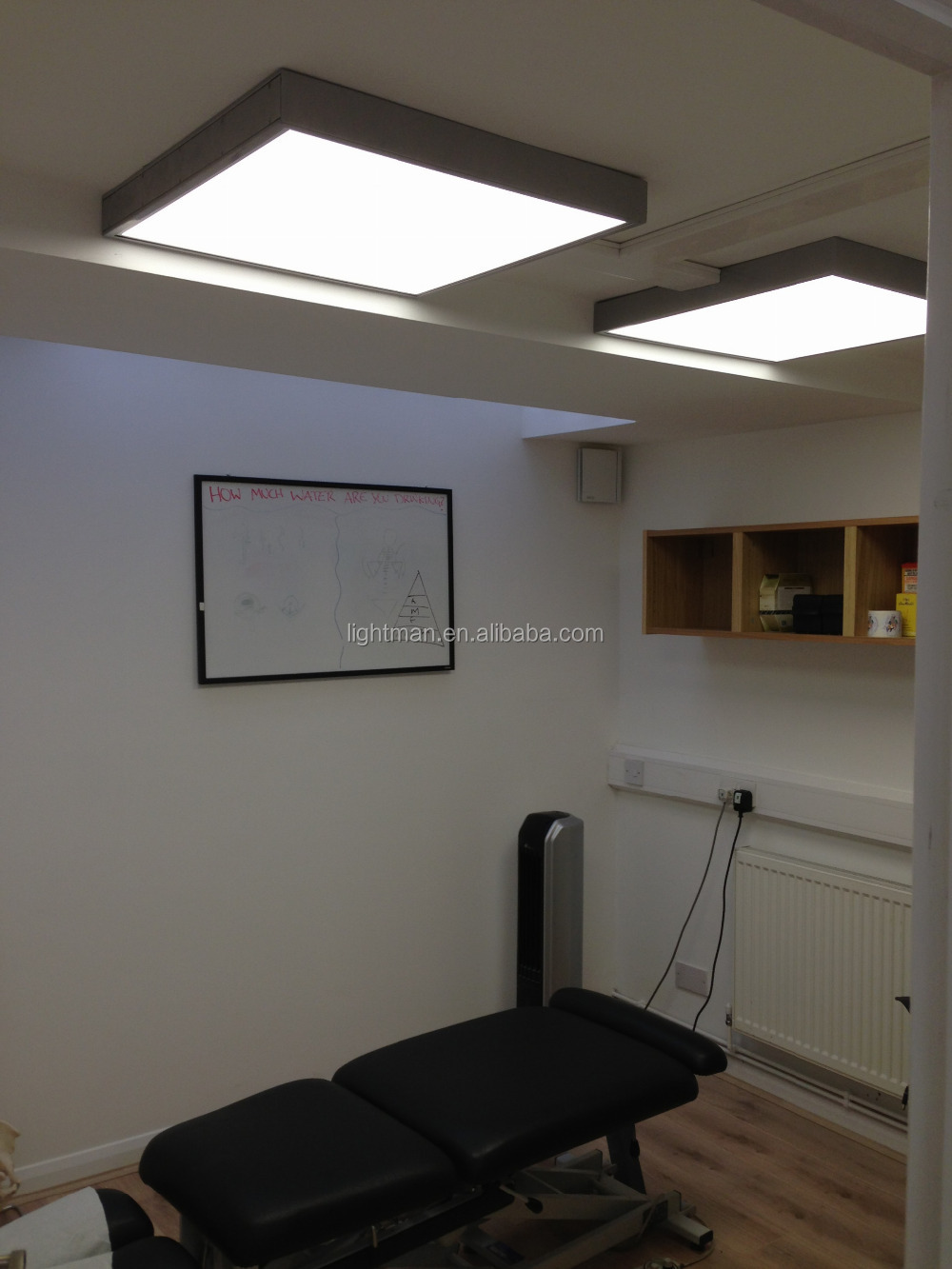

Surface Mount Ceiling Frame Kit is perfect to mount LED Panel Lights in locations without suspended ceiling grid (e.g. plasterboard ceilings). Surface mount kits are ideal for offices, schools, and hospitals etc where recessed mounting is not possible.

The frame has sufficient depth to accommodate the LED driver / emergency pack. (These should be placed in the centre of the panel to allow good heat dissipation)

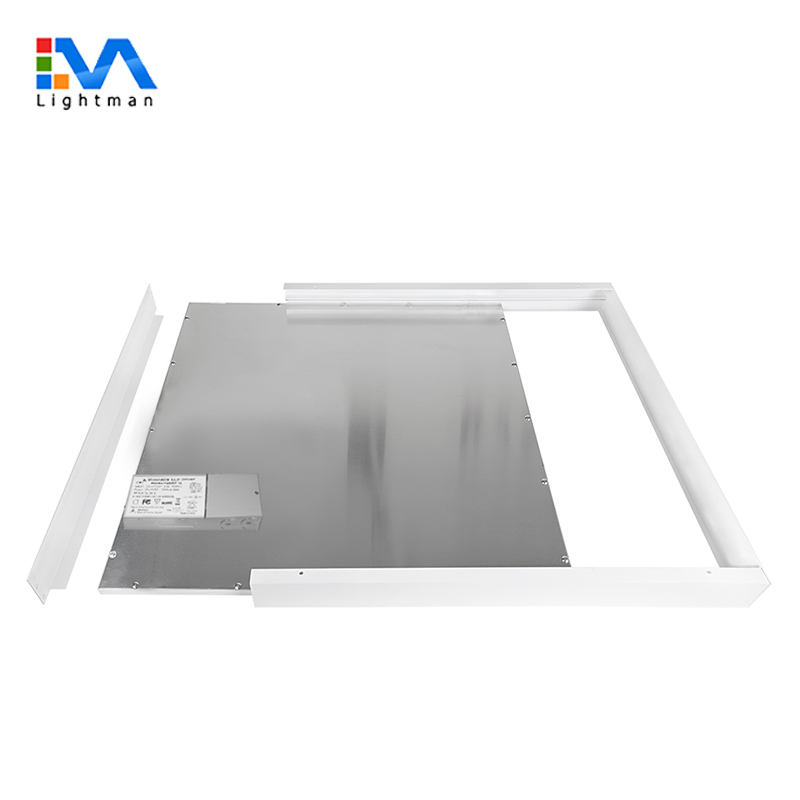

Easy to fit:

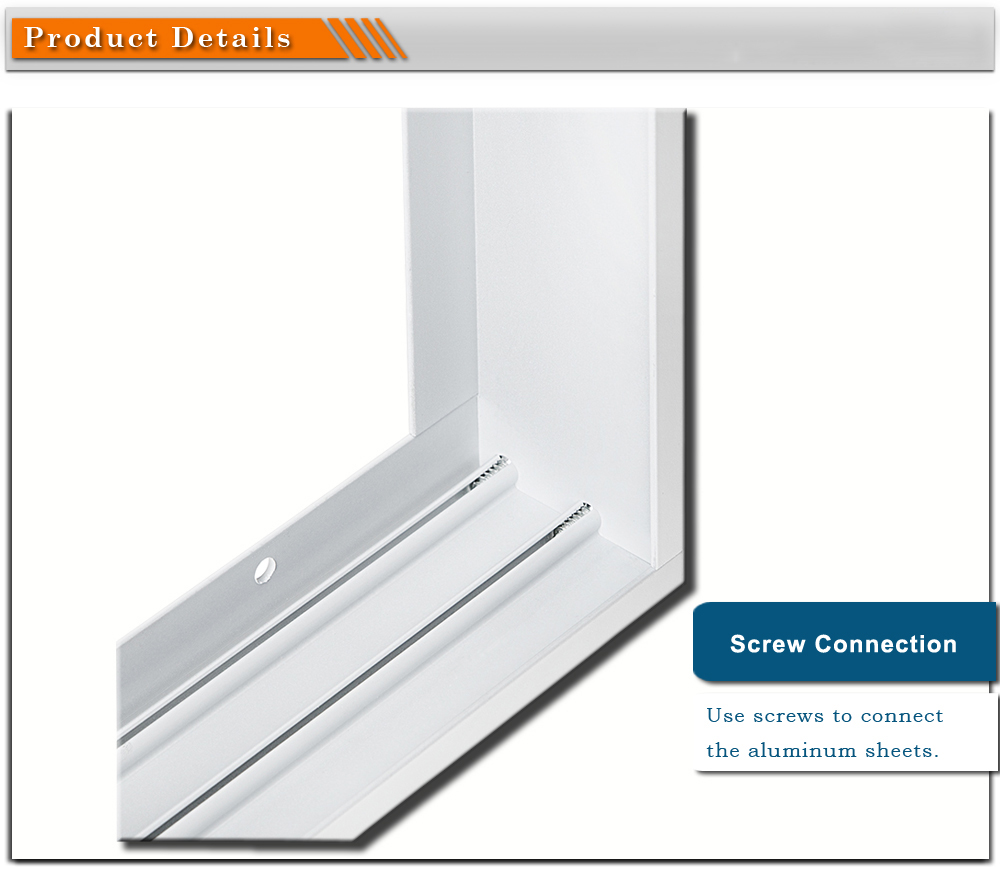

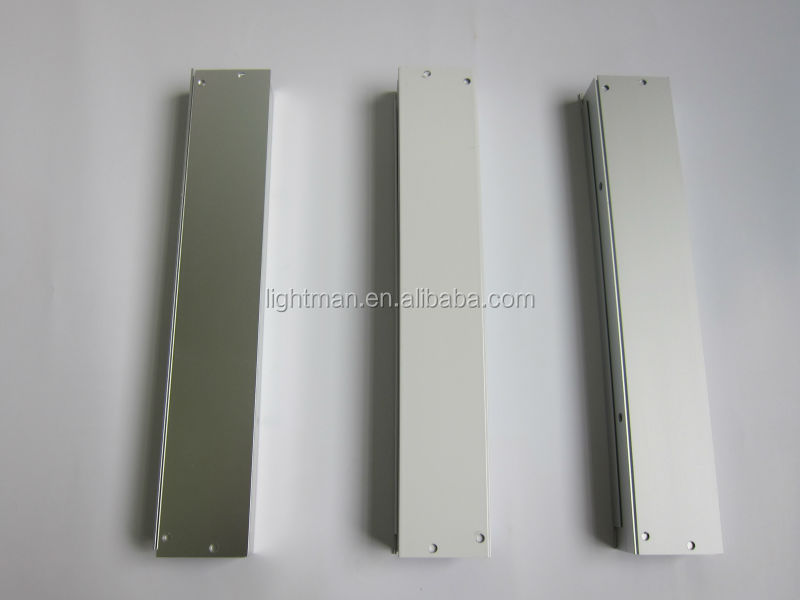

1. Screw three frame sheets together first.?

2. Screw to the surface that the led panel light is to be positioned.

3. Slide led panel light inside the frame.

4. Place driver/power pack on the back of the led panel light and make sure it is connected to the power supply.

5. Assemble the final end frame sheet to complete the installation.

Specification of Surface Mount Ceiling Frame Kit

Specification
Model	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Size	302x305x50mm	302x605x50mm	602x605x50mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Fit Panel Light Size	295x295mm 300x300mm	595x295mm 600x300mm	595x595mm 600x600mm	620x620mm	1195x295mm 1200x300mm	1195x595mm 1200x600mm
Weight	0.45KG	0.7KG	0.9KG	0.95KG	1.2KG	1.4KG
Color	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Mount Way	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
