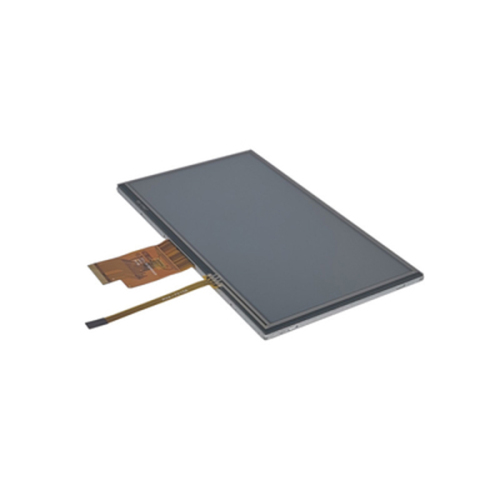

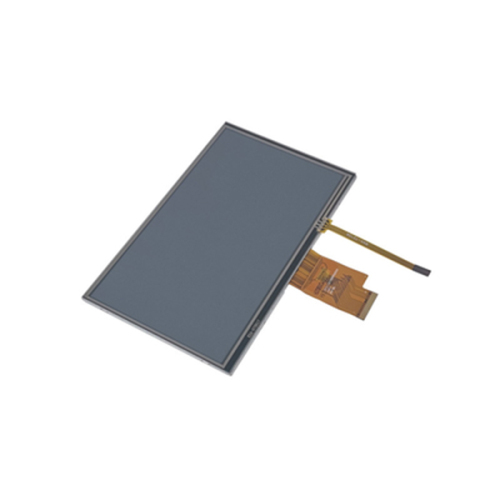

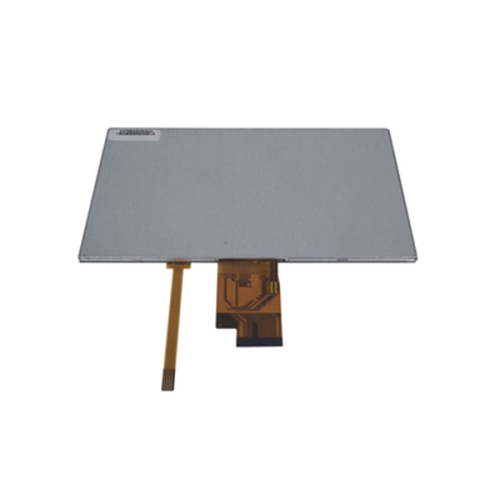

Made in Shenzhen, Dual ISO9001/ISO14001 Certified - ESEN T070BWS40I3523-CT24 This 7-inch TFT LCD display sets a new standard for the interactive experience of industrial smart systems. It combines high-precision touch control, excellent picture quality and a ruggedized design that is strong enough to handle demanding and complex industrial scenarios.

?

10-Point Touch + Glove Operation, Precise and Durable?

adopts GT911 capacitive touch chip, which supports 10-point precise touch with smooth response. Special added glove touch and palm anti-touch function, especially practical in outdoor or automated production line.G+G/G+F structure (optional Corning/BOE glass cover), scratch-resistant and corrosion-resistant, whether it's industrial HMI, self-service terminals, or intelligent agricultural equipment interface, can be stable and competent.

?

High-definition LVDS interface, the picture is as delicate as real?

LVDS interface guarantees stable and high-speed signal transmission, 1024×600 resolution with 16.7M color display, clear details and full color. Pixel pitch 0.1506 x 0.1432mm, RGB vertical stripe arrangement, the picture is clean and sharp. 800:1 high contrast ratio makes the image clear layers, suitable for car instrumentation, real-time monitoring and other demanding picture quality scene.

?

High brightness and anti-glare, still clear under strong light?

Standard brightness 350 cd/m2, can be customized to 600 cd/m2, adapt to different light environment. The anti-glare coating on the surface effectively inhibits reflections, even in direct sunlight outdoors or under the high brightness of plant lighting, the content is still clear. Commonly used in ship navigation, outdoor equipment, construction site terminals and other variable light environment.

?

Wide Temperature Durability, Fearless of Extreme Environments?

The working temperature spans from -20℃ to +70℃, and the storage temperature supports from -40℃ to +90℃. Experienced long-term verification of alpine logistics tracking, desert photovoltaic power station, offshore equipment, industrial control and vehicle systems, and still maintain stable operation in extreme temperature and vibration environment.

?

Dual-core driver, power consumption reduced by 25%?

is equipped with HX8282-A02+HX8696-A01 dual-driver chip, which improves the signal processing speed by about 30% compared with the normal solution. Normal black mode design, power consumption reduced by a quarter, ideal for 7 × 24 hours uninterrupted operation of industrial monitoring terminals and outdoor IoT equipment, energy saving and reliable.

?

Certified and Trustworthy?

complies with ISO9001 quality management and ISO14001 environmental management system in the whole process, from raw materials to factory control to ensure stable and consistent performance, as well as environmentally friendly manufacturing. We provide display solutions that have been verified by international standards and can be put into projects with confidence.
