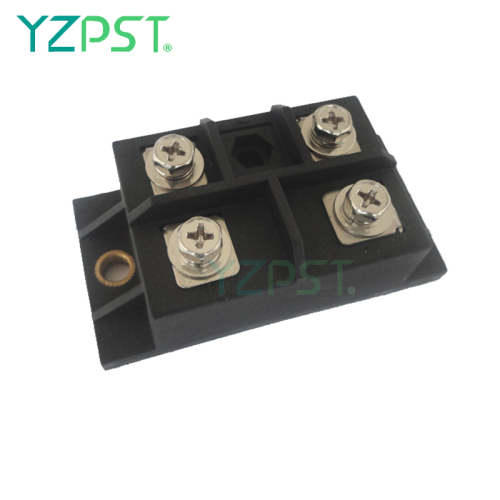

75A 1200V Single-phase Rectifier

Get Latest Price

Basic Info

Model No.	YZPST-MDQ75-12
Brand Name	YZPST

Product description

Single-phase Rectifier Bridge

YZPST-MDQ75-12

Single-phase bridge rectifier is the ac/dc transformation of a phase in a three-phase ac power supply.Single-phase bridge rectifier has only one set of rectifier devices, and three-phase bridge rectifier has three sets of rectifier devices.

Single Phase IdAV = 75 A

Rectifier Bridge VRRM = 1000-2400V

VRRM (V)	VRSM (V)	TYPE
1000	1100	MDQ75-10
1200	1300	MDQ75-12
1600	1700	MDQ75-16
1800	1900	MDQ75-18
2200	2300	MDQ75-22
2400	2500	MDQ75-24

Single-phase Rectifier Bridge

Maximum Ratings

Symbol	Item	Conditions	Ratings	Unit
ID	Output current (D.C.)	Single phase. full wave. TC=117^oC	75	A
IFSM	Surge Forward Current	1 cycle, 50/60HZ, peak value, non-repetitive	910/1000	A
I²t	I²t	Value for one cycle of surge current	4100	A²S
Tj	Junction Temperature		-40 to +150	^oC
Tstg	Storage Temperature		-40 to +125	^oC
VISO	Isolation Breakdown Voltage(R.M.S.)	Main Terminal to case 1minute	2500	V

Md	Mounting torque	Mounting(M5)	Recommended Value 1.5-2.5(15-25)	2.7(28)	Nm(kgfcm)

Mounting torque

Mounting(M5)

Recommended Value 1.5-2.5(15-25)

2.7(28)

Nm(kgfcm)

Electrical Characteristics

Symbol	Item	Conditions	Ratings	Unit
IRRM	Repetitive Peak Reverse Current, max.	Tj=150^oCat VRRM	5.0	mA
VFM	Forward Voltage Drop, max.	IFM=75A, Tj=25^oCInst. measurement	1.2	V
Rth(j-c)	Thermal Impedance, max.	Junction to case	0.24	^oC/W
