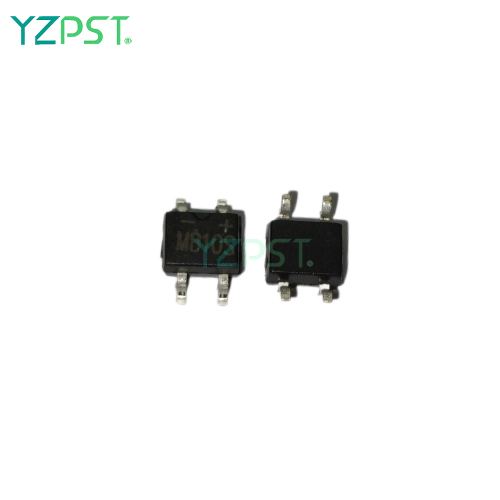

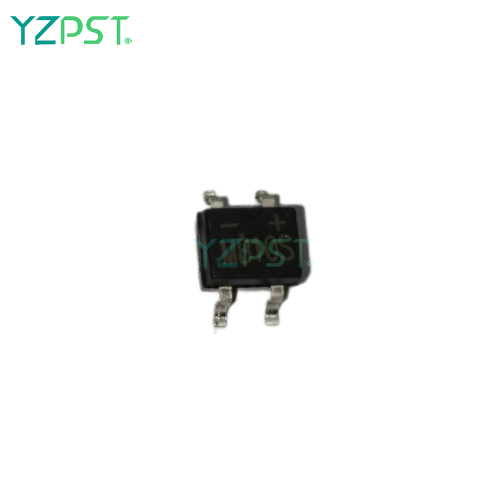

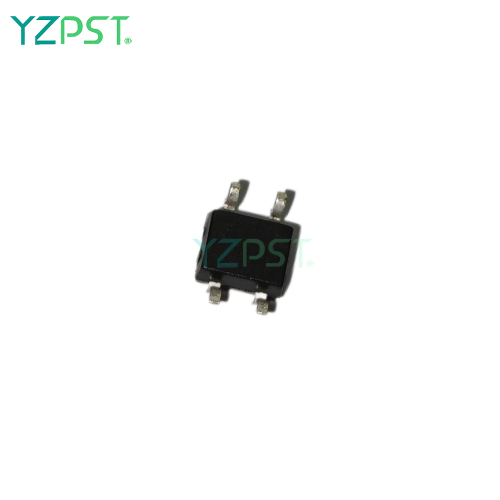

Small Surface Mount device 1000V MB10S bridge rectifier
$0.0294
≥5000 Piece/Pieces
$0.21
≥50000 Piece/Pieces
Options:
- IF：0.5/0.8A
- IFSM：30A
- RθJA：90°C/W
- VRRM：1000V
- VR：1000V
- VRMS：700V
Basic Info
| Model No. | YZPST-MB10S |
|---|---|
| Brand Name | YZPST |
| Supply Type | Original Manufacturer |
| Reference materials | Datasheet, Photo, Other |
| Types of | Bridge Rectifier |
| Scope of application | Inverter / Converter |
| Package type | Surface Mount |
Product description

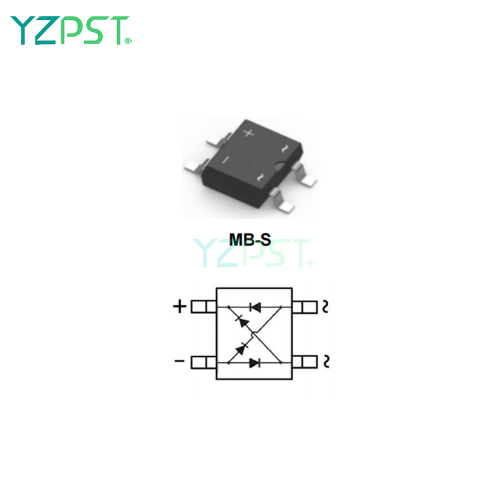

BRIDGE RECTIFIER
YZPST-MB05S-MB10S
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
|
Parameter |
Symbol |
MB05S |
MB1S |
MB2S |
MB4S |
MB6S |
MB8S |
MB10S |
Unit |
|
Repetitive peak reverse voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
|
DC Reverse Voltage |
VR |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
|
RMS Reverse Voltage |
V RMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
|
Mean rectifying current |
IF |
0.5/0.8 |
A |
||||||
|
Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms |
IFSM |
30 |
A |
||||||
|
Thermal Resistance From Junction To Ambient |
RθJA |
90 |
°C/W |
||||||
|
Junction Temperature |
TJ |
-55 ~+150 |
°C |
||||||
|
Storage Temperature |
TSTG |
-55 ~+150 |
°C |
||||||
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified)
|
Parameter |
Symbol |
Min |
Max |
Unit |
Conditions |
|
Forward voltage |
VF |
|
1.0 |
V |
IF=0.5A |
|
Forward voltage |
VF |
|
1.1 |
V |
IF=0.8A |
|
Reverse current T=25°C |
IR |
|
5 |
uA |
VR=VRRM |
|
Reverse current T= 125°C |
IR |
|
40 |
uA |
VR=VRRM |
|
Junction capacitance |
CJ |
|
13 |
pF |
V=4VDC ,f=1MH |
