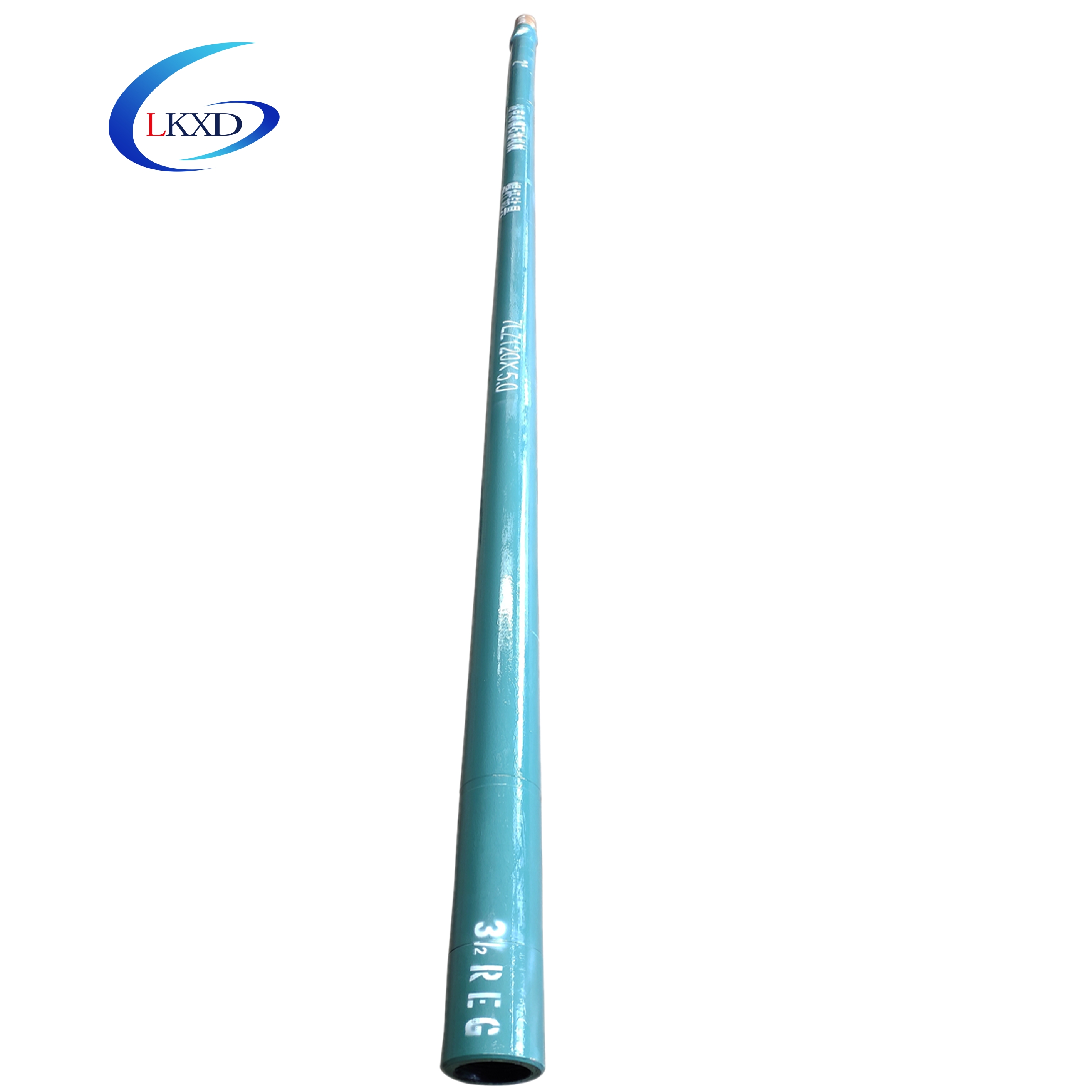

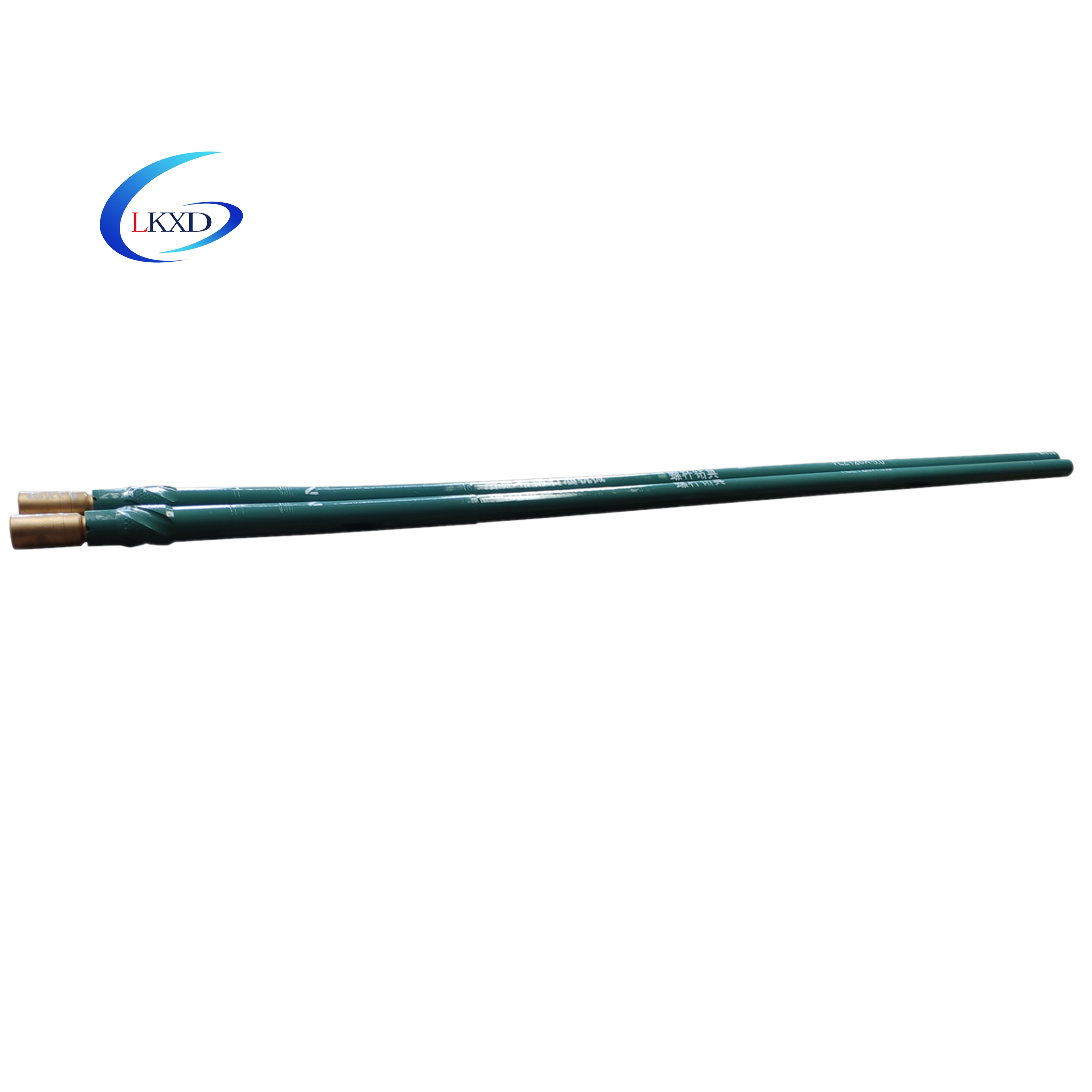

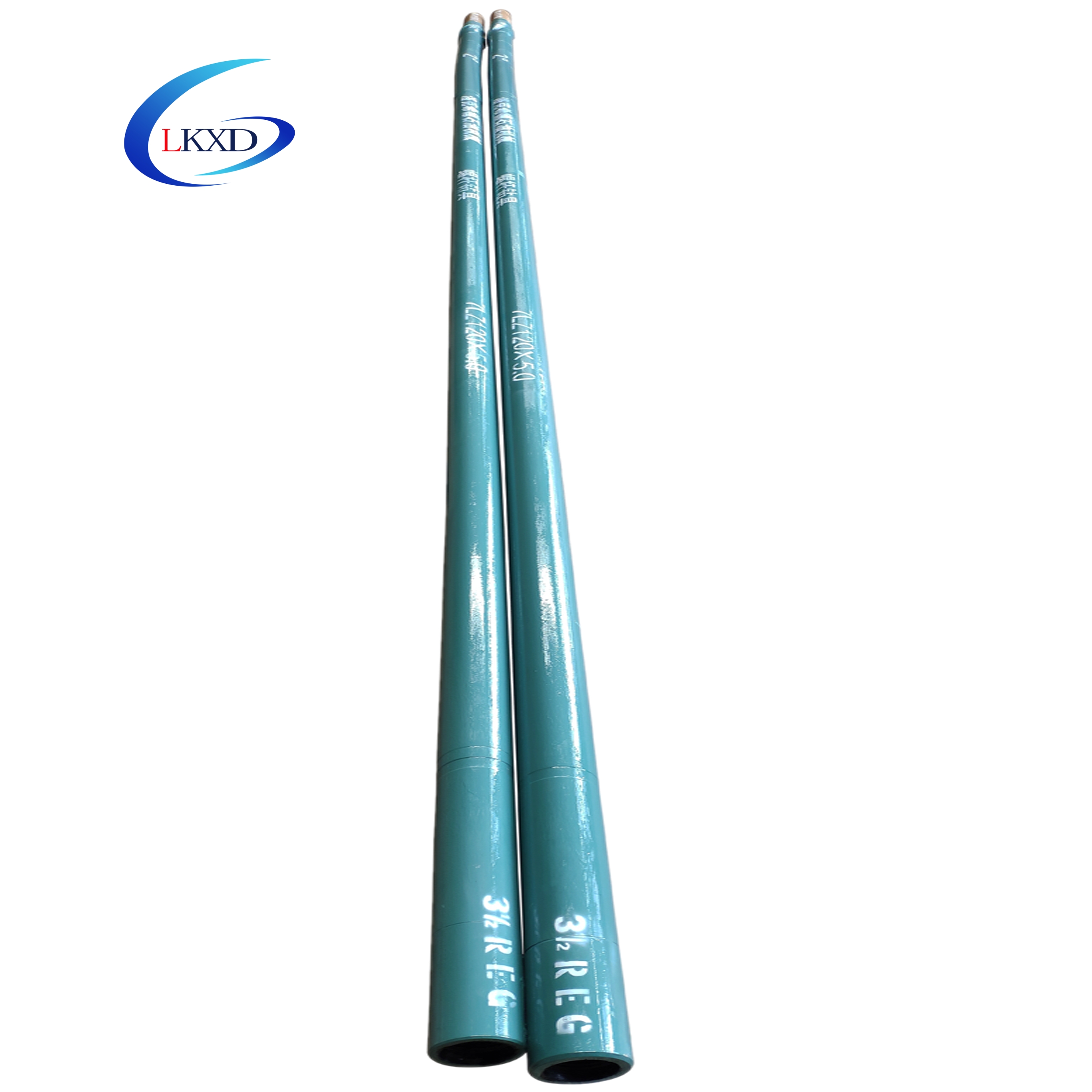

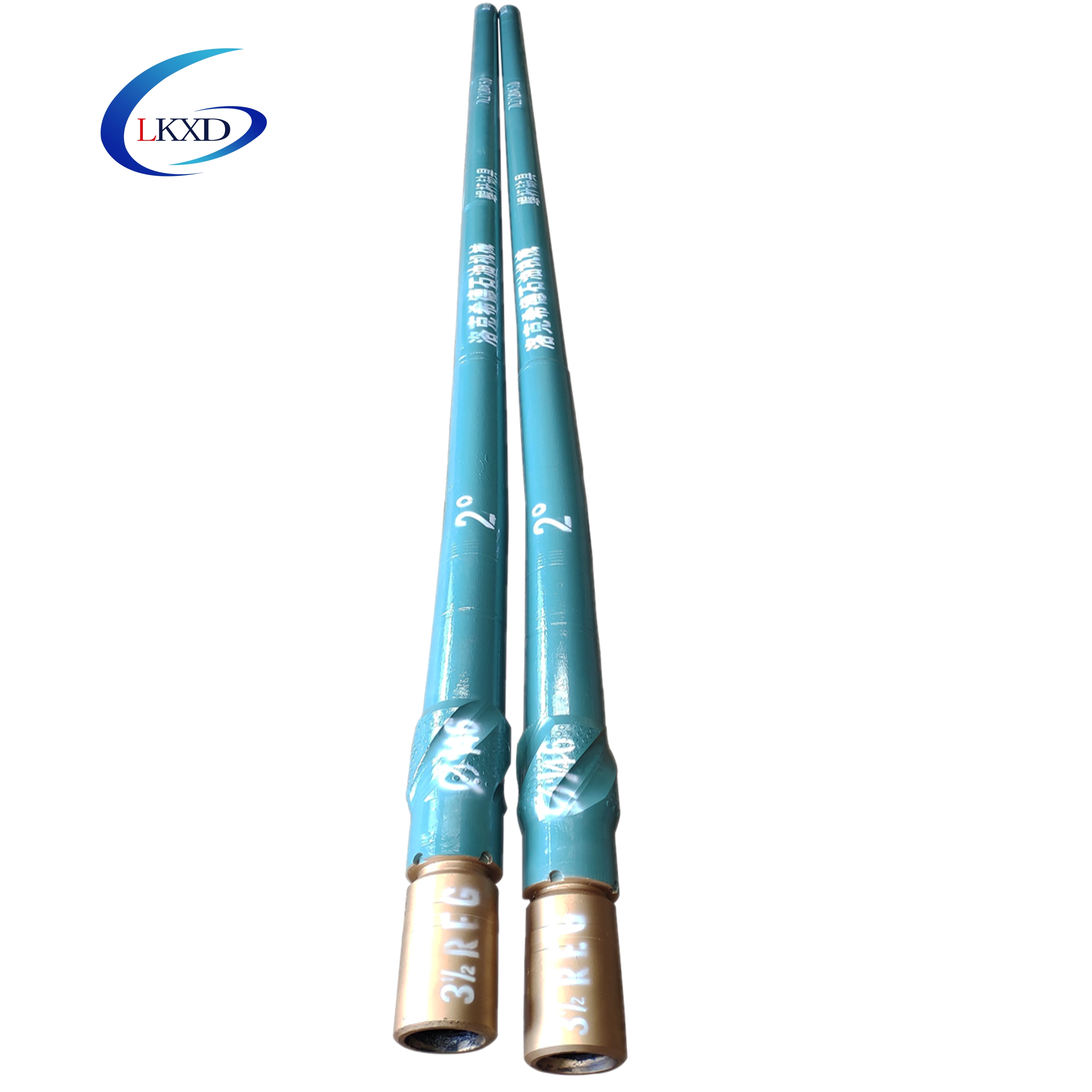

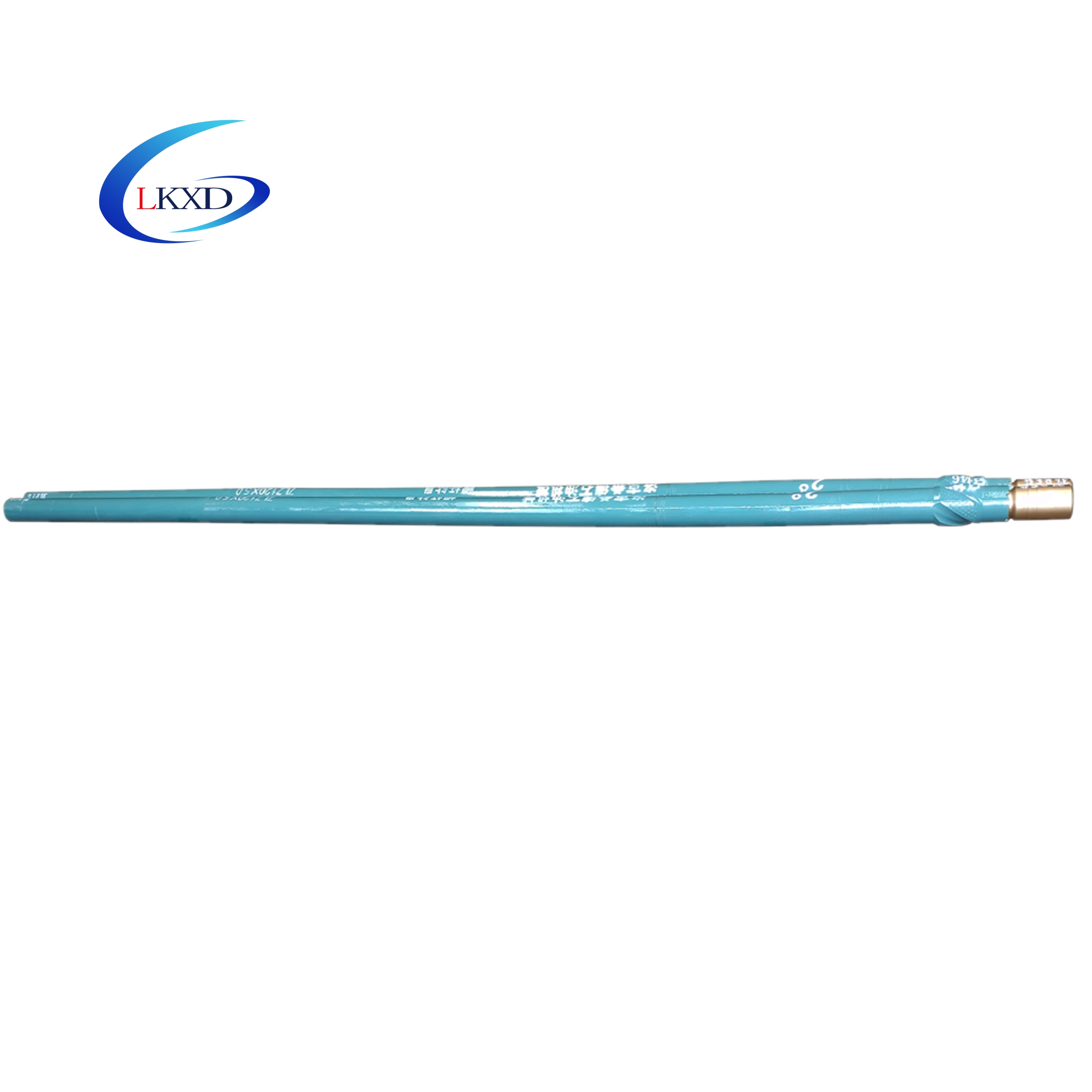

7LZ120*5.0L-7 Downhole Mud Motor for HDD Oil Well Drilling Tools

1 / 6

7LZ120*5.0L-7 Downhole Mud Motor for HDD Oil Well Drilling Tools

Name: 7LZ120*5.0L-7 Downhole Mud Motor for HDD Oil Well Drilling Tools
Brand: Cangzhou Lockheed Drilling Equipment Parts Co., Ltd.
Rating: 4.9 (30 reviews)

$2590.00

≥1 piece
$2000.00

≥5 piece

Options:

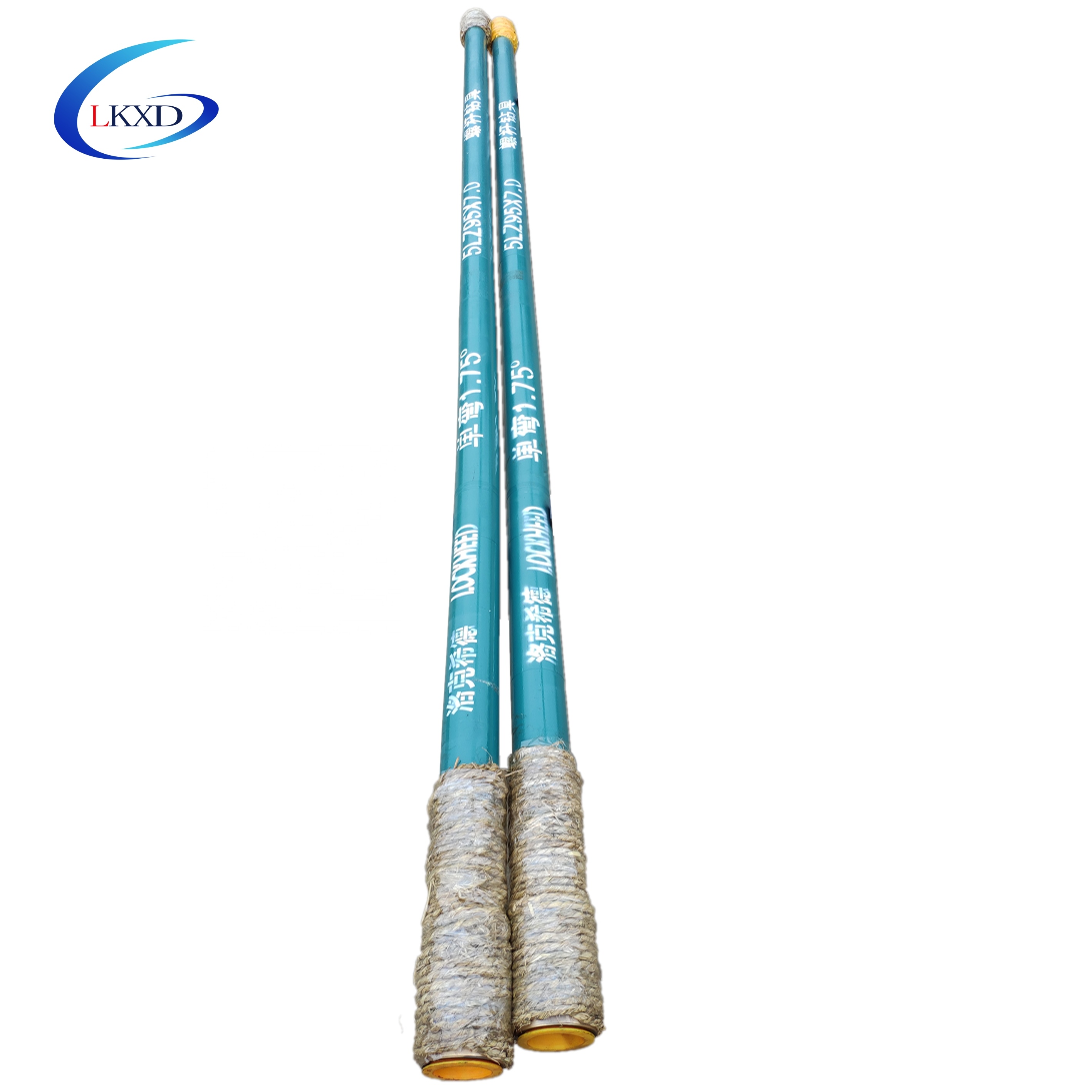

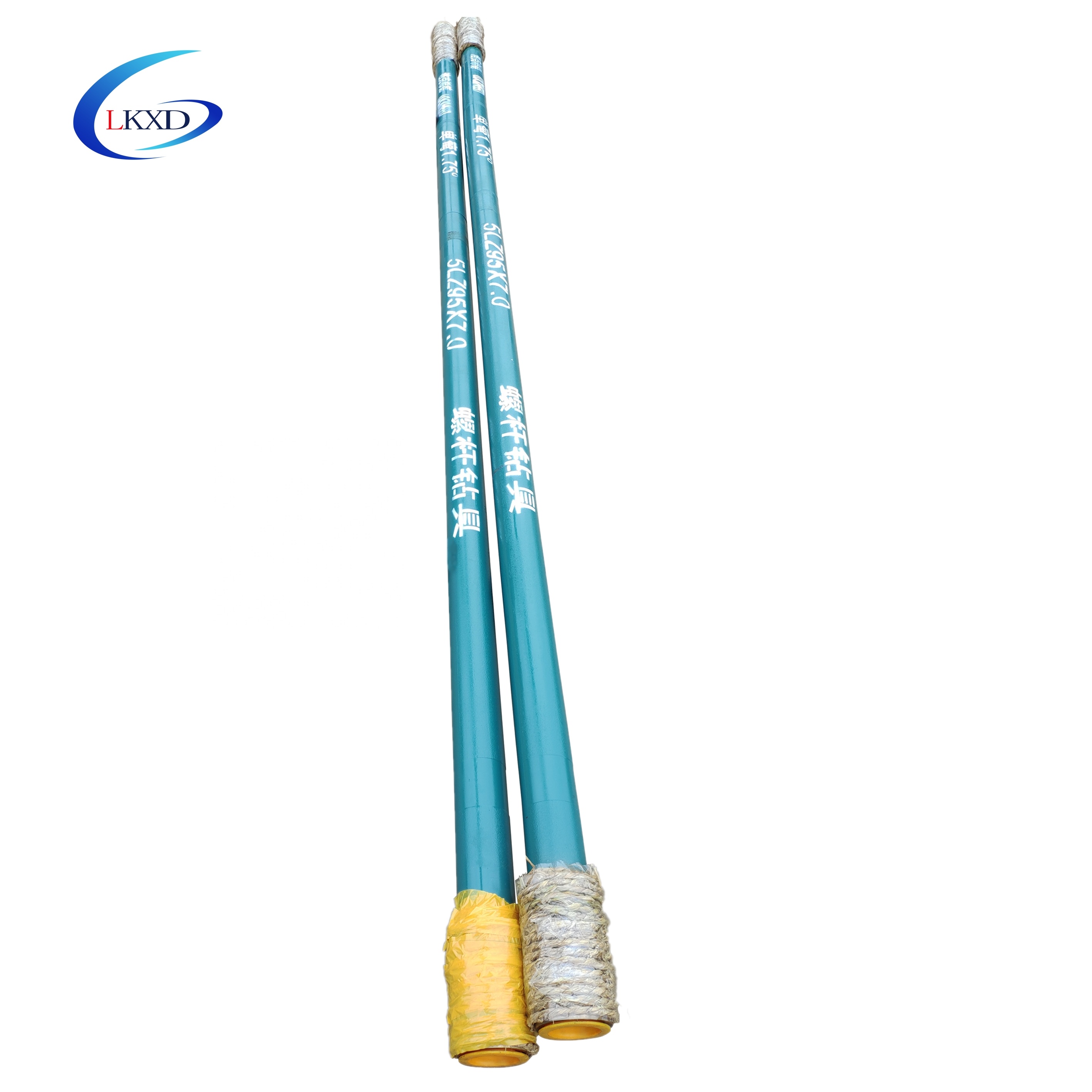

5LZ95*7.0 L-5

Get Latest Price

You might also like

120mm Downhole Mud Motor for Trenchless Horizontal Directional Drilling

$7250.00

1 piece (MOQ)

Downhole Mud Motor API Standard for Oil Well Drilling Tools

1 piece (MOQ)

7LZ120*5.0L-7 Downhole Mud Motor for HDD Oil Well Drilling Tools

1 piece (MOQ)

Basic Info

Model No.
Brand Name
warranty	3 months
Weight (KG)	380
Video Outgoing-inspection	Provided
Machinery Test Report	Not Available
Place of Origin	Hebei, China
Brand Name	Lockheed
Type	downhole motor
Machine Type	Drilling Tool
Processing Type	Casting
Use	Mining &Drilling& HDD
Specification (in)	7LZ120*5.0L-7
MOQ	1 Piece
Color	Customized
Packing	Wooden Box
Delivery time	7-15 Days
Quality	High Guarantee
Condition	New
Showroom Location	None
Marketing type	Ordinary Product
Applicable Industries	Retail, Construction works?, Energy & Mining, Other

Product description

Products Description

Product Name	Downhole Motor
Model	7LZ120×5.0L-7
Tool OD	4 3/4″

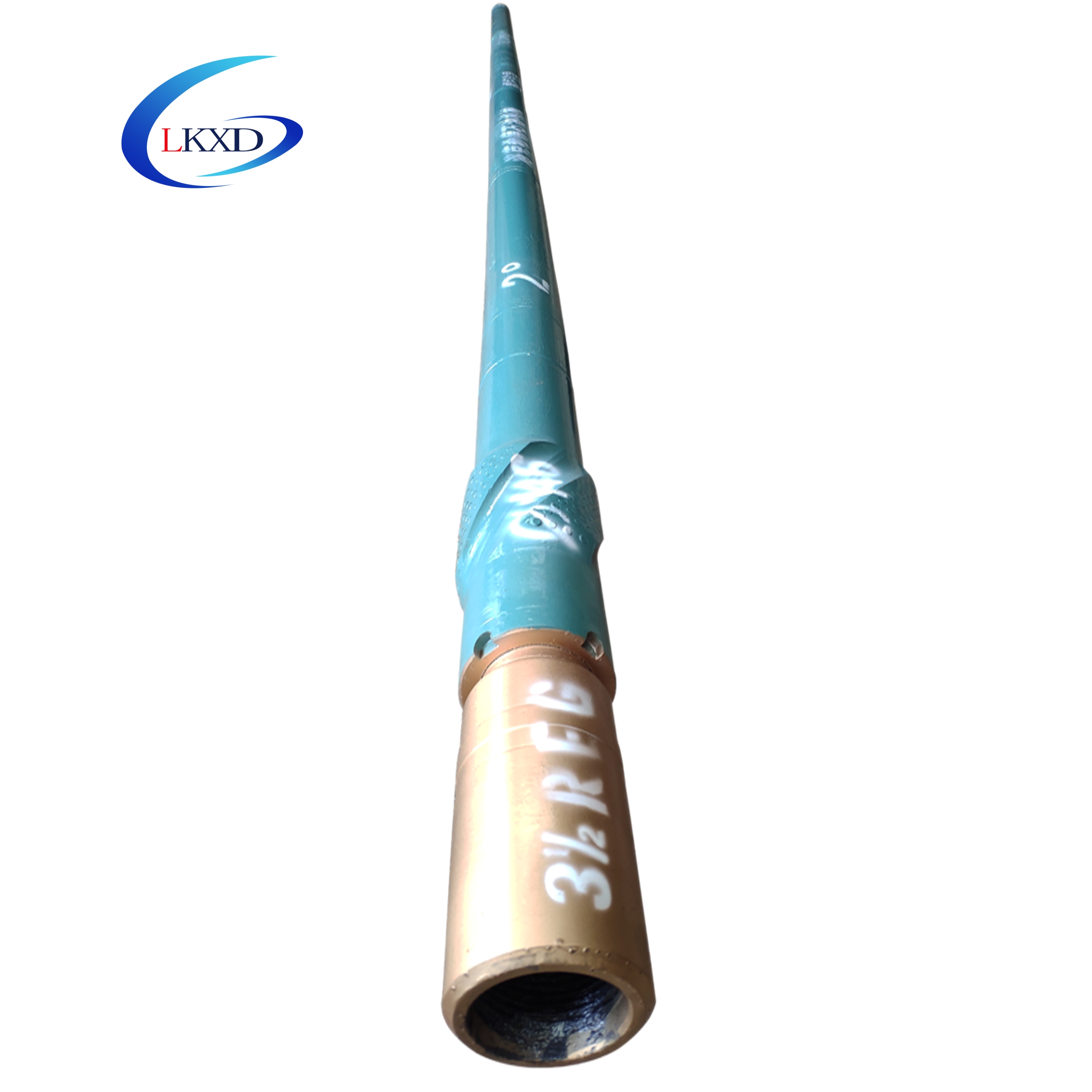

Upper Connection Thread	3 1/2″REG BOX
Bottom Connection Thread	3 1/2″REG BOX
Stabilizer Size	146mm
Lobe	5:6
Stage	7
Bent Sub Angle	2°
Flow Rate	516-1030(lpm)
Flow Rate		130-273(gpm)
Rotary Speed	128-256(rpm)
Output Torque	2829(N.m)
Output Torque		2087(lb-ft)
Max Torque	3997(N.m)
Max Torque		2848(lb-ft)
Working Pressure	49(KN)
Working Pressure		10803(lb)
Max Pressure	100(KN)
Max Pressure		22000(lb)
Output Power	85(kw)
Output Power		114(hp)
Length	6.2m
Net Weight	450KG

Application Scenarios

About us

COMPANY PROFILE

Cangzhou Lockheed Petroleum Machinery Co, Ltd. is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106, 166 km away from Beijing, 110 km away from Tianjin and 35 km away from Baiyangdian, the Pearl of Huabei Area. More convenient transport, faster delivery, and more trustful enterprise is your best choice. Come on, join us.

Our products Including below three series with full model types:

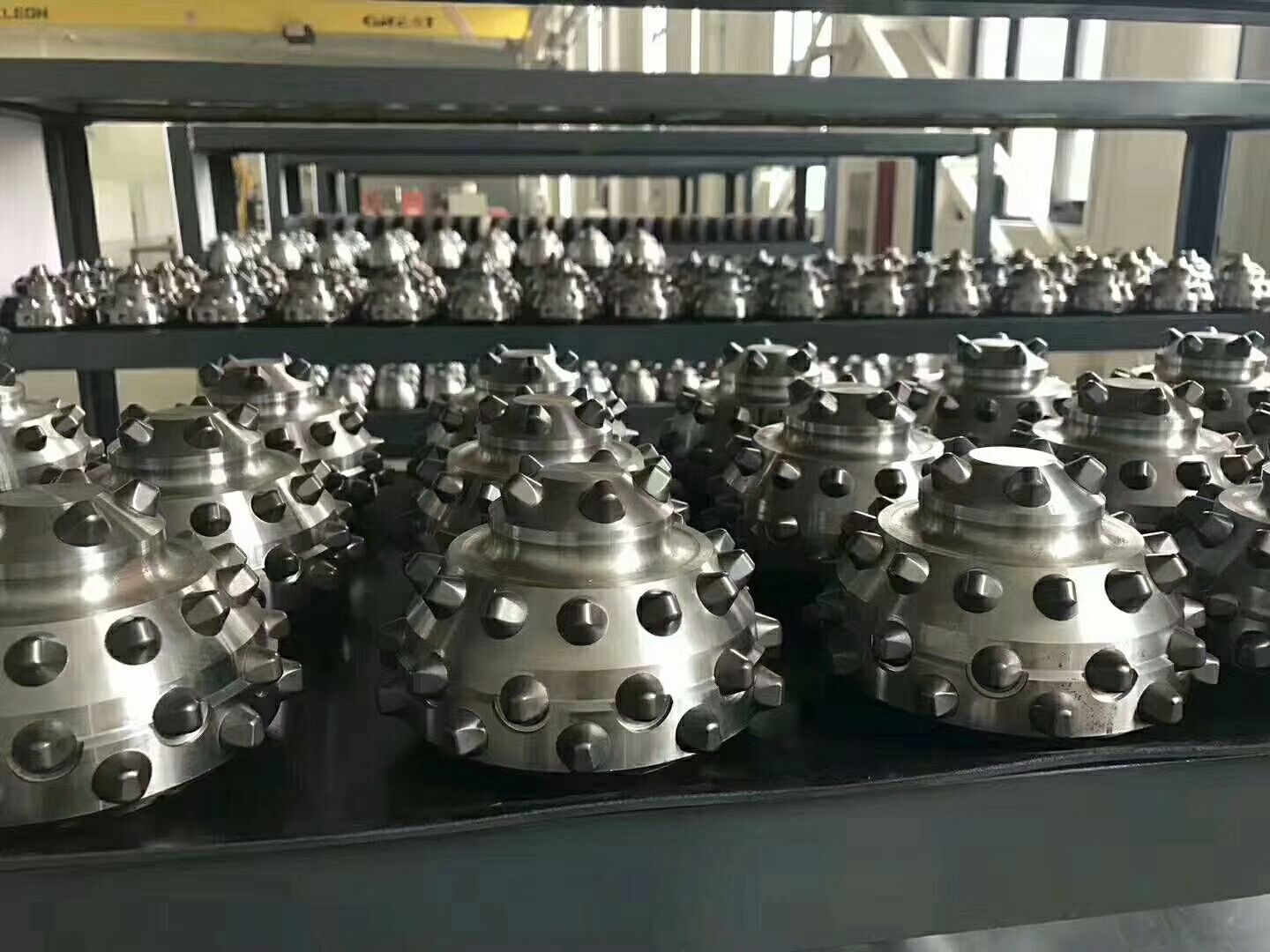

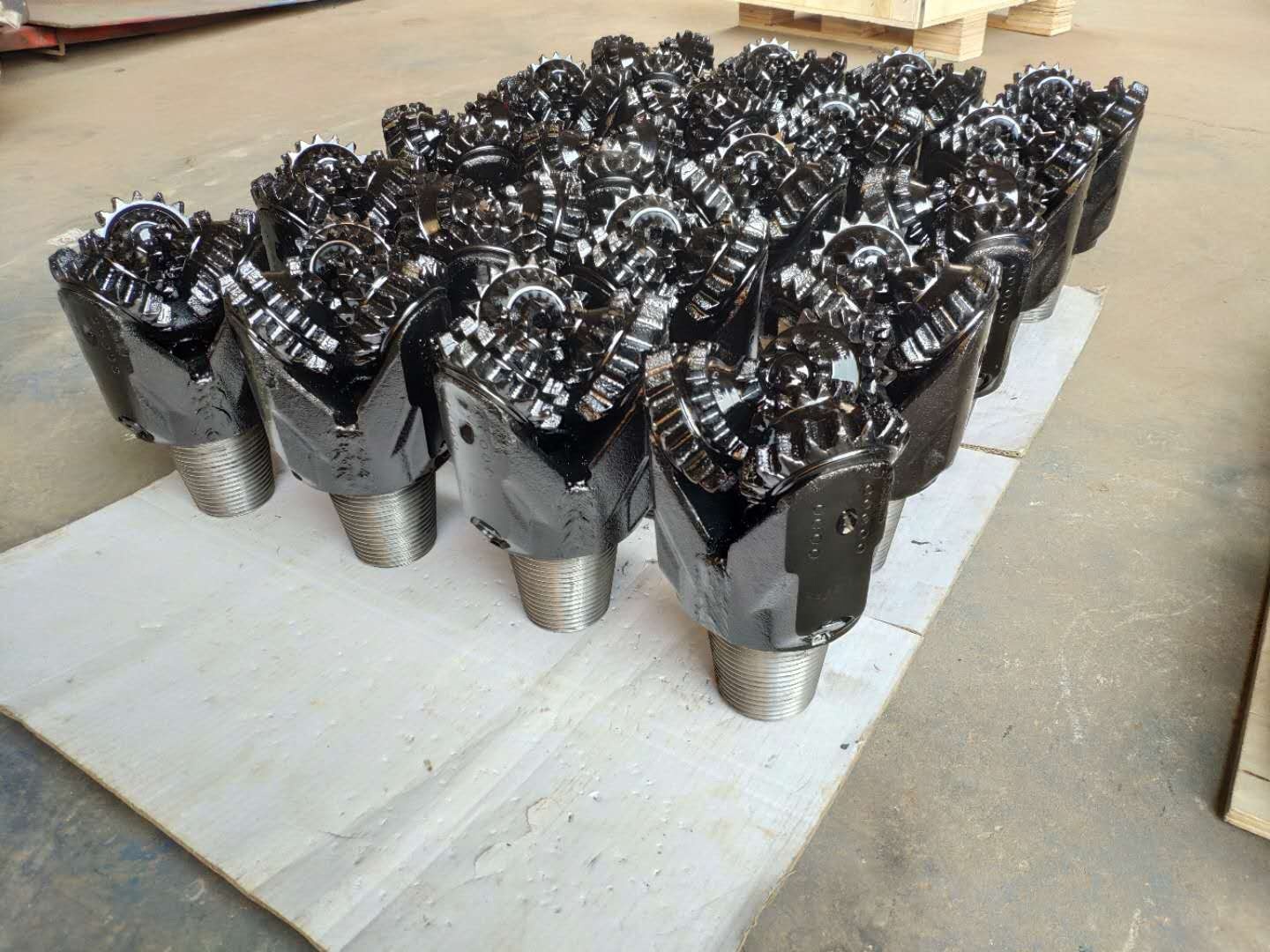

Drilling Bit: rock roller bit,tricone bit,PDC drill bit,single bit,cone bit and hole opener and trenchless bit;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket,overshot,reversing sub,die collar, fishing tap etc.

certification

OUR CERTIFICATION

All of our products have been subjected to rigorous quality testing and all have met API standards, ensuring that all products
sold are of high quality.

Packing& Shipping

Packing&Shipping

Air transport is fast and highly mobile.In addition,the ground operation process is strict,so the damage rate is very low and the
safety is good. However , the air freight is higher. If time is limited, please choose air transportation.

Sea freight is lower than air freight, but it takes longerIf the goods are large and heavy, the sea freight may be your best
choice.

.Wood has good cushioning,hygroscopicity, corrosion resistant. Wooden cases can be suitable for all sizes of goods,and can be damp proof and shockproof.

1.Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, and we have builded up our company since 1998.
2.Q: What should I provide if I want my own packaging or printing?
A: Usually you can provide us information either the three ways listed below:
1. sample product for us to copy.
2.layout or 3D drawing of the product or design.
3. the size of the drill bits or hole opener (reamer).
