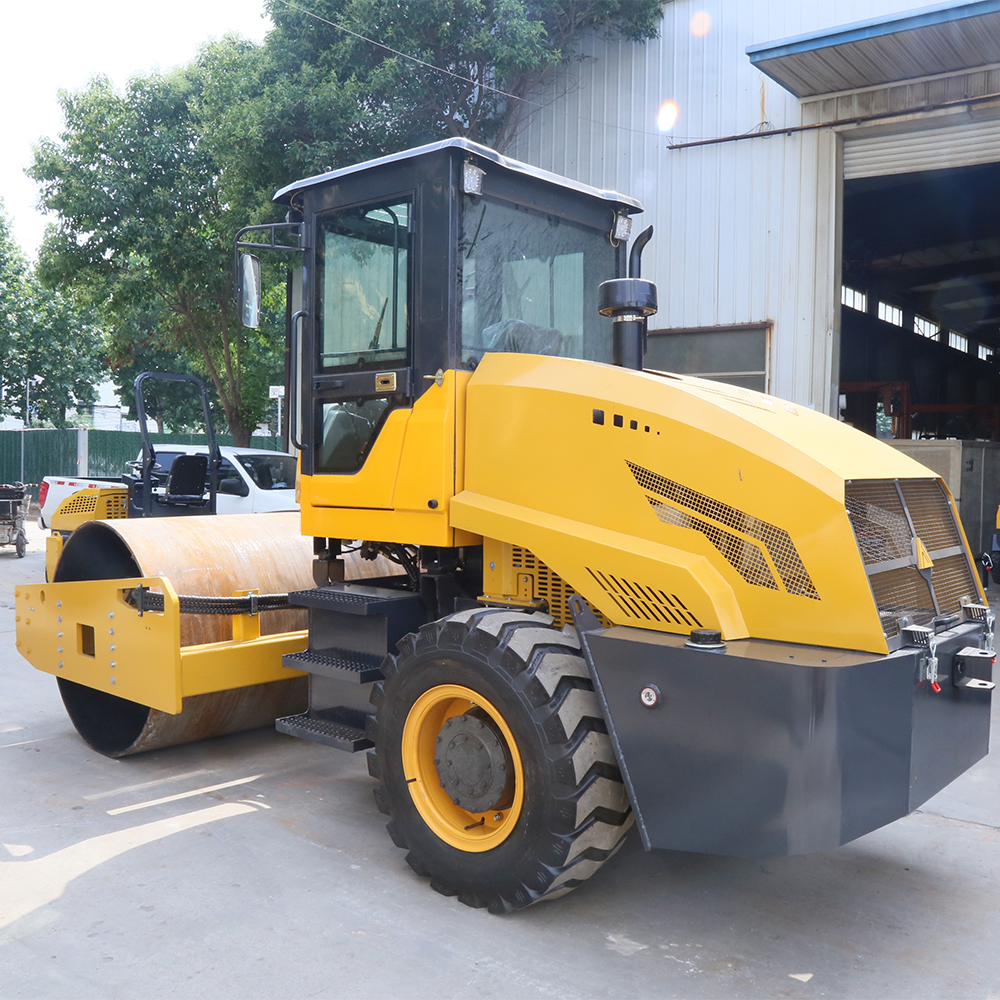

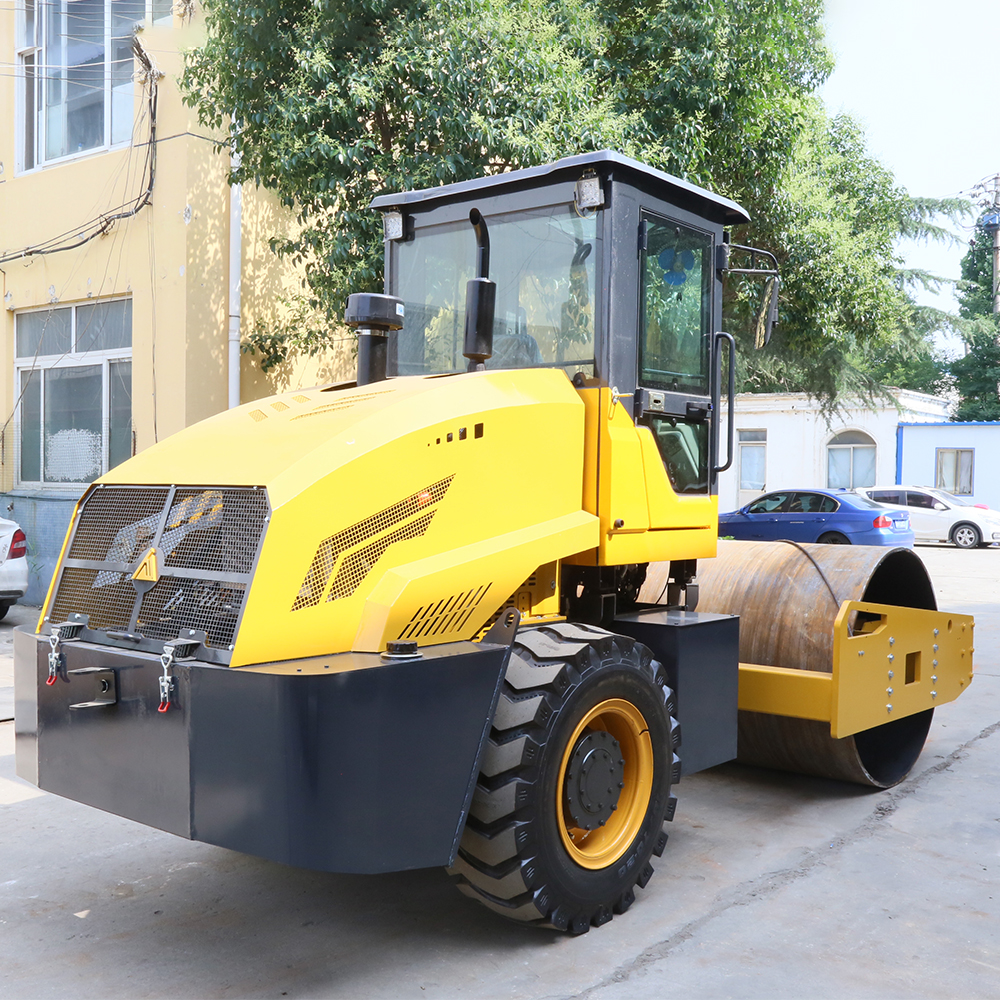

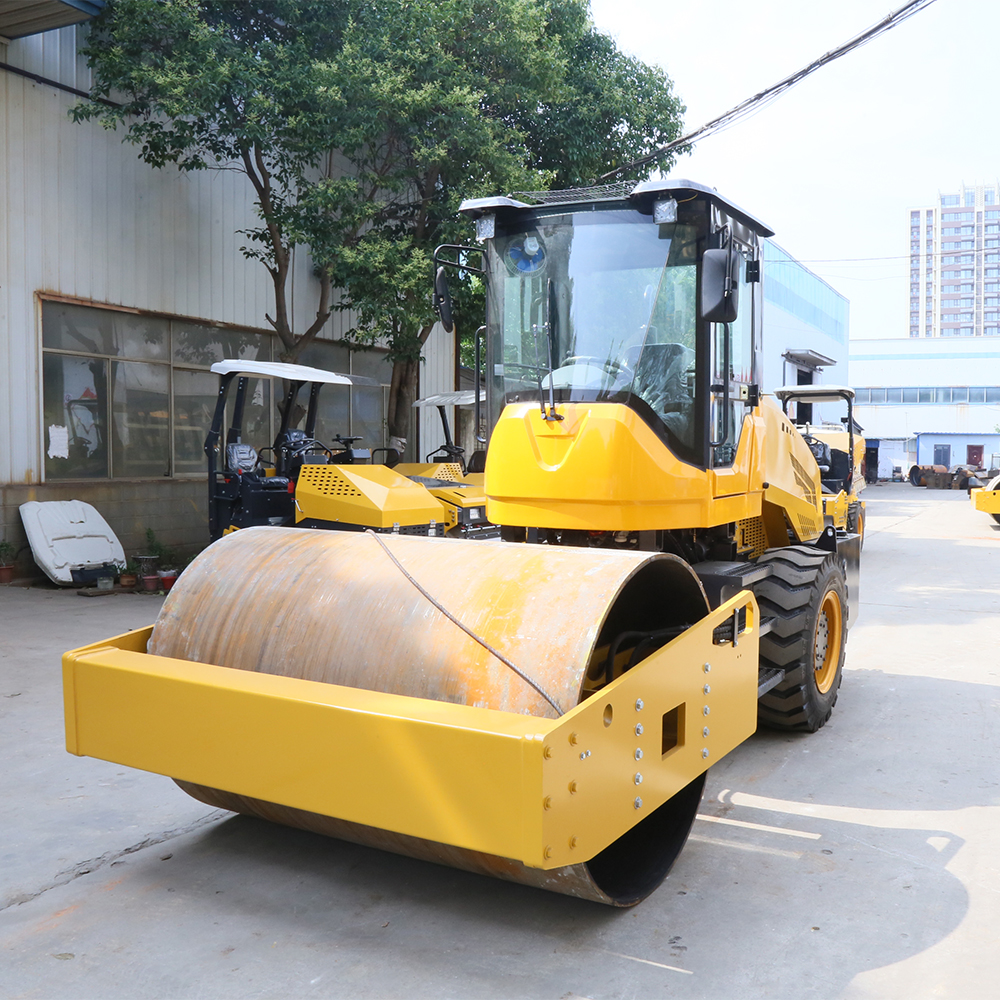

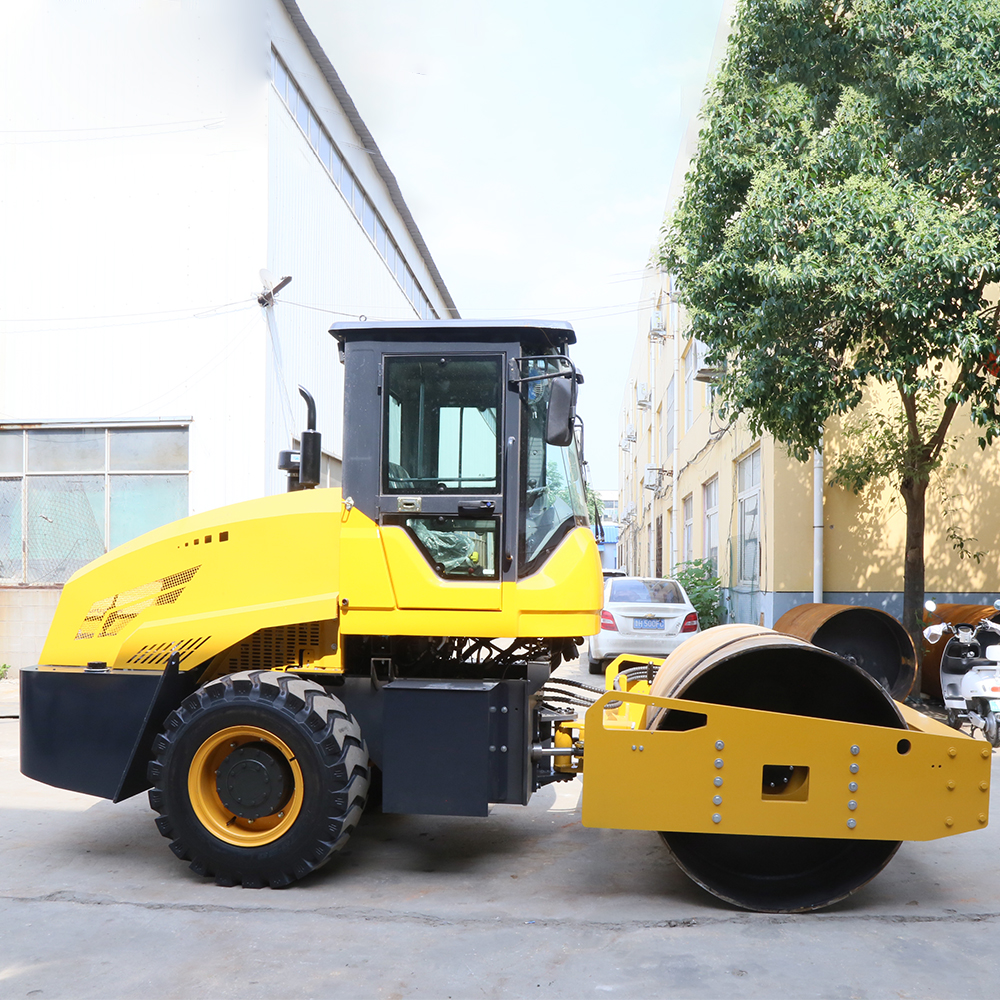

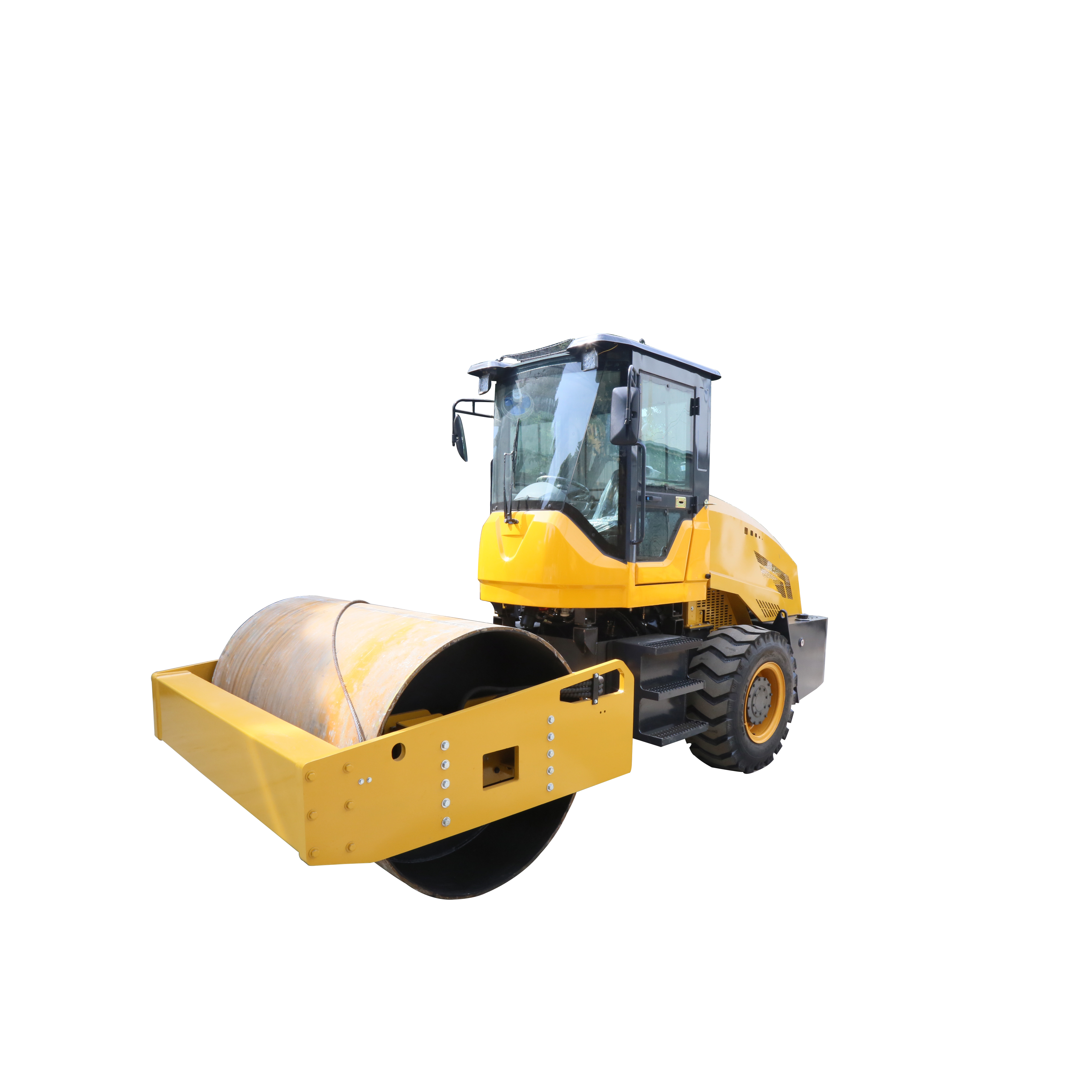

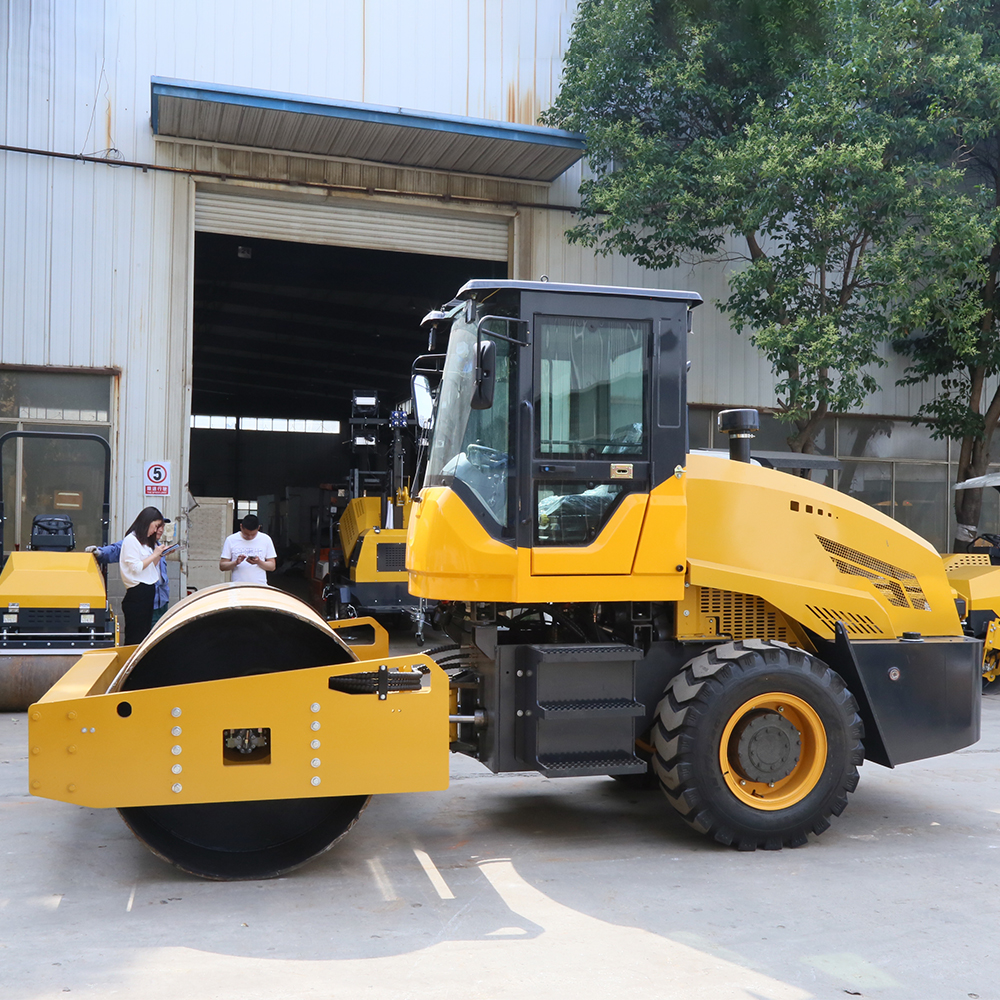

8 Ton Hydraulic Vibrating Road Roller - Luxin Manufacturer
$10500.00
≥1 unit
$8800.00
≥2 unit
$6500.00
≥3 unit
Static linear pressure:
- 70KN
- 220KN
- 260KN
- 300KN
Options:
- Diesel Engine
- Gasoline Engine
Get Latest Price
You might also like
Basic Info
| Type | Vibratory Roller |
|---|---|
| Travel Speed | 0~4km/H |
| Grade Ability | 55° |
| Place Of Origin | Shandong, China |
| Brand Name | LUXIN |
Show More
Product description
Product Paramenters
The roller compactor is a mechanical equipment used for compacting soil, asphalt, and other road surfaces. It uses heavy steel wheels or rubber wheels to compact the road materials through vibration and static pressure, achieving increased road density, smoothness, and load-bearing capacity. Roller compactors are widely used in highway construction, municipal engineering, and large-scale infrastructure projects.
1.Mainly used in auxiliaryroads, pipeline earth-work backfill, under-ground parking lots,rural road earthwork,and gravel foundationcompaction
2.The cab is spacious andbright, supporting nightcompaction operations.
3.It has the characteristicsof strong climbing abilityand strong power.
4.Hydraulic vibration, continu-ously variable speed

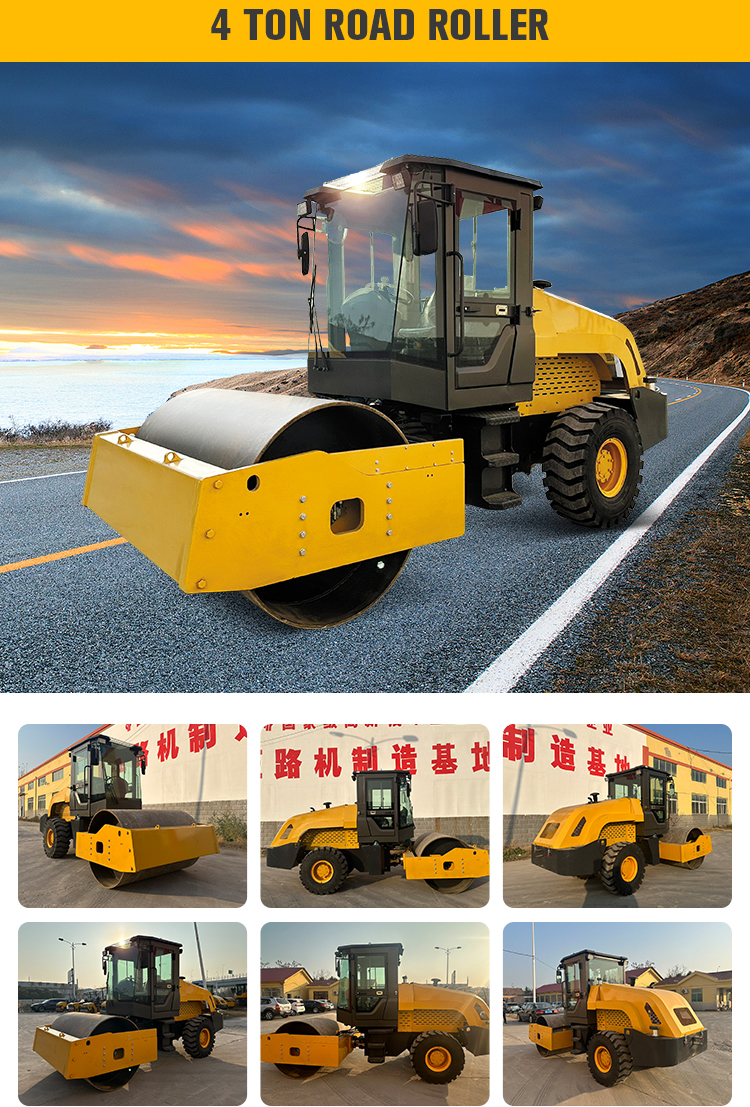

Static line load | 236N/cm | Engine model | 4b2-50v32 | |||
Nominal amplitude | 0.5mm | Power | 50hp/2400rpm | |||
Vibration frequency | 45Hz | Fuel tank capacity | 60L | |||
Violent force | 70KN | Lubricating oil quantity | 8.9L | |||
Speed | 0-18km/h | Drum wheel width | 1450mm | |||
Turning radius | 2350mm | Steel wheel diameter | 1000mm | |||
Theoretical climbing ability | 30° | Wheelbase | 2350mm | |||
Machine size：4500*1650*2670mm | Machine size | 4500*1650*2670mm | ||||
1.The steering wheel can adjust angle according to the need of the driver.
2.Control handle, display, etc. are arranged on the right side to broaden the front view.
3.Speed frequency management system guides the user to compaction operation.
4.Guiding the user to improve operation efficiency.

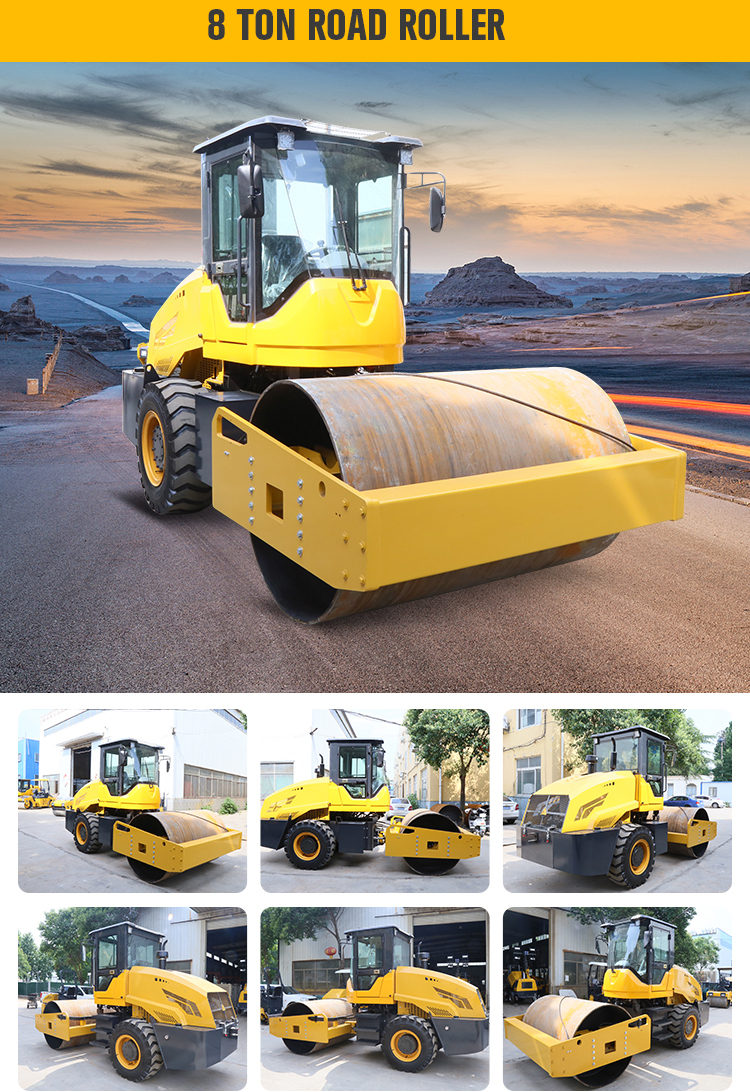

Static line load | 296N/cm | Engine model | 4b2-50v32 | |||
Nominal amplitude | 0.5mm | Power | 50hp/2400rpm | |||
Vibration frequency | 45Hz | Fuel tank capacity | 130L | |||
Violent force | 220KN | Lubricating oil quantity | 8.9L | |||
Speed | 0-15km/h | Drum wheel width | 1650mm | |||
Turning radius | 2965mm | Steel wheel diameter | 1100mm | |||
Theoretical climbing ability | 55° | Wheelbase | 2350mm | |||
Machine size：4535*1820*2760mm | ||||||
1. The vibrating drum finds the sweet spot in the four-in-one combo.
2. Making sure we don't squash too hard or too soft.
3. We use hydrostatic drive for moving around and both front and rear drums push hard for better climbing ability.
4. Switching speeds is a breeze with electronic controls, making everything smooth and easy.

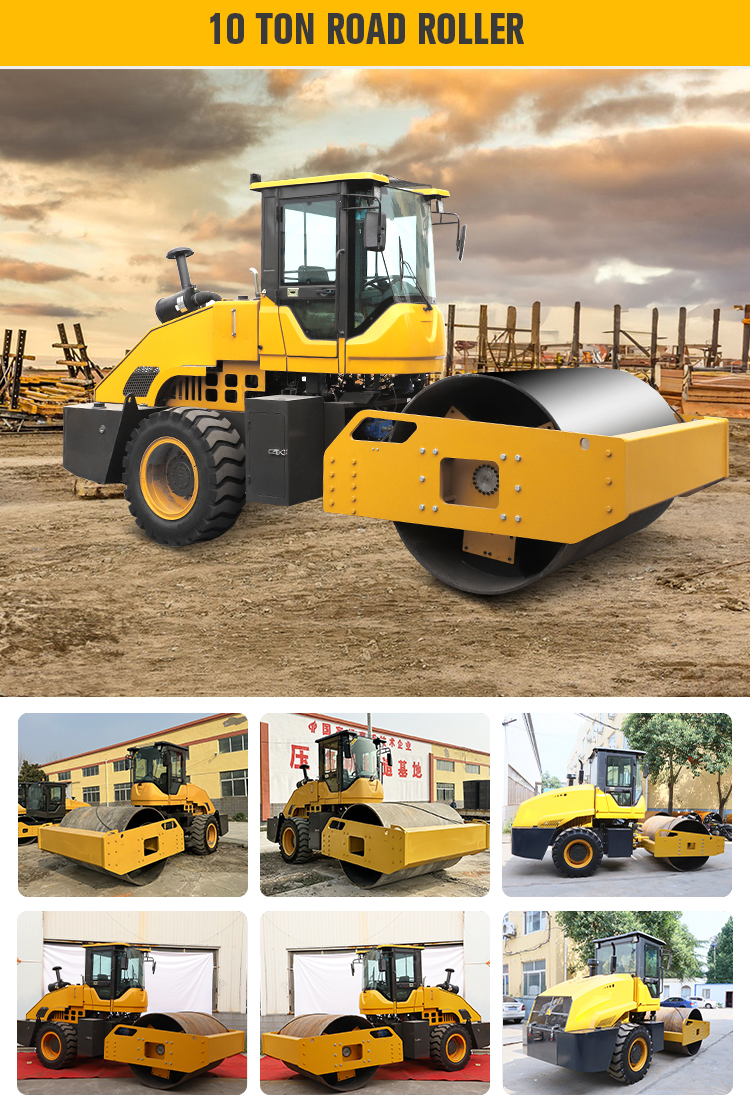

Static line load | 285N/cm | Engine model | 4g33TC | |||
Nominal amplitude | 0.5mm | Power | 102hp/2400rpm | |||
Vibration frequency | 45Hz | Fuel tank capacity | 130L | |||
Violent force | 260KN | Lubricating oil quantity | 9.6L | |||
Speed | 0-15km/h | Drum wheel width | 1850mm | |||
Turning radius | 2980mm | Steel wheel diameter | 1200mm | |||
Theoretical climbing ability | 30° | Wheelbase | 2980mm | |||
Machine size：5100*2010*2670mm | ||||||
1. The two-speed system makes sure we work at just the right speed for any job.
2. Steering is a breeze with our fully hydraulic system that's super flexible.
3. Our sleek new design gives the machine a smooth and classy look.
4. The cab is comfy with plenty of space and great visibility thanks to its unique shape.
Static line load | 334N/cm | Engine model | YCD4T33T6-115 | |||
Nominal amplitude | 0.4mm | Power | 117hp/2400rpm | |||
Vibration frequency | 37.5Hz | Fuel tank capacity | 75L | |||
Violent force | 300KN | Lubricating oil quantity | 11L | |||
Speed | 0-15km/h | Drum wheel width | 2130mm | |||
Turning radius | 3100mm | Steel wheel diameter | 1400mm | |||
Theoretical climbing ability | 55° | Wheelbase | 3160mm | |||
Machine size：5610*2300*2700mm | ||||||

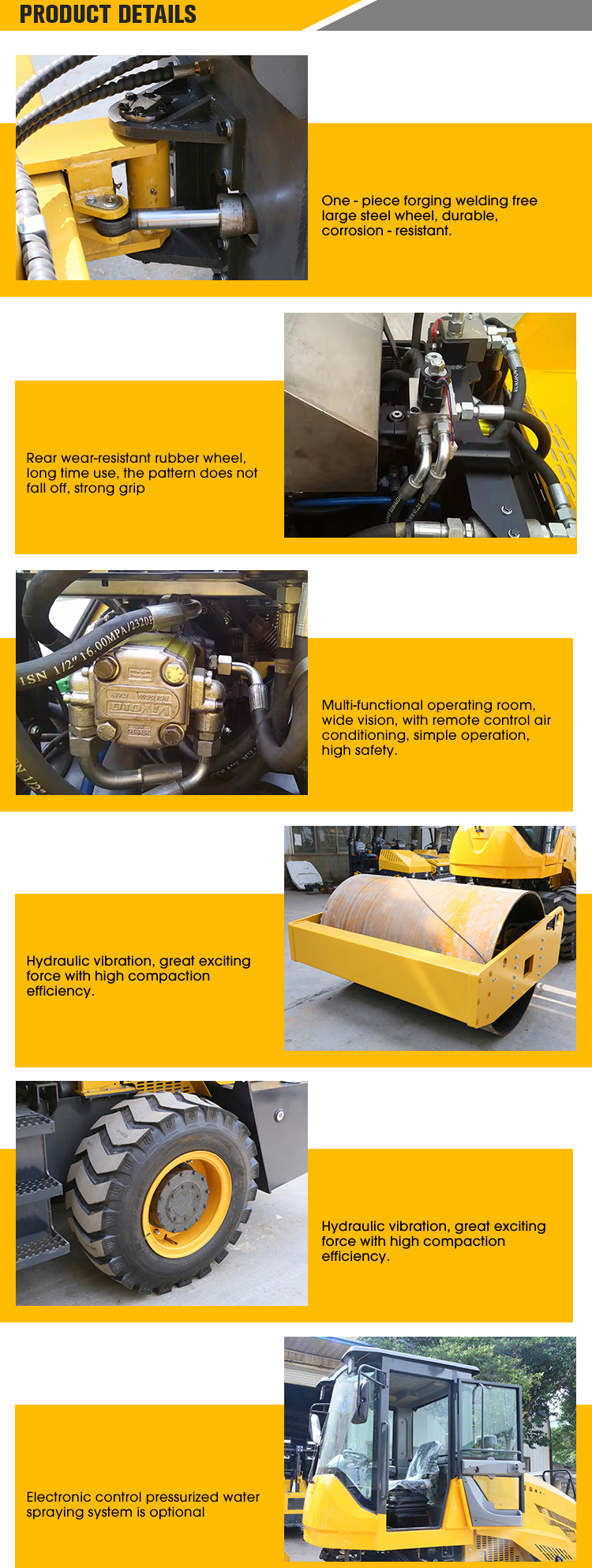

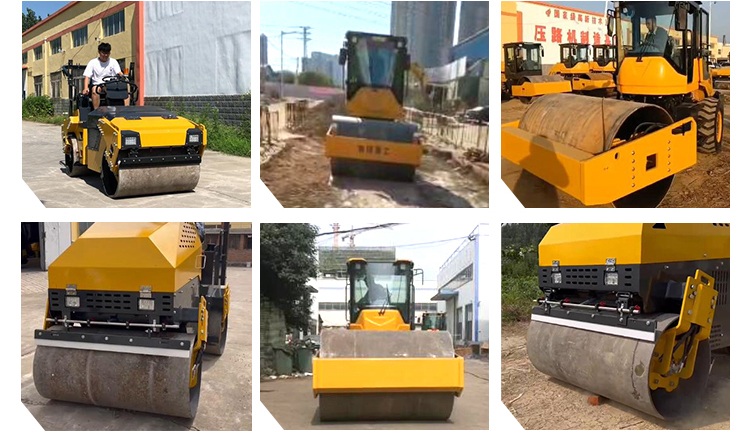

Product Details

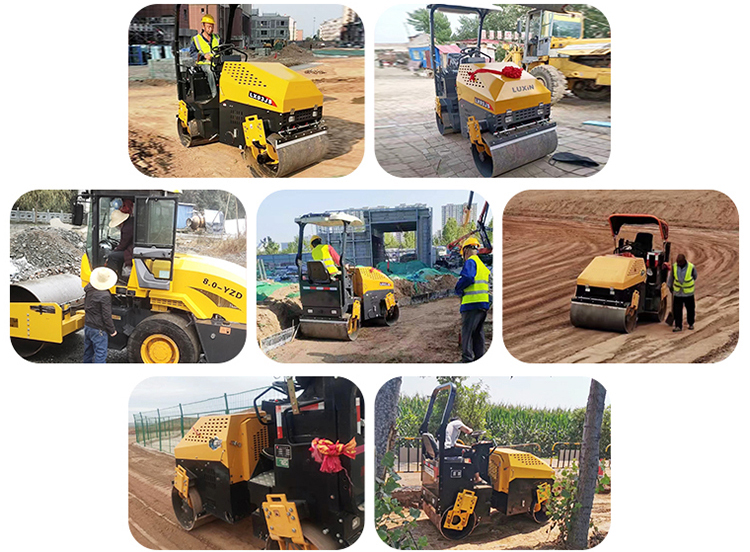

Application
Mainly used for narrow construction site earth compaction. Such as: high-rise building basement, sidewalk, residential area road infrastructure compaction, garden walkway, all kinds of lawn, pipe ditch, rural roads, highway compaction.
Buyer Feedback
Packing & Delivery
Packaging type
1.No fumigation wooden box
2.Standard exported nude packed for fcl (full container load)
We can ship your goods
1.To destination sea port by sea
2.To destination inland port by sea + railway or trailer
3.To your door by sea + railway or trailer (but not recommended, not economical)
4.To your door by land express
5.Door-to-door delivery

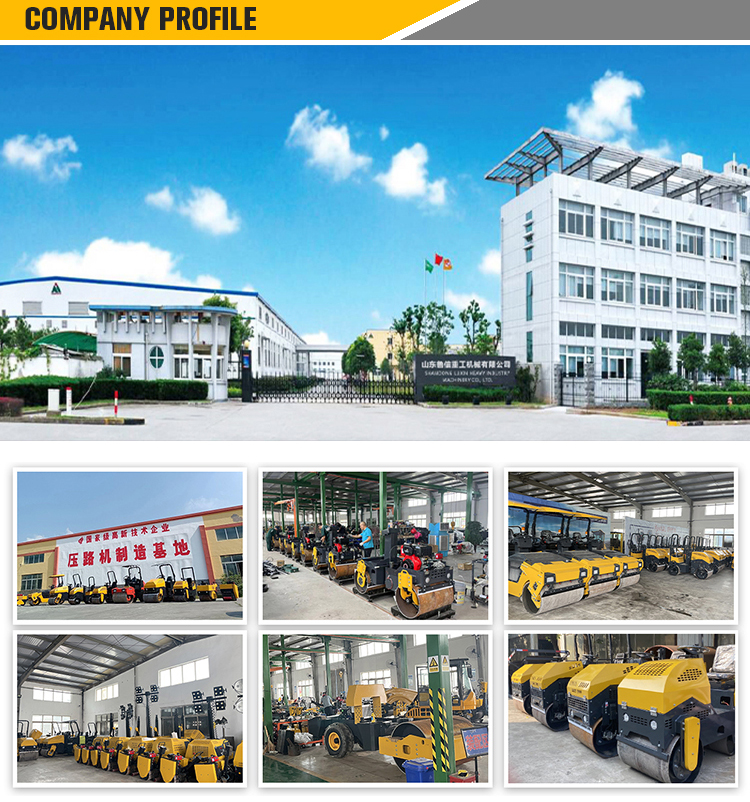

Shandong luxin heavy industry co, ltd.Is located in jining, shandonga famous construction machinery manufacturing base in china. Closeto the bejing-kowloon, beijing-shanghal, bejing-fuzhou railway andthe beijing-hangzhou grand canal that run through the north andsouth the superior geographical location provides convenienttransportation conditions for the majority of customersjiushan heavy industry is a high-tech enterprise integrating aggregateindustry, and trade since its establishment, the company has focusedon designing,developing,and manufacturing small and medium-sizedroad rollers.Now t has an annual production capacity of 5000 roadrollers and has unique competitive and product advantages.
Certificate
Q1. What is the advantage about your company?
A1.Our company has professional team and professional production line.
Q2. Why should l choose your products?
A2.Our products are high quality and low price.
Q3.The logo and the color can be customized?
A3.Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4.Yes,we can provide good after-sale and fast delivery.
Q5. What is your MOQ?
A5: Mostly no MOQ. Sample Order is available.
Q6. What about the delivery time?
A6: We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.
