8mm Left and Right Hand Ballscrew Kit
Get Latest Price
You might also like
Basic Info
| Model No. | MIF0801RL |
|---|---|
| Brand Name | HOJAMA |
| status | New |
| Applicable industry | Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory |
| Out-of-warranty service | Video Technical Support, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Show More
Product description

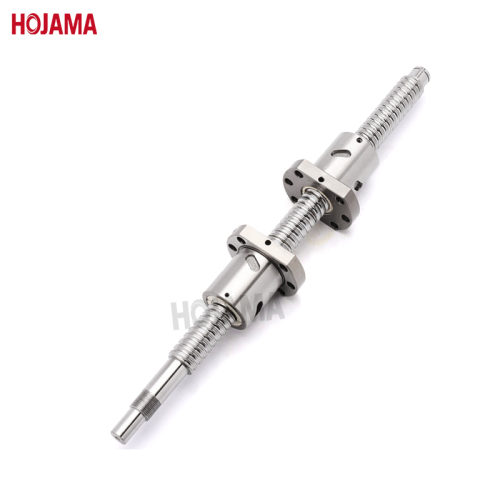

MIF0801RL——high-precision 8mm diameter bi-directional ball screw
?
The bidirectional ball screw is a high-precision linear transmission component widely used in industrial automation, precision machine tools, and mechatronic systems. Its core design revolves around the synergistic operation of the ball screw and ball nut, which together enable efficient, low-friction bidirectional linear motion—addressing the key demand for precise reverse movement in complex mechanical systems.?
?
At the heart of the two-lead ball screw lies a specialized screw shaft with symmetric left-hand and right-hand thread grooves, paired with two matching ball nuts. When the screw shaft rotates, one ball nut engages with the right-hand thread to move linearly in one direction, while the other ball nut interacts with the left-hand thread to drive motion in the opposite direction—eliminating the need for additional reversing mechanisms and simplifying the overall mechanical structure. This integrated design of the ball screw and ball nut not only reduces component count but also minimizes backlash, a critical factor for maintaining positioning accuracy in high-cycle applications.?
?
Compared to traditional lead screws, the bidirectional ball screw leverages rolling contact between the screw’s thread grooves and the precision balls within the ball nut to drastically lower friction. This rolling mechanism boosts transmission efficiency to over 96% while reducing wear and tear. Additionally, the bi-directional screw design allows for independent control of each ball nut, enabling synchronous or asynchronous bidirectional motion based on application requirements.?
?
In terms of performance metrics, the right and left-hand ball screw excels in positioning accuracy and repeatability, thanks to tight tolerances in the ball screw and ball nut manufacturing process (e.g., ground thread profiles and hardened materials like bearing steel). It also supports high-speed operation and high axial load capacities, making it suitable for both lightweight precision tasks (e.g., semiconductor wafer handling) and heavy-duty applications (e.g., hydraulic press actuation).?
?
To ensure reliability, the bidirectional ball screw is often equipped with advanced ball circulation systems (such as end-cap or deflector-type designs) within the ball nut, preventing ball jamming and ensuring smooth motion even under variable loads. Optional features like preloading (via double-nut or offset-nut configurations) further enhance rigidity, while corrosion-resistant coatings extend usability in harsh environments.?
?
?Besides the bi-directional ball screws, Hojama ball screws include miniature ball screws, precision ball screws, and rolled ball screws... Upgrade your machinery with us! (The price on the page is not the final price, please take the product drawing(PDF) and contact us)
?
?
?
?
