Advanced T Series Automatic Stretch Wrapper

1 / 1

Advanced T Series Automatic Stretch Wrapper

Get Latest Price

Basic Info

Model No. T2000FZ-PL
Brand Name Sinolion

Product description

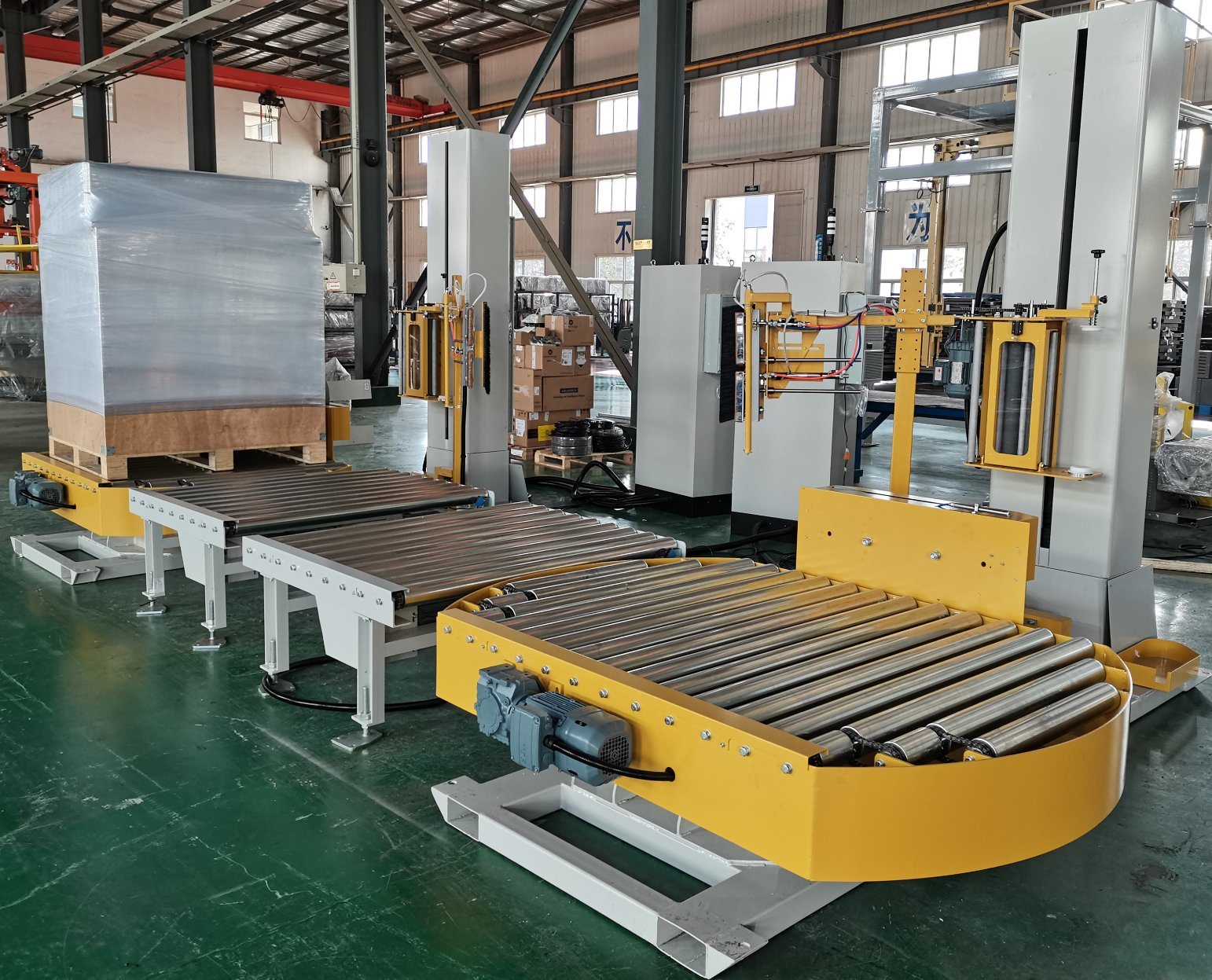

Automatic Pallet Wrapping Machine with Rotating Turntable
?
The pallet rotates on the turntable while stretch film is pre-stretched and applied.
?
Supply Scope
?
1.1 Mast – 1 set
?
· Height: 2800mm (designed according to packing height and conveyor height)
?
· With film carriage
?
1.2 Film Carriage – 1 set
?
· Position: Front of the tower
?
· Film thickness: 14-35μm
?
· Film width: 500mm
?
· Core ID: 76mm | OD: 240mm
?
· Max weight: 13.8kg
?
· Type: Sinolion standard, powered pre-stretch 250% (1:3.5)
?
· Motor: SEW brand, 0.37kW
?
· Lifting drive: Chain drive (good stability, high reliability)
?
1.3 Turntable – 1 set
?
· Height: 600mm
?
· Diameter: 2000mm
?
· Roller: Dia. 76mm, driven at max 18m/min
?
· Turntable speed: max 15rpm
?
· Drive: Slew bearing, max load 2000kg
?
1.4 Film Delivery Device – 1 set
?
· Auto cutting and clamping after wrapping
?
· Hot melt cutting wire with heating block for sealing
?
· Pneumatic components: SMC brand
?
1.5 Control System – 1 set
?
· Sinolion standard control cabinet
?
· PLC system with software package (backup and print version to be provided)
?
· Main components: HMI, PLC cabinet, power cabinet, inverter cabinet, field control box, emergency stop, photocell, proximity
?
switch, cooling fans, control switch, lamp, buzzer alarm, etc.
?
· Control cabinet and power cabinet installed in control room
?
· PLC system with HMI adjustable for wrapping layers, cycles, and top wrapping time
?
· Can be integrated with customer control system for smooth DMS operation
?
· Safety command can be added via PLC extension module
?
· Photo-eye automatically detects pallet height and length
?
· Single-direction valve stops air release when pressure is unstable
?
· Independent speed adjustment for turntable, conveyor, and film carriage lifting
?
· Film delivery speed adjustable; alarm when film break/off
?
· Pause/manual/automatic switch function for better operation
?
· Compressed air to be supplied by end user to stop valve inlet
?
· Self-diagnosis system: acoustic and lighting alarm for any failure
?
· CPU PLC: 15% margin of working capacity
?
· I/O points: 15% margin of working capacity
Automatic pallet wrapping machine with rotating turntable56Automatic pallet wrapping machine with rotating turntable2Automatic pallet wrapping machine with rotating turntable3(1)
