Advanced Technical Ceramics Arm in Semiconductor Industry

We offer a wide range of ceramic products for the semiconductor industry including: Photovoltaic Equipment Ceramics,

Ceramic Arm, Ceramic Wafer, Ceramic Plate and Ceramic-to-metal Assemblies, etc.

Advantages offered:

1. Dimensional stability.
2. Corrosion resistance.
3. Mechanical strength.
4. Electrical insulation.
5. High temperature resistance.

Global Semiconductor Industry Trends:

The global semiconductor industry is expected to witness a CAGR of 4.3% over the next five years and reach an estimated

$394 billion in 2017. Global macroeconomic developments and technological advances, personal computers, and memory

markets are expected to drive demand over the forecast period.

To find out more, contact us right now without hesitating!

Properties Sheet:

The products are made of high purity Zirconia ceramics (Zro?) and Alumina Ceramics (Al?O?) material, which have

advanced and excellent performances, fabulously popular  .

Properties	Units	95 Alumina	99  Alumina	ZrO2
Density	g / cm3	3.65	3.9	5.95-6.05
Water absorption	%	0	0	0
Coefficient of thermal expansion	10-6/K	7.9	8.5	10.5
Modulus of Elasticity Young's Mod	GPa	280	340	210
Poisson's ratio	/	0.21	0.23	0.3
HV Hardness	MPa	1400	1700	1300-1365
Flexural Strength @ room temperature	MPa	280	320	950
Flexural Strength @700°C	MPa	220	230	210
Compressive Strength @ room temperature	MPa	2000	2200	2000
Fracture Toughness	MPa *m 1/2	3.8	4.3	10
Heat conductivity @ room temperature	W/ m*k	18-25	26-30	2-2.2
Electrical Resistivity @ room temperature	Ω*mm2 /m	10^15	10^16	10^15
Max use temperature	°C	1850	2200	1500
Resistance to acid alkaline	/	high	high	high
Dielectric Constant	/	9.5	9.8	26
Dielectric  Strength	KV/mm	10	10	10
Thermol Shock Resistance	△ T ( °C )	220	190	280-350
Tensile Strength @ 25 °C	MPa	200	248	260
Thermal Conductivity(25℃)	W/m·K	30	35	3

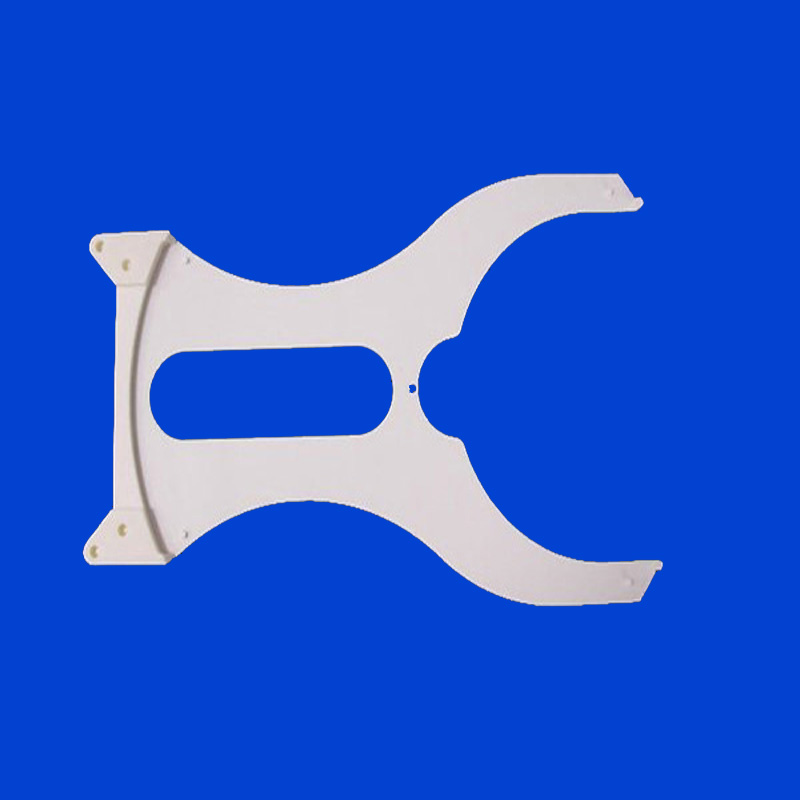

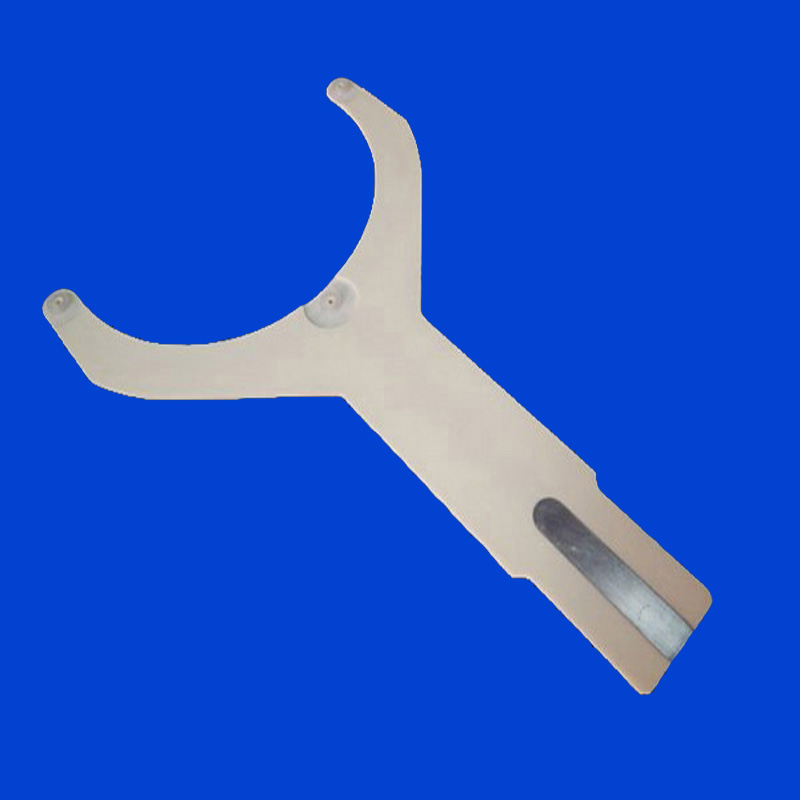

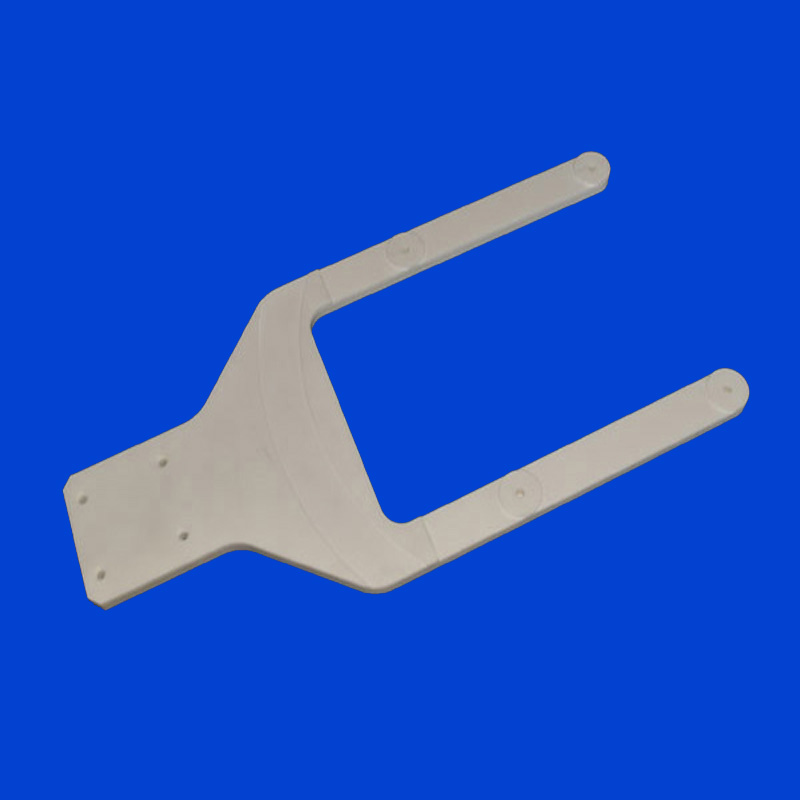

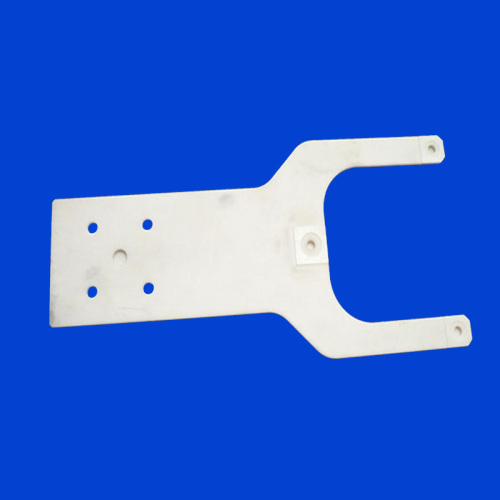

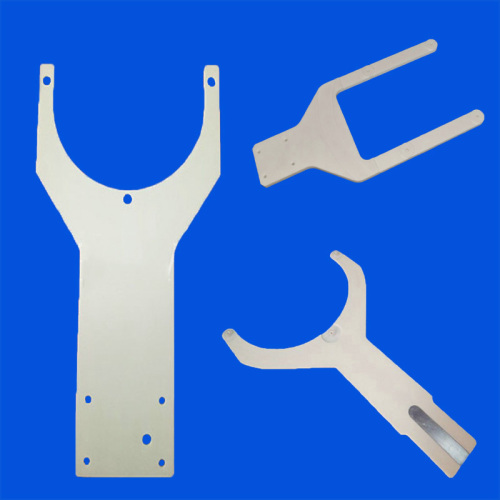

Detailed Images:

Advantages of semiconductor ceramics:

1. Refractory.
2. Self Lubricating.

3. Long Service Life.
4. Good Polished Surface.

5. Environmental and Healthy.
6. Superior Mechanical Strength.
7. High Corrosion and Wear Resistance.
8. Good Insulation Performance Precision.
9. High Temperature and Pressure Resistance.
10. High Purity Zirconia and Alumina Ceramic Material.

• High hardness, long service life, not easy to break and wear resistance.
• Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
• Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

Production process:

One-stop production, from the raw material (powder) to final products, control the quality strickly of every production link.

Packaging and Shipping:

Semiconductor ceramic arm will be packed in a bubble bag individually, then put in standard export carton packing,

or OEM packing.

Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.

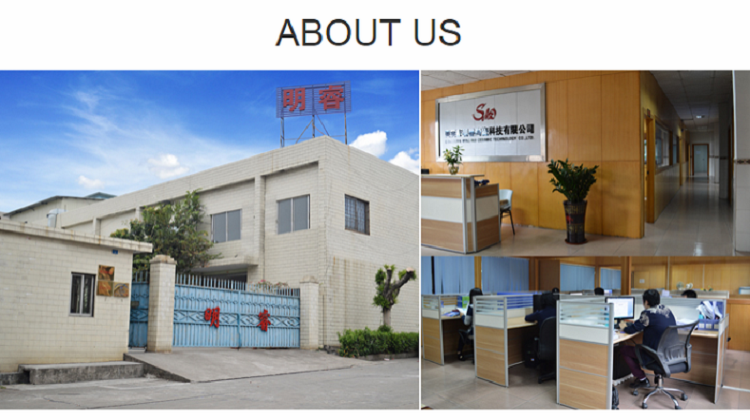

Company information:

Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many years. And
very advanced technologies in the production of Zirconia Ceramic Rod and Alumina Ceramic Rod, Zirconia
Ceramic Ring and Alumina Ceramic Ring , Zirconia Ceramic Tube and Alumina Ceramic Tube, Ceramic
Pin, Ceramic Shaft, Ceramic Plate And Block, Ceramic Sleeve, Ceramic Injector Nozzle, Ceramic
Dispensing Valve, Ceramic Injection Pump, Ceramic Plunger Pump, Ceramic Piston, Ceramic Stick ,
Ceramic Washer, and Semiconductor Industry Ceramics, Machinable Ceramic Part, Ceramic Electronics
Accessories, etc..

They are applicable to Electrical, Appliance, Mining, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,
even other high-end fields.

We can make the product according to your drawings, custom the size, shape, color and thickness etc..

Our products with some certificates, such as SGS, CE, TUV, etc..

To find our more, pls contact us right now without hesitating!

Workshop overview:
We have almost all the precision processing machines of ceramic products.
