Alushine Sanwiches ACP is a dual sided sheet with one side in high gloss and the reverse in matte finish. Particularly suited to high wear environments, this robust Aluminum Composite Panel is the premium quality product is the range.

Alushine Aluminum Composite Sheet  combines durability with flexibility. The ACP consist of a polyethylene core sandwiched between two aluminum skins. With the ability to be fabricated, folded and formed and with an extensive range of colours and finishes.

Application:

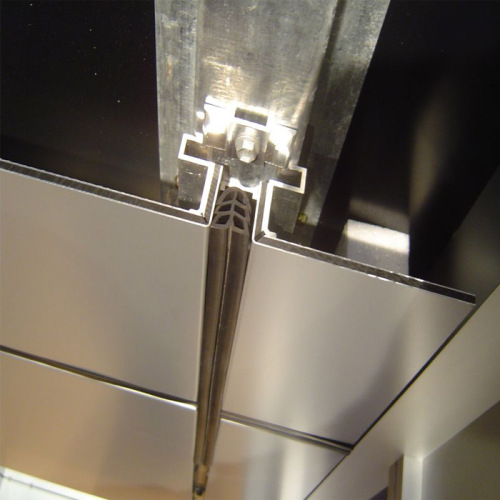

   1)  Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices,

       Banks, hotels, restaurants and apartments

   2)  Indoors decoration for interior wall, ceiling, bathroom, kitchen, balcony

   3)  Advertisement board, display platforms, billboards and signboards

   4)  Wallboard and ceilings for tunnels
   5)  Material used for vehicle bodies, yachts and boat and subway

Technical Specifications
Panel Thickness (mm)	2, 3, 4, 5, 6, 7, 8
Aluminum Skin Thickness (mm)	0.21; 0.30; 0.40; 0.50
Standard Sizes (mm):	1000x2440   1000x3050  1220 x 2440  1220 x 3050
	1500 x 3050  1500 x 4050 2000 x 3050   2000 x 4050
Dimensional Tolerances:
Thickness (mm)	± 0.2
Width (mm)	± 2
Length (mm)	± 3
Diagonal (mm)	± 5
Thermal Expansion	2.4mm/m @100?C Temp Difference
Aluminum Thickness (mm)	Where applicable as specified in EN485-4
Surface Properties:
Paint Thickness (micron)	20
Pencil Hardness	>HB
Toughness of Coating	3T
Temperature Resistance	-50?C to +90?C
Impact Strength (kg cm2)	50
Boiling Water Resistance	Boiling for 2hrs without change
Acid Resistance	Immerse Surface in 2% HC1 for 24hrs without change
Alkali Resistance	Immersed surface in 2% NaOH for 24hrs without change
Oil Resistance	Immerse Surface in 20# engine oil for 24hrs without change
Solvent Resistance	Cleaned 100 times with Dimethylbenzene without change
Cleaning Resistance	>1000 times without change
Peel Strength 180?	>5 Newton / mm

Panel Thickness Properties (mm)	2	3	4	6	8
Sound Absorbtion NRC	0.05
Sound Attenuation Rw db	23	24	25	26	27
Water Absorbtion % By Volume	0.01
Thermal Performance R Values	0.0047	0.008	0.0113	0.018	0.0246
Core Composition	LDPE
Tensile Strength	149MPa

Package & Loading
