Angle Degree Cast Iron Triangular Master Ruler
$100.00
≥1 piece
$50.00
≥3 piece
$30.00
≥5 piece
Options:
- Blue
Basic Info
| Warranty | 3 month |
|---|---|
| Customized support | OEM, ODM, OBM |
| Place of Origin | Hebei, China |
| Brand Name | HENGFENG |
| Model Number | Cast Iron Right Angle Ruler-1 |
Product description

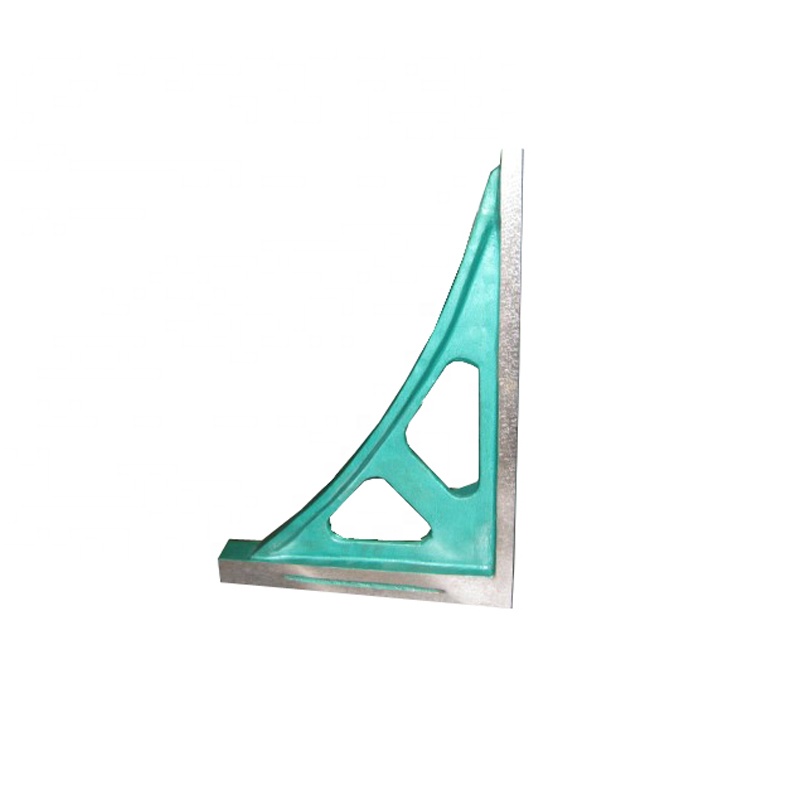

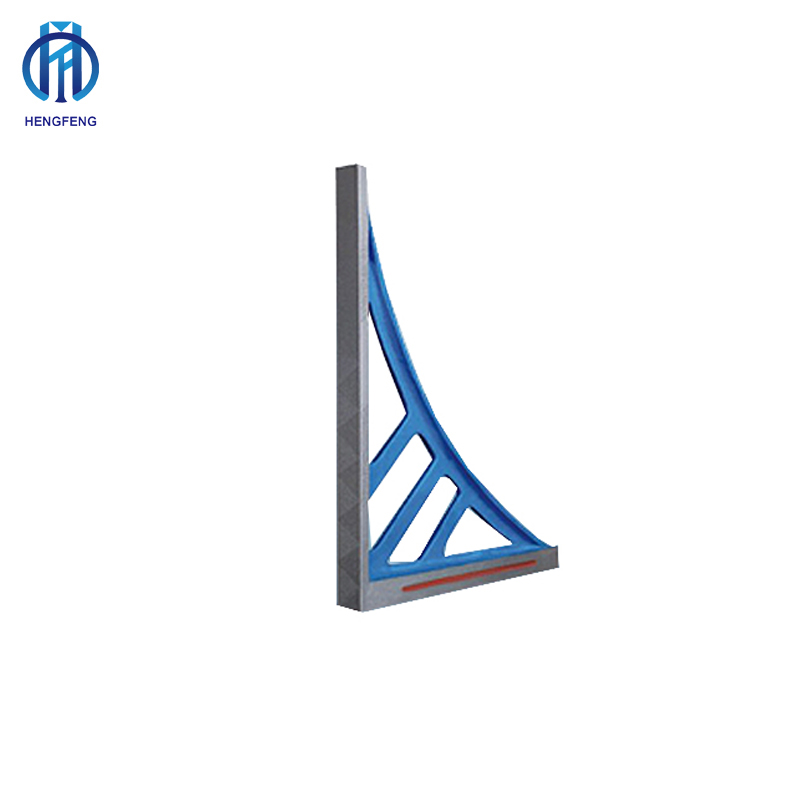

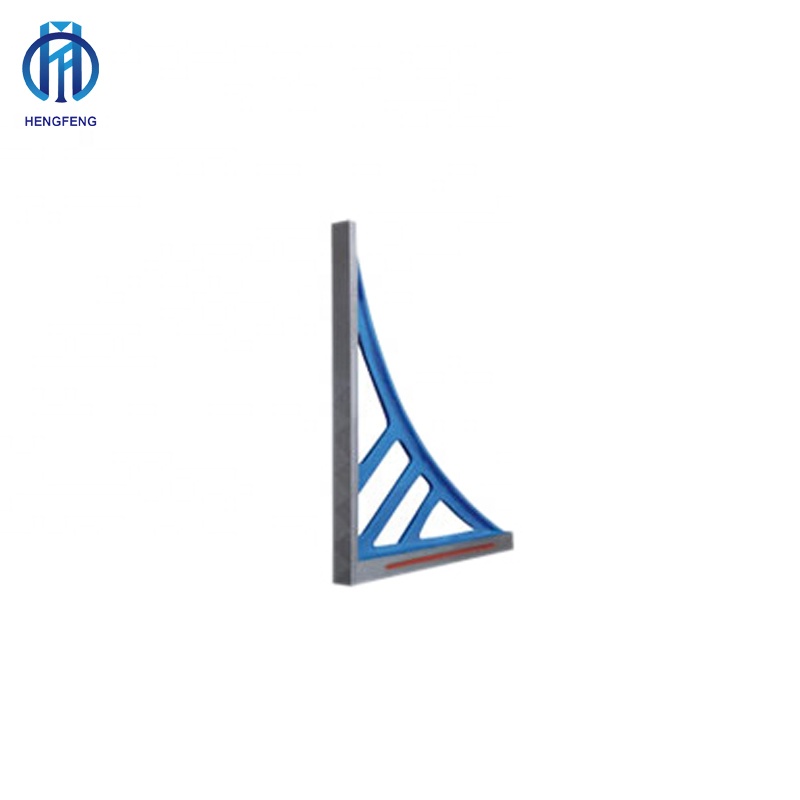

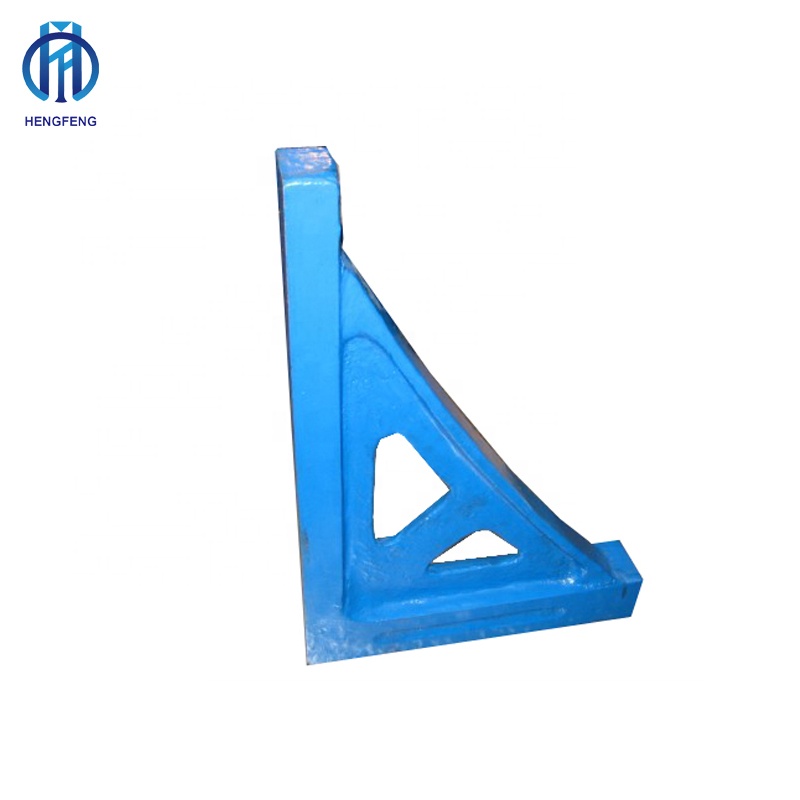

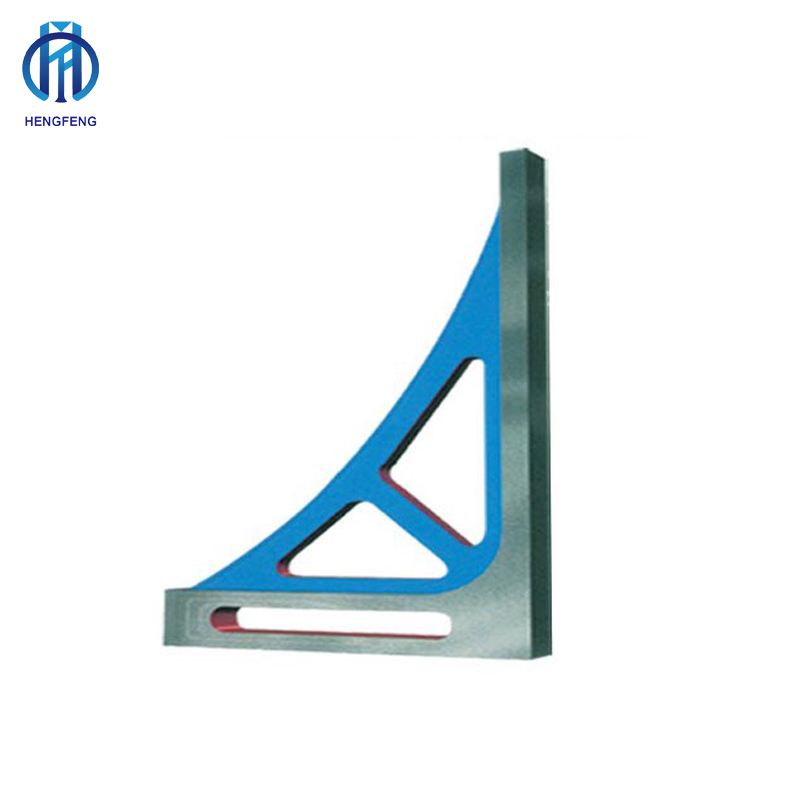

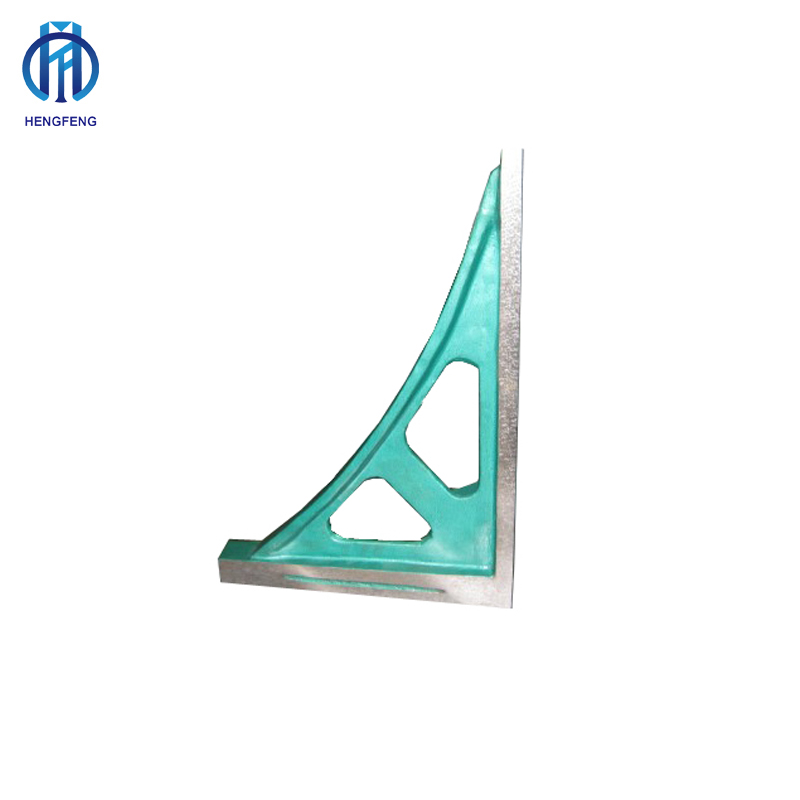

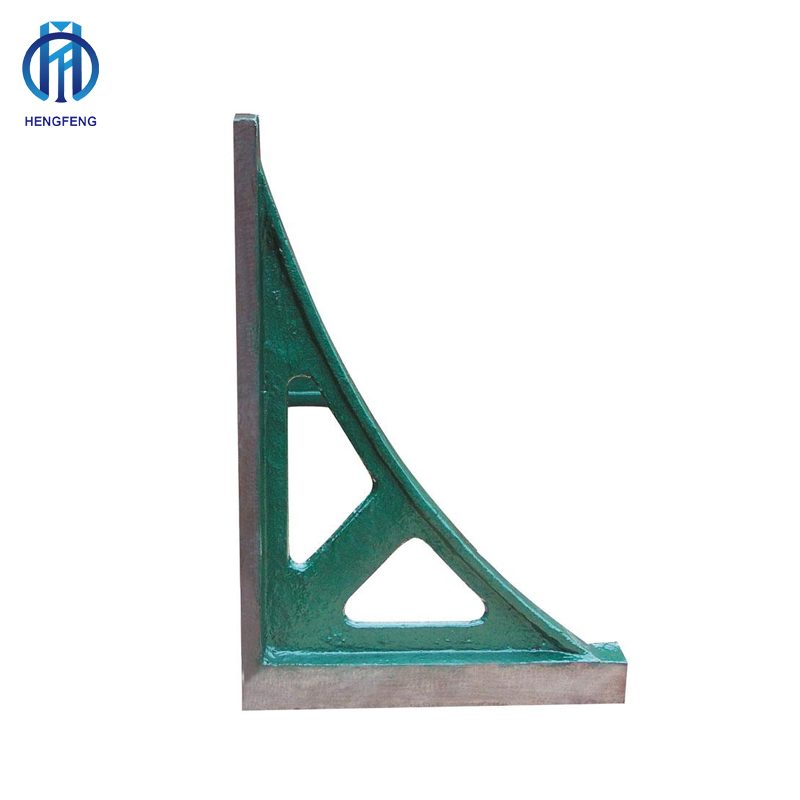

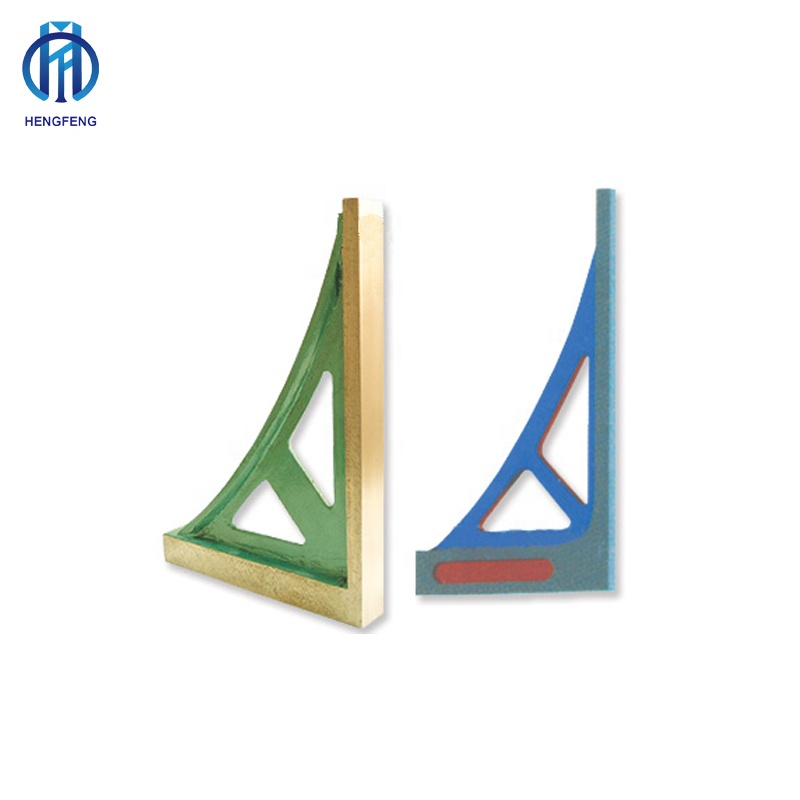

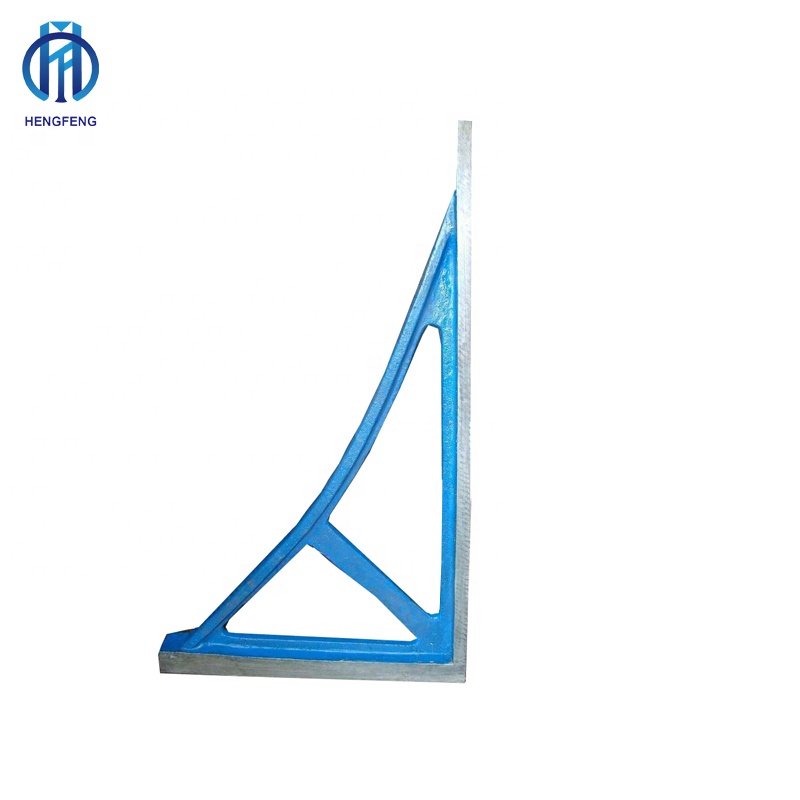

Cast Iron Right Angle Ruler:
iron right angles has bottom and the adjacent square face finished flat and square to each other as well as the two adjacent
narrow sides finished flat and square to other two faces and are parallel to each other.
Specification: see attached form or customize
Surface treatment: hand-scraped or finish-milling
Foundry process: sand casting
Painting: primer painting
Surface coating: working surface covered with pickling oil and non-working surface covered with antirust paint
Working temperature: (20±5)℃
Precision grade: 1-2
Packaging: plywood box
No. | Size（mm) | Verticality of measuring surface towards datum | Flatness of measuring surface | Flatness of datum | ||||||||
Precision Degree(μm) | ||||||||||||
1 | 2 | 1 | 2 | 1 | 2 | |||||||
1 | 300×200 | 11 | 22 | 4 | 7 | 6 | 11 | |||||
2 | 400×300 | 12 | 25 | 4 | 8 | 7 | 12 | |||||
3 | 500×350 | 15 | 30 | 5 | 10 | 8 | 15 | |||||
4 | 600×400 | 18 | 35 | 6 | 12 | 9 | 18 | |||||
5 | 800×500 | 20 | 40 | 7 | 14 | 10 | 20 | |||||
6 | 1000×630 | 25 | 50 | 8 | 16 | 12 | 25 | |||||
7 | 1000×750 | 25 | 50 | 8 | 16 | 12 | 25 | |||||
