API Composite Plastic Rigid Centralizer
Basic Info
| Brand Name | HSOY |
|---|
Product description
API Composite Plastic Rigid Centralizer
Composite Casing Centraliser is the ultimate in down-hole centralisation, offering field proven lower friction coefficients leading to superior drag and rotational torque reduction. High abrasion resistant proprietary engineered polymer ensures maximum stand-off at TD. Robust enough to meet the challenges of today's most demanding wells.
Composite Materials:
- Moulded during high pressure high temperature process
- Spiral Blades 22-25° and melon shaped
- Passive Straight Blades 5° and melon shaped
- Patented Anti-Swage Rings incorporated in each end
- Generous By-Pass Area provided
- Numerous Pipe x Hole size configurations available
- Low Weight
- Premium Self-Aligning Stop Collars also available
specifications for reference:
| Model(in) | Hooping In-Dia.(mm) |
Hooping thickness (mm) |
Hooping height(mm) | Total Length(mm) | Max. Out-Dia.(mm) |
Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
| 18-5/8*24 | 476±1 | 3-5 | 90-120 | 600±50 | 610±5 | 12 |
| 20*26 | 510±1 | 3-5 | 90-120 | 600±50 | 660±5 | 12 |

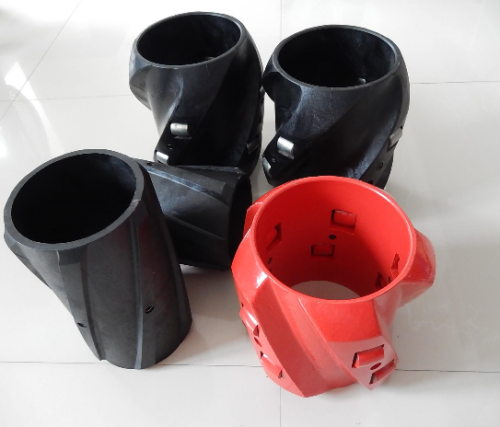

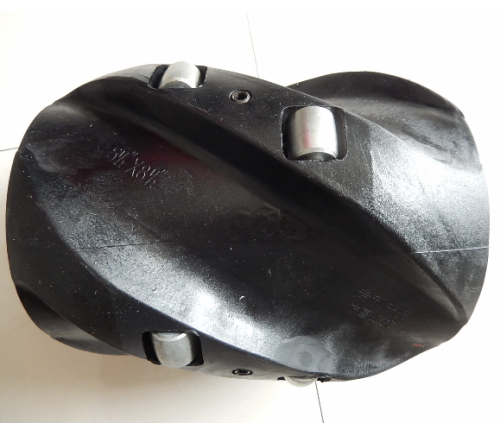

Picture Example:
