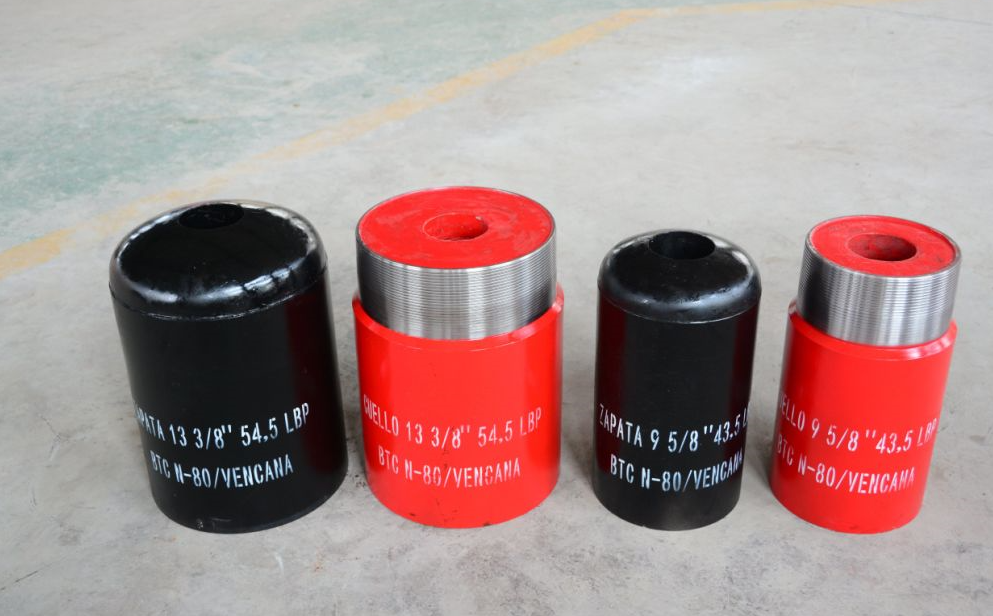

API Double-acting Valve Casing Float Collars:



Specification	In-Dia	Out-Dia	Height	Backward  pressure	Connect screw thread	Material	Standard
FX-FZQ140	154	122	500	25MPa	5-1/2"LCSG	40Cr	SY/T5618-2000
FX-FZQ178	194	159	500	25MPa	7"LCSG	40Cr	SY/T5618-2000
FX-FZQ245	270	220	550	25MPa	9-5/8"LCSG	40Cr	SY/T5618-2000
FX-FZQ340	365	313	550	10MPa	13-3/8"LCSG	40Cr	SY/T5618-2000

1. Description

The float shoe which is connected at the end of casing string functions as guide or back pressure valve. It is a kind of casing shoe which can produce buoyancy. With the advantages of high temperture resistance, good sealing feaure and easy connection, it can be used to replace guide shoe. It can be not only used in the unclassified technical casing, oil layer casing, but also in deep well, extra-deep well and special technology well.

2. Fetures
High strength design ensures high pressure bump and back flow resistance;
Withstands long periods of circulation;
Automatic fill-up, saves considerable running-in time of casing;
Special non-rotational groove design ensures cementing plugs dilled out quickly;

It is economically priced.


3. Specifications
1) All inner parts are made of easily drillable aluminum alloy
2) The device can be connected directly to same type casing
3) Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance
4) Valve seat and valve disk can effectively prevent grout from flowing back
5) Hardness of base material is equivalent to API Spec N-80
>>The Auto Fill Cement Float Collar permits the casing to fill automatically while being run into the hole.
>>The valve is always in the open position allowing maximum filling of the casing as it is lowered into the well bore.
>>This is especially effective on liner jobs and sensitive hole conditions.
>>The circulation may be established at any time during or after casing is run.
>>The flapper type back pressure valve does not become operative until the drop ball is dropped or pumped down.
>>Like Differential Fill-up Equipment, the Collar is activated by the same ball.
>>From this point on, like Differential Fill-up Collar, this Auto Fill Cement Float Collar acts as conventional Floating Equipment.
>>All Auto Fill Cement Float Collars are PDC drillable.
