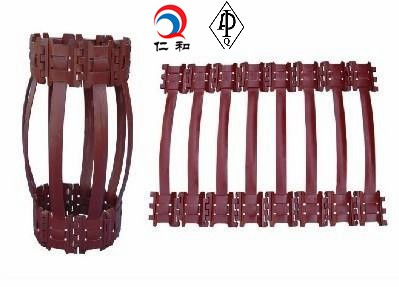

API drilling bow spring casing centralizer

Casing centralizer used with stop collar for casing string

1.durable

2.API 10D spec

3.professional manufacturer

4.strict QC

Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over.

Spec and performance index of bow spring casing centralizer meet API Spec 10D.

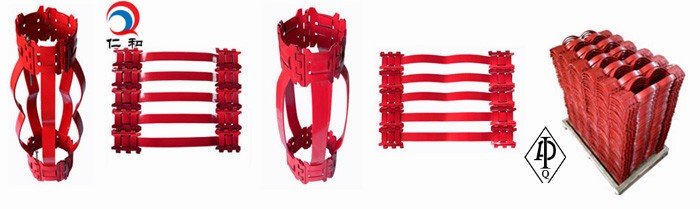

The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

Features

1) Bow springs made of spring steel which has been heat treated and hardened tempered to ensure proper and consistent spring characteristics.

2) End collar hinges are folded toward inside. This way will minimize the collar stretch that tends to occur when centralizers encounter tapers, commonly found in certain type of pipe connections.

3)A reinforcing rib stamped into the end collar. This way will strengthen and preserve it's round configuration during transport.

4)Several different spring bow heights that are available to accommodate most of casing-to-hole configuration.

5)Centralizers with built-in stop devices as well as those uncommon sizes are available based on request.

Technical specifications and parameters for GFZ-A Rigid Centralizer
Specification (in)	13 3/8”	10 3/4”	9 5/8”	7 5/8”	7”	5 1/2”	5”	4 1/2”	4”
I.D(mm)	343	276	247	197	180	143	130	117	104
O.D(mm)	400	308	308	243	212	213	151	148	148
Height (mm)	130	120	120	120	120	120	120	100	80
