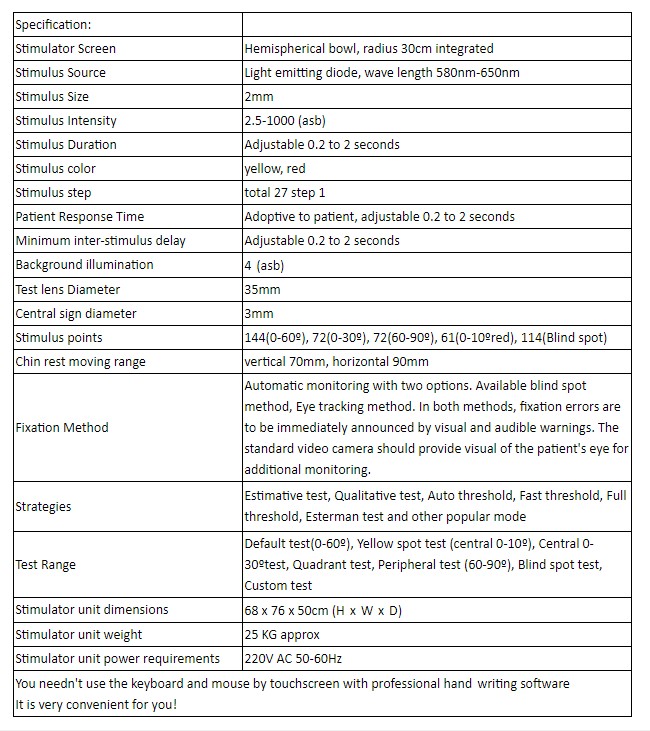

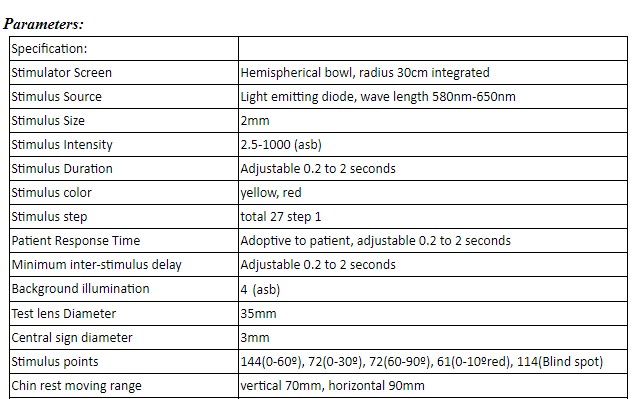

Specification:

?

Stimulator Screen

Hemispherical bowl, radius 30cm integrated

Stimulus Source

Light emitting diode, wave length 580nm-650nm

Stimulus Size

2mm

Stimulus Intensity

2.5-1000 (asb)

Stimulus Duration

Adjustable 0.2 to 2 seconds

Stimulus color

yellow, red

Stimulus step

total 27 step 1

Patient Response Time

Adoptive to patient, adjustable 0.2 to 2 seconds

Minimum inter-stimulus delay

Adjustable 0.2 to 2 seconds

Background illumination

4?(asb)

Test lens Diameter

35mm

Central sign diameter

3mm

Stimulus points

144(0-60o), 72(0-30o), 72(60-90o), 61(0-10ored), 114(Blind spot)

Chin rest moving range

vertical 70mm, horizontal 90mm

Fixation Method

Automatic monitoring with two options. Available blind spot method, Eye tracking method. In both methods, fixation errors are to be immediately announced by visual and audible warnings. The standard video camera should provide visual of the patient's eye for additional monitoring.

Strategies

Estimative test, Qualitative test, Auto threshold, Fast threshold, Full threshold, Esterman test and other popular mode

Test Range

Default test(0-60o), Yellow spot test (central 0-10o), Central 0-30otest, Quadrant test, Peripheral test (60-90o), Blind spot test, Custom test

Stimulator unit dimensions

68 x 76 x 50cm (H?x?W?x?D)

Stimulator unit weight

25 KG approx

Stimulator unit power requirements

220V AC 50-60Hz

You needn't use the keyboard and mouse by touchscreen with professional hand?writing software

It is very convenient for you!
