Artificial Intelligence Pro Audio DSP Processor

Get Latest Price

Model No.	TAP1206V2U
Brand Name	REACH

Reach Audio DSP

TAP1206V2U

Reach Audio Dsp

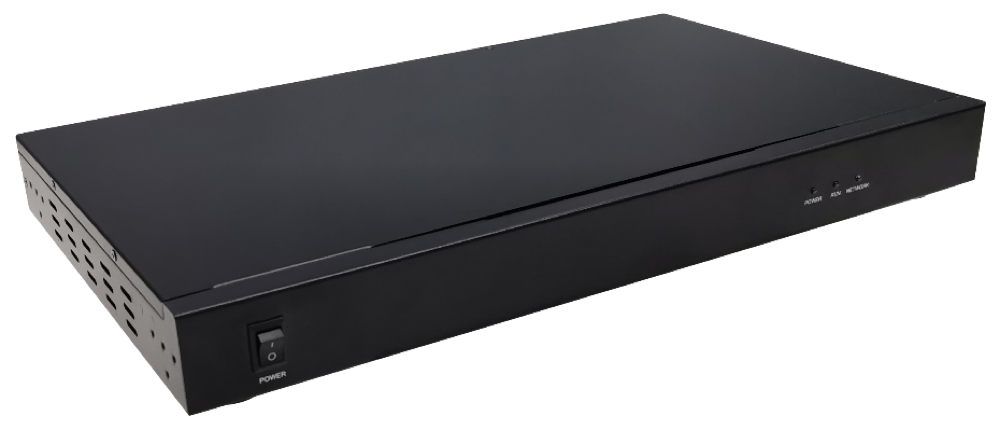

Reach TAP1206V2U, a 12-channel input and 6-channel output digital audio processor designed for conference and education recording and broadcasting. This versatile device boasts a range of advanced features including adaptive echo cancellation, noise cancellation, intelligent mixing, and audio source auto-tracking. With its original omnidirectional microphone, the TAP1206V2U provides excellent echo cancellation for both near-field and far-field pickup.

The TAP1206V2U features adaptive algorithms, including a new generation AEC adaptive echo cancellation algorithm and a new generation ANS dynamic adaptive noise cancellation algorithm. It also supports signal routing function to switch and allocate audio signals, intelligent mixing of multiple microphones, and auto gain function.

In addition, the TAP1206V2U offers DSP module functions, including support for filters modules, parameter balancing equipped with a 7-section parameter balancing module, ducking function, build-in compressor function, and volume adjustment.

The TAP1206V2U also supports audio signal processing modules and signal routing distribution selection, allowing users to easily set preferences via software. Its easy installation and visual debugging UI software make it a user-friendly option for conference rooms and classrooms requiring high-quality interactive recording and broadcasting.

TAP1206V2U is an excellent choice for those seeking a high-quality digital audio processor for their conference or classroom needs.

Product Name	TAP1206V2U
Frequency Response (20Hz~20kHz @ +4dBu):
Mic. Channel	+0/-2dB
Line Channel	+0/-0.5dB
THD +N (1kHz @ +4dBu):
Mic. Channel	< 0.009%
Line Channel	< 0.007%
Equivalent Noise Level	< -84dBu(20Hz~20kHz@22dB)
Dynamic Range	> 105dB(20Hz~20kHz@0dB)
Max. Input Level:
Mic. Channel	-2dBu
Line Channel	20dBu
Max. Output Level:	20dBu
Max. Gain:
Mic. Channel	50dB
Line Channel	0dB
Input Impedance:
Mic. Channel	2.2kΩ
Line Channel	20kΩ
Output Impedance	400Ω
A/D-D/A Converter	24-bit
Phantom Power	DC 48V
Power in	AC 220V, 0.2A
Size	(LWH): 440×255×44mm
