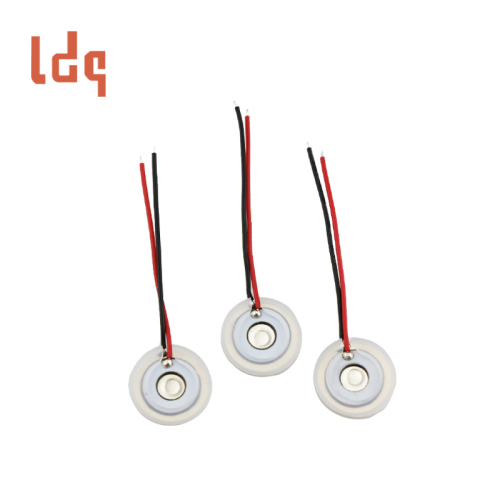

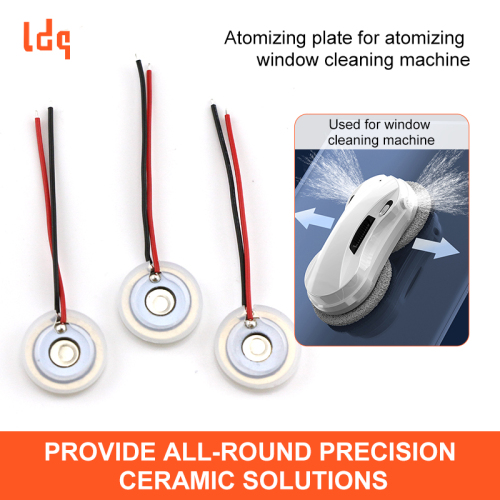

Atomizing plate for atomizing window cleaning machine

Get Latest Price

Basic Info

Model No.
Brand Name

Product description


Atomizer Plate For Atomizing Spray Water Window Cleaning Machine is a high-performance microporous atomization core component designed for modern intelligent cleaning equipment. With 600 precise micropores, it can produce fine and uniform water mist, making it an ideal choice for all types of window cleaning equipment.

The window-cleaning nebulizer chip uses piezoelectric high-frequency vibration to atomize cleaning solution or water into?57 micron mist, forming an even wet film to soften stains. It aids wipers in removing grease and dust from glass surfaces, featuring?auto on/off?and?dry-run protection?for vertical/high-altitude operations.

?

Designed for smart window-cleaning robots, high-rise facade cleaners, and household glass cleaners. Targets stubborn stains on smooth surfaces (e.g., windows, tiles, mirrors), especially effective for skyscraper exteriors and solar panel dust removal.

?Atomizer Plate Product Specifications

  • Metal sheet: Φ13.8±0.1mm
  • Piezoelectric sheet: Φ11.3±0.2mm
  • Hole area: Φ2.5±0.2mm
  • Hole diameter: 7±1μm
  • Number of holes: 600 holes
  • 1571#28 double red: L=60±5
  • Plastic ring: 15±0.5mm
  • Bare chip thickness: 0.65±0.1mm
  • Plastic ring thickness: 2.5±0.3mm
  • Material: 316L stainless steel
Atomizing spray water window cleaning machine Atomizer plate
?
Atomizer Plate For Window Cleaner

?Atomizer Plate For Window Cleaner Features

  • Ultra-fine pore size: 7±1μm precision micropore design, 600 holes evenly distributed, ensuring fine and uniform water mist
  • Optimized pore area: Φ2.5±0.2mm perforated area, high atomization efficiency
  • High-efficiency resonant frequency: 150±10KHz, ensuring stable atomization effect
  • Low impedance design: resonant impedance ≤500Ω, lower energy consumption
  • Large-capacity capacitor: 1500±20PF, fast response speed
?

Ceramic Atomizer Plate Industry Applications

  • Sun room/greenhouse: avoid water accumulation and damage to plants, and micro-mist cleaning takes into account both light transmittance and humidity control.
  • Special-shaped glass structure: such as spherical viewing platform and glass plank road, atomization spraying can accurately cover the concave and convex surface.
  • On-board window cleaning equipment: integrated in unmanned vehicles or smart buses to achieve automatic glass cleaning.
  • Tunnel inner wall cleaning robot: with high-pressure atomization to wash stubborn dirt, suitable for confined space operations.
Atomizer Plate For Window Cleaner
?
Conventional microporous atomizer parameters
?
Atomizer window cleaning atomizer plate supply
