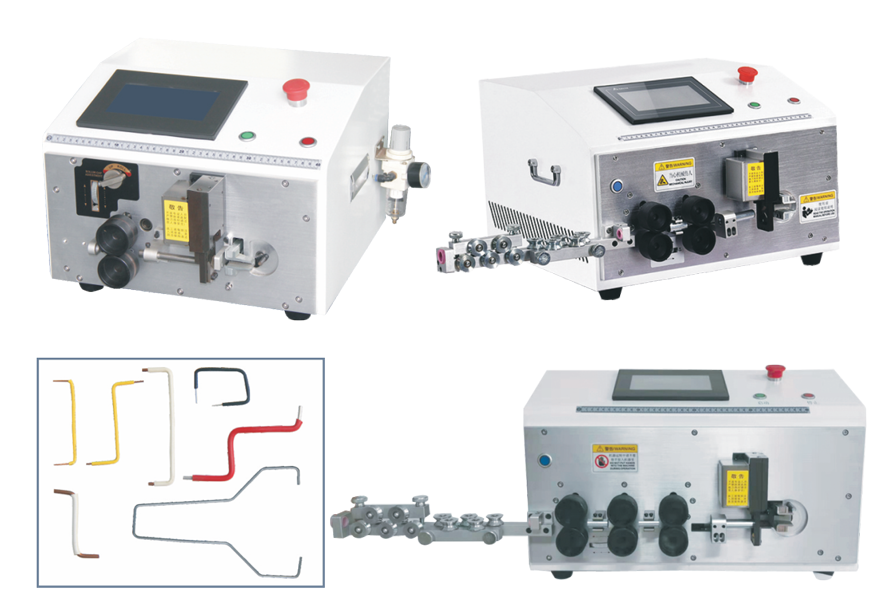

TYDC wire stripping and bending machine series is most exceptional in this way most of the current models use a single head color temperature indicator and button operation. Our company's latest bending machine features a Taiwan Delta Touch screen operation, A Taiwan Delta PLC, HIWIN liner guide rails, and precision pneumatic pressure regulating rollers. It is more intelligent to use, has more complete functions, and can perform full bending at both ends. The angle and bending length are arbitrarily adjustable.

Model	TYDC-6P	TYDC-16PF	TYDC-25PF	TYDC-35PF
Wire Range	1.5–16 mm2	2–25 mm2	4–35 mm2	4–35 mm2
Dimensions	430 × 380 × 300 mm	530 × 470 × 340 mm	600 × 550 × 450 mm	600 × 550 × 450 mm
Weight	35 kg	63 kg	85 kg	88 kg
Display Interface	LCD Touch Screen (CN / EN)	LCD Touch Screen (CN / EN)	LCD Touch Screen (CN / EN)	LCD Touch Screen (CN / EN)
Power Supply	AC 220V 50/60Hz	AC 220V 50/60Hz	AC 220V 50/60Hz	AC 220V 50/60Hz
Power Rating	350 W	650 W	700 W	700 W
Cutting Length	0–99999.9 mm	0–99999.9 mm	0–99999.9 mm	0–99999.9 mm
Stripping Length	Front: 0–50 mm Rear: Auto identify	Front: 0–50 mm Rear: Auto identify	Front: 0–50 mm Rear: Auto identify	Front: 0–50 mm Rear: Auto identify
Bending Angle	Arbitrary up to 135 degrees	Arbitrary up to 135 degrees	Arbitrary up to 135 degrees	Arbitrary up to 135 degrees
Bending Mode	Forward / Reverse	Forward / Reverse	Forward / Reverse	Forward / Reverse
Delivery Conduit	2 tubes	4 tubes	5 tubes	5 tubes
Blade Material	Imported high-speed steel	Imported high-speed steel	Imported high-speed steel	Imported high-speed steel
Driving Mode	2-wheel drive	4-wheel drive	6-wheel drive	6-wheel drive
Storage Capacity	200 programs	200 programs	200 programs	200 programs
Productivity	800–1500 pcs/hour	700–1200 pcs/hour	800–1000 pcs/hour	600–800 pcs/hour

Ideal for:

• EV battery and charging pile manufacturing

• Power distribution cabinets and electrical control panels

• Automotive wire harness and heavy cable processing

• Production lines requiring automated, error-free bending
