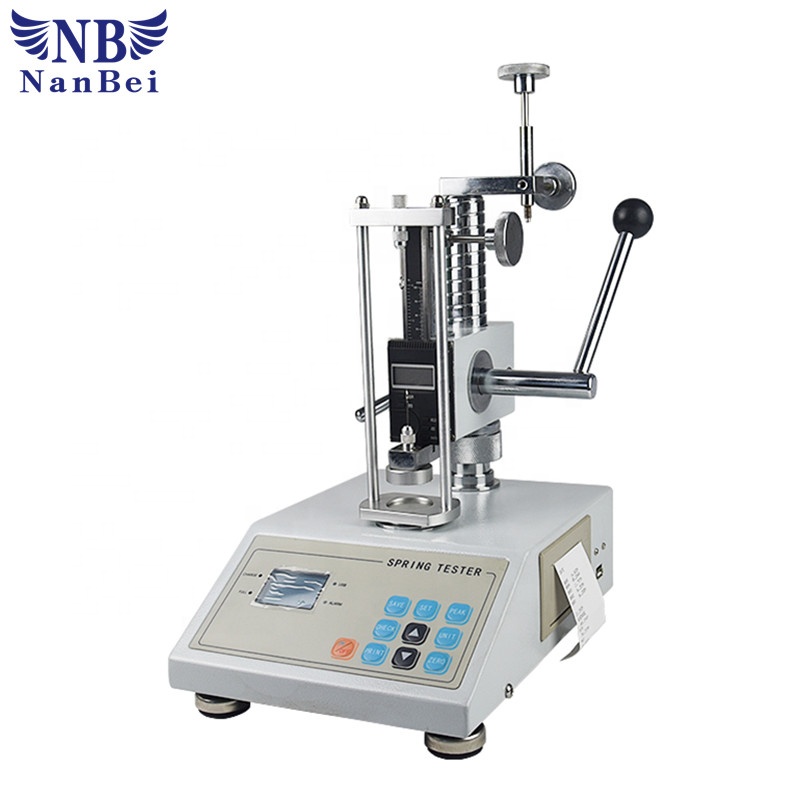

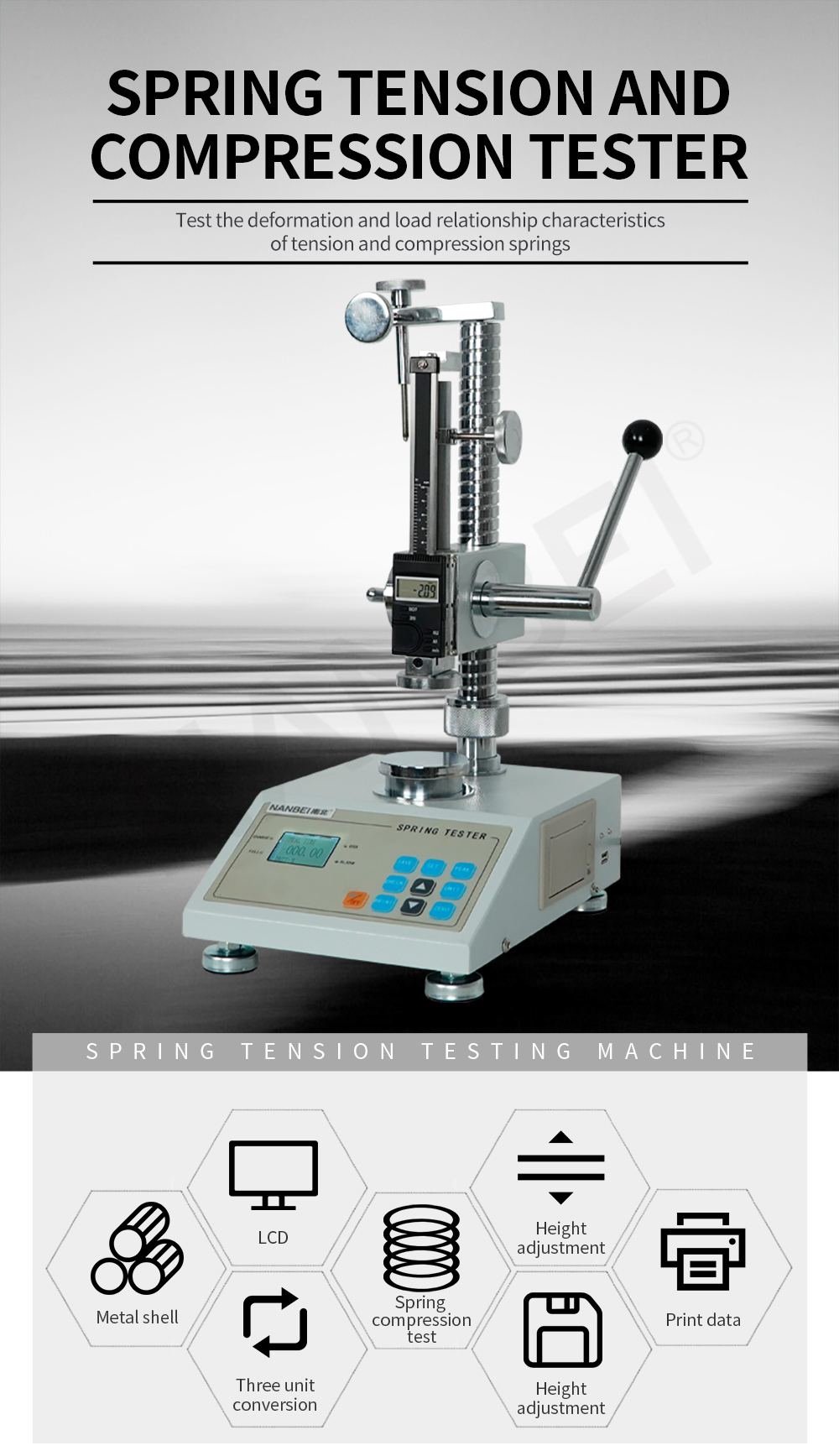

Auto Dynamometer Test Digital Spring Load Testing Machine for Tension and Compression

$811.00

≥1 set
$758.00

≥15 set
$694.00

≥30 set

use:

Compression Testing Machine

Get Latest Price

Model No.
Brand Name
Warranty	1 Year
Customized Support	Oem, Odm, Obm
Place Of Origin	Henan, China
Brand Name	NANBEI
Model Number	ATH-10P
power	Electronic
Product name	Digital spring load testing machine for tension and compression
Max Load	10N
Power supply	20W
Minimum resolution	0.001N
Diameter of the platen	34mm
Maximum free length of measurable spring	80mm

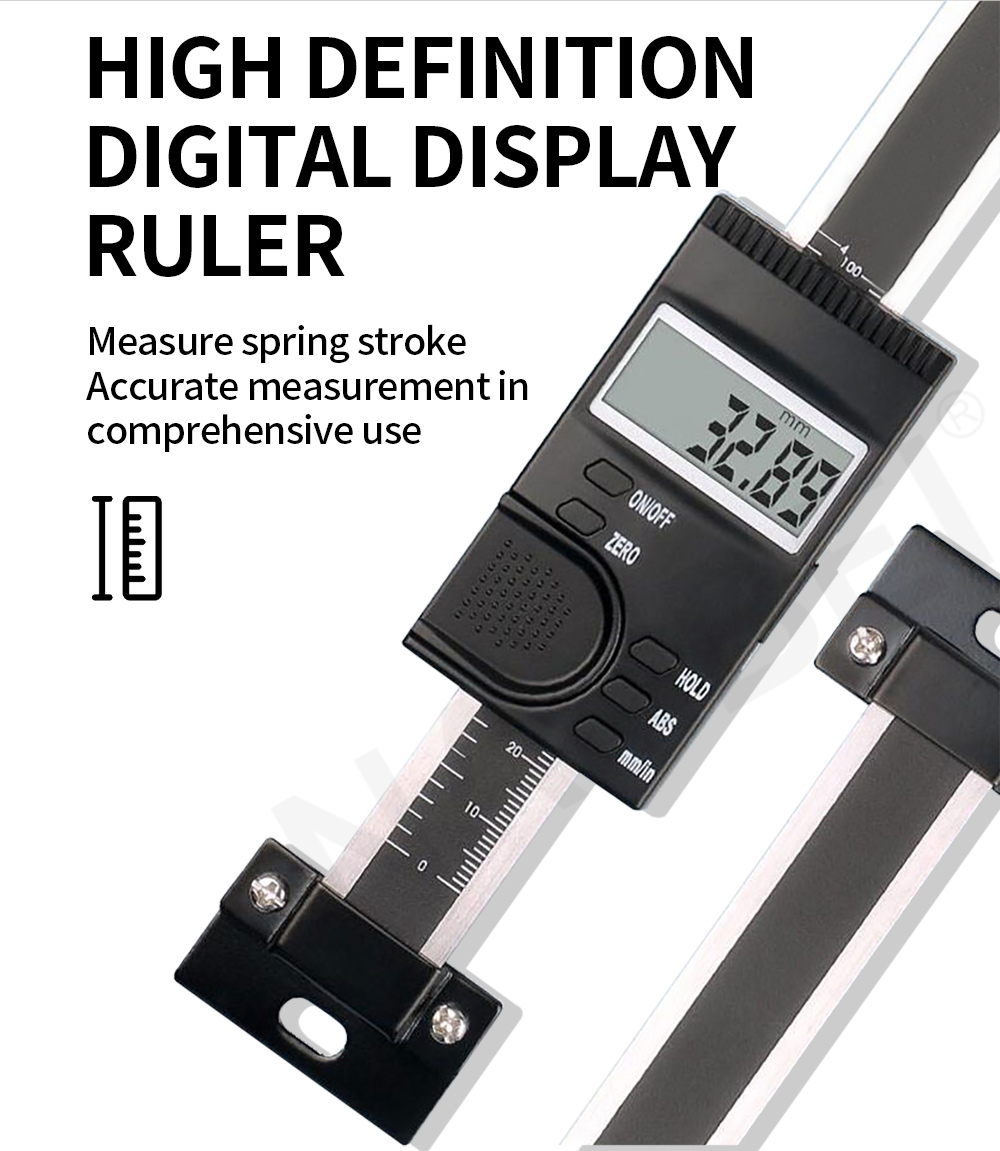

Length of travel displacement scale	60mm
Division value of the displacement scale	0.01mm
Voltage	220V/50HZ/ 60HZ
Working temperature	20±10℃

Digital spring load testing machine for tension and compression

Our Product

?Overview

As a special-purpose instrument, this testing machine is used to test amount of deformation and characteristic of load relation of extension and compression springs. It can be applied to the testing of working load of extension and compression springs under certain working length. Advanced and highly integrated chip microprocessor is adopted by this machine, which also has liquid crystal display (English) and metal enclosure. The interference-killing feature of the system is thus greatly improved.
Functional Features
1. Liquid crystal display (English); better Human Machine Interface (HMI)
2. High precision and resolution
3. Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available
4. The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate
5. 99 sets of test data can be stored; the user can directly look over, store and delete data in the machine
6. The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value
7. It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc
8. Judgment of acceptance or rejection of test data to be printed and stored, maximum value, minimum value and mean value (only for tape printing machine)
9. MODBUS-RTU standard agreement is adopted for communication; USB interface is adopted for better connection with configuration and PLC connection

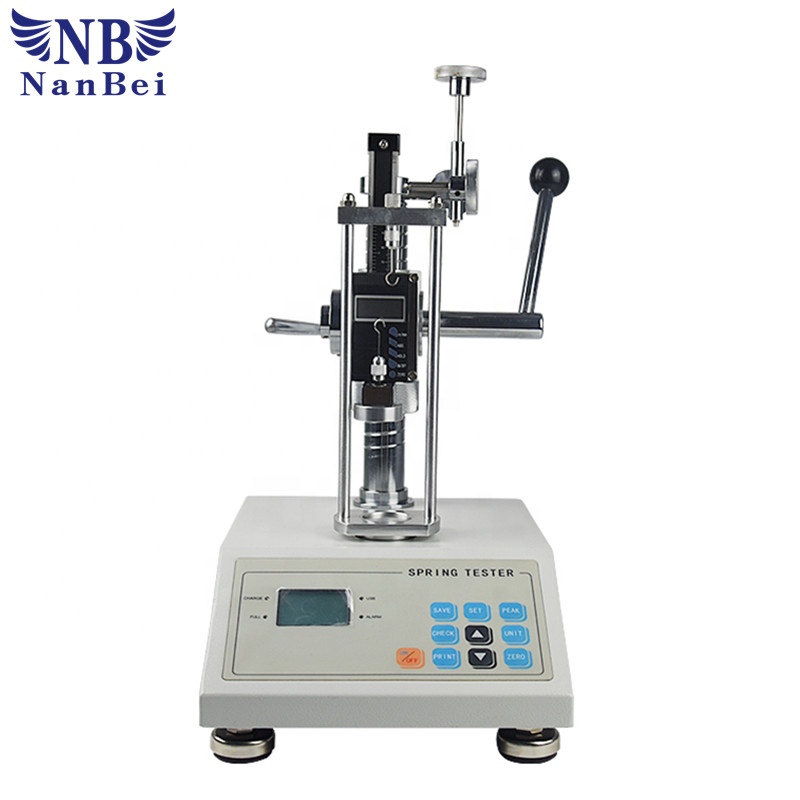

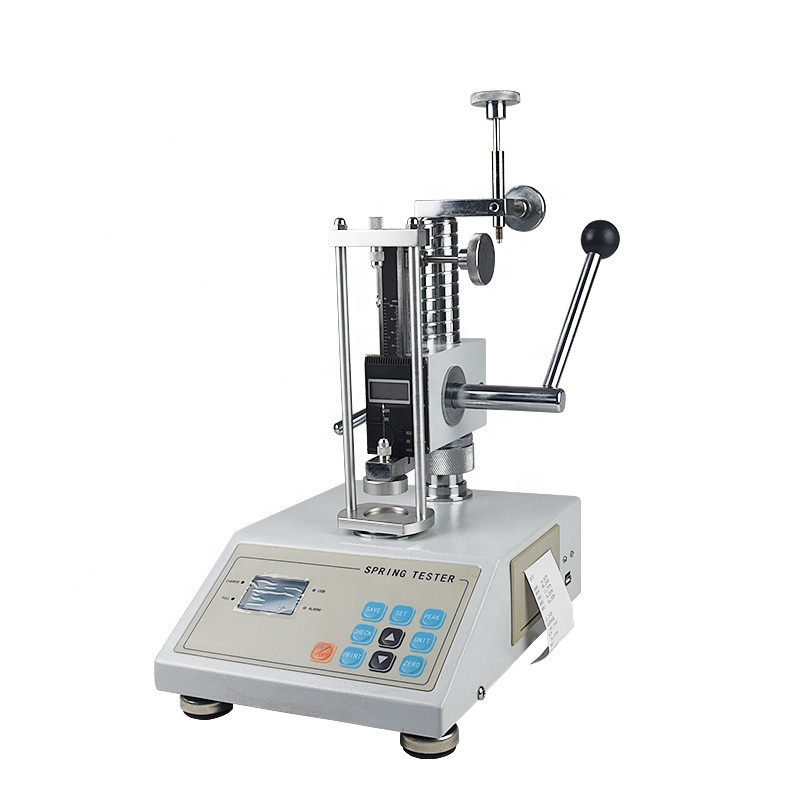

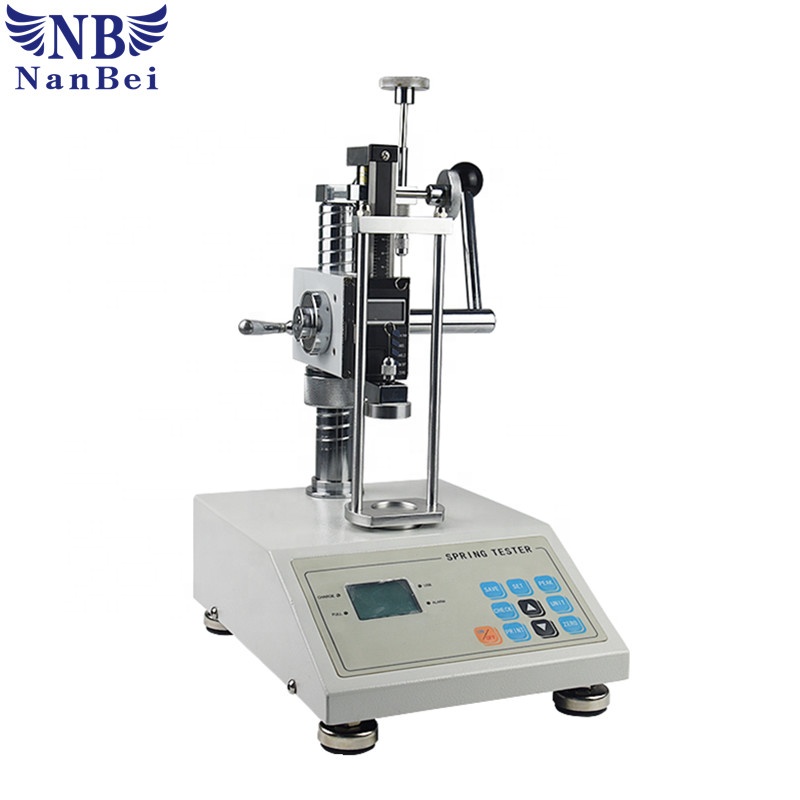

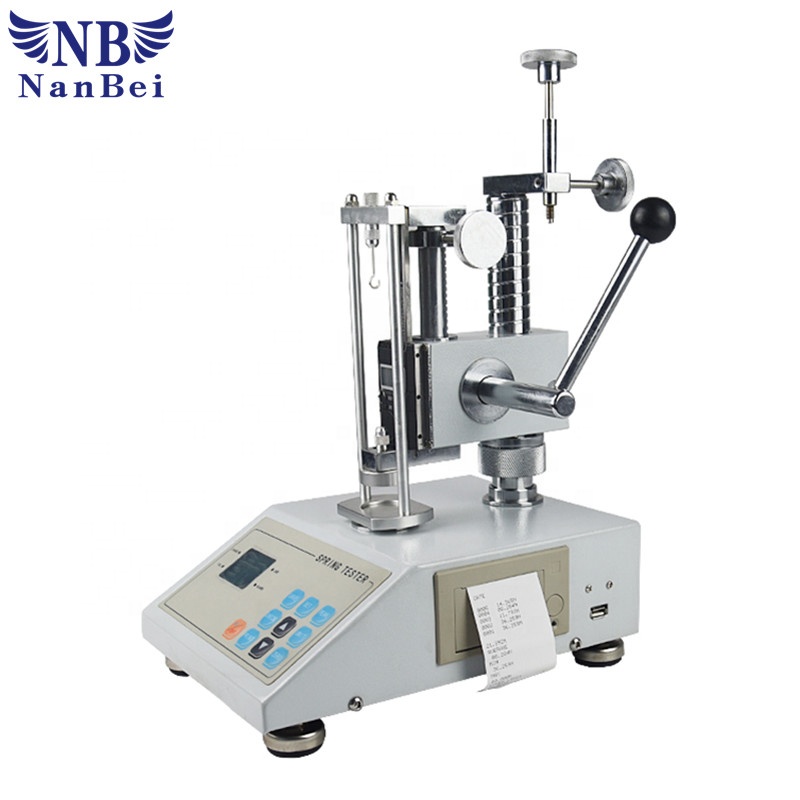

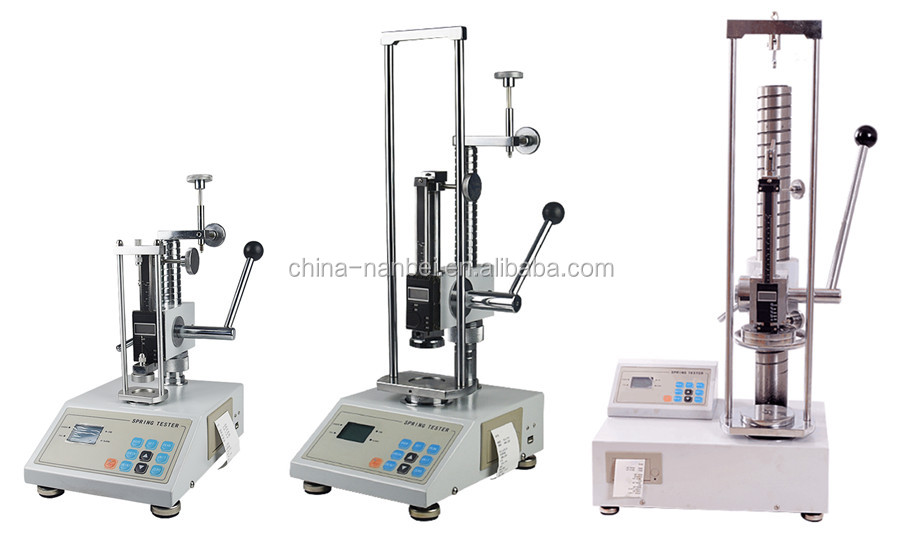

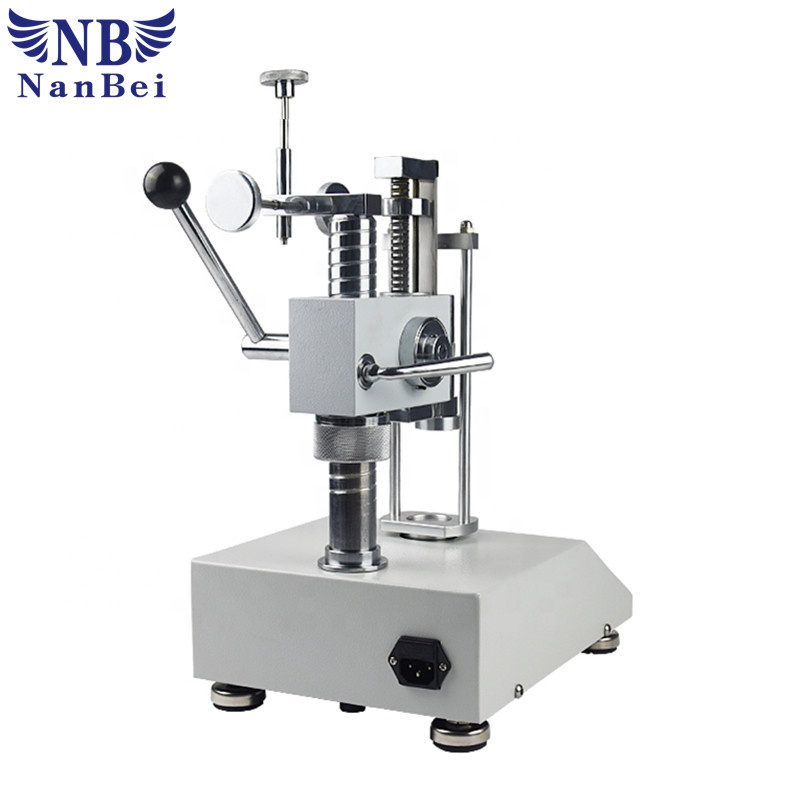

Picture for Our product

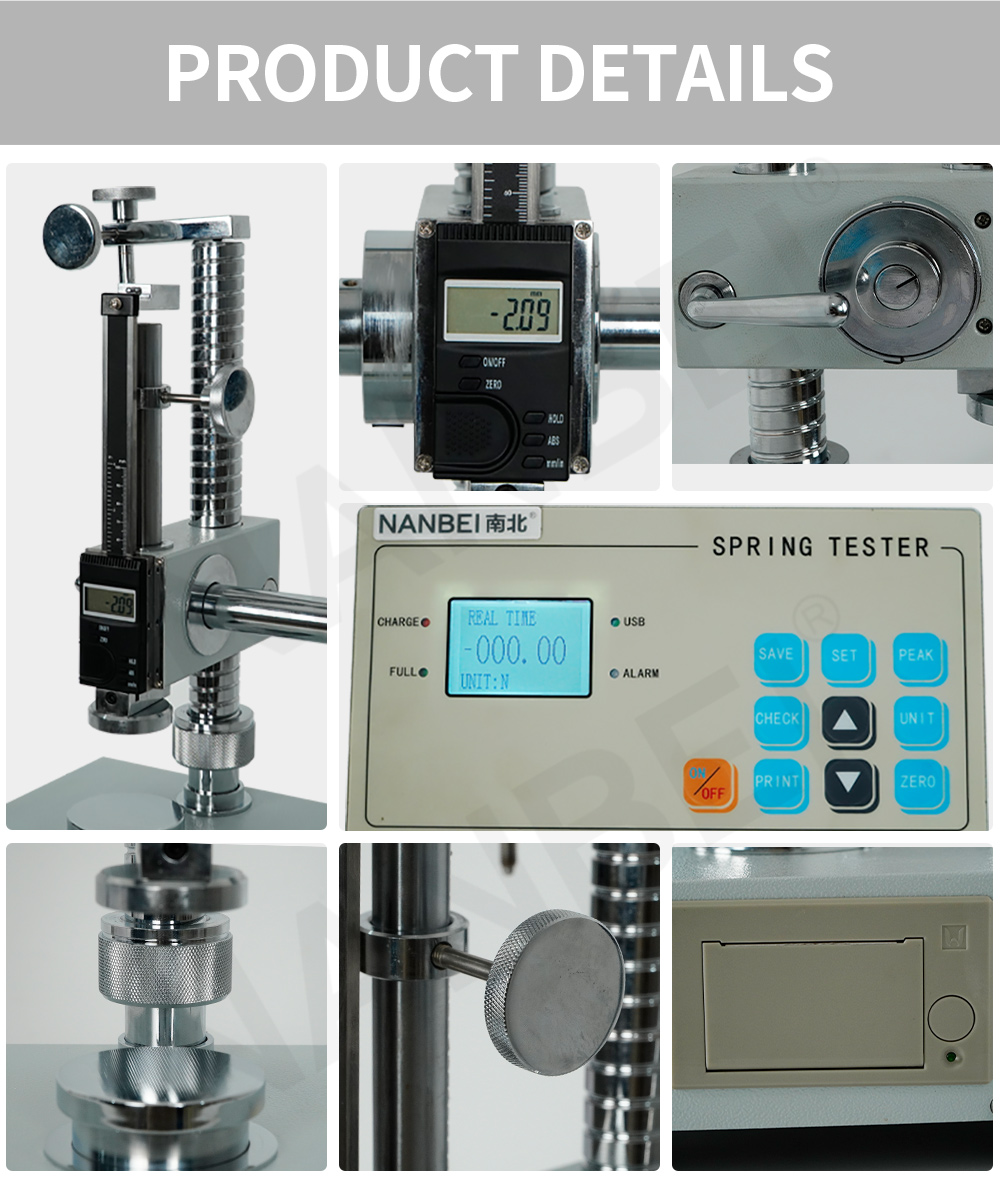

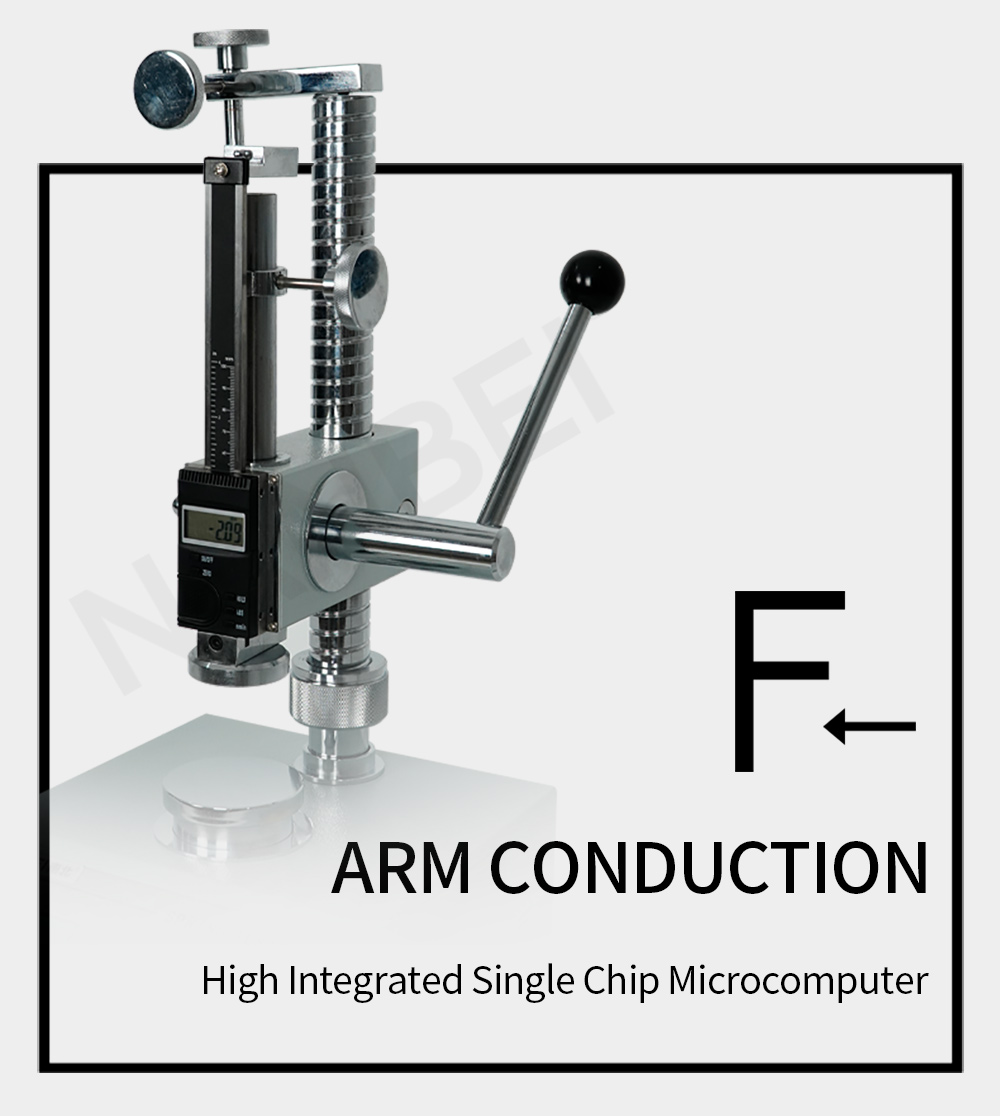

Photo for Details ?

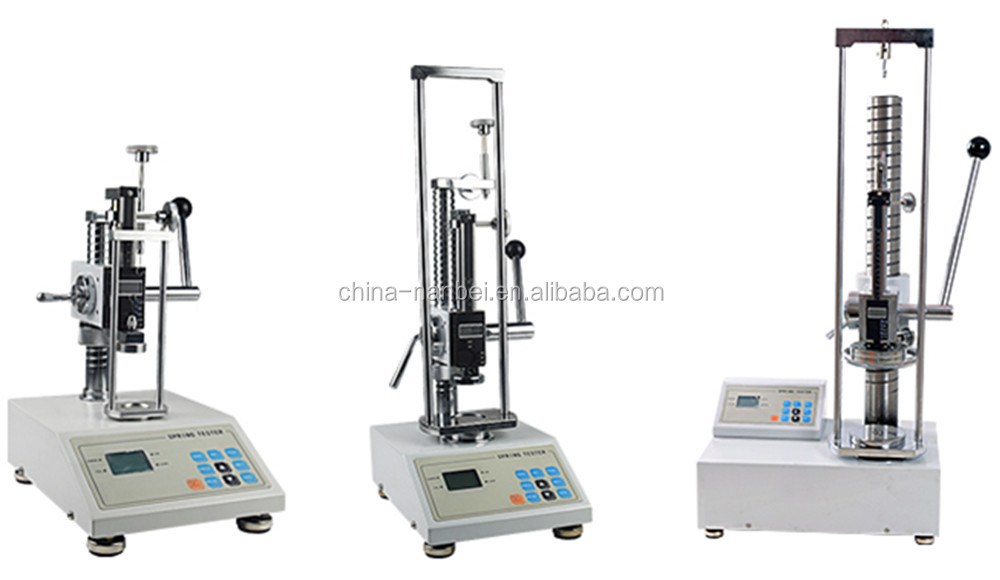

Technical data

Model Number	ATH-?10	ATH-?20	ATH-?50	ATH-?100	ATH-?1000	ATH-?3000	ATH-?5000
Maximum testing load	10N	20N	50N	100N	1000N	3000N	5000N
Minimum resolution	0.001N			0.01N	0.1N
Diameter of the platen	34mm		49mm		108mm
Maximum free length of measurable spring	80mm		150mm		200mm
Length of travel of the displacement scale	60mm		90mm		150mm
Division value of the displacement scale	0.01mm
Indication error	±1%
Power Supply	AC 110-220V, 50HZ-60HZ
Power capability (without printer)	13W
Power capability (with printer)	20W
Working temperature	20±10℃
Temperature of storage and transportation	-27℃~+70℃
Relative temperature	15%~80%RH
