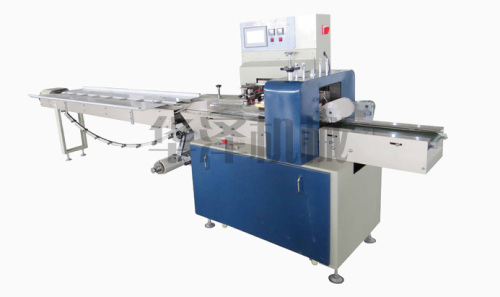

It's a horizontal form fill seal machine. And can be connected with other production line. This machine is suitable for packing a variety of cake packaging machine etc.

Characteristics:

1.PLC and monitor are from Japan Panasonic, touch screen man-machine interface, simple operation

2.Panasonic frequency convertor change speed easily

3.All the data can be set on the touch screen

4.Equipped with positioning stop function, which can effectively prevent downtime when hot film

5.If fault, machine stop automatically and the fault can be display on the screen.

Technical parameter:

Model	HZ-600
Film width (mm)	595 mm
Formed bag length (mm)	100-500 mm
Formed bag width (mm)	80-230 mm
Product height	≦80 mm
Film roll Dia (mm)	≦380mm
power supply	220 V 50/60 HZ 3.2 kw
Packing capacity	5-150 package/minutes
Dimension	4400*950*1520 mm
Weight	680 kg
