Automatic Ceramic Tile Thermal Shock Resistance Tester SQ006
use:
- Impact Testing Machine
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm |
| Place Of Origin | Hunan, China |
| Brand Name | Hunan Zhenhua |
| Model Number | SQ006 |
Product description

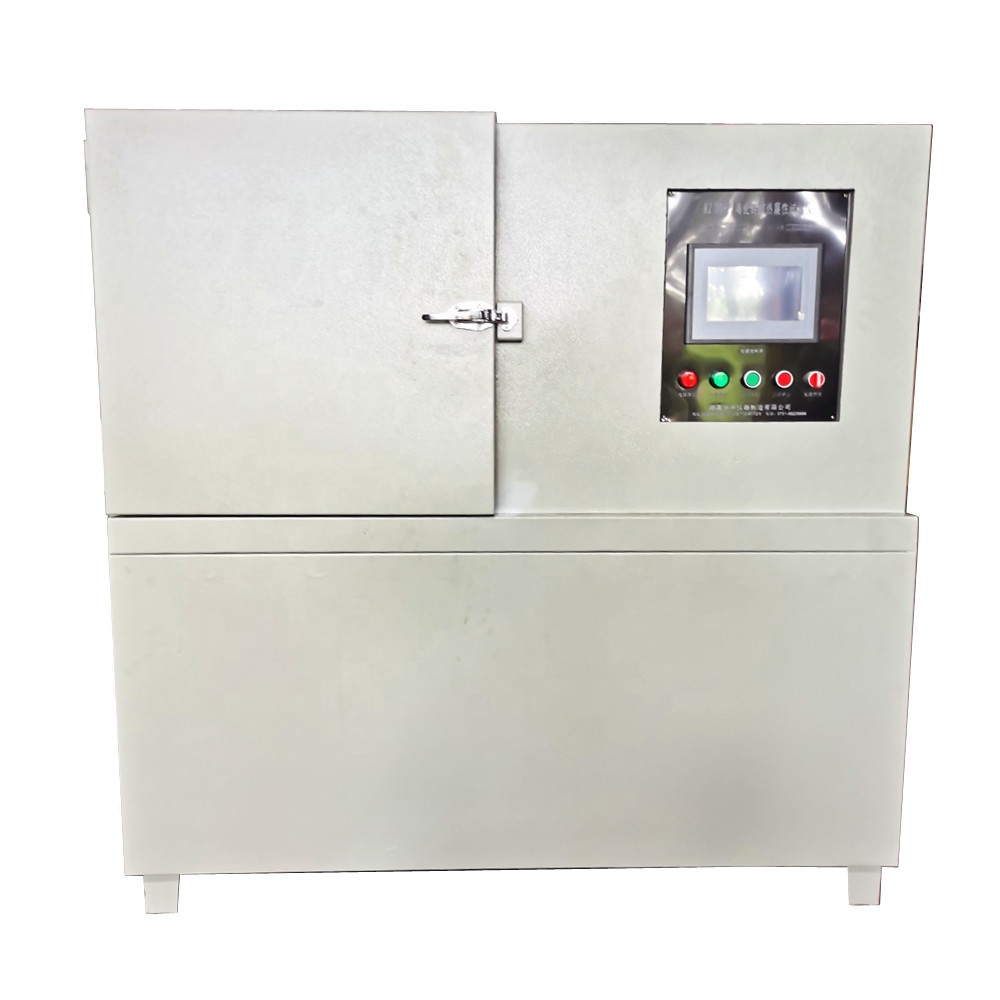

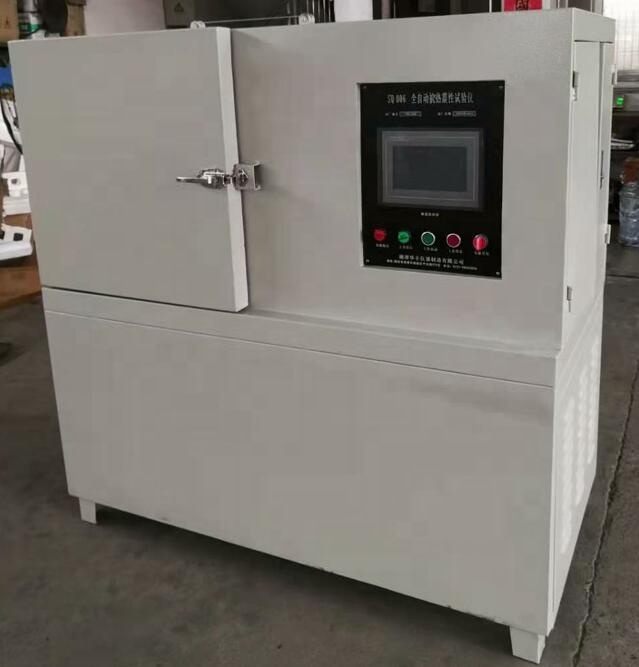

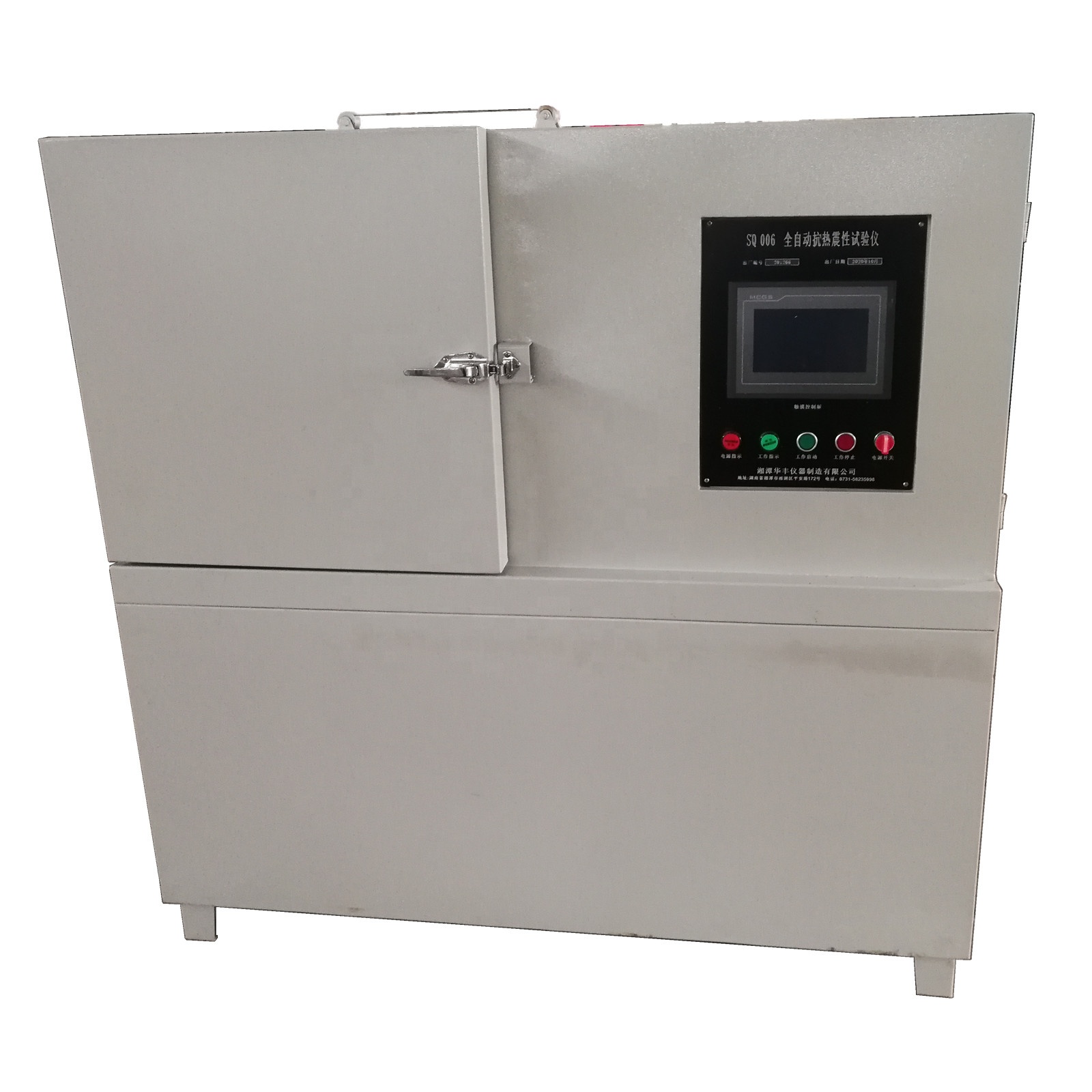

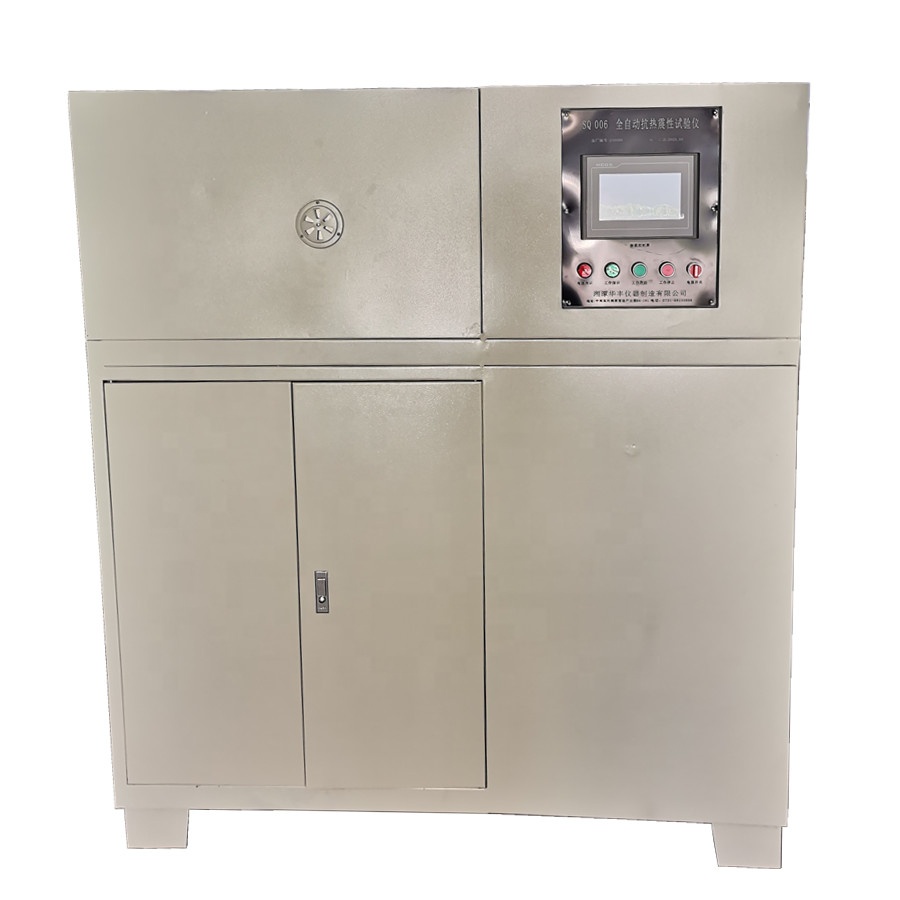

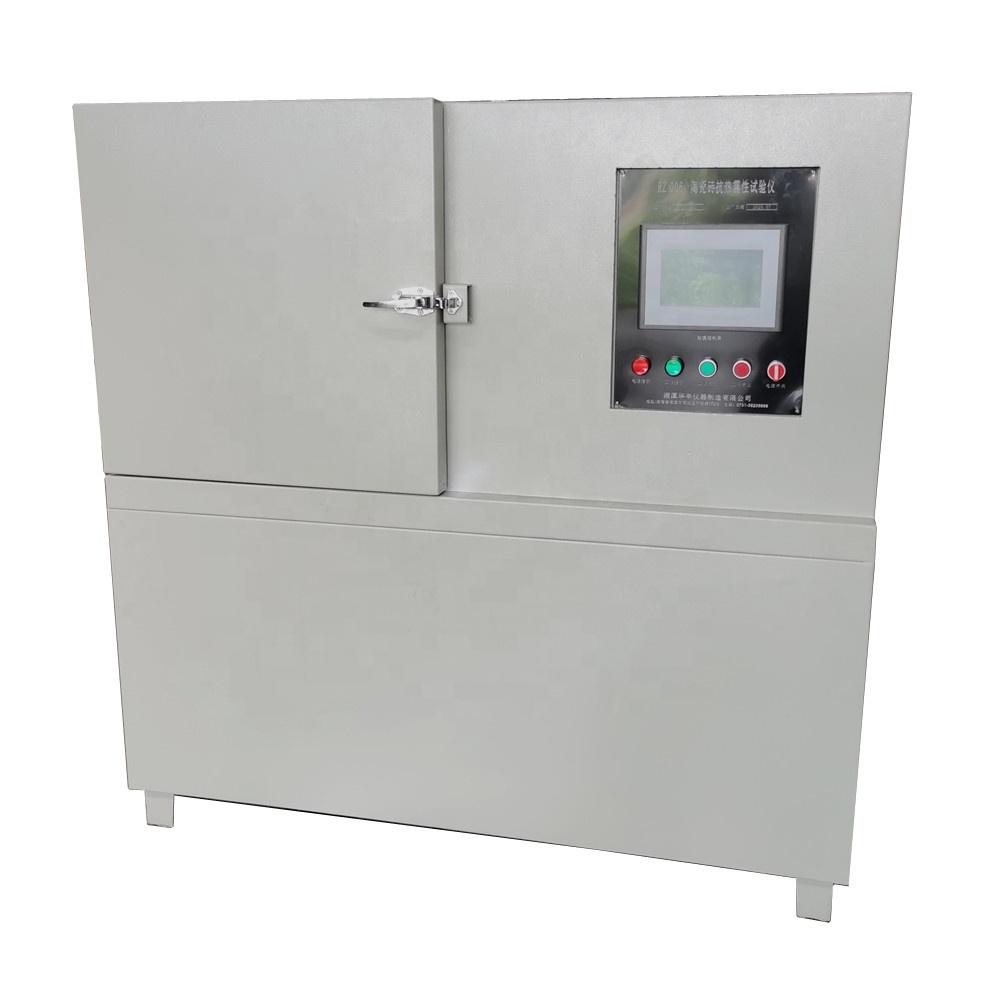

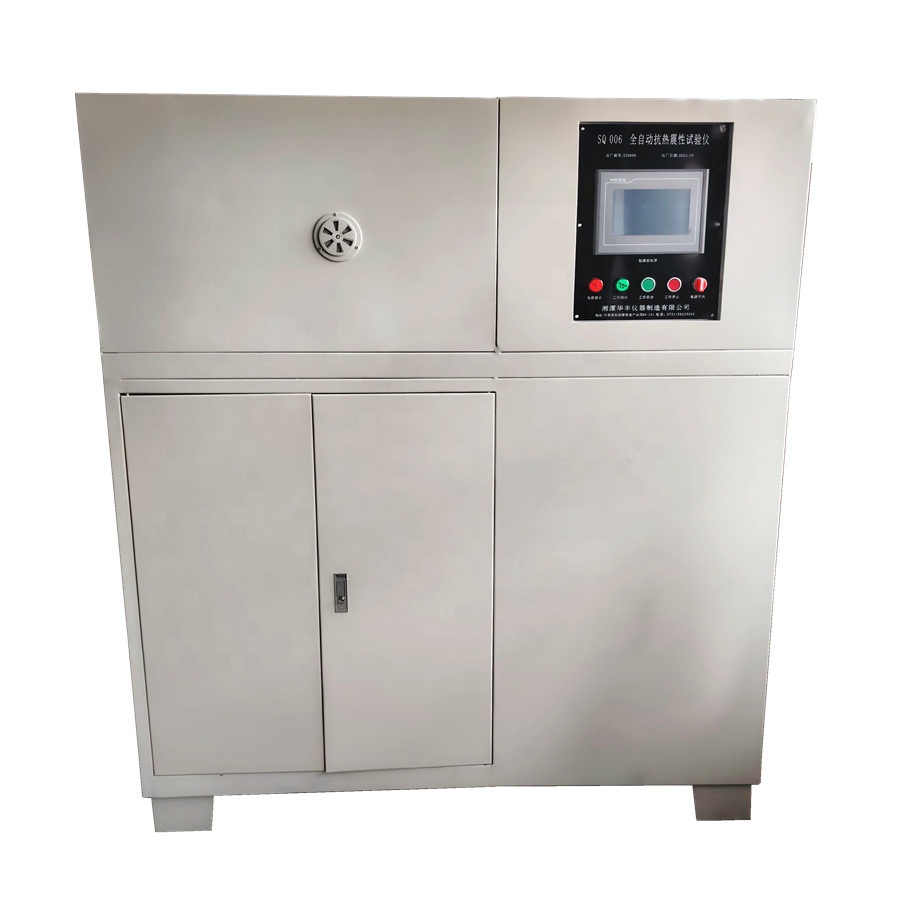

SQ006 Automatic ceramic tile thermal shock resistance tester
??
?
? SQ006 Automatic thermal shock resistance tester, taking into account the requirements of the national standard, easy to operate, accurate and reliable data, small size. The thermal stability of ceramic products can be timely detected by testing this index. The instrument meets the requirements of standard GB/T4100-2015, GB/3810.9-2016, EN ISO 10545-9 Determination of resistance to thermal shock and GB/T4547-2007. This instrument is also suitable for glass and other non-metallic materials, graphite materials, silicate products thermal shock resistance, thermal stability test. It can provide necessary technical data for production process and scientific research.

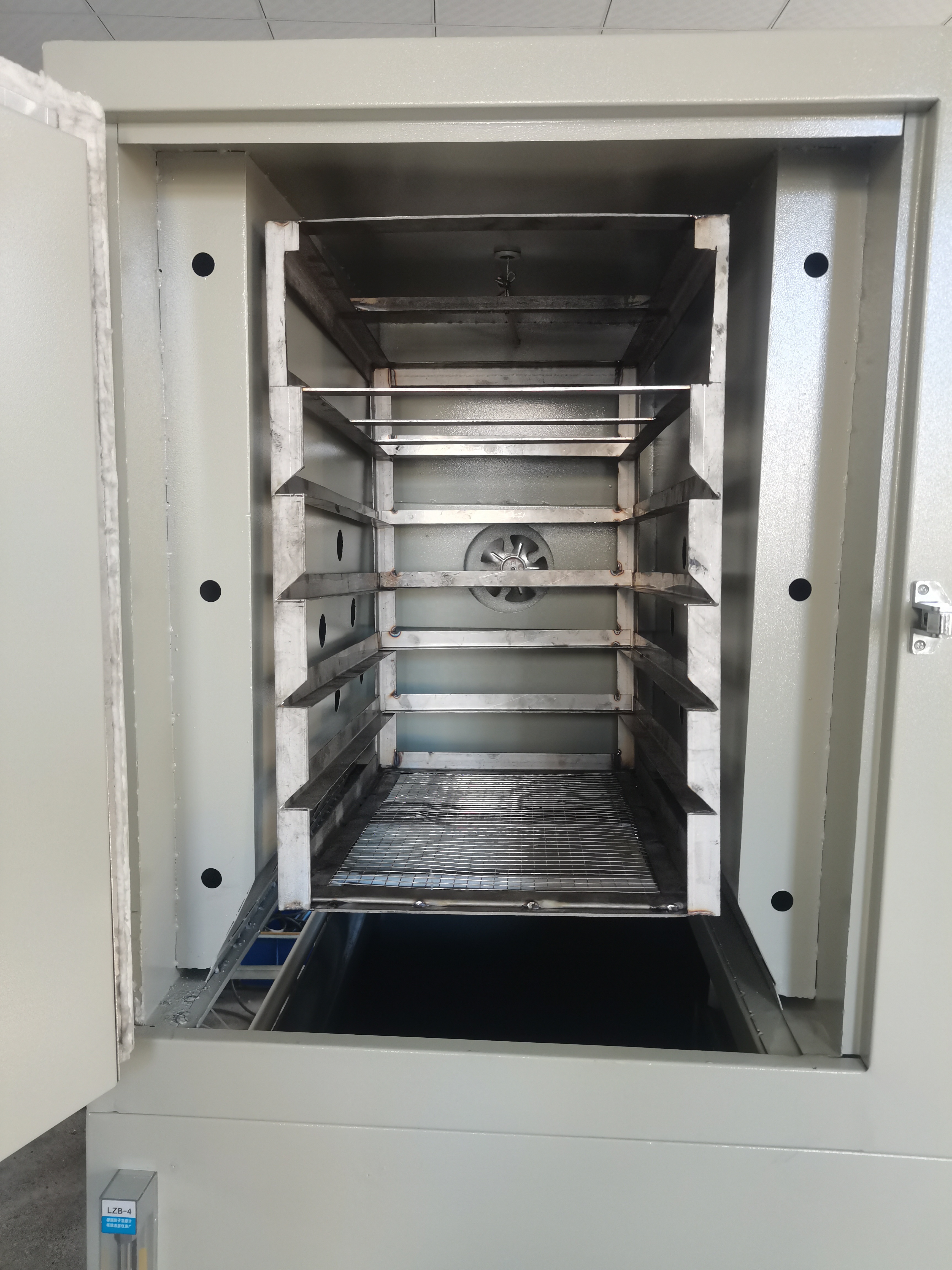

? Simple operation: just the test personnel put the sample into the material basket, turn on the power switch, press the work to start, the whole test is automatically completed, and only need to take out the sample after completion. Compared with the old instruments, the intermediate complex and heavy operation is reduced.
? ? ?
?
The main technical parameters:
?
?? 1.Furnace maximum working temperature: 200 °C; ?
?
?? 2.Temperature difference: ±1°C;
?
?? 3. Control accuracy: ± 1°C (at 200 °C);
?
?? 4. The effective volume : 350 × 350 × 350 mm/?600 × 600 × 600?mm for choose ;
?
?? 5. Cold furnace heating time:60minutes(from room temperature-200°C).
?
?? 6.Cold furnace temperature rising time:5 minutes(200°C,Materials Weight:7kg);
?
?? 7. Flume controlled temperature range :15-50 °C;
?
?? 8. temperature control accuracy: ± 1°C;
?
?? 9. Unevenness of temperature: ± 1°C;
?
?? 10. rising temperature of hot material after into the water within five minutes: ± 4 °C (Materials temperature 200°C,7kg);
?
?? 11. Furnace maximum power: 6KW;
?
?? 12. Hydropower largest heating Power: 6KW;
?
?? 13. Compressor Power: 380V; 2.2KW.
?
?? 14. Timer range: 0 ~ 180 minutes.
?
?
?
?
?
?
?
?
 ? Thermal analysis instrument |
Ceramic tile testing equipment |
|
|
 Thermal conductivity instrument |
?
?
?
?
Contract?execution
?
2?Machine?production?will?be?arranged?strictly?according?to?the?contract;
2?Machine?photos?will?be?sent?to?you?for?inspection?during?production;
2?Send?customs?clearance?documents?by?DHL;
2?Update?latest?news?after?delivery?and?prepare?customs?clearance;
?
?
After-sale?service
?
2?12?months?warranty?except?for?wear?parts;
2?Broken?spare?parts?(except?for?wear?parts)?will?be?sent?for?free?due?to?quality?problems;
2?In?time?response?to?customers?technical?problems;
2?New?products?update?for?customers'?reference
?
?
?
?
?
?
?
