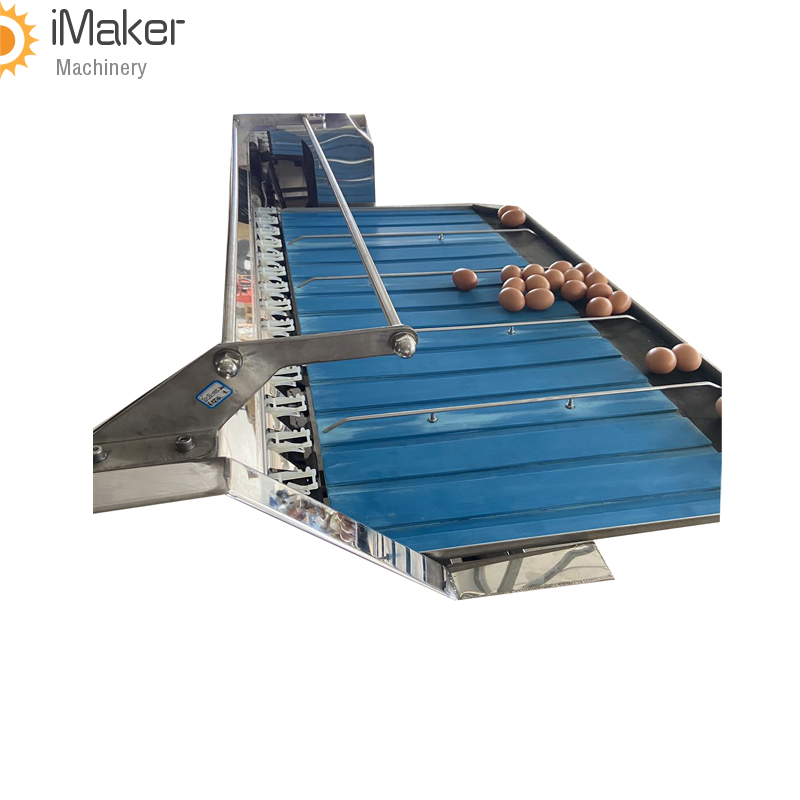

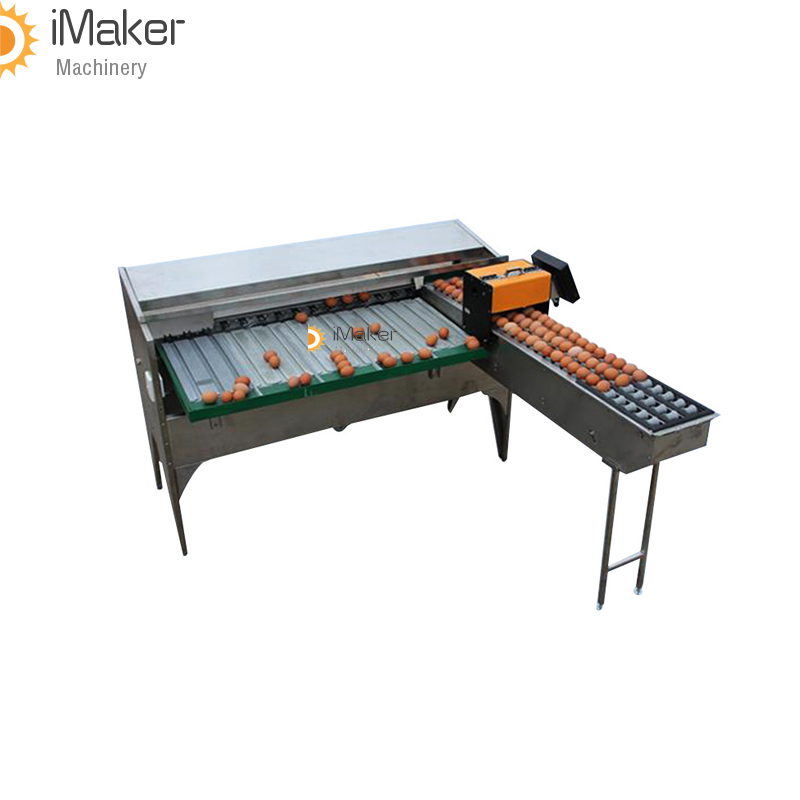

poultry farm use chicken egg grading sorting machines automatic

?

This machine is made of engineering plastic parts produced by mould. The egg grading machine is suitable for the weight grading of eggs, duck eggs, preserved eggs and various kinds of eggs.

1. The frame structure is made of stainless steel, with features of light weight, good strength and beautiful appearance;
2. Spare parts are consistent, no difference, with good interchangeability;
3. Knife type conveying, lever weighing principle, accurate weighing and convenient adjustment;
4 eccentric sprocket and compensation sprocket transmission structure, improve efficiency;
5. The cam gear structure and chain drive are adopted to make the egg weighing device not damaged;
6 self rolling rubber wheel, automatically adjust the arrangement of eggs;
7 light inspection cover, the quality of eggs can be detected by light inspection (optional)
It can be connected with egg cleaning machine to form egg production line.

Technological process:
1. Manual egg laying: simple and fast;
2 light inspection: bulb light inspection, pick out crack, loose yellow, deformity, sand skin and other unqualified eggs (optional);
3 grading: mechanical weighing system, grading eggs by weight;
Egg collection: collect eggs in different sections of the egg collecting board.?

The operation of the egg grading machine is very simple. After the operators (1-2 persons) put the eggs on the conveying line, the equipment can automatically distribute the eggs to different collection baskets according to the weight of the eggs. The equipment has the characteristics of reliable performance, convenient operation, high efficiency, and the egg products are not easy to be broken in the grading process.

?

Parameters of egg grading machine:

?
