Automatic CNC Template Pattern Sewing Machine - AS8310A-160105 for T-shirts, Car Seats, Jackets

$7000.00

≥1 set
$5000.00

≥2 set

Options:

3000 sti/min
AS8310A-160105

Get Latest Price

You might also like

Automatic CNC Template Pattern Sewing Machine - AS8310A-160105 for T-shirts, Car Seats, Jackets

1 set (MOQ)

AS8200-12080 Anysew Brand Fully Automatic Oil-Free Sewing Machine with Screw Drive

1 set (MOQ)

AS8710A-16095 Oil-free Fully Automatic Pattern Making Sewing Machine

1 set (MOQ)

AS8200-12080 Oil-Free Fully Automatic Template Sewing Machine

1 set (MOQ)

AS210D-1306 Electrical Pattern Program Sewing Machine

1 set (MOQ)

AS8100-8045 Automatic Oil-Free Process Template Machine

1 set (MOQ)

AS342G Automatic Computerized Sewing Machine

1 set (MOQ)

AS1254 Heavy Duty Computerized Sewing Machine for Throw Pillows

1 set (MOQ)

AS326G Automatic Computerized Pattern Program Sewing Machine

1 set (MOQ)

Anysew Brand Fully Automatic Oil-Free Sewing Machine with Punch Hole Function for Car Seat Covers (AS8020)

1 set (MOQ)

Basic Info

Model No.
Brand Name
Applicable Industries	Manufacturing Plant
Condition	New
Place of Origin	Zhejiang, China
Type	Industrial Sewing Machine
Brand Name	Anysew
Stitch Formation	Lock Stitch
Mechanical Configuration	Flat-Bed
Max. Sewing Thickness	15mm
Stitch Length	12mm
Power	750W
Feed Mechanism	Drop Feed
Warranty	1 Year
Key Selling Points	Automatic
Machinery Test Report	Not Available
Video Outgoing-inspection	Provided
Warranty Of Core Components	6 Months
Core components	Engine
Weight (KG)	650 KG
Operation	Computerized
Features	Programmable
Drive	Screw Drive/belt

Product description

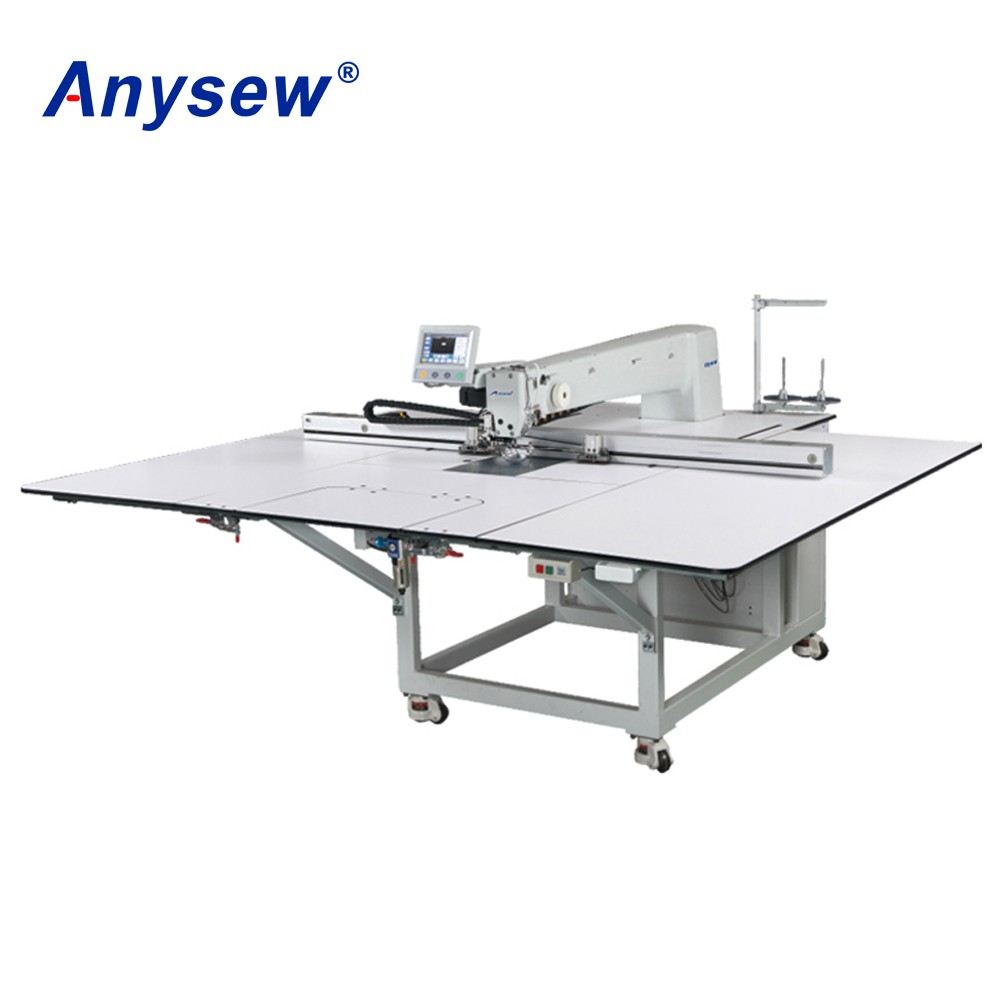

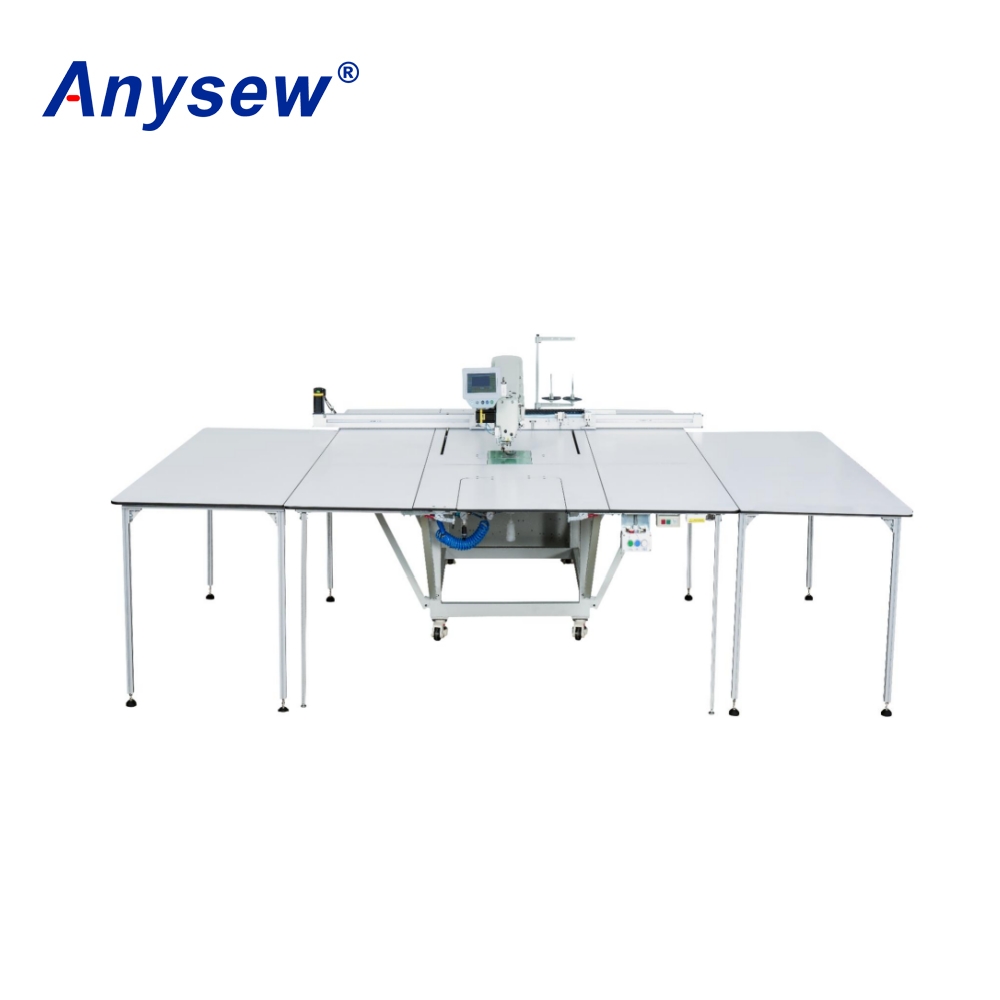

AS8310A-160105 Fully Automatic Oil-Free Pattern Template Sewing Machine With belt Drive

1) XY transmission system double synchronous belt drive
2) Through RFID barcode automatically identify pattern,automatically switch the sewing process to quickly sew.
3) The electronic auto adapting presser foot presses the sewing object accurately to prevent thread jumper and thread broken.
4) Suitable for large size down jacket, all kinds of woven and knitting fabrics.

Model	AS8310A-160105
Sewing range	X: 160cm Y: 105cm
Stitch type	301 lockstitch form
Max. speed	3000 rpm?
Max. stitch length	0.5-12.7 mm
Lift of the pressor foot	By hand: 5.5 mm; by knee: 13 mm
Needle type	DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#)
Hook	Double capacity hook
Middle presser foot	Stroke of 4mm as standard
	Lowest position adjustable range: 0.5-8mm
	Minimum distance adjustment range: 20mm
Outside presser foot	Distance to the big needle plate: 20mm
Max. stitches in a pattern	80000 stitches
Storage of patterns	999
Storage of templates	999
Program input	USB
File format	DXF, AI, PLT, DST
Main motor power	750W
Total power	2100W
Voltage	220V 50HZ
Dimensions - packed	1990x1250x1500mm (LxWxH)?
Dimensions - unfolded	2693x2100x1250mm (LxWxH)
