Automatic Compostable Sugarcane Container Making Machine

Video

1 / 7

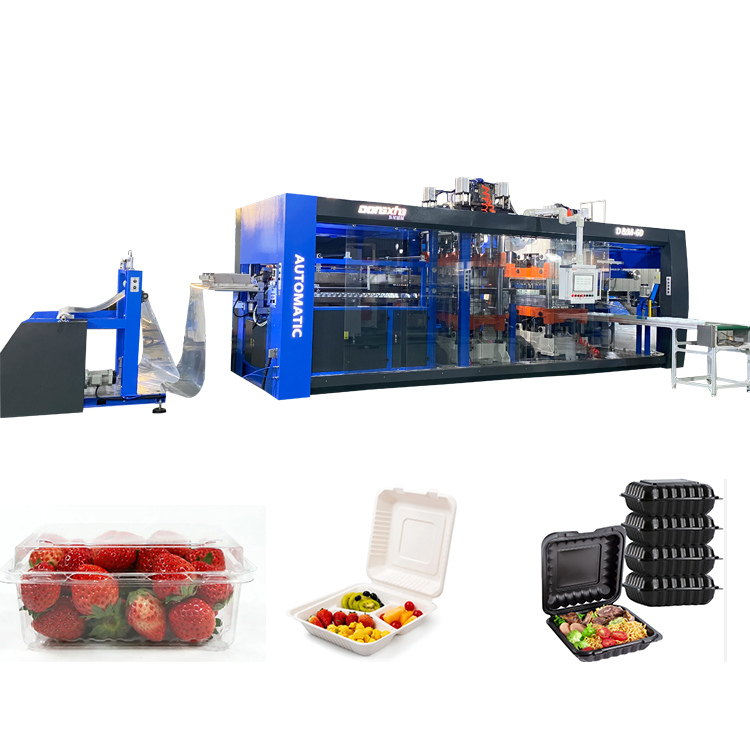

Automatic Compostable Sugarcane Container Making Machine

$82000.00

≥1 set

Options:

DX-7260

Get Latest Price

You might also like

3 Stations Full Automatic Plastic Egg Tray Fruit Box Thermoforming Machine

1 set (MOQ)

PP/PET Plastic Thermoforming Machines for Food Container Making

1 set (MOQ)

High Speed Plastic Tray Full Automatic Multi Stations Thermoforming Machine

1 set (MOQ)

Automatic Compostable Sugarcane Container Making Machine

1 set (MOQ)

Economic Thermoforming Plastic Sheet Machine with Preheater

$80000.00

1 set (MOQ)

Plastic Square Containers Making Machine | Snack Boxes Thermoforming Machine

$75000.00

1 set (MOQ)

Fully Automatic Compostable Sugarcane Container Making Machine

1 set (MOQ)

High Speed Automatic Plastic Blister Vacuum Forming Machine for Fast Food Packaging

$75000.00

1 set (MOQ)

Pet Pp Fruit and Food Packing Box Thermoforming Machine

$78000.00

1 set (MOQ)

Basic Info

Model No.
Brand Name
Processing type	Plastic Thermoforming Machine
Plastic type	Pvc
Max.Forming Height(mm)	150 mm
Forming Width (mm)	760 mm
Forming Length (mm)	800 mm
Production Speed(Cycles/min)	25
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core components	Plc
Air Pressure(MPa)	0.7 MPa
Sheet Thickness(mm)	0.15 - 2 mm
Heating Power (kW)	35 kW
Air Comsumption(L/min)	2000 L/min
Water Comsumption(L/min)	50 L/min
Product Type	plastic container
Place of Origin	Guangdong, China
Brand Name	DongXing
Voltage	380V
Dimension(LWH)	L9mW2.6mH2.8m
Weight (T)	10 T
Power(KW)	80kw
Warranty	1 Year
Key Selling Points	High Productivity
Application	Plastic Products
Product name	Muti Step High-speed Thermoforming Machine
Keyword	PLA Tableware Making Machine
Suitable material	PP,PS,PET,PVC,OPS,PLA
Function	Forming - Punching - Cutting - Stacking
Max forming area	w720*L600mm
Min.Forming Area	420*300mm
Travel depth	150mm
sheet width	450-760mm
Controller	Touch Screen
Warranty of core components	1 Year
Condition	New
Applicable Industries	hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Showroom Location	None

Product description

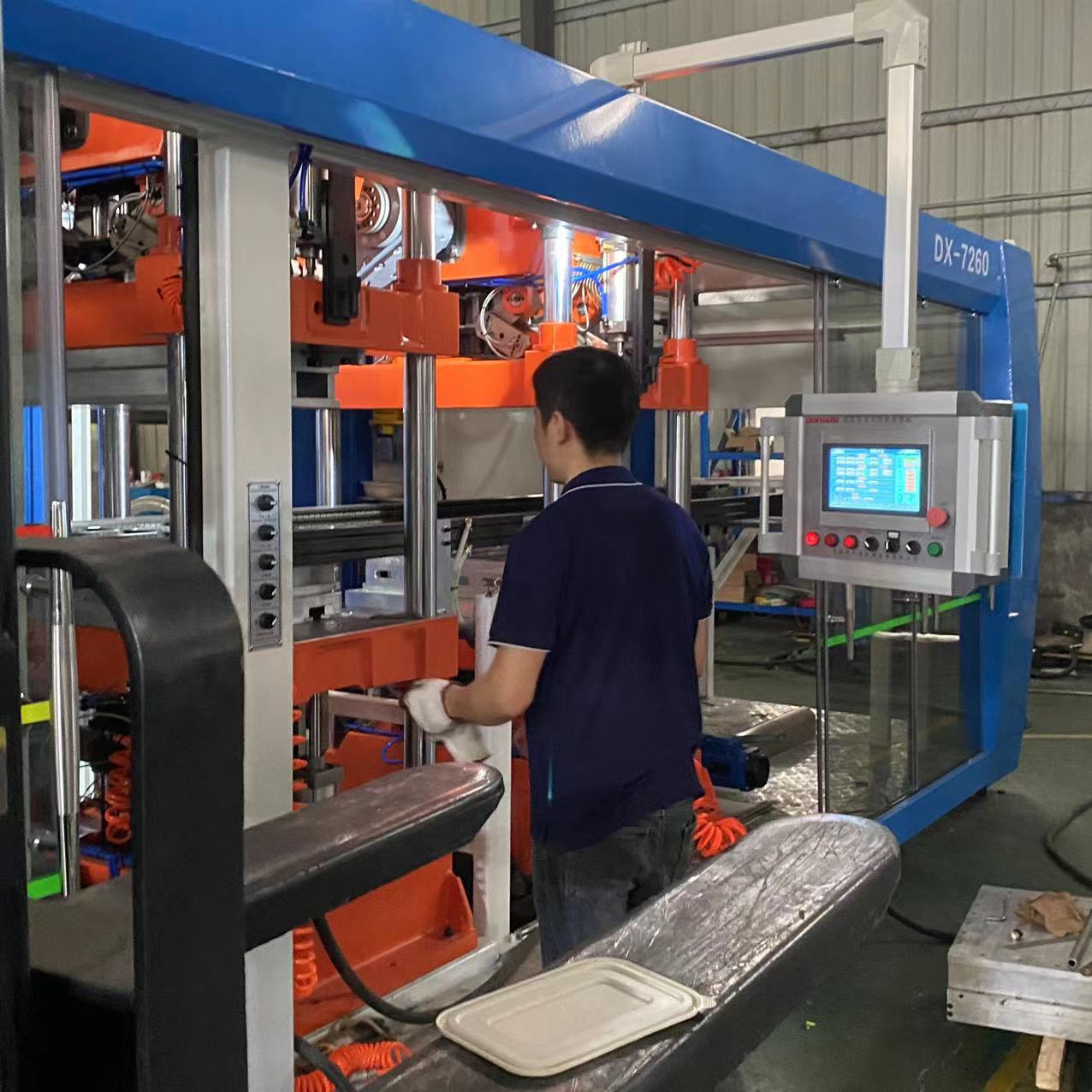

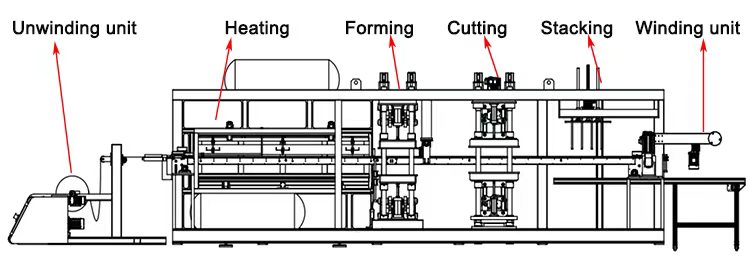

Details of the machine

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Main Configuration Instructions?
Control System	Germany Beckhoff System
Programmable Controller (PLC)	Germany Beckhoff System
Touch display	Taiwan Delta (15-inch color touch display)
Pull tab servo system	Taiwan Delta 5.5KW
Rail (beam) cooling system	The whole beam is cooled by water (circulating water)
Forming Servo System	Taiwan Delta (with brake) 5.5KW 2 units
Cutting servo system	Taiwan Delta (with brake) up 7.5KW, down 5.5KW
Stack Servo System	Taiwan Delta (with brake) 1.5KW

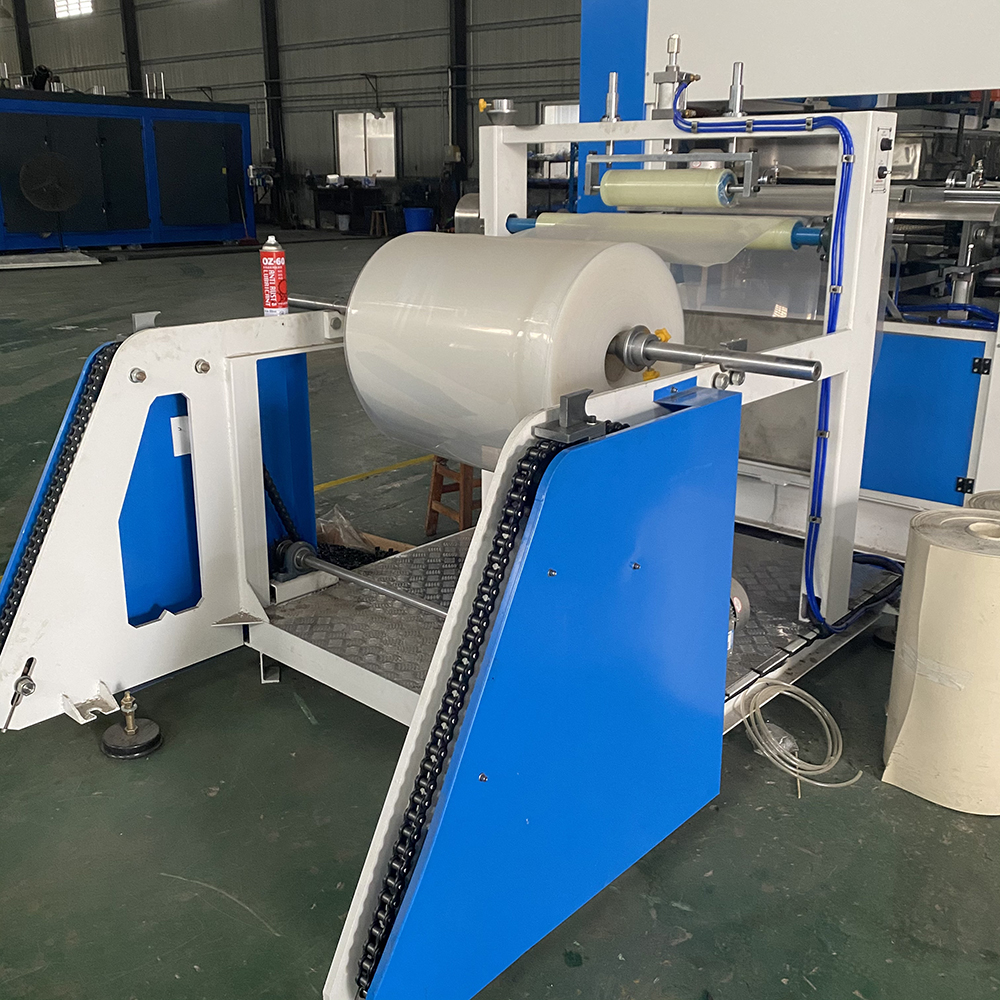

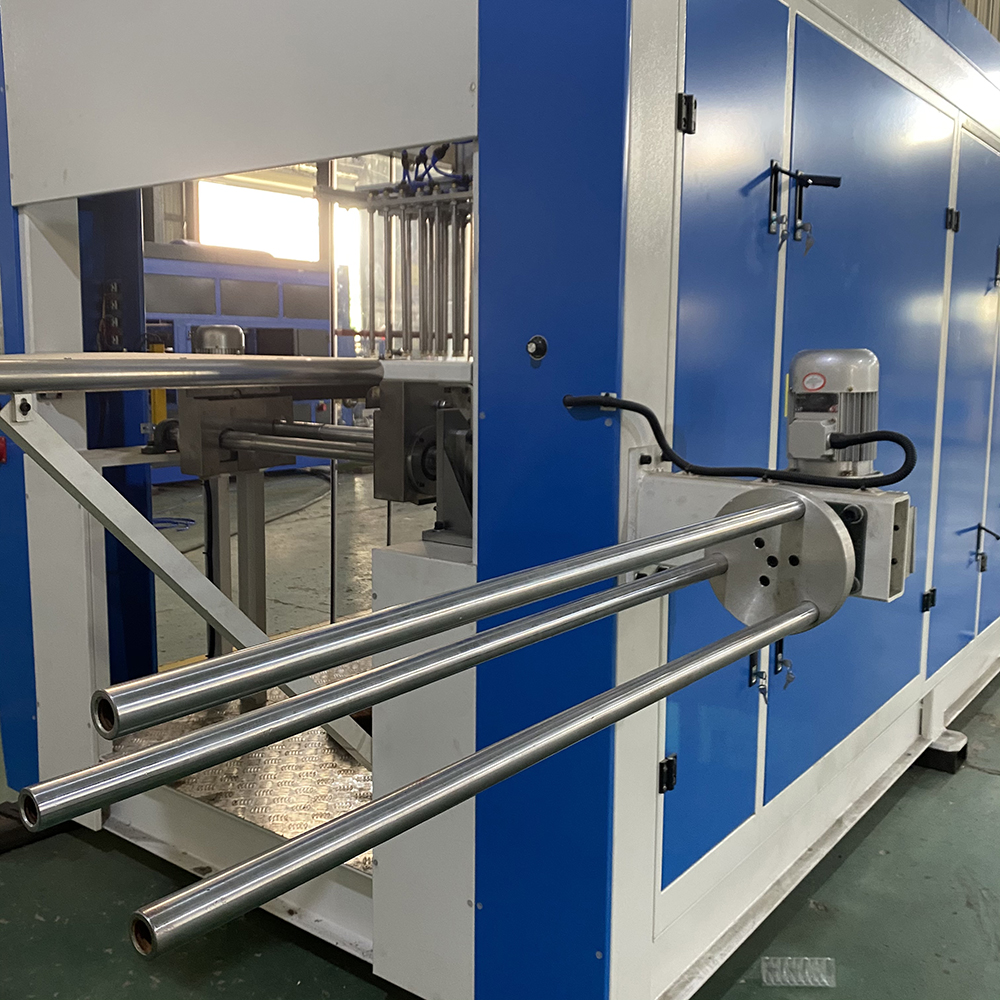

Feeding Part

1.Double material rod automatic mechanical loading roll device, roll diameter 1100mm, can bear 500kg.

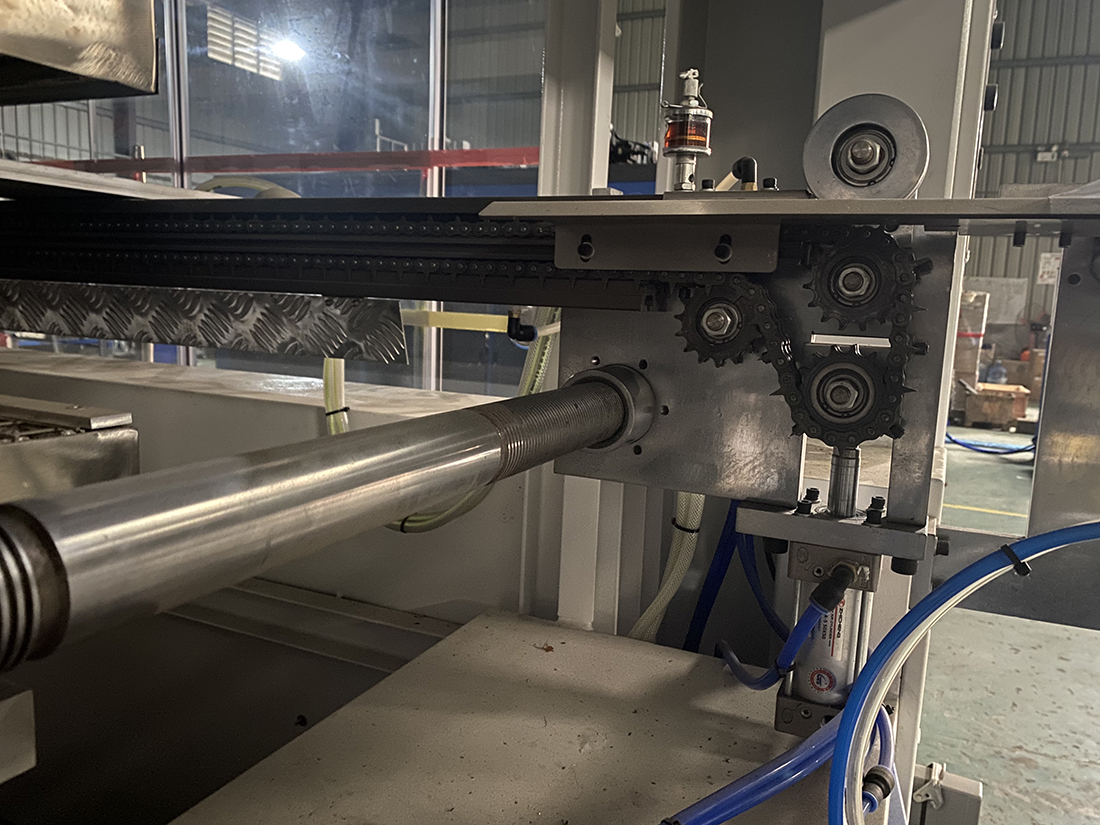

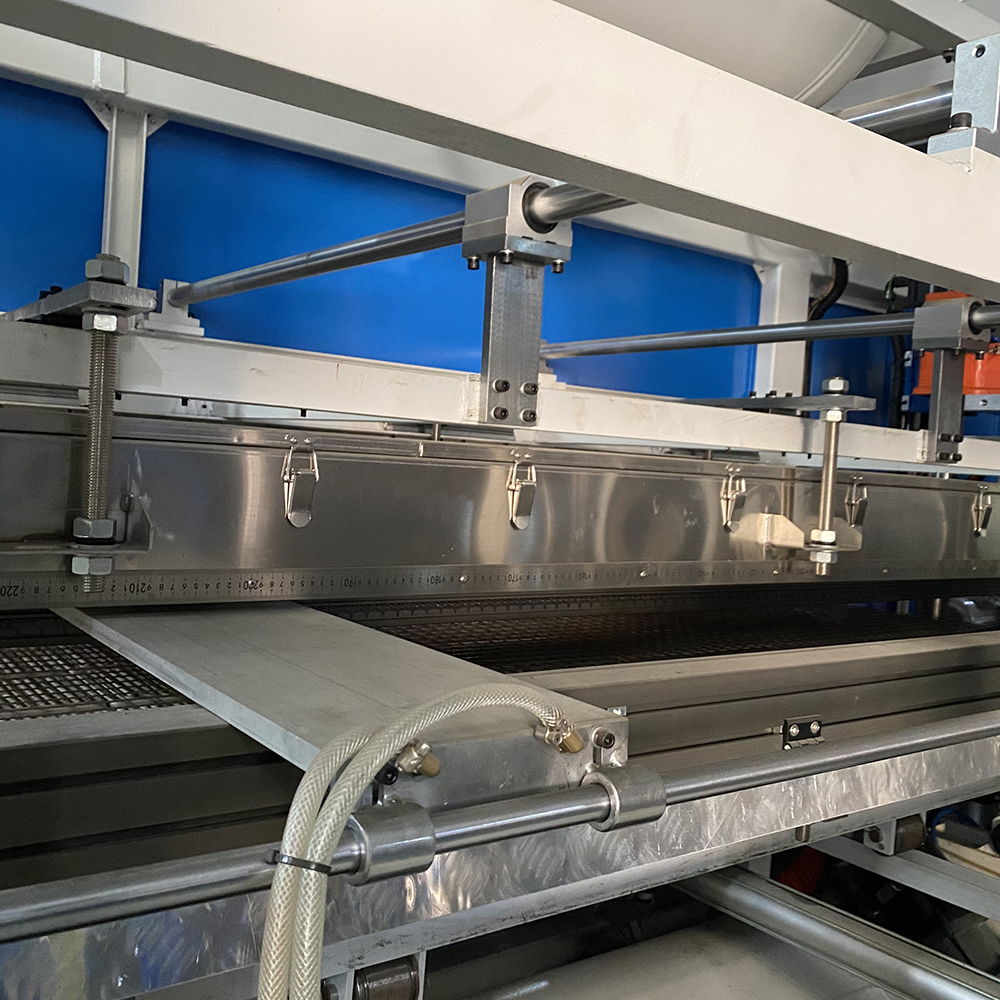

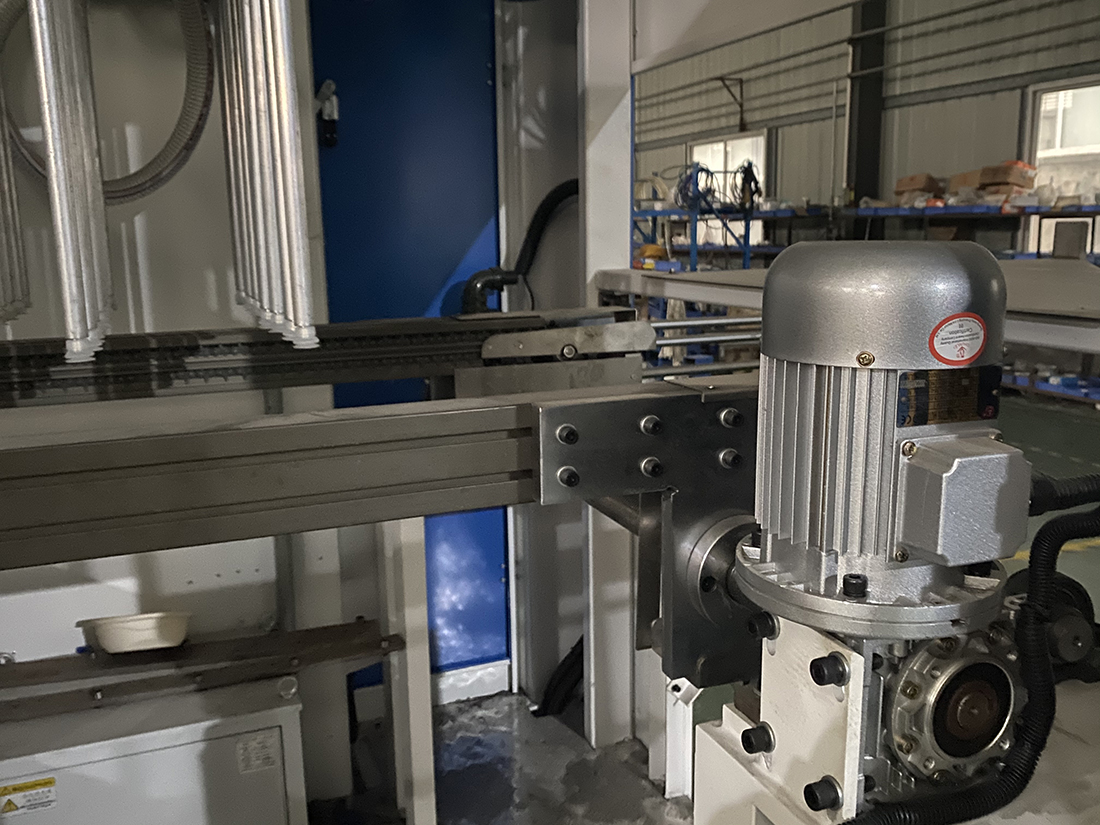

Conveying part

1.The chain guide is made of aviation aluminum alloy with surface hard oxygen treatment.

2.The guide rail of Aluminum is full of cooled water can cool the heated sheet efficiently leads to stable conveying.

1.Double row guide chain.

2.The guide rail is electrically adjustable and can be adjusted in one direction.

3.Driven by servo motor, accurate and efficient.

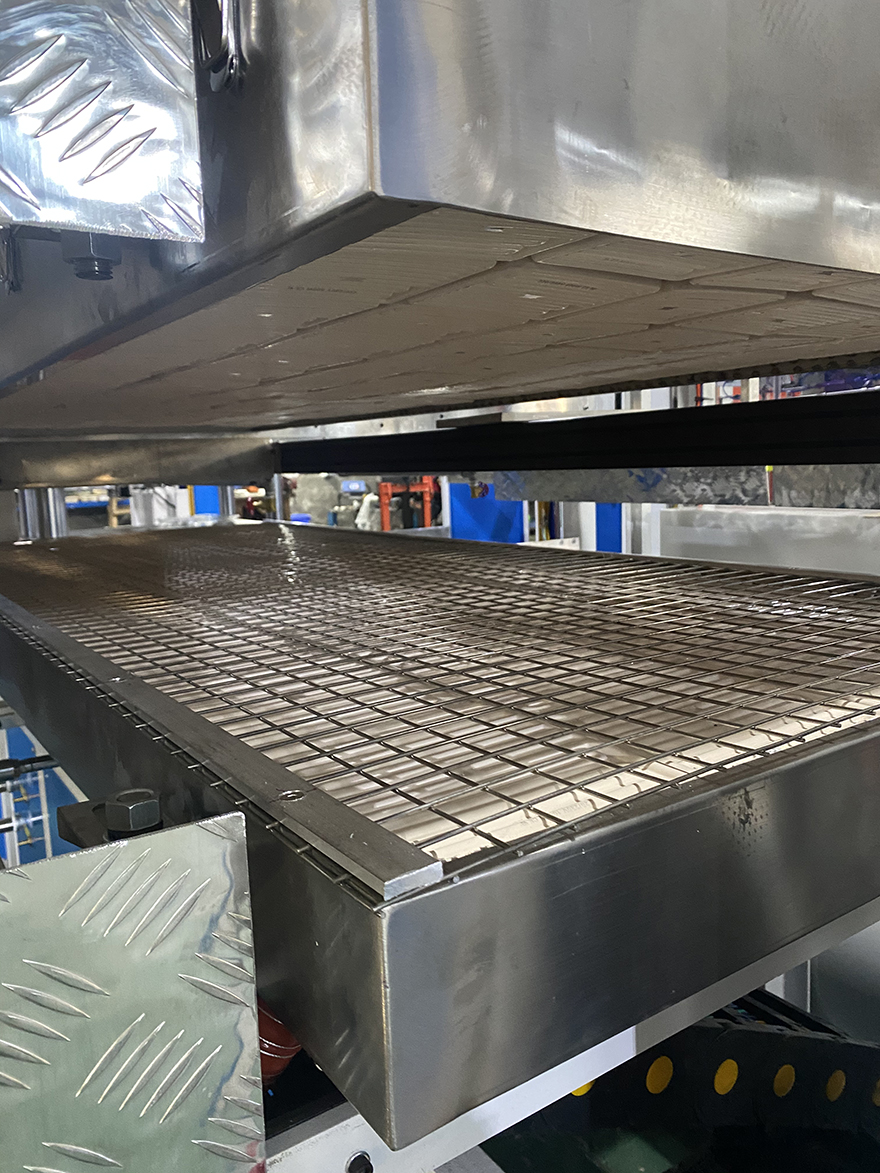

Heating Part

1.Hot oven?length is 3 times the forming length,upper oven and lower oven heating ,lower oven with protective steel mesh,high temperature resistant wire,with current overload protection.

2.Irish ceramic heating tile.

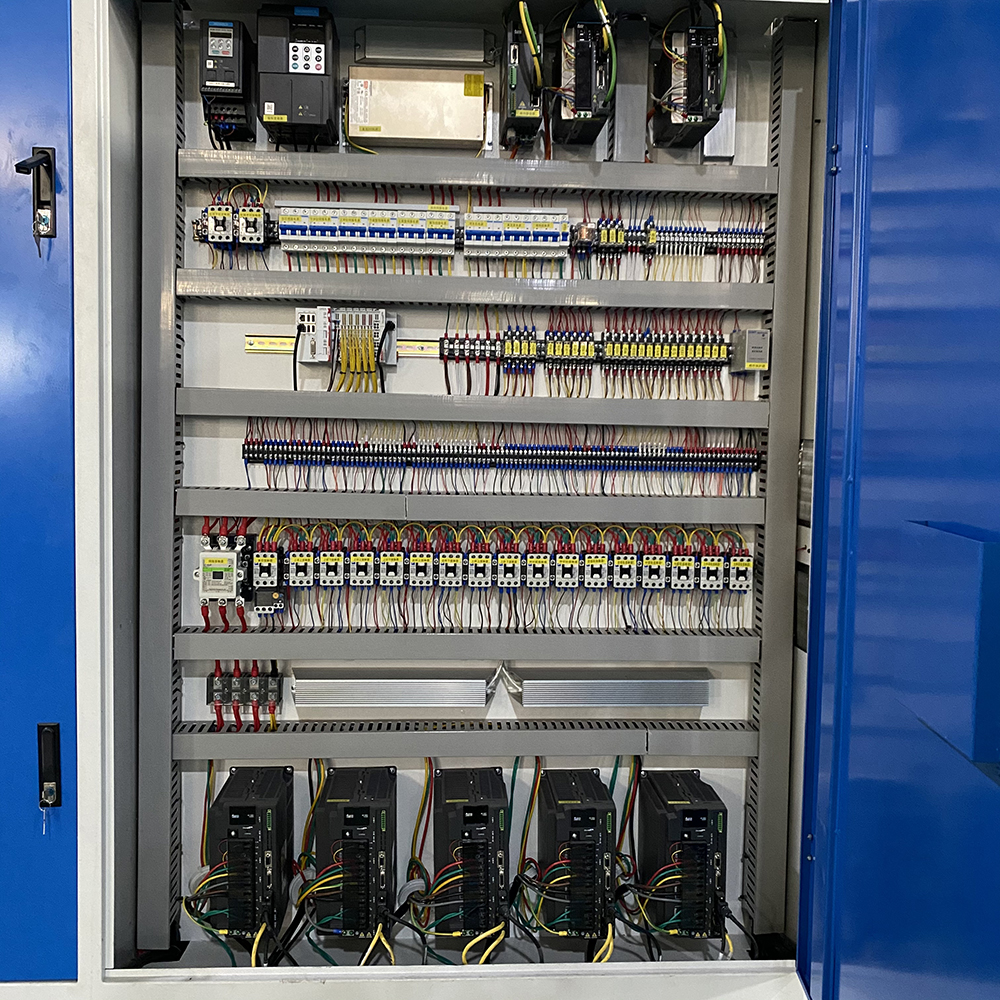

Electric cabinet

1.Whole machine adopts servo drive.

Computer digital temperature control, one-to-one precise temperature control temperature difference of plus or minus 0.5 degrees,
intelligent temperature control energy saving 20%.

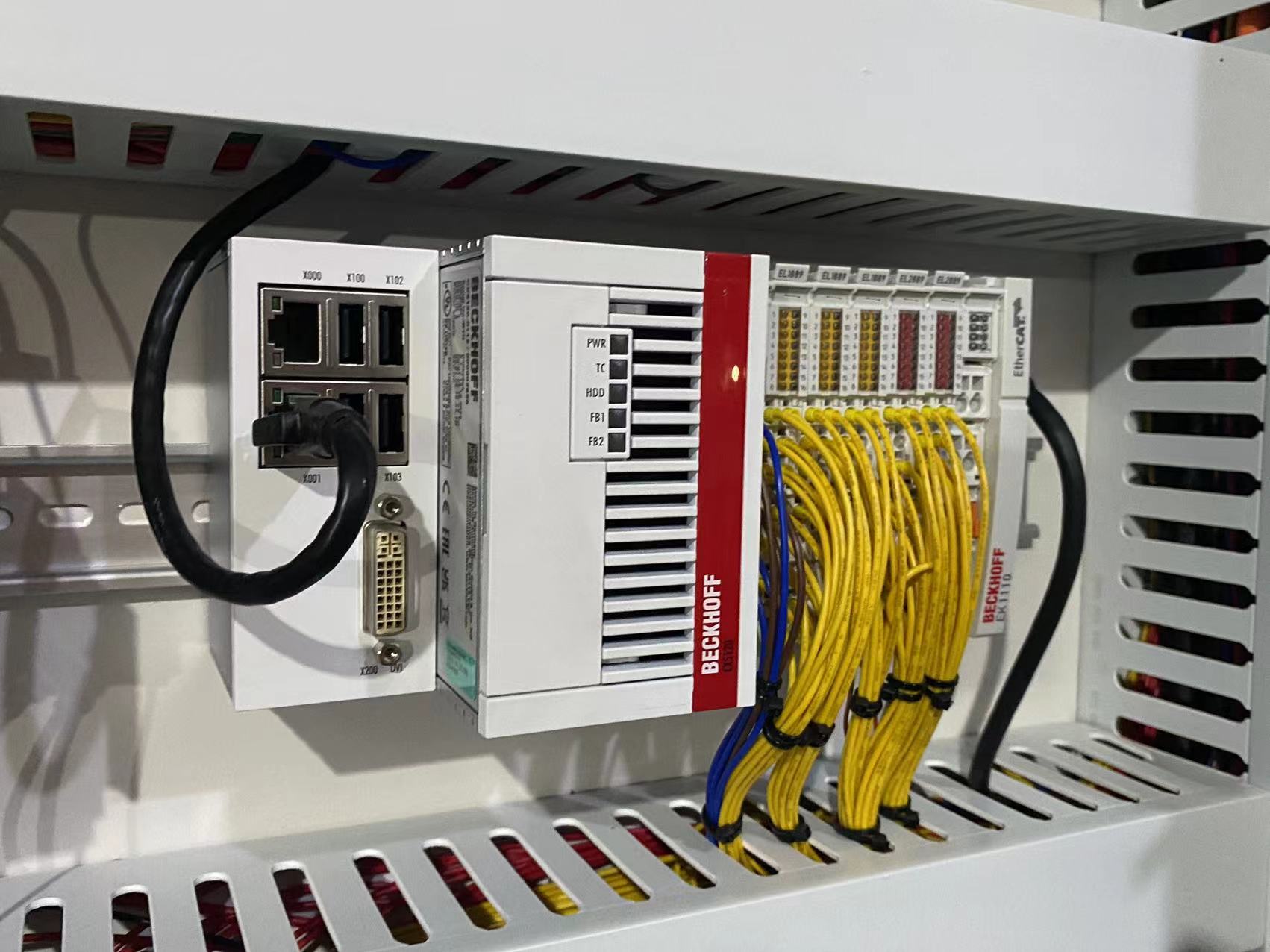

2.Germany Beckhoff control system.

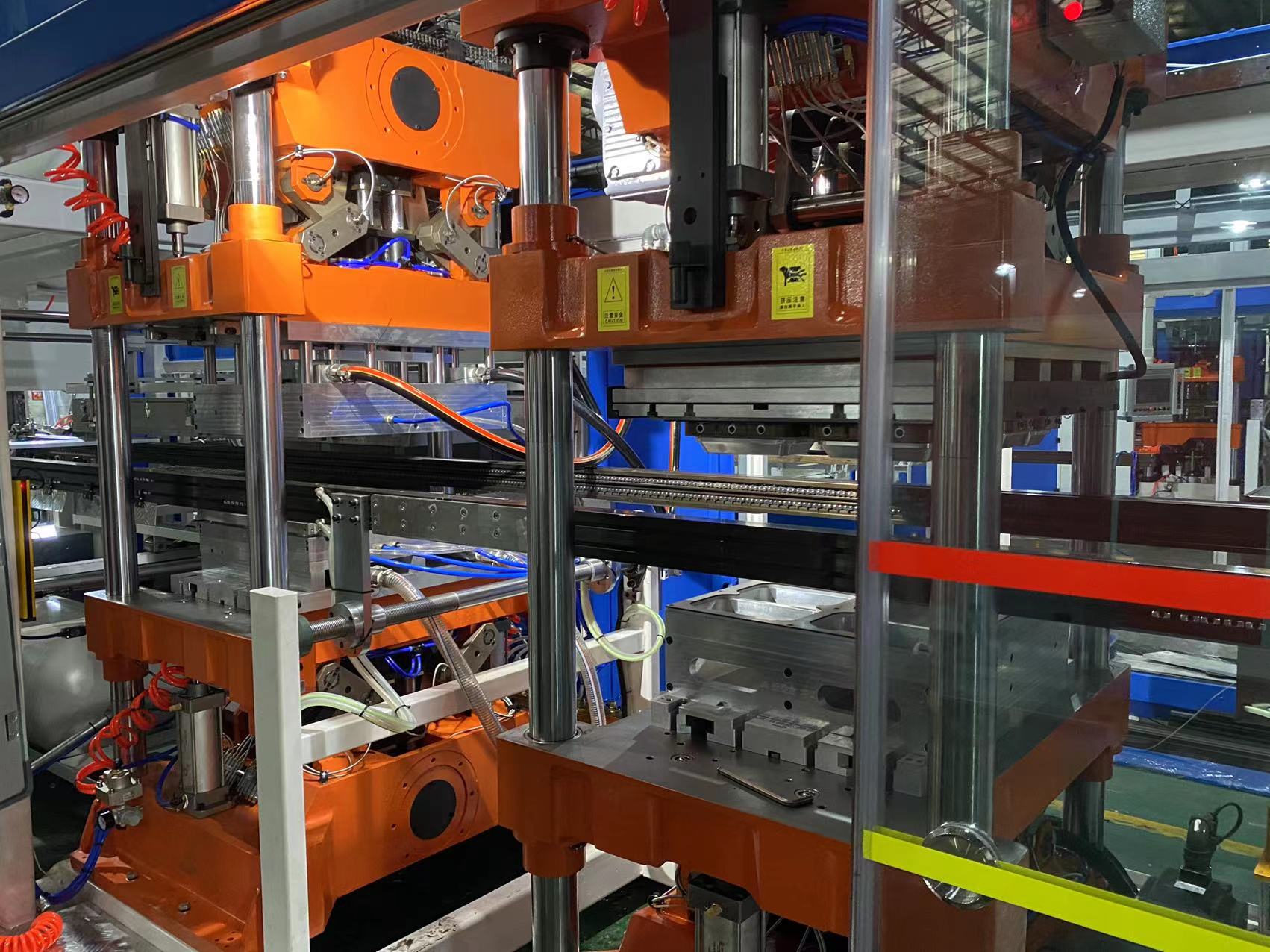

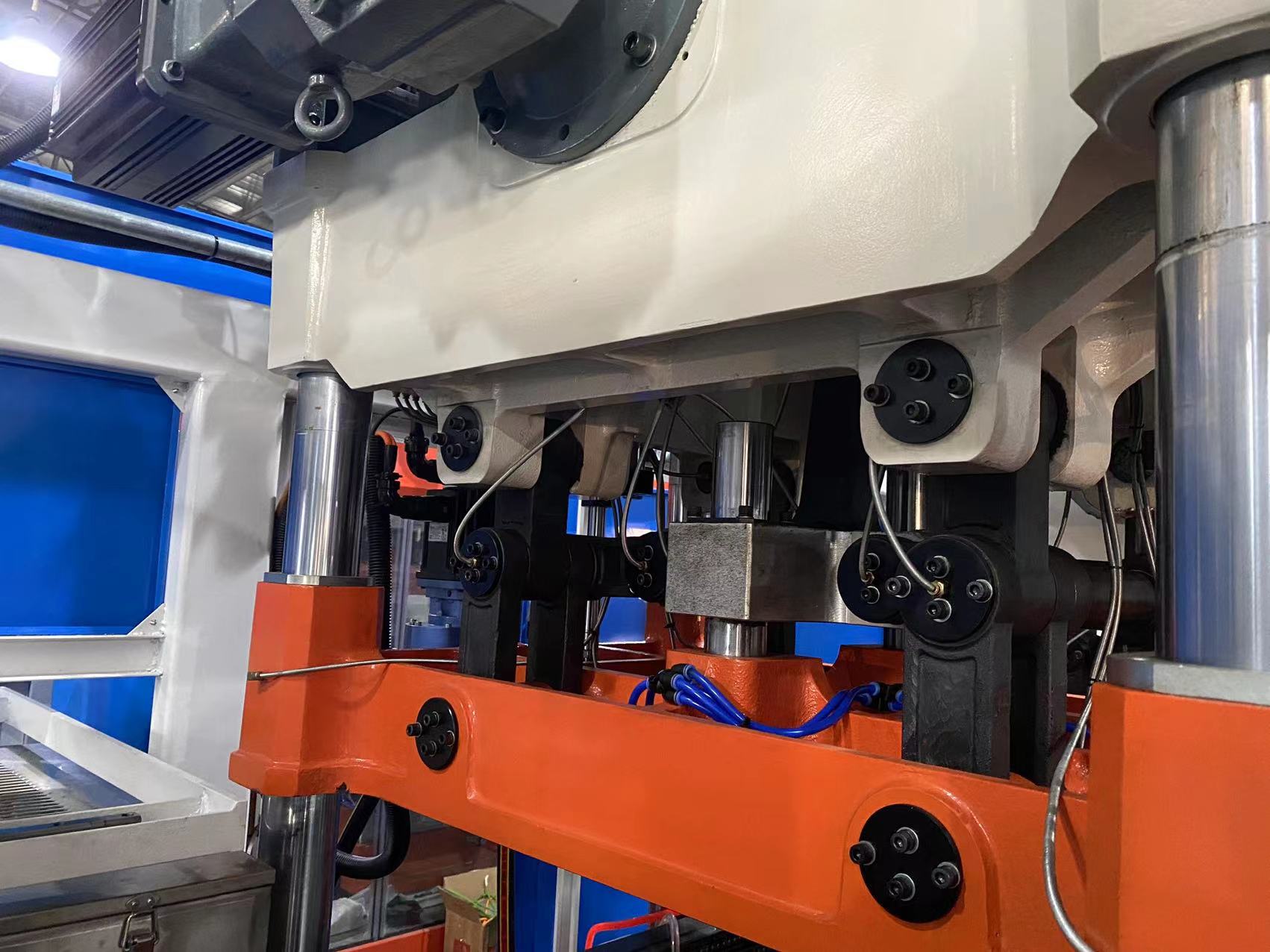

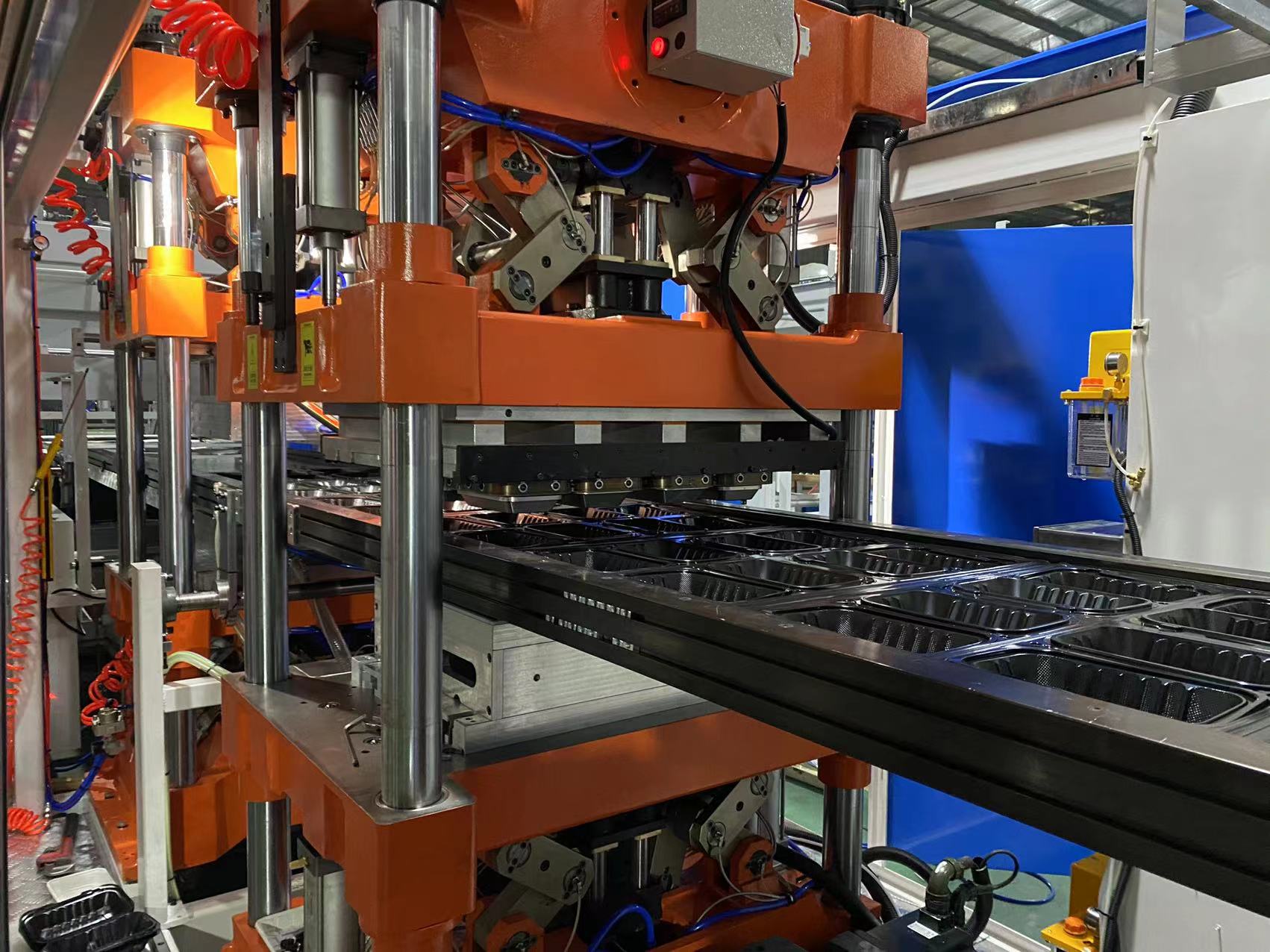

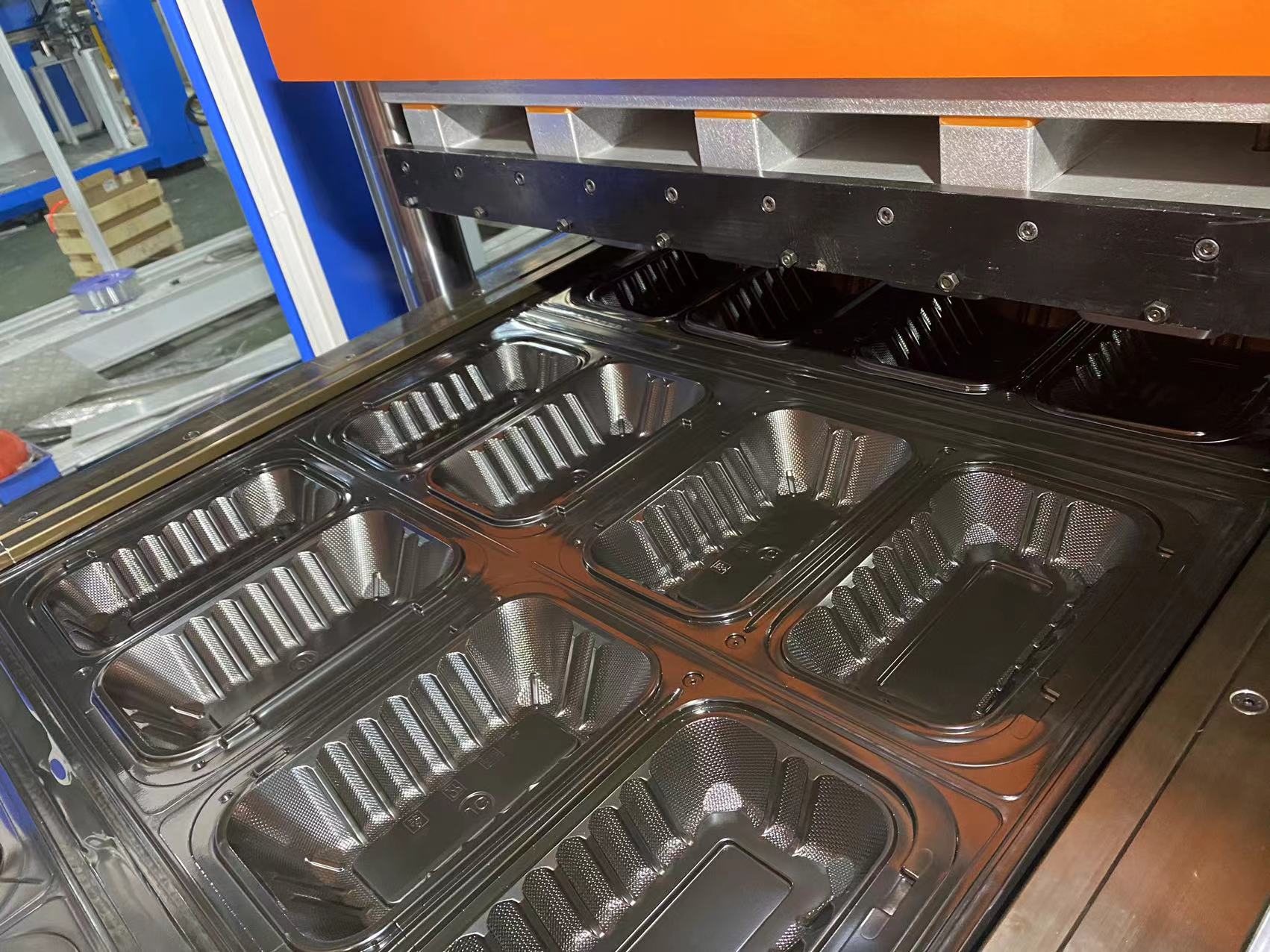

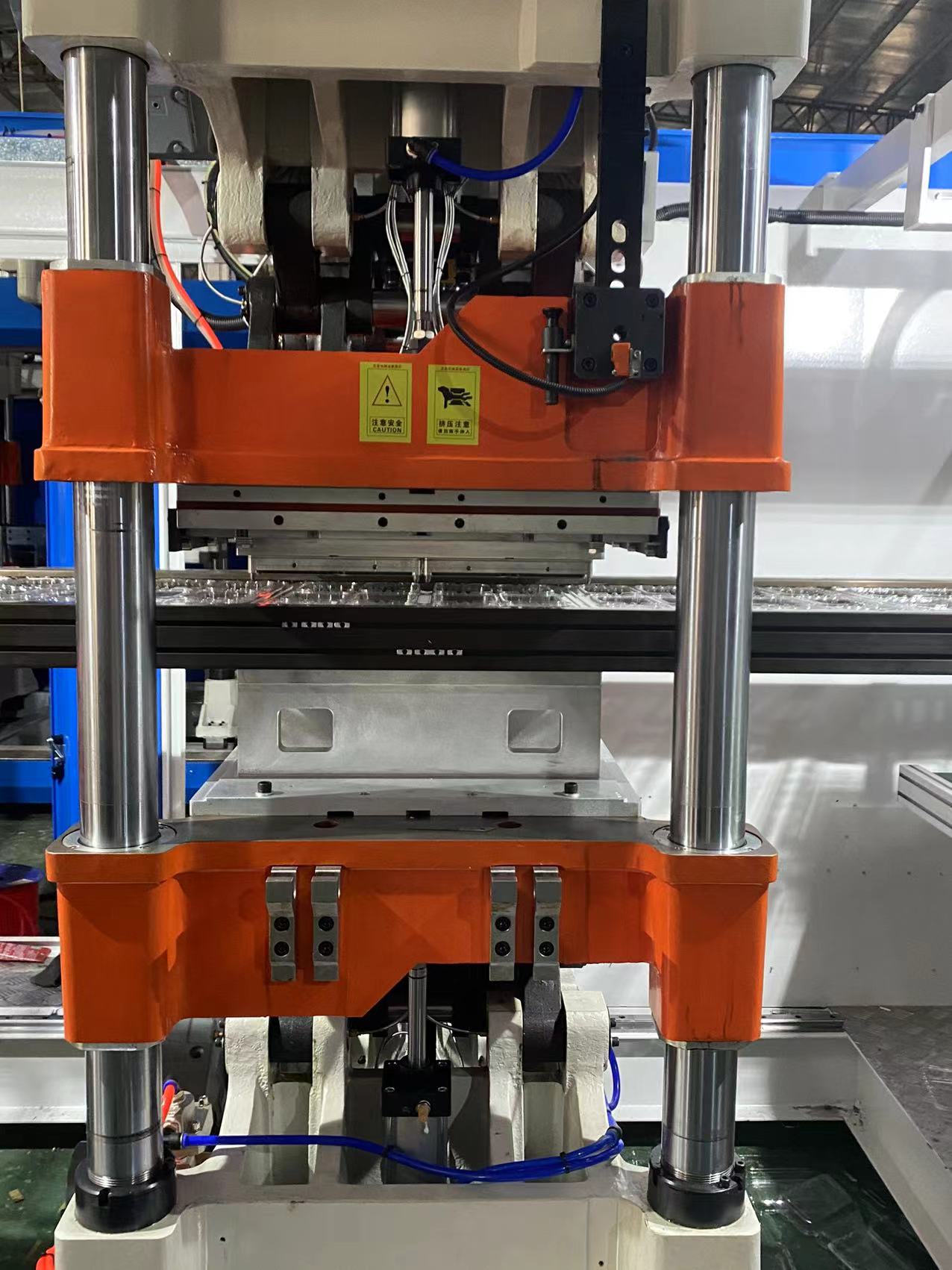

Forming Station

1. Full workstation casting.

2. Servo control of forming upper mold core . 3. Automatic mold locking device. 4. Adopt high power servo motor drive, high precision, high efficiency and low noise. 5. The working principle is the combination of positive and negative pressure, through some nylon plugs in the mold to assist in stretching, so that it has a stronger production capacity. 6. Cooling water in the mold cavity speeds up the cooling speed and makes it easy to take off the mold. 9. The upper and lower working positions can be adjusted automatically, which is fast and convenient. 8. Each working position is locked by nuts to ensure the stability of machine operation.

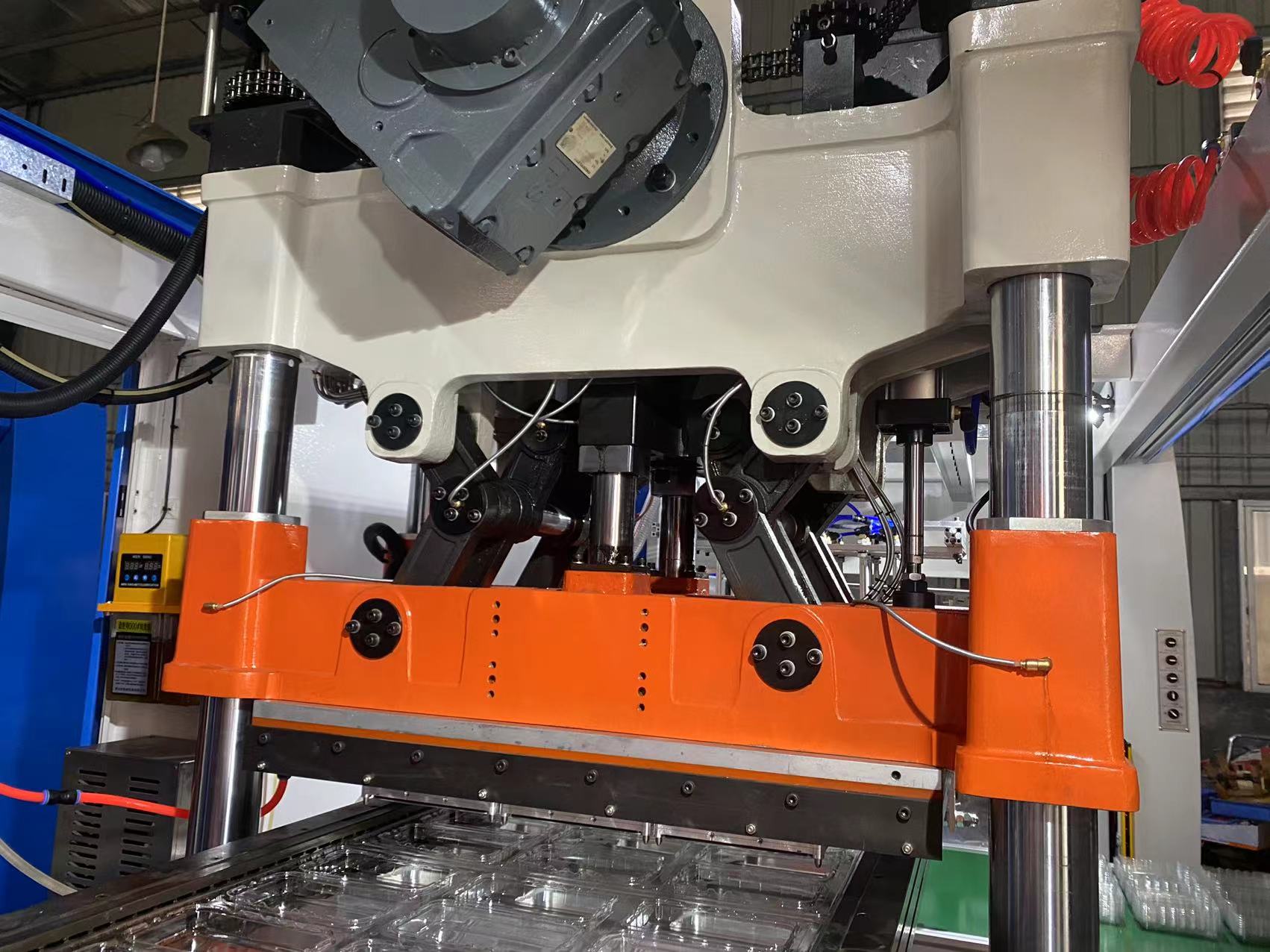

Cutting Station

1. High power servo motor directly punching and cutting, with strong cutting force, i.e. the cutting line can reach 12 meters to ensure perfect cutting. 2. Automatic mold locking device, the work station can be moved up and down, left and right by automatic adjustment, with anti-collision function, which makes the debugging of the mold more convenient and fast. Forming upper mold table height adjustable 50mm 3. Overheating alarm function of heating guide plate (90℃) , safe and reliable. 4. The movable blade has the function of positioning guide, which makes the product cutting more accurate. 5. Intelligent lubrication system can be lubricated according to certain amount and time, which can make the machine long life and continuous.

Stacking Station

1. Stacking is driven by servo motor, higher precision and efficiency. 2. Automatic counting, automatic stacking. 3. Equipped with detachable and replaceable conveyor belt, which is efficient and convenient. 4. Equipped with several noise elimination devices to reduce stacking noise.

Rewinding System

1.Inverter automatic winding function, adjustable torque function.

Products Description

Technical Parameters
Station	Four Station	Three station	Four stations	Three station	Three station	Three station

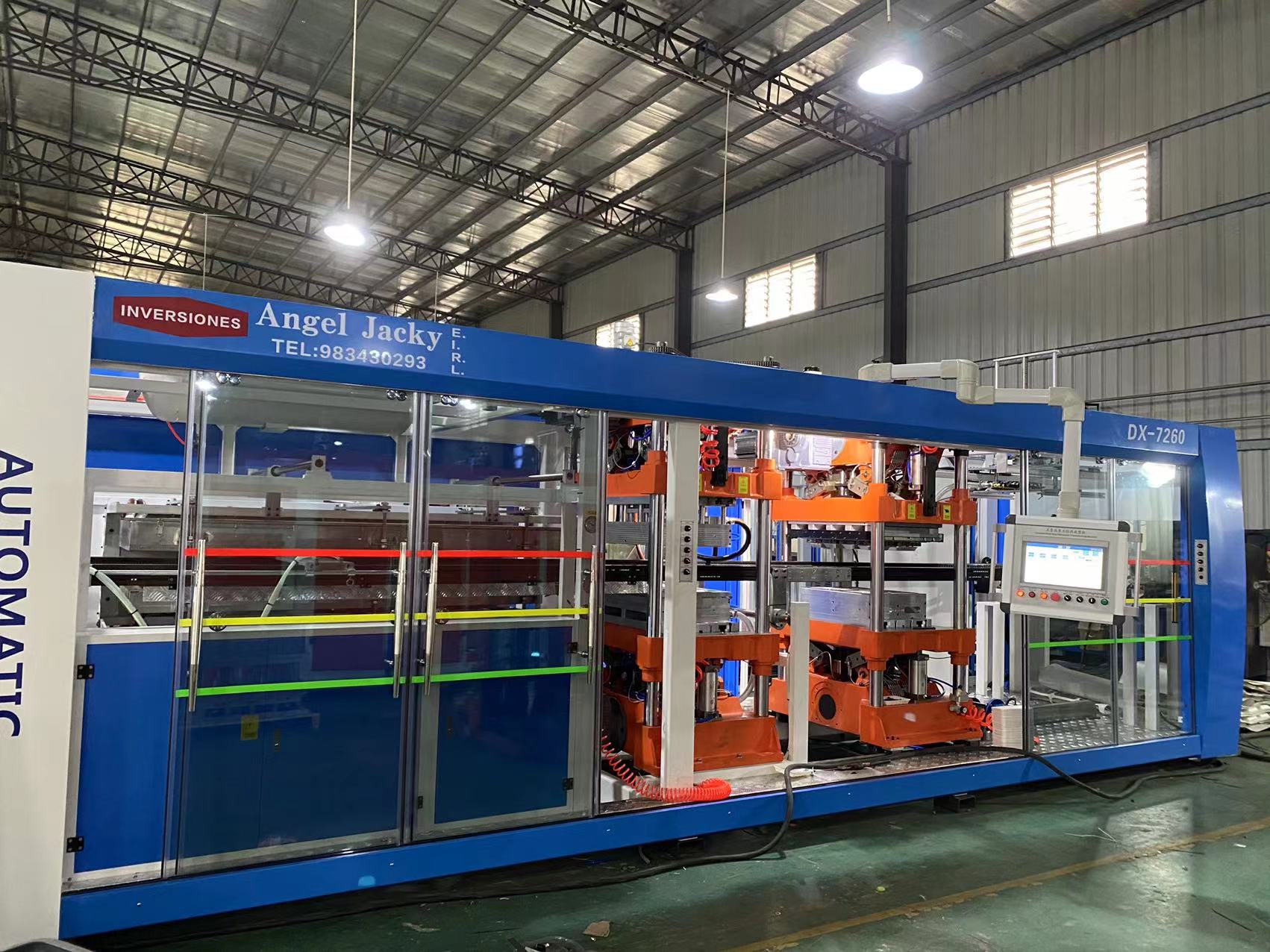

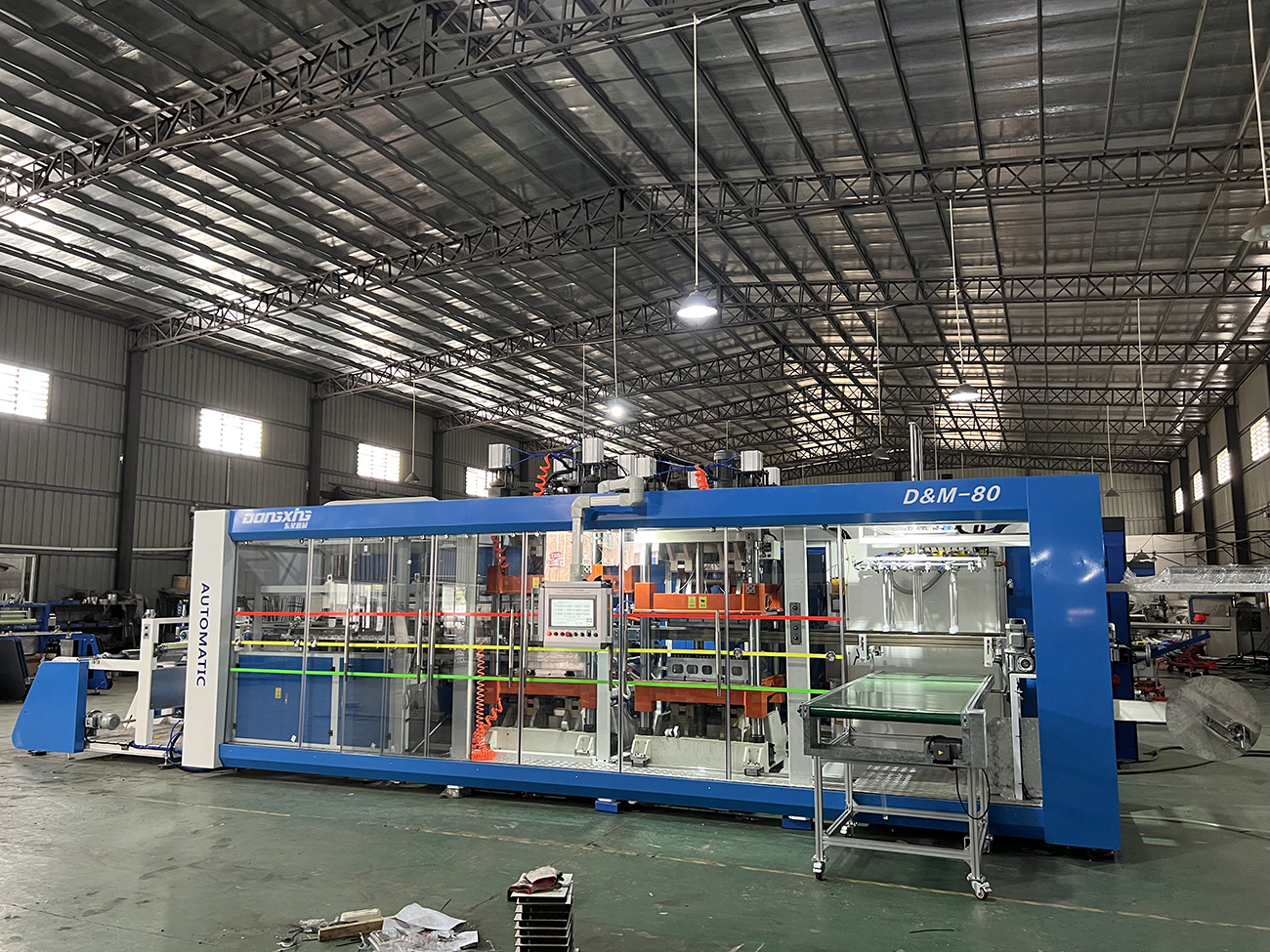

Model	DM-060			Dm-80			DX-7260	DX-FY7190
Forming Area	W780*L600mm			W720*L800mm			W720*L600mm	W710*L900mm
Forming Depth (Max.)	150mm			150mm			150mm	150mm
Sheet thickness	0.15-0.2mm							0.15-0.2mm	0.15-2.0mm
cycle period	40/min							30/min	30/min
Air pressure	7Bar							7Bar	7Bar
Min.Forming Area	420*300mm			420*300mm			420*300mm
Sheet width?	450-810mm			450-780mm			450-810mm	450-760mm
Suitable Sheet	PP,PS,PET,CPET,PVC,OPS,PLA,etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Rated power		100kw		120kw	100kw	80kw
Heating power	20-55kw			20-55kw			20-55kw	20-55kw
Procedure	Forming-punching-cutting-stacking	Forming-cutting-stacking	Forming-punching-cutting-stacking	Forming-cutting-stacking	Forming-cutting-stacking	Forming-cutting-stacking
Dimension	L11mW2.8mH3m	L13mW2.8mH3m	L12mW2.8mH3m	L14mW2.8mH3m	L11mW2.8mH3m	L8mW2. 6mH2.8m
Weight	16T	14T	18T	16T	13T	10T

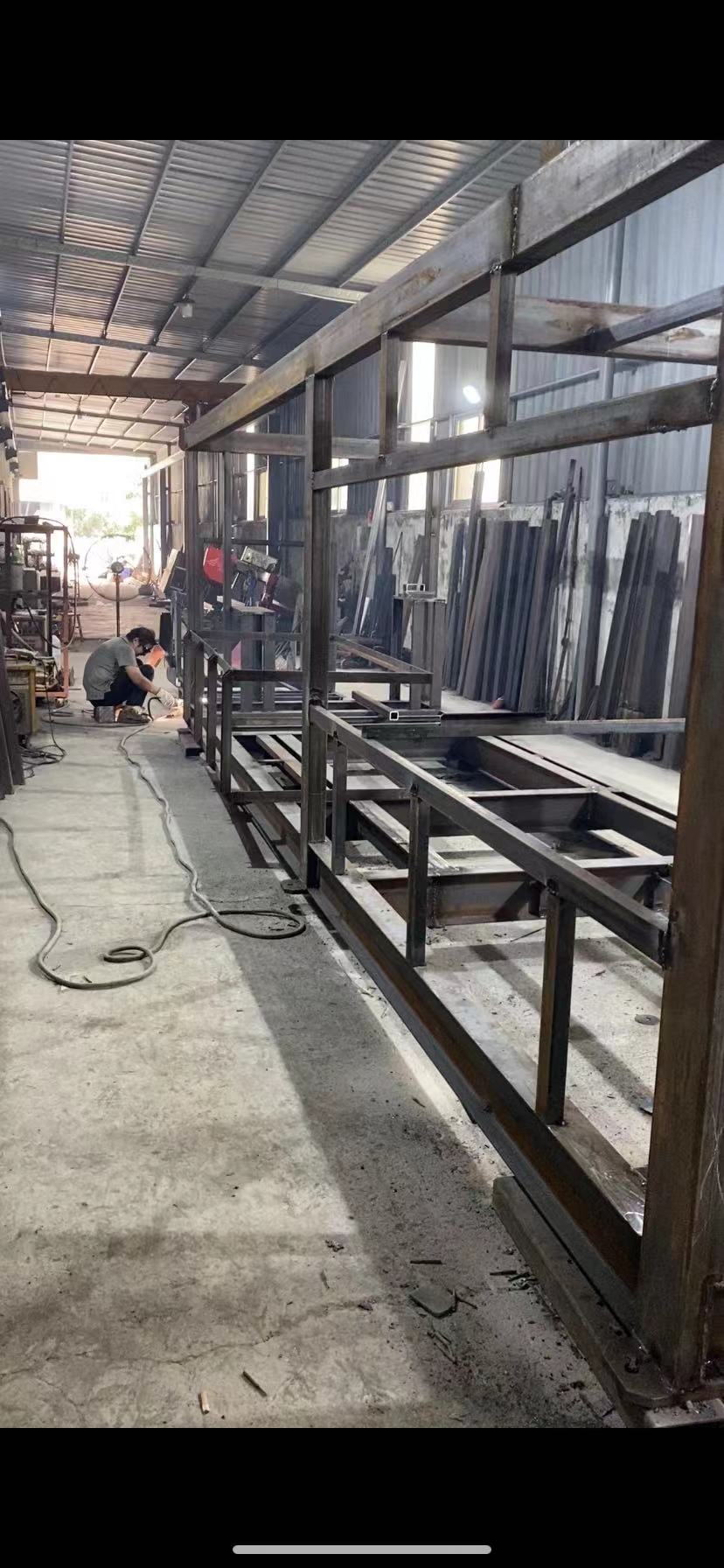

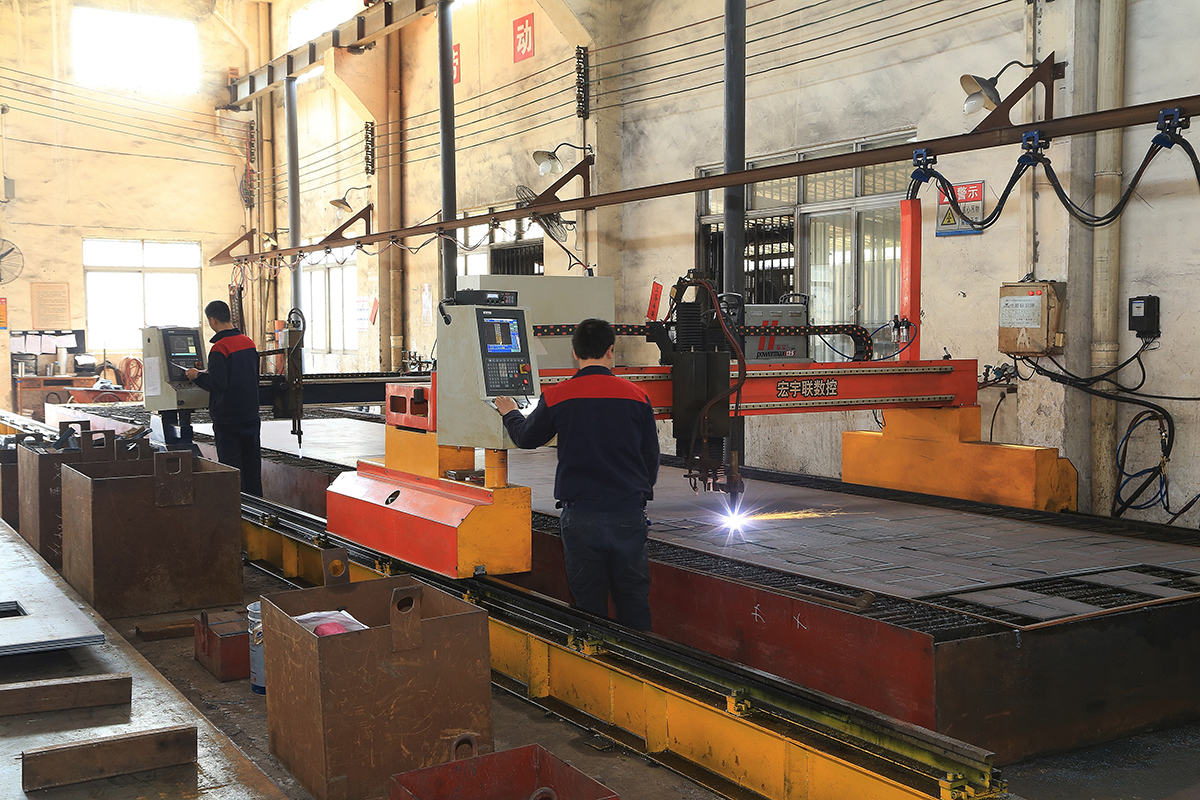

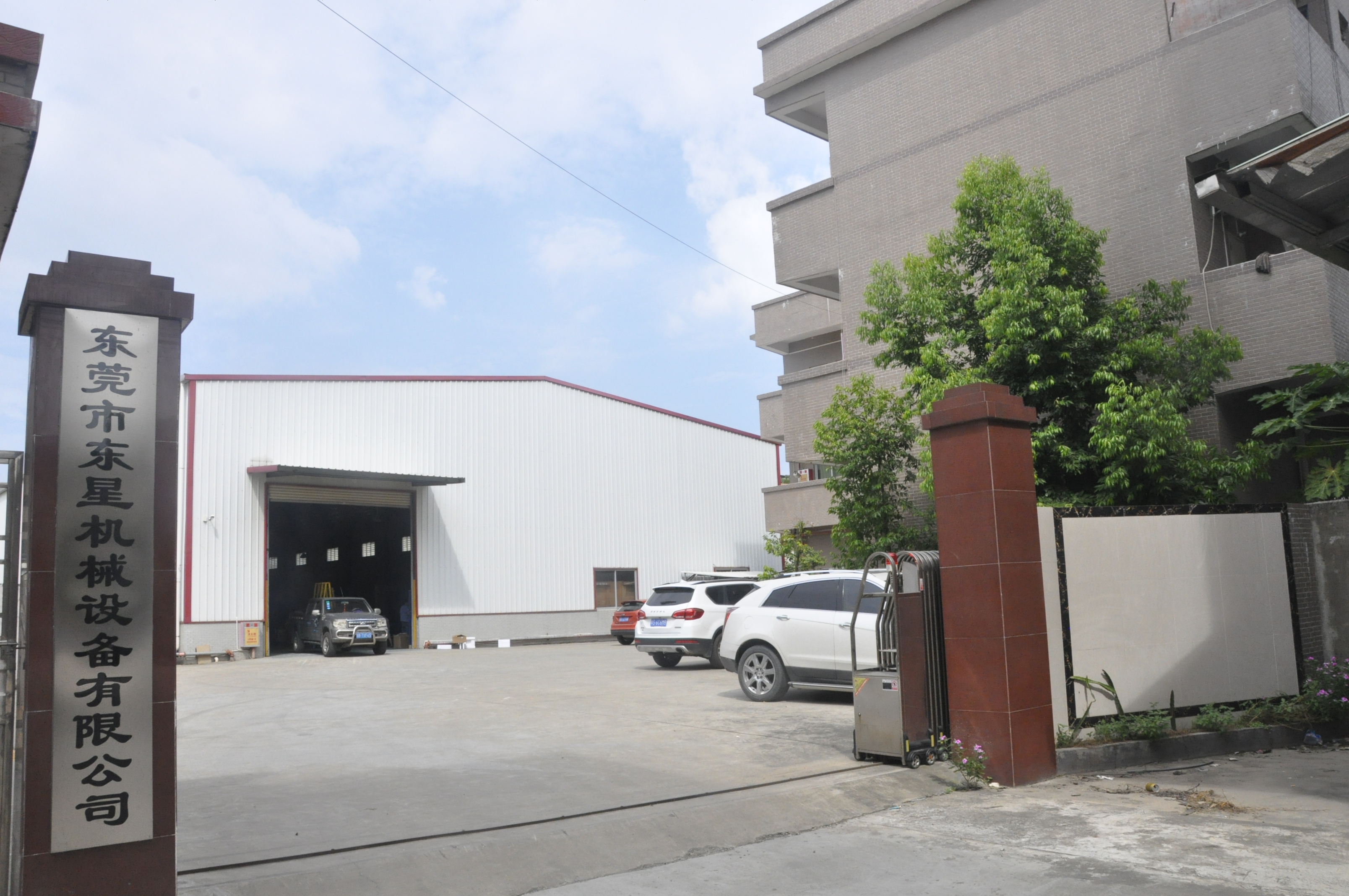

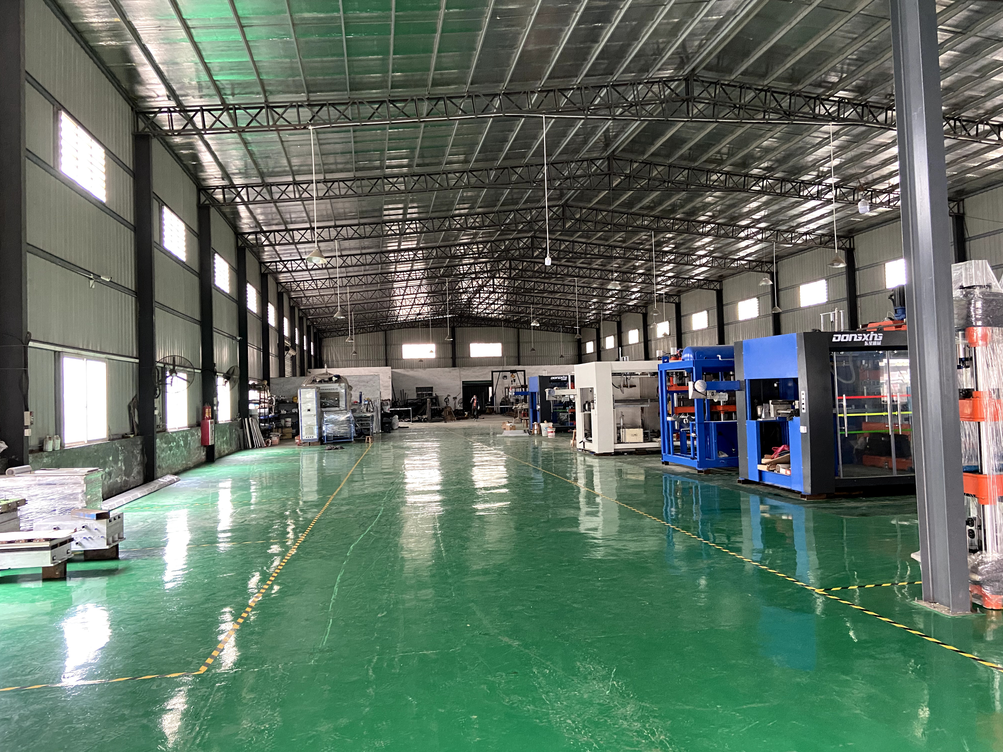

Our Factory

Dongguan Dongxing Machinery Equipment Co., Ltd. is a professional production enterprise specializing in the R & D, innovation and manufacture of various plastic molding machines. The company is located in Qiaotou town, Dongguan, adjacent to the airport, bus station and freight station. The traffic is very convenient.

Combined with more than 20 years' experience of plastic suction machine manufacturing, we developed a positive and negative pressure forming punching and stacking integrated machine with independent intellectual property rights. From a series of production processes such as charging, positive and negative pressure molding, punching, trimming, stacking, counting, conveying, automatic recovery of materials,etc., a series of production processes are completed at once. The company specializes in producing positive and negative pressure thermoforming machine, cup making machine, servo driven high-speed molding machine and ordinary high-speed molding machine.

Customer visits to our factory and our exhibitions

Application

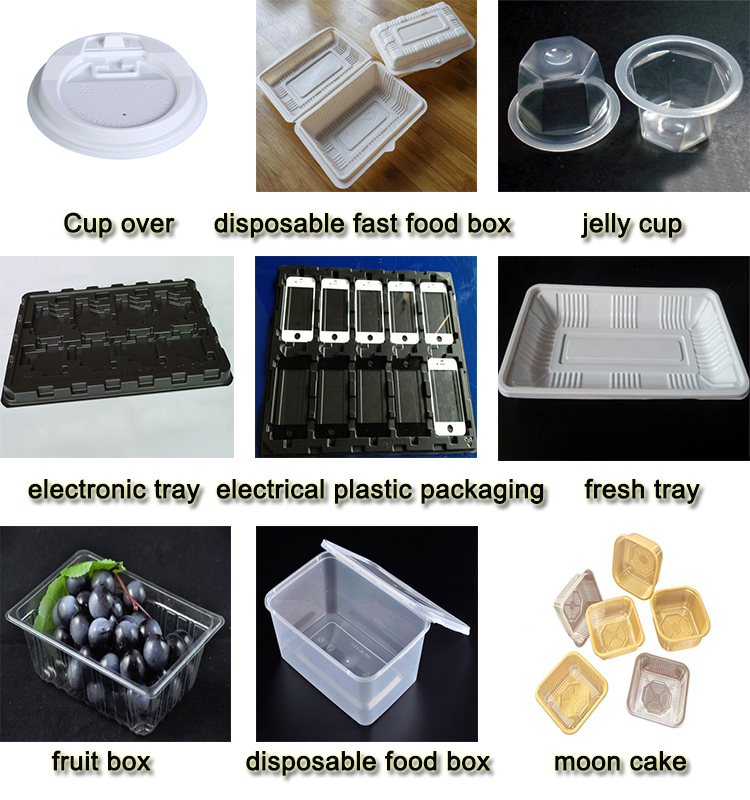

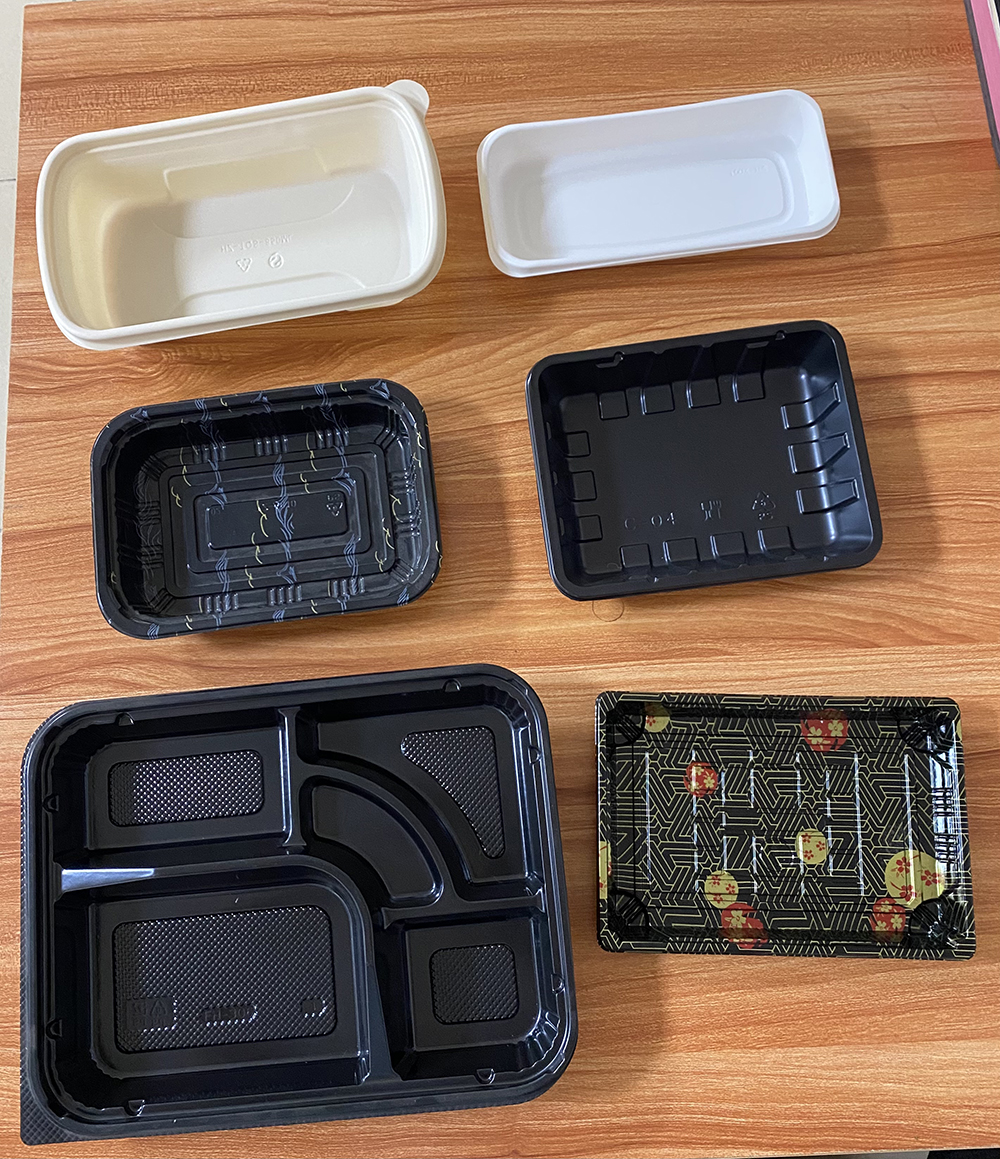

This machine is suitable for the production of highly demanding food packaging products: cup lids, freshness trays, moon cake trays, disposable fast food boxes, disposable food boxes, instant noodle bowl lids, milk tea lids, coffee cup lids, beverage cups, ice cream cups, jelly cups, packaging boxes, plastic packaging containers for daily necessities, medical plastic packaging, wine packaging and plastic packaging for electrical appliances. Applicable materials: PP, PS, PET, CPET, PVA, OPS, PLA, etc.

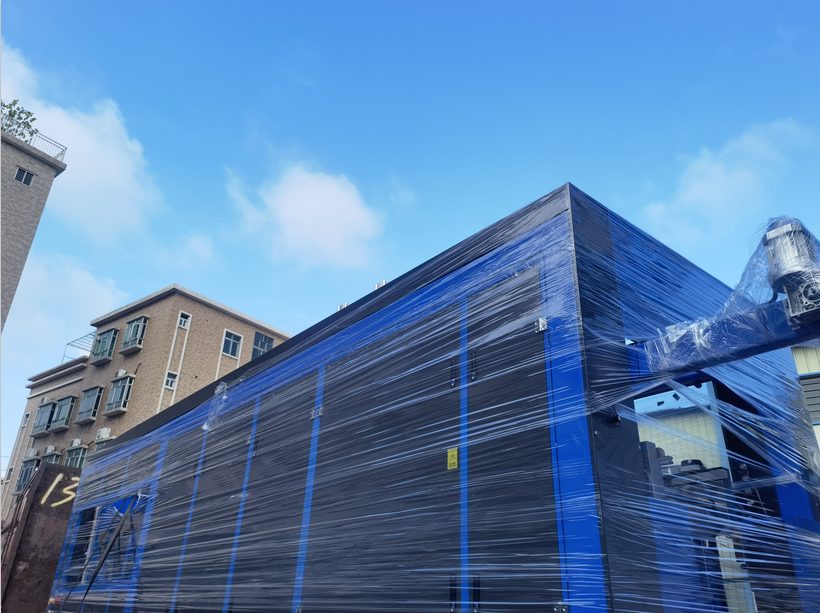

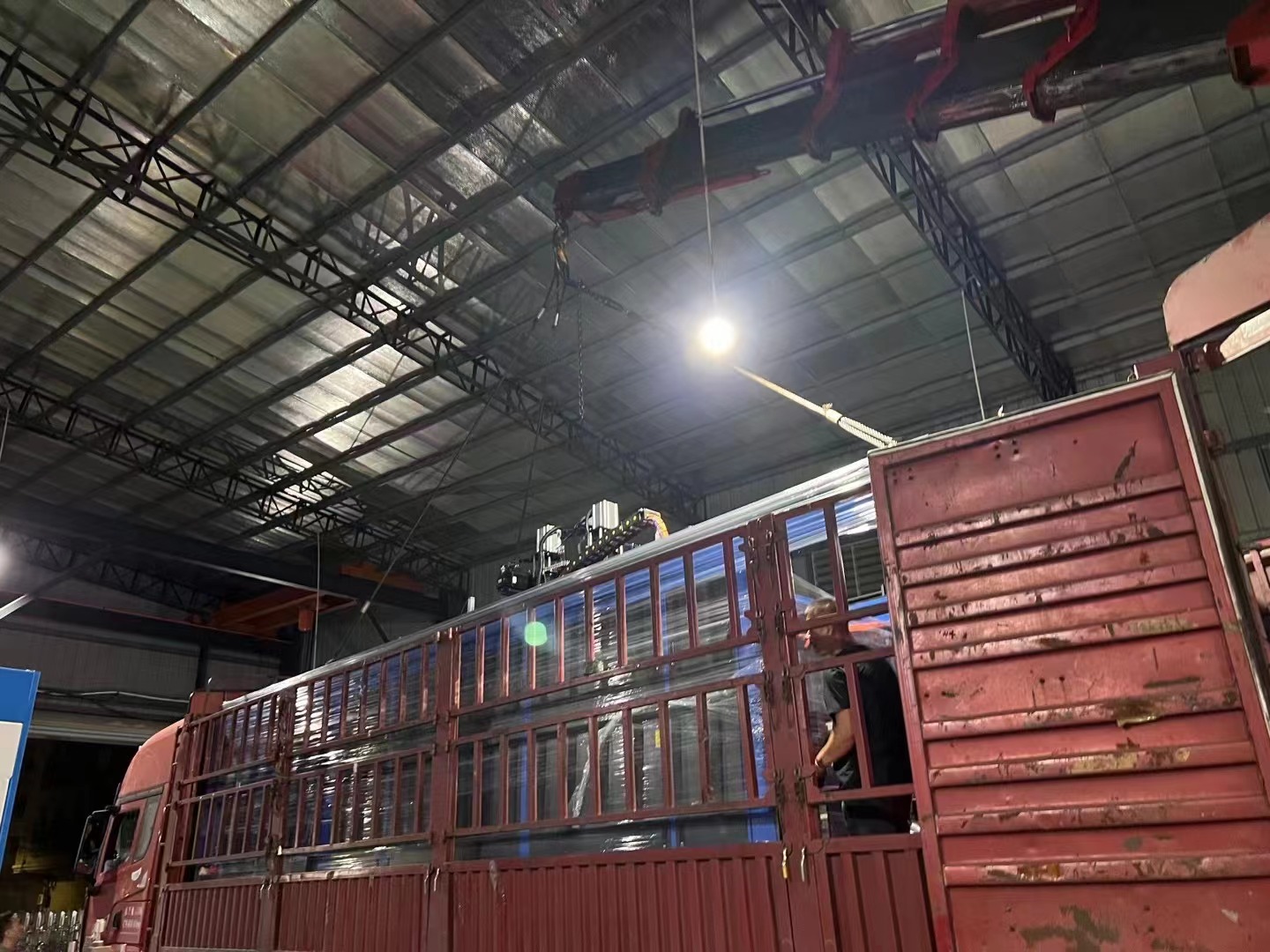

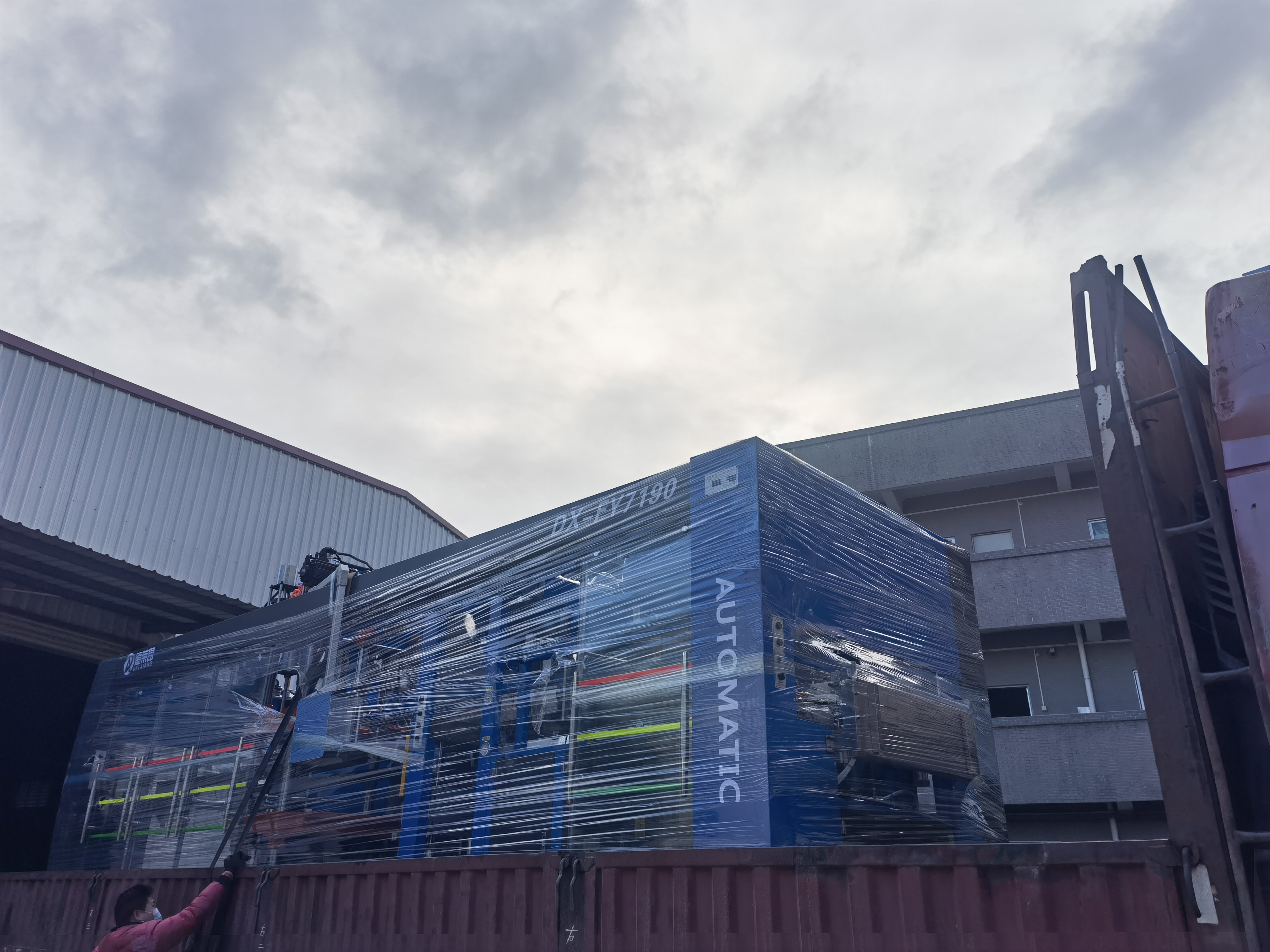

Packing Details

Plastic Thermoforming Machine packaging 1,Standard export wooden case with plastci film. 2,as customer's request.

Q1: Are you a factory or trading company? We are a factory, and we are a professional plastic thermoforming machinery and equipment manufacturer dedicated to the research and development。

Q2. why should you buy from us not from other suppliers?

Combined with more than 20 years' experience of plastic suction machine manufacturing, we developed a positive and negative pressure forming punching and stacking integrated machine with independent intellectual property rights.

Q3: How long is the warranty period? 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

Q4: How to install the machine? We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

Q5:How can we guarantee quality?

We will test repeatedly before shipment until we achieve customer satisfaction.
