Automatic continuous foaming machine low production cost

Get Latest Price

Basic Info

Model No. SL-18AF
Brand Name SOFTLIFE
Type Polyurethane Foam Machine
Raw Material Mixing
Principle High-Pressure Air Type
Automation Automatic
Computerized Computerized
Certification SGS
Name Batching Foam Machine
Max Weight 200 Kgs (with Teflon Coat )
Flat Top Foaming With Flat Top Device (Square Block)
Max.Output 100 Blocks / 1 Day ( 8 Hours)
Speed Of Mixing 1800 Rpm
Mould Size L2090 X W2090(adjustable Width) X H1250
Total Power 34 Kw+5.5kw(suction)
Machine Size 8000(L) X 6000(W) X 4200(H) Mm
Chemical 9 Groups
Show More

Product description

The automatic dual-mode continuous foaming machine can greatly reduce production costs, reduce product weight, and improve economic benefits. , Fireproof board, ceiling board, fireproof door core and other ideal equipment. And provide foaming agent.

1

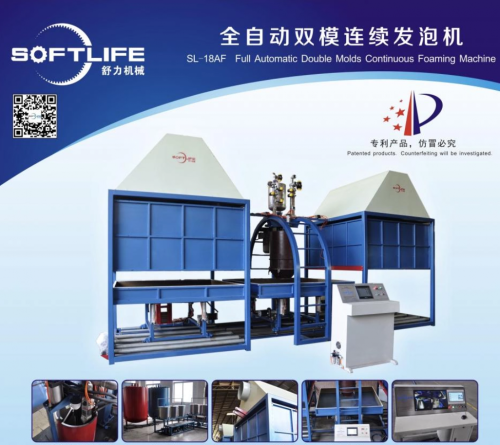

AUTOMATIC BATCHING FOAMING MACHINE WITH SPRING HOLES

SL-18AF Full automatic double mold continuous foaming. It is composed of a material storage system, the quantitative feeding system, mixing system, double model cars, computer control system. All chemical raw materials supply the implementation of digital control. Feeding, stirring, feeding, the whole production process is automatically completed; quantitative accuracy, convenient operation; the labor intensity is low, the production efficiency is high. Is a small sponge foam factory, the best equipment. ( You don’t need to clean the mixing tank per block as it is with Teflon coat. )

We are a professional manufacturer of foaming machines, including Fully Automatic Foam Machine, Automatic Batching Machine, Manual Foaming Machine, Continuous Foaming Machine, Foam Reborning Machine and other Foaming Machines to meet the foaming needs of various industries. Please contact us if you need.



Technical Specification:

Output

100 blocks / 1 day ( 8 hours)

Chemical    原材料

9 Components

    Max weight  最大攪拌量

200 kgs with Teflon coat

      Max speed  最大攪拌速度

1800 rpm

Total power  功率

34 kw+5.5kw(suction)

Weight     重量

3300 kgs

  Mold size  模具尺寸( Order made)

L2090 X W2090(adjustable width) X H1250 mm

(with Teflon coating)

Top pressing system

Adjustable size

  Dimension  主機尺寸

8000(L) X 6000(W) X 4200(H) mm



Payment term:

1.        L/C at sight;

2.        T/T:30% deposit by T/T ,70% balance by T/T before shipment

3.        Western Union


Packing detail:

   *Pearl wood and PVC film

   *All of the productions are inspected carefully by QC before delivery.

   *Trade Term: EXW,FOB Jiangmen,CFR



Delivery time:

By T/T, within 45 days after receipt of deposit

Min. Order:1 set
