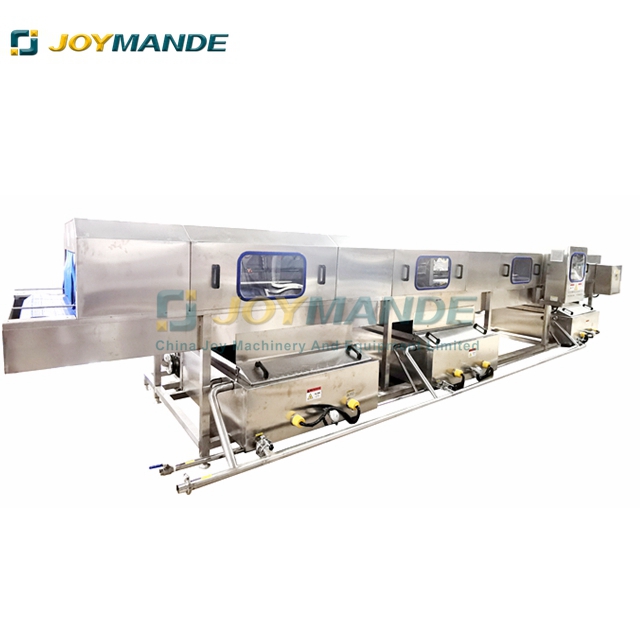

Spraying-type pasteurization machine is suitable for automatic continuous pasteurization of pickles, low-temperature meat products, fruit juice, jelly, yogurt, and all kinds of beverages, and it can be designed according to the size of the plant.

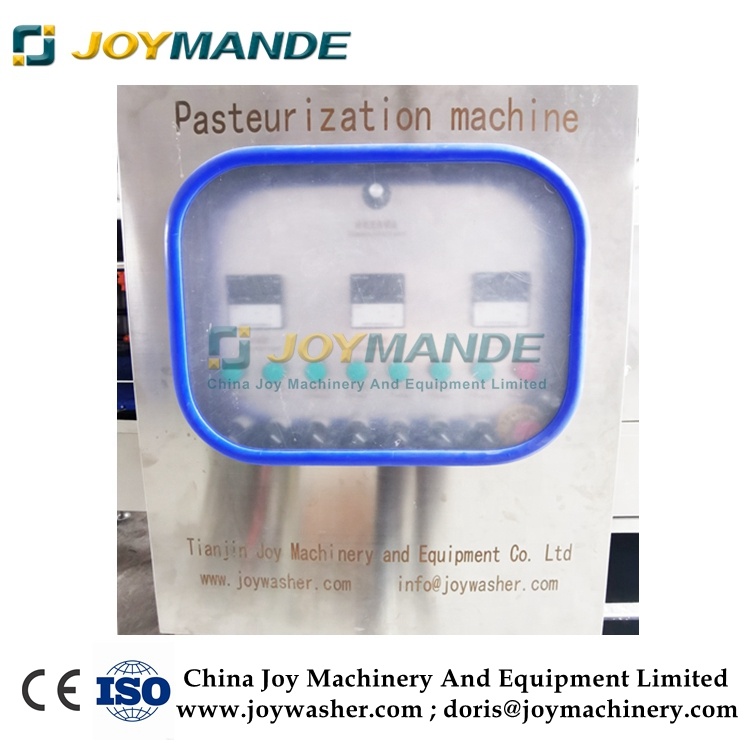

The temperature is automatically controlled and can be set freely as per request of each stage.

The machine comes with 3 temperature stages.

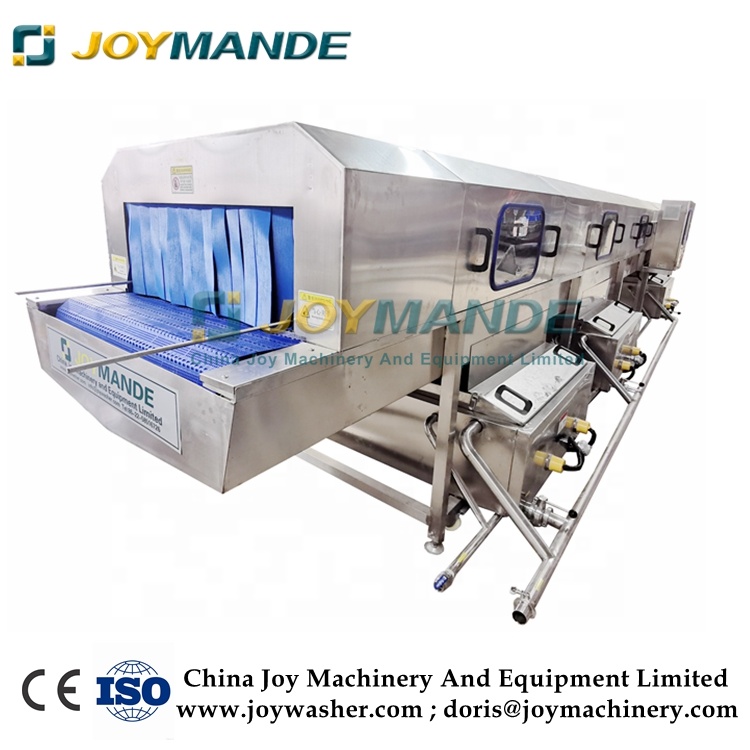

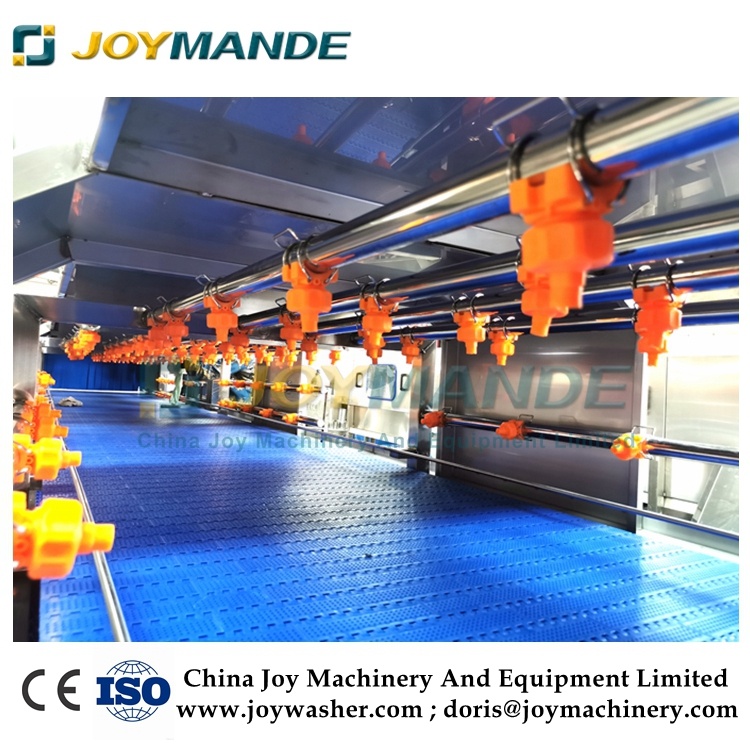

?The machine is mainly composed of the main frame, working tunnel, heating device, spray water pump, circulation pipeline, nozzle, transmission, and electric cabinets.

?

?

1. Machine body is made of high-quality 304 stainless steel.

2.?Conveyor speed is frequency adjustable.

3. Configured with?water recycle system.

4.?Easy to use and maintain, high efficiency and labor-saving.

Model	Power	Machine?size	Weight	Capacity
JME6000	0.75kw/380V	5800x1400x1500mm	1000kgs	300kgs/h
JME8000	1.5kw/380v	8000x1400x1500mm	1600kgs	500kgs/h
JME10000	1.5kw/380V	10000x1400x1500mm	2000kgs	800kgs/h
?Remarks	Voltage can be customized. We can design the machine according to your requirements.

?

??We can manufacture water soaking?type pasteurization machine, please contact us if you need.

?

?

?

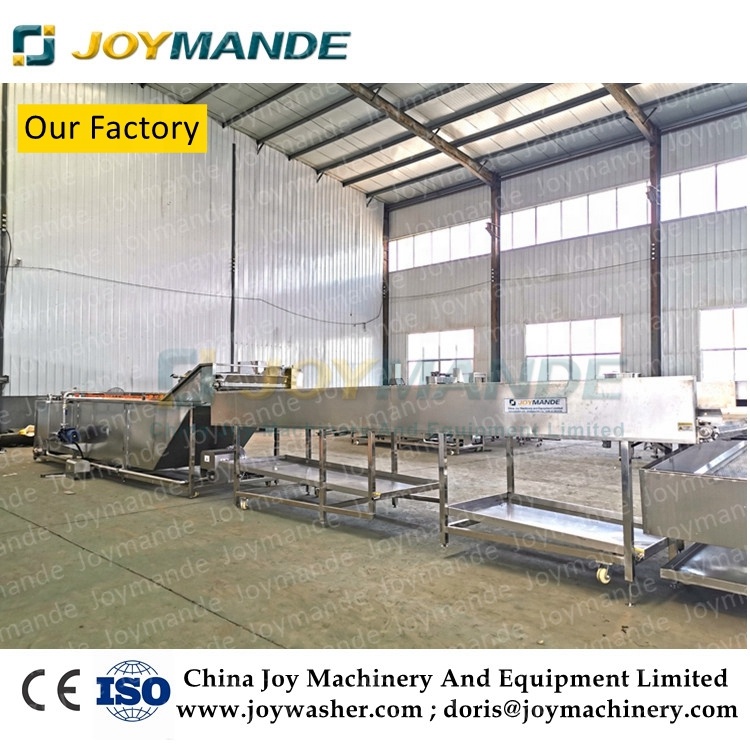

China Joy Machinery and Equipment Limited is a professional manufacturer of food processing?machines?and high pressure?cleaning equipment.

We are a comprehensive enterprise which integrates research,development,manufacture,installation and

maintenance.We?have advanced equipment,rich experience,highly-qualified scientific researchers and?professional staff members for the?after-sales service.

We specialized in designing and producing fruit and vegetable processing line which is including fruit and?vegetable washing?machine,drying machine,peeling machine,slicing machine,chopping machine,sorting?machine,mixing machine,and potato?chips production line,meat processing line and high pressure cleaning?pump,hydro test pump etc.

Our products had been exported to more than 60 countries,all the products had been gained high praise?from the customers?at home and abroad.

We will continue to follow the policy of?“quality first,reputation first,customer first”.And sincerely hope to?cooperate with much?more customers all over the world.

?
