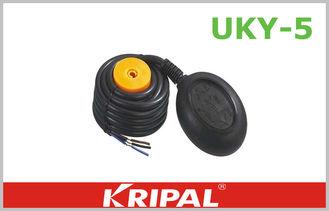

Automatic Controller Vertical Float Level Switch for Sewage Pump / Submersible Pump

Introduction:

1. Cable Float Switch uses one-step shaping injection molding with substantial structure, cheap price and long lifetime.

2. It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block.

3. Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly.

4. It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly.

5. It can resist sewage so that widely used in pool in resident, factories mines and etc., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.

Specifications:

Product Name	float levelSWITCH
MODEL	UKY-5
1.Nominal voltage Rated current	220V 8A
2.Nominal voltage Rated current	380V 4A
Working temperature	0~80℃
Electrical life	1*100000
Mechanical life	5*100000
Application Environment	Pool of water, oil, weak acid and weak base pool or oil pool

CONSTRUCTION & OPERATION

It consist of a float integral With a 3 core electric cable.A fixed micro switch and a moving steel ball are enclosed within the float casing.A change in liquid level causes the float to tilt up or down around

a pivot,provided in the form of an adjustable stopper or support pipe,at an angle and in the process, actuating a steel ball to move and operate a micro switch plunger to close or open an electrical circuit

with potential free contacts,to operate auxiliary electrical devices like alarm,pump and solenoid valve.

Competitive Advantage:

1. The core of cable is real copper not copper - covered aluminum

2. Good micro switch in the ball ensure the long life of float switch

3. The raw materials of plastic are brand-new with high quality

Dimension:
