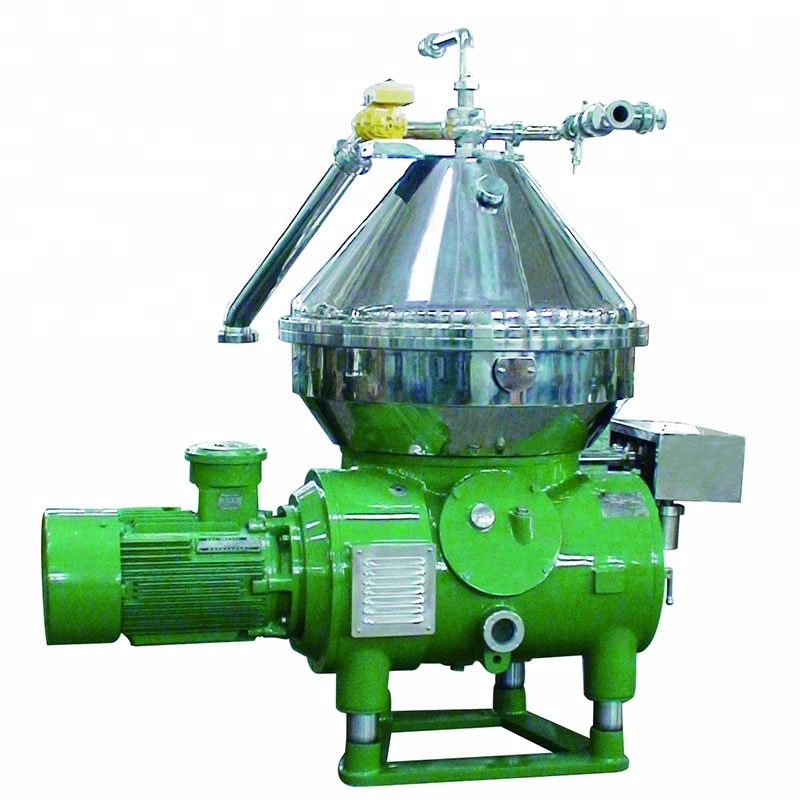

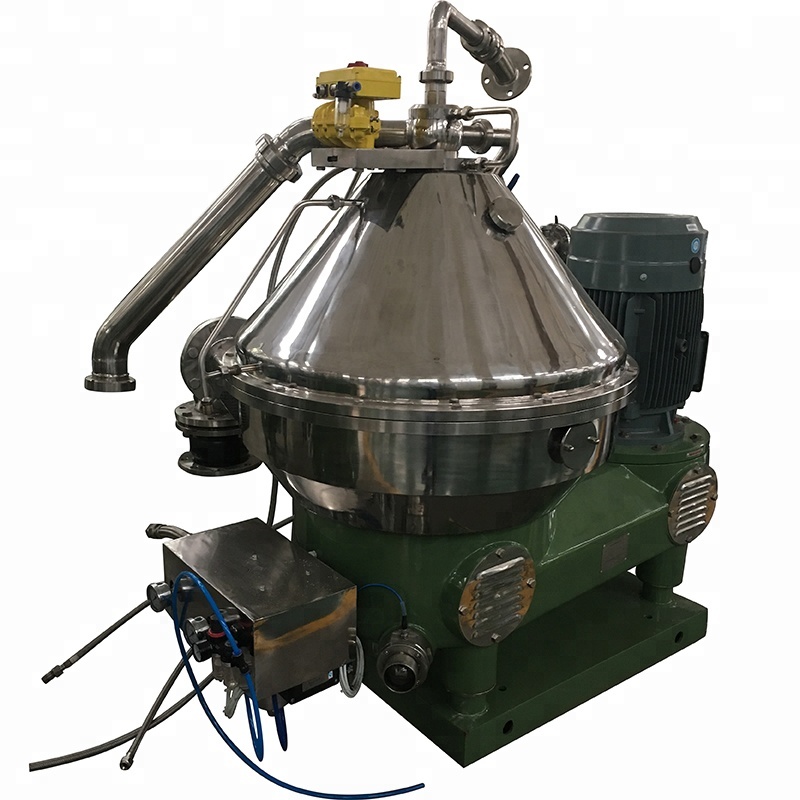

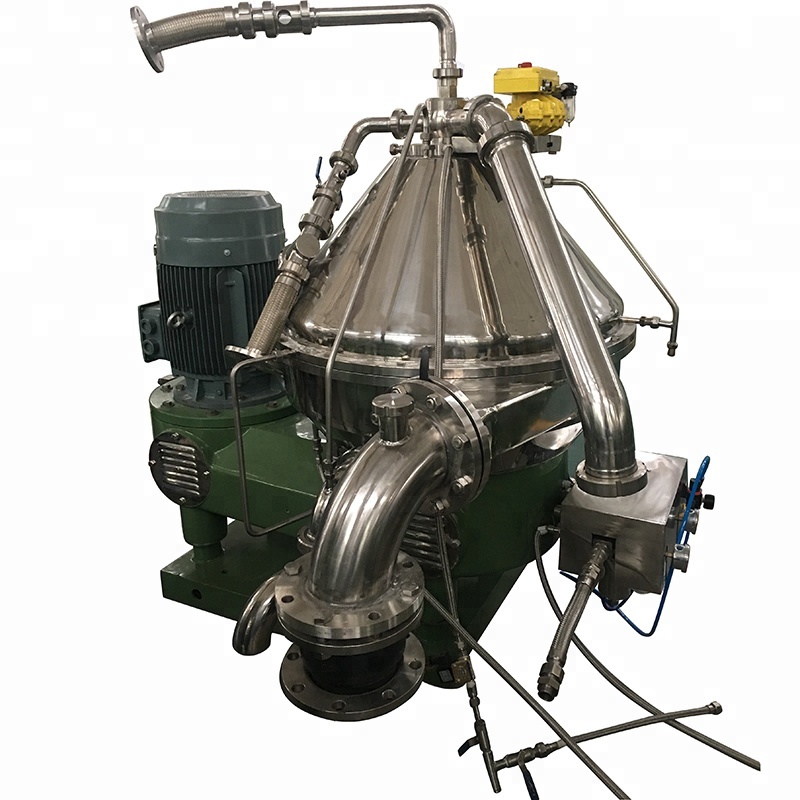

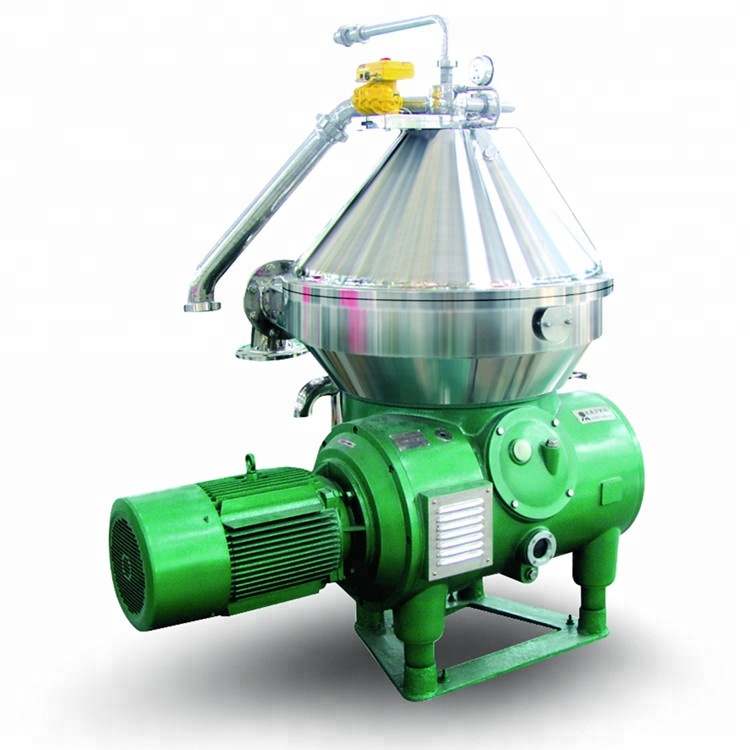

Automatic Discharge Disk Drum Liquid-Solid Separator for Oil Refineries

$78600.00

≥1 set
$77900.00

≥4 set

Options:

DHZ550

Get Latest Price

You might also like

High Speed Rotation Westfalia Type Disc Centrifuge Separator

$5000.00

1 unit (MOQ)

Westfalia Type Three Phase Disc Centrifuge Separator

1 unit (MOQ)

High Efficiency Drum Fish Oil Centrifuge Separator

1 set (MOQ)

Self Cleaning SS304 Solid Liquid Separator

1 unit (MOQ)

Automatic Discharge Disk Drum Liquid-Solid Separator for Oil Refineries

1 set (MOQ)

Self-Cleaning Bowl New Disc Stack Centrifuge Separator by Leading Chinese Manufacturer

1 unit (MOQ)

VFD Small Capacity Solid Liquid Separator Machine

1 unit (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Jiangsu, China
Type	Separating Plant
Product Type	oil
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing type	Hot Product 2019
Warranty of core components	Not Available
Core components	Plc
Brand Name	Juneng
Voltage	220V/380V/460V
Power	depend on the model
Weight	2880
Dimension(LWH)	According with the model
Warranty	12 Months
Key Selling Points	Easy To Operate
Applicable Industries	Food & Beverage Factory
Showroom Location	None
After-sales Service Provided	Engineers Available To Service Machinery Overseas
Name	Automatic Discharge Disc Bowl Oil Separator
Processing Types	Edible Oil
Processing	Other
Material	Food Grade Stainless Steel
Capacity	Diffrent Capacity
Control system	PLC
Certification	CE,ISO,BV

Product description

Product Application

DHZ series automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operation stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection.

Juneng Separator can suitable for a variety of oils and fats and provide personalized solutions in order to achieve optimal oil and maximized production capacity.

DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils .

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHZ360	1200-2500	0.05	0.1-0.25	7.5	1280	150011501500
DHZ470	2500-7000	0.05	0.1-0.25	15	1880	180012001800
DHZ550A	5000-10000	0.05	0.1-0.25	18.5	2200	185015502050
DHZ550E	6000-15000	0.05	0.1-0.25	22	2200	185015502050
DHZ700	15000-30000	0.1	0.2	30	3300	210016502300
DRZ360	1200-2500	0.05	0.1-0.25	5.5	750	125010501500
DRZ400A	2000-6000	0.05	0.1-0.3	7.5	1150	13009001450
DRZ400E	4000-7500	0.05	0.1-0.3	7.5	1300	13009001500
DRZ550	6000-18000	0.05	0.1-0.3	22	2200	162013002200
