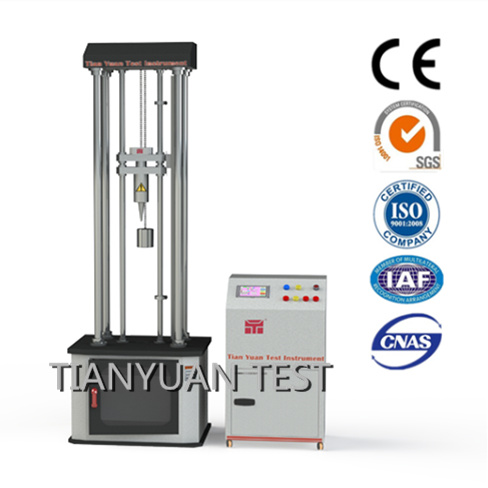

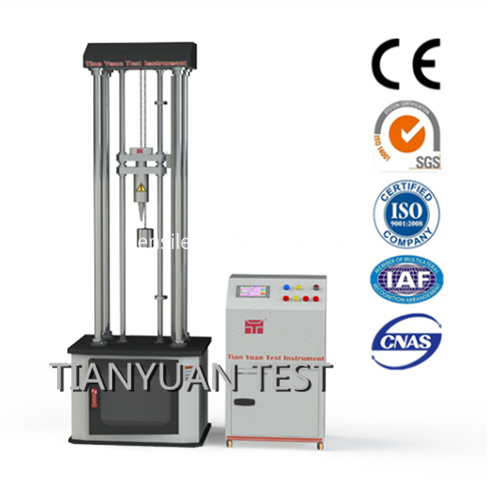

Equipment name: TY-8008 Automatic drop hammer testing machine

Usage: Mainly used for the determination of thermoplastic pipe outside impact resistance or various non-metallic tubing and sheet (including all kinds of non-metallic materials such as plastic, ceramic, nylon, building materials, etc.) test to validate the impact resistance performance of equipment.

Features:
1 .table can be adjusted with sample automatic zero, auto-down feature
2. with a secondary anti-shock devices, can automatically prevent secondary impact hammer is completed after the first shock produced by the sample stretch
3 .brake lifting mechanism induction motor drive, chain drive, smooth and reliable upgrade
4. Imported PLC as a control elemeant, put the hammer height control and automatic detection hammerhead highly accurate positioning
5 .devices can automatically locate, auto zero, auto mention hammer, hammer impact arrested after automatic, high degree of automation, easy to operate
6. standard light pole as a guide means little resistance when the hammer fall
7. can be increased with safety devices to ensure safe operation

Applicable standard:
1 GB/T 14152-14152 "thermoplastic pipe outside impact resistance test method for clockwise rotation method"
2. GB/T 10002.1-2006 "water supply with rigid polyvinyl chloride (PVC -u) pipes of drop hammer parts
3. GB 6112-6112 "thermoplastic pipe and fitting impact resistance performance of the test method (drop)"
4. GB/T 5836.1-2006 "building drainage with rigid polyvinyl chloride (PVC -u) pipe,
5. GB/T 16800-16800 "drainage with core layer foamed rigid polyvinyl chloride (PVC -u) pipe

Technical parameter:
