Automatic Efficient PCB Cleaning Machine

Why does PCB need to be cleaned?

At present, electronic components are getting smaller and smaller, and their integration is getting more and more complicated. For components such as 0402, 0201 and QFP, BGA, CSP, etc., due to their small pad area, relatively speaking, the proportion of slabs, dust and particles Amplification will easily produce empty welding and virtual welding, which will affect product quality. So in modern PCBA production, PCB cleaning is essential.

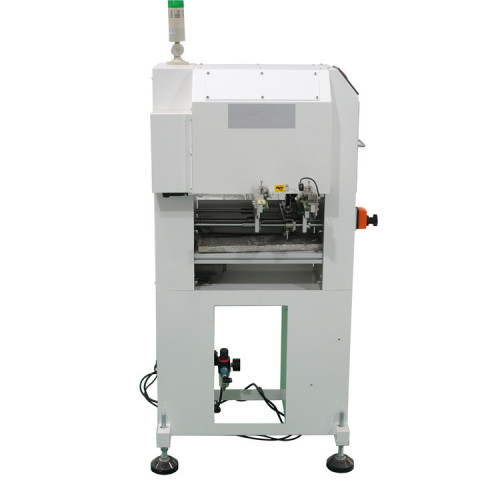

ROC-320 PCB cleaning machine is the most efficient and simple automatic dust removal and static removal machine on the market. It uses brushes and adhesive rollers to accurately contact the PCB surface to remove micron dust, chips, particles and other foreign matter on the surface of the PCB pad, and then eliminate electrostatic interference through an ion wind bar, so as to achieve an efficient, stable and long-lasting PCB cleaning effect.

Application areas:
1. Printed circuit boards: flexible circuit boards, copper foil substrates, polyimide films, film buttons, ceramic substrates, negatives and substrates of various thicknesses in exposure, printing, pasting, pressing, drilling, slitting, and cutting , Inspection and other operations of the board surface cleaning;
2. Precision screen printing: PC, PP, PE, PET, PMMA, PVA, trademarks, laser\ trademarks, stickers, release paper, etc. cutting, coating, sticking, filming, exposure, printing.

3. Photoelectric display: TFT-LCD, STN, TN, LCD TV, touch panel, polarizer, reflector, diffuser, light guide, optical pressure, glass substrate and other substrate cutting, coating, laminating, printing, Board surface cleaning for assembly and inspection operations;

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine,  SMT Spare Parts, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

Machine Features:
■ Brush + sticky roller Double cleaning
■ Strong ability to remove dirt
■ Static elimination device
■ Smooth conveyor prevents wrinkles and rolls up
■ Sticky roll paper replacement cycle setting function
■ Counter function and CNC speed display function
■ Stable balance width adjustment device
■ Smaller machine footprint
■ Compatible SMEMA interface

description	Used for PCB cleaning, dust removal, static elimination, automatic separation of built-in sticky paper
Board thickness	0.6-2 mm
Roller speed	0.5-20 m / min or user specified
Number of sticky wheels	2 PCS
Number of sticky paper rolls	2 PCS
Number of brushes	1 PCS
Power and electrical load	100-230V AC (user specified), single phase & maximum 100 volts
Air pressure and air flow	4-6 bar & up to 5 liters / minute
Transfer height and direction	910±20mm (or user specified) & left → right or right → left (optional)
Applicable PCB board size (L*W)	(100*50)~(330*250)mm
