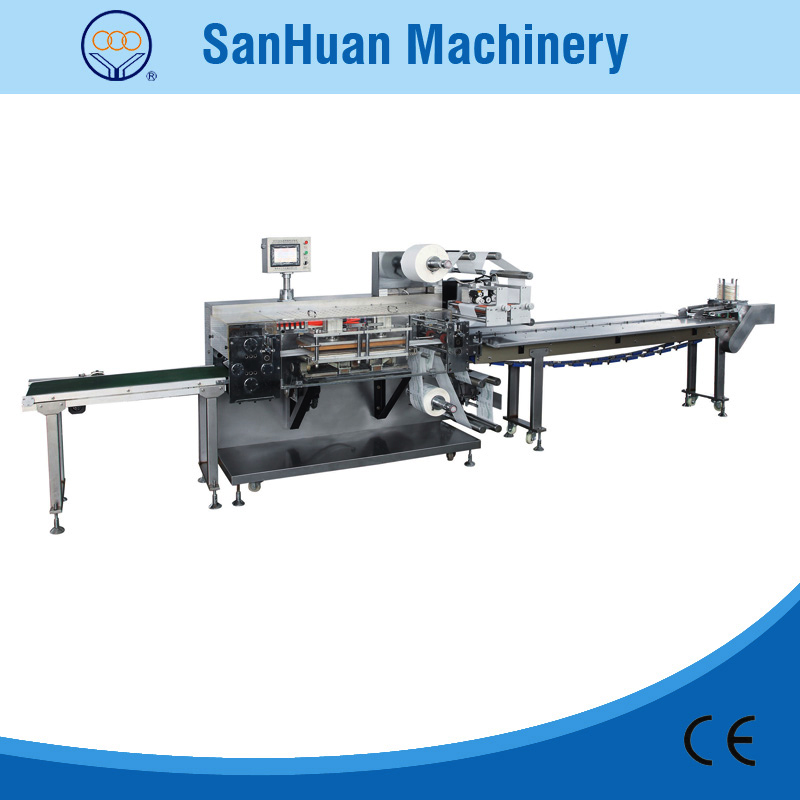

Automatic Flake Packaging Machine
Basic Info
| Model No. | DYF-300A |
|---|---|
| Brand Name | Sanhuan |
Product description
Automatic Flake Packaging Machine
Applications:
The machine is specially developed and manufactured by our scientifc reaearch personnel for packing four sides sealing Medical dressing, which is suitable for medical dessing, gauze swab and some platelet products packing, The machine drived by four sets servo motors and adopt PLC Programmable Controller to program operation of the whole machine. The main machine make up of servo driving, couple feeding parts, lot number printing parts, reciprocating heat sealing parts, horizontal and crossing cutting and the convey of finish products parts. The machine having vantage performance, easy maintance and operationFeature:
It adopts PLC programmable Controller and drived by servo motor to make running of the whole machine programmed.
The touch screen clearly displaying the speed, the length and width of the bag setting,
The length of the bag automatic adjusting, and the packing length can directly setting, easy and quick
Color code detecting, inport photoelectricity tracking the color code, making it correct
Automatic Packing Machine, Automatic control temperature, the place of the heatsealing adopt couple temperature controller, improve the quality of the sealing
Technical Pharameter
Production Capacity
30-120bags/min(According with the Material)
The max film Roller size
φ 400mm
Width of Packing Film
300mm
Packing Size
L70-390mm, W80-150mm, H1-10mm(Can be specially designed)
Air compress
0.3m 3 /mi
Air pressure
0.5~0.7Mpa
Rated Voltage
AC380V 50Hz
Total Power
6.7KW Heating Power 3.2KW
Weight
1050kg
Overall Dimension
L× W× H 4600× 1000× 1800mm
Automatic Flake Packaging Machine
