Product description

Intelligent operation with max. speed 350 pcs/min, suitable for 3ply, 5ply corrugated board to make high quality box, and it is a high-efficiency Flexo Folder Gluer that works seamlessly with Corrugated Box Making Machine and DIECUTTER. Suitable for inline with different brand of Top Printing Flexo Printer Slotter Diecutter Machine #FFG, and it is also compatible with box folder gluer machine and carton folder gluer machine for diversified production needs:
1) Down folding type with top counter ejector, full computerized control at main operation table.
2) High speed with large production capacity, saving labor and greatly improve the production efficiency.
3) The main action functions are controlled by seven groups of servo motors. High speed, high precision and simple adjustment.
4) Optional vibrating transmission unit for improving the productivity of RDC box (rotory slotting carton).
?
Specification
Пункт 920 924 1224 1228 1628 1632
Максимальная скорость (листов/мин) 300 280 250 230 180 160
Максимальный размер подачи (мм) 900×2000 900×2500 1200×2500 1200×2800 1600×2800 1600×3200
Минимальный размер подачи (мм) 300×600 300×600 350×600 350×600 450×600 450×600
?Размер пропускаемой подачи (мм) 1200×2000 1200×2500 1500×2500 1500×2800 2000×2800 2000×3200
Spray Gluer System VALCO with Roll to Roll Glue System
Valco Spray Glue System

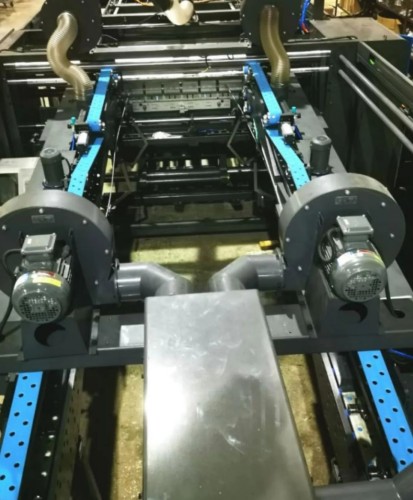

Folding Section

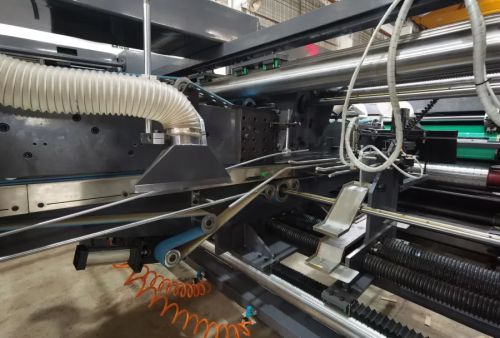

Glue Section
Folding Section
1.The pressure and angle of the left and right belts at the paper inlet can be adjusted to ensure the synchronous and smooth input of sheet. The corner cutting position is equipped with upper and lower brushes to prevent the waste paper from entrance.
2.Air blower system are set above at entrance to speed up the printing ink to improve the printing quality and clean the dust & waste after die-cutting.
3.The left and right girders are accurately positioned and adjusted by rack and linear guide rail, which can be automatically adjusted by order management or data input.
4.The main conveyor belt adopts customized design by NITTA brand of Japan, with small deformation after long-term use.
5.The left and right sides of the folding section adopt concave row wheels with multi angle change to shape the box folding, and the row wheels can be adjusted slightly to adapt different thickness sheet.
6.The left and right differential speed belts adopt separate servo control transmission, which can not only be transmitted synchronously with the main transmission belt, but also adjust the differential transmission freely, so as to ensure the accurate control of carton scissors of any specification.
7.In the process of carton folding and shaping, the main transmission belt is equipped with air suction auxiliary function to ensure accurate sheet feeding and avoid sheet feeding deflection.
?

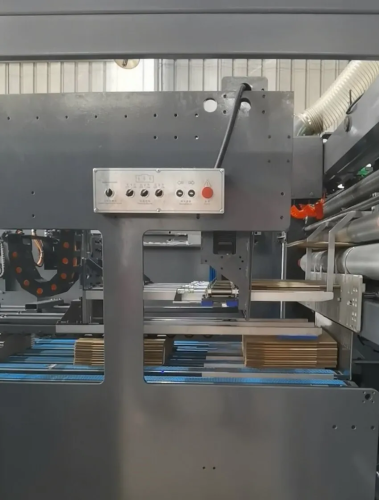

Top Counter Ejector Section
Servo Counter Ejector
Count Ejector Unit
1.There is an auxiliary air blower, which is electrically adjusted on the left and right to ensure smooth sheet falling. The air cylinder control temporary storage mechanism can automatically adjust the snapping mechanism to increase or decrease the snapping frequency according to the running speed of the machine, so as to avoid the fish tail.
2.Independent servo control the forward and backward movement and up and down lifting of the sheet support arm to ensure accurate action.
3.Servo control the lifting of sheet pressing arm to ensure that the stacking carton falls neatly and reduce noise.
4.The lifting of the supporting bar of the stacking carton adopts separate servo drive control, and the two-stage sheet conveying belt also adopts separate servo drive control.
5.Cooperate with the sheet supporting arm and sheet pressing arm to synchronously complete the sheet pressing, falling and output of the stacking carton, so as to ensure the neat output of carton.
