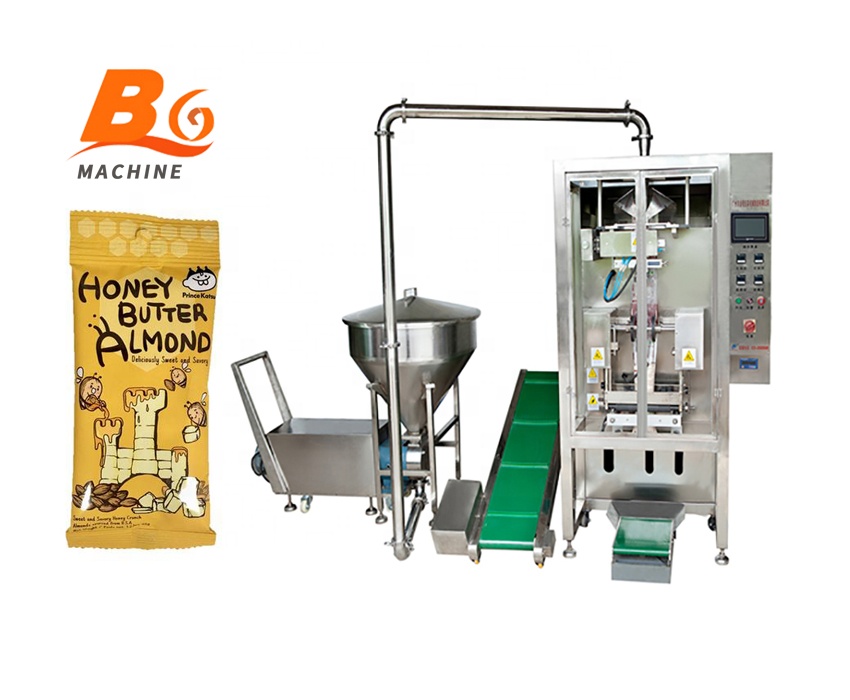

Automatic Honey Processing and Packaging Machine Prices
$19000.00
≥1 set
$17000.00
≥3 set
$15000.00
≥5 set
power:
- 4.5KW
Options:
- BG-520YD
Get Latest Price
You might also like
Basic Info
| Production Capacity | 5bag/Min, 20bag/Min, 7bag/Min, 6bag/Min, 40bag/Min, 9bag/Min, 25bag/Min, 8bag/Min, 15bag/Min, 10bag/Min, 50bag/Min, 30bag/Min |
|---|---|
| Weight (KG) | 400 |
| function | FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, boxing, Embossing, Gluing, SLITTING, counting, Automatic coding,weighing,feeding |
| application | Food |
| Packaging Type | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case, Back seal,3/4 side sealing sachet |
Show More
Product description
ONE-STOP SOLUTION
SAUCE AND PASTE?
PACKING MACHINE UNIT
>>??We Are a Manufacturer
One-stop solution for packing machines and packing films Save
APPLICATION
◆ APPLICATION & BAG TYPE ◆

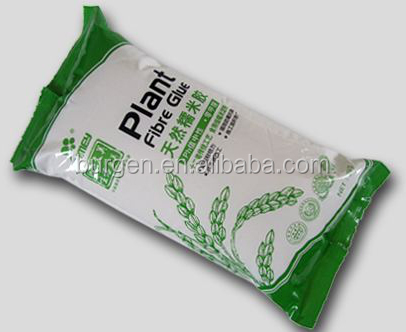

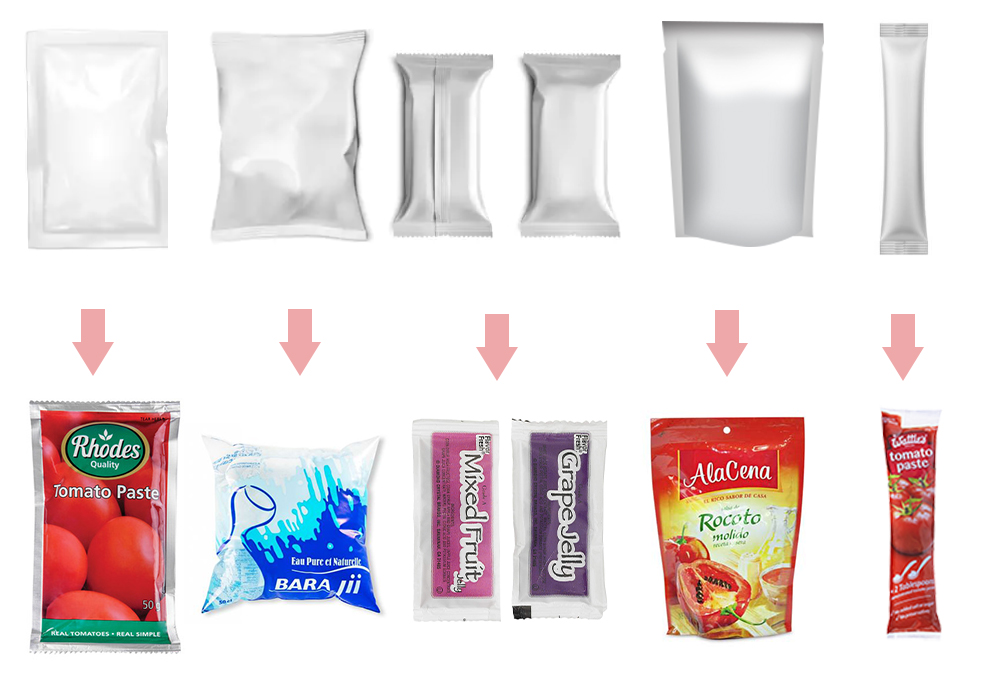

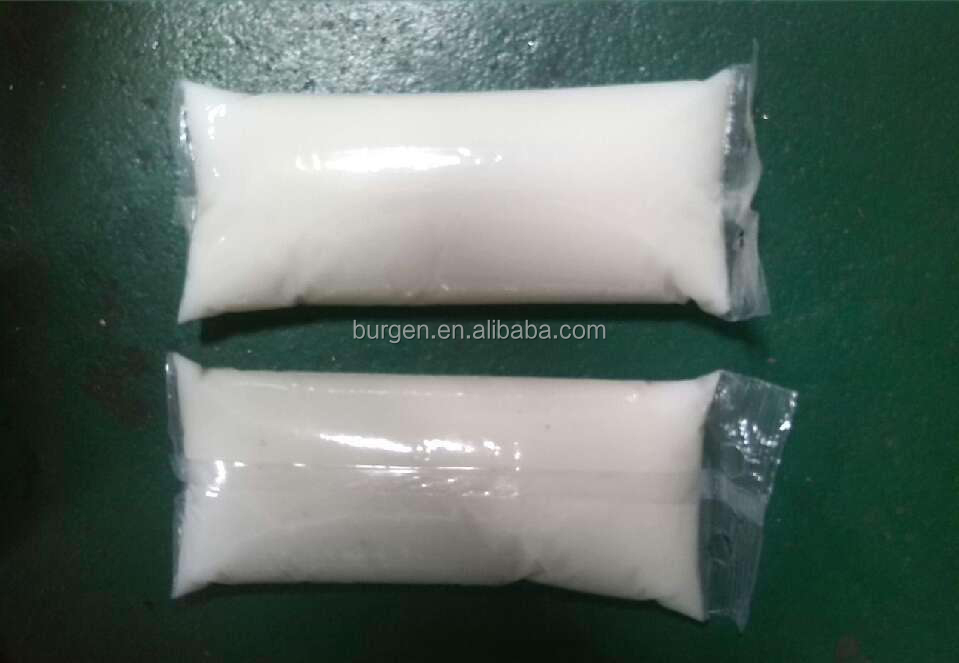

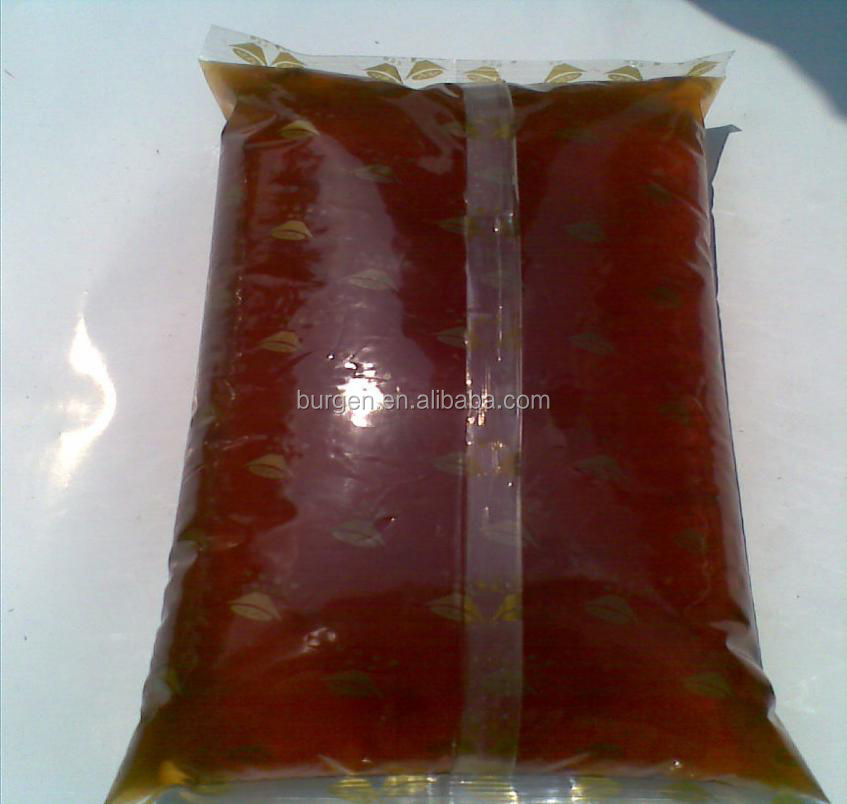

◆?Sachet Sample?◆

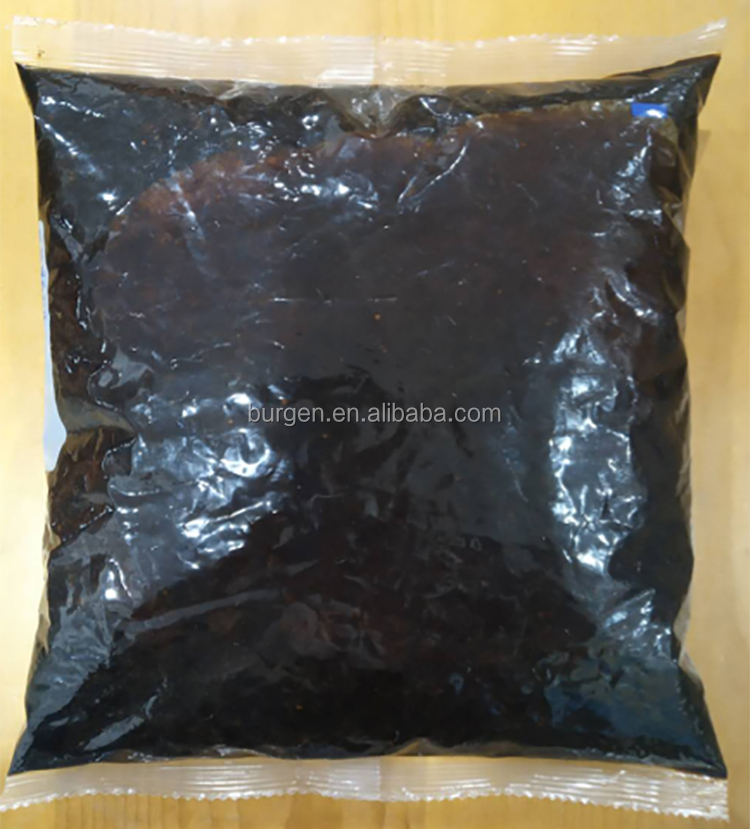

Liquid packing machine is suitable for?Poor fluidity?liquid or vaccum liquid
Such as ketchup,sauce,oil,honey, stuffing in high capacity?or the liquid need to??preserve in vaccum.
?Packaging Machine Parameters
Model | BG-520YD | ||||||
Film Width | Max.520MM | ||||||
Bag Length | 150-6503MM | ||||||
Bag Width | 100-250MM | ||||||
Roll Diameter | Max.320MM | ||||||
Film Thickness | 0.04-0.12MM | ||||||
Packing Speed | 4-15Bags/Min | ||||||
Power | 220V 50/60HZ 4.5KW | ||||||
Machine Size(mm) | L1350mmxW980mmxH2050mm | ||||||
Machine Weight | About 980KG | ||||||
Option Device | Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device. | ||||||

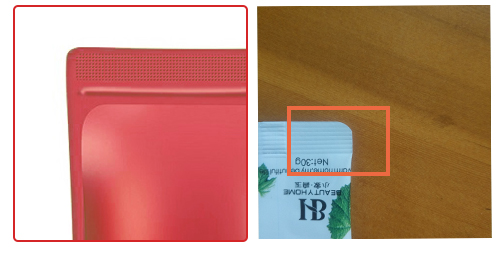

◆?Pouch Features Or Options?◆

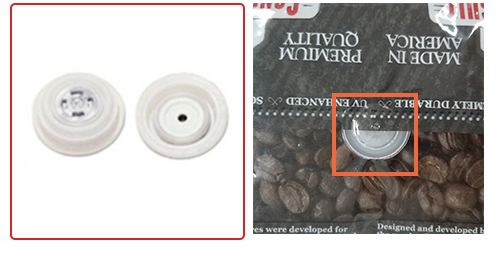

Valves or Vents

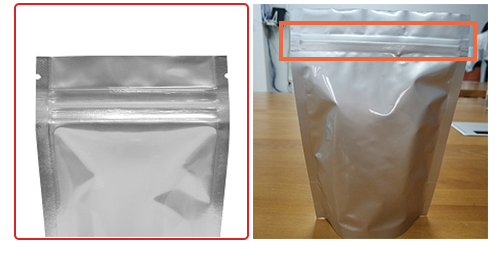

Reclosable or Resealable Zippers

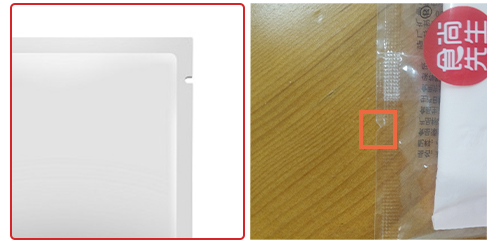

Tear Notches
Euro or Round Punch Holes

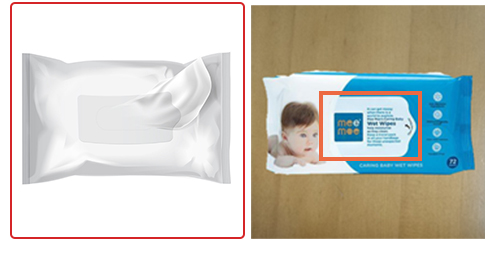

Paste wet wipes
Rounded Corners
MACHINE DETAILS

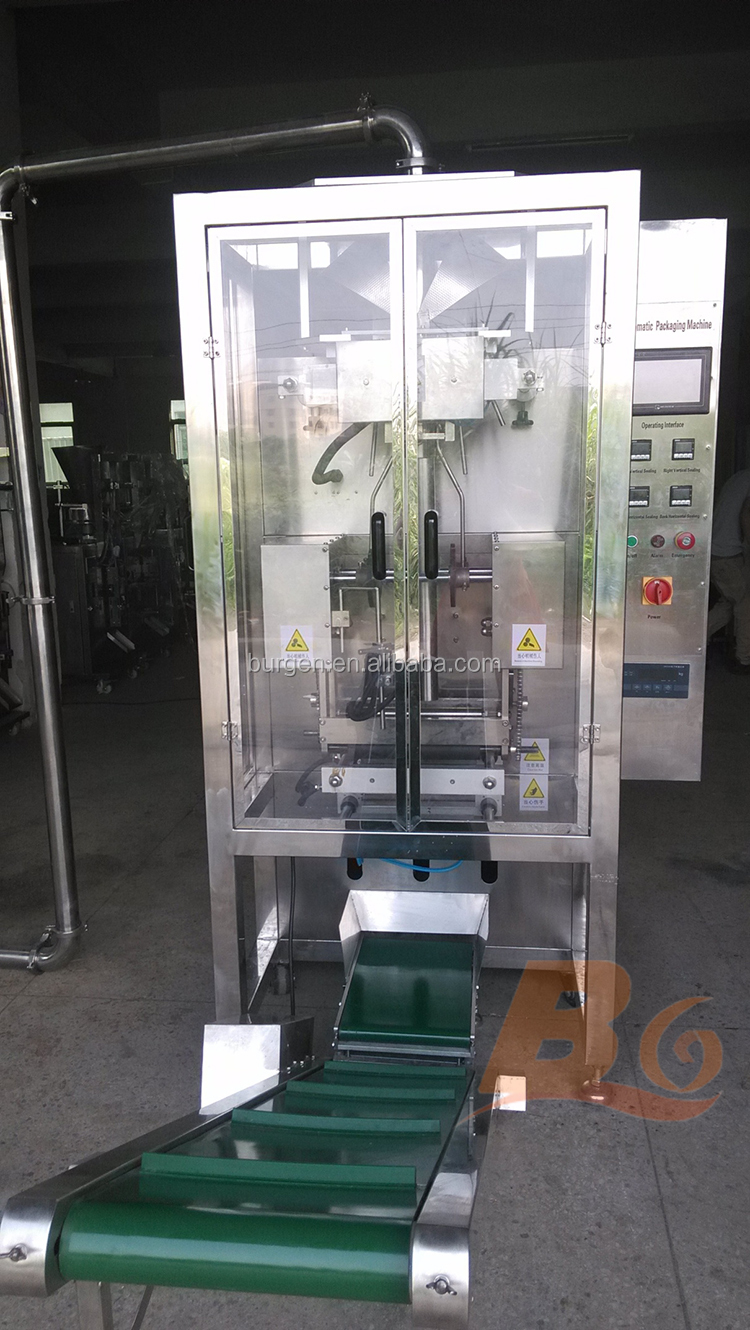

0⒈?Overall
★1: 1. The whole machine is made of 304 stainless steel, and the factory equipment standards meet the requirements of EU CE certification.
2. The function of the machine: fluid, semi-fluid conveying, bag forming, weight adjustment, vacuum sealing, cutting, counting and other functions.

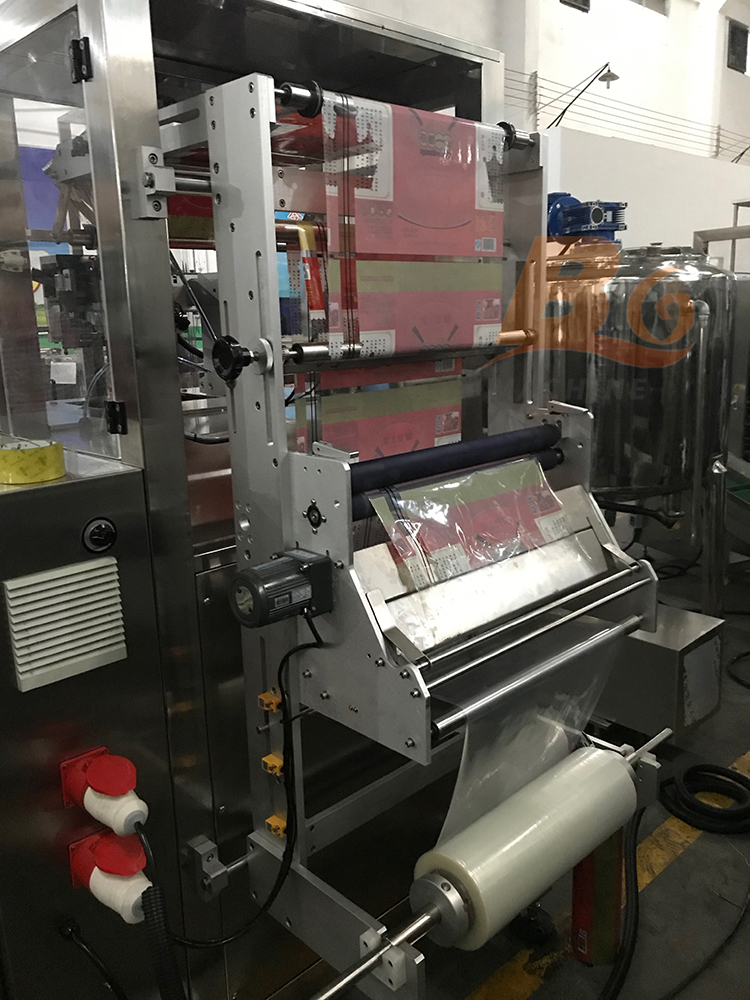

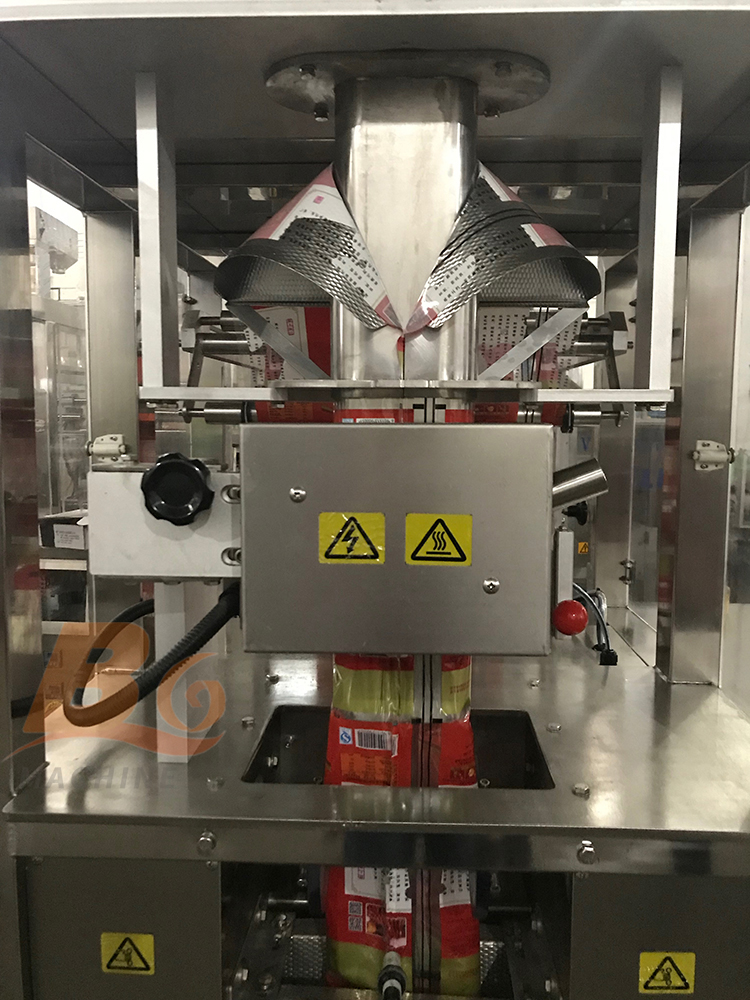

02.Bag Former
★1: Making vertical bag , can be installed with a leak stop valve 2: The structure is complicated, the installation is simple, and
the pulling is smoother. 3: wall thickness 3mmn
the pulling is smoother. 3: wall thickness 3mmn

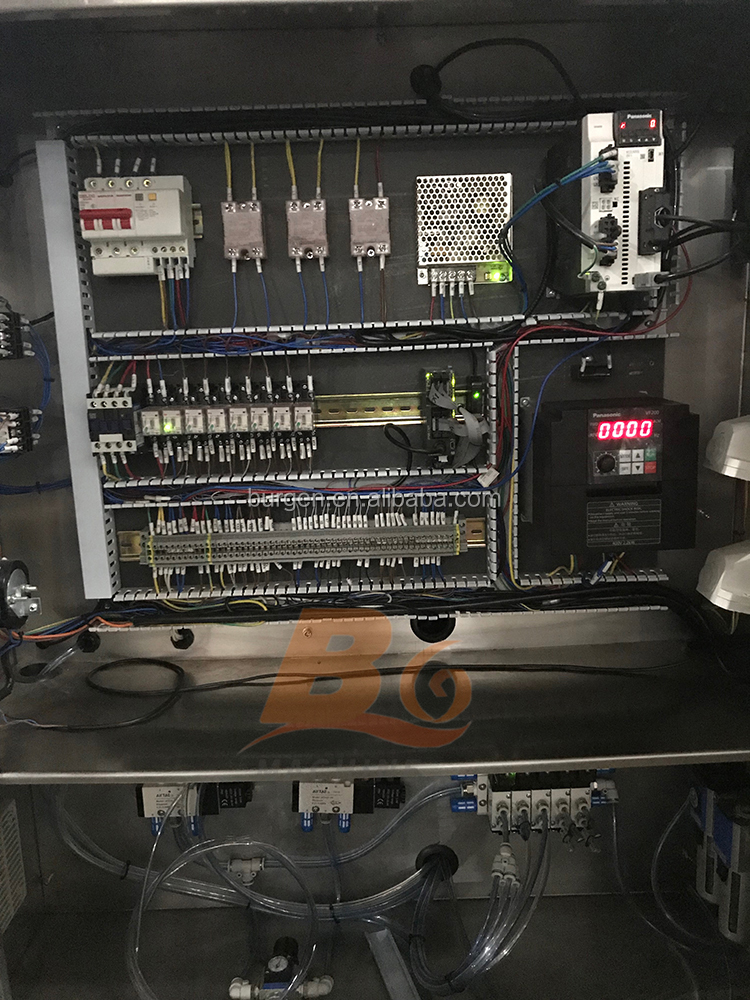

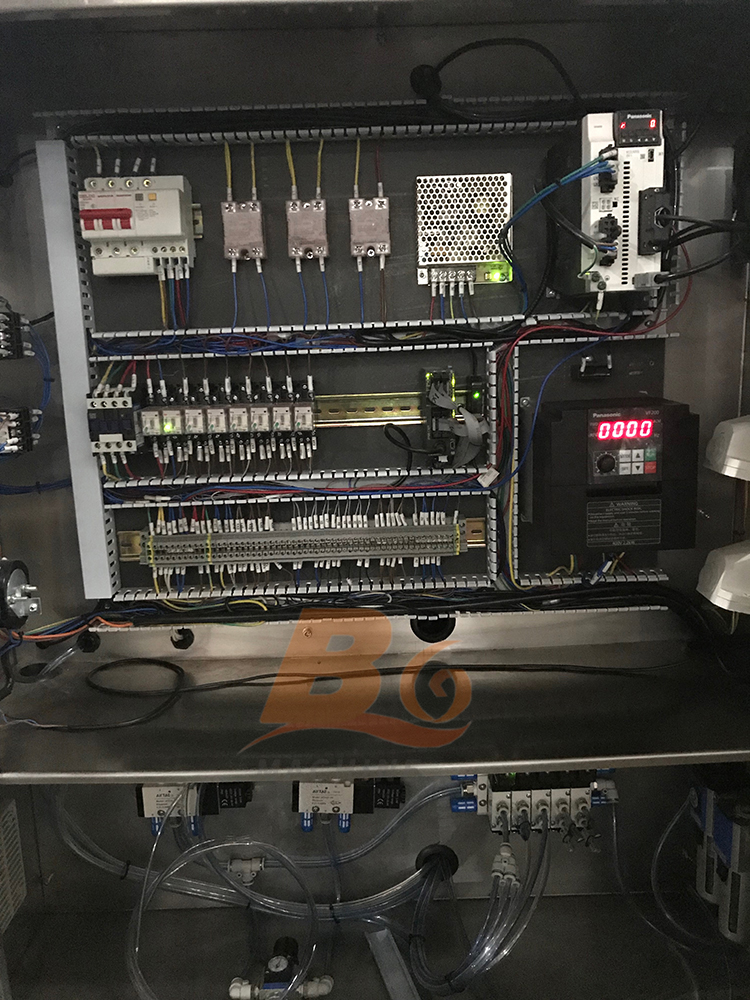

03.?Circuit
★The control part is controlled by Japanese Mitsubishi PLC, with stable and reliable performance and self-checking function. 5. The conveying pipe adopts imported 304 mirror tube to convey the filling jam smoothly and stably. The pipe connection adopts a quick-installing joint, which is quick and easy to disassemble and is convenient for cleaning.

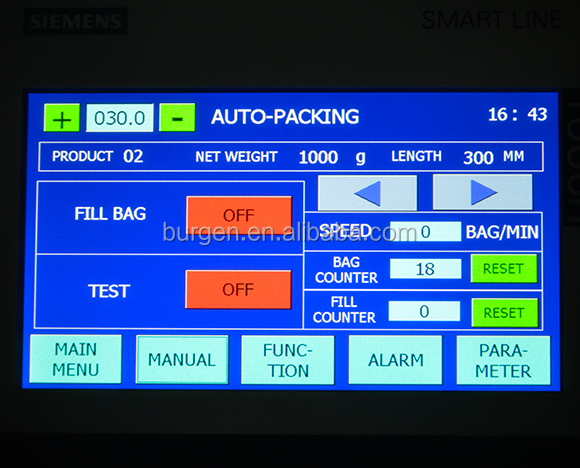

04. Touch Screen
★Simple operation
★Multilingual.
★Automatically remember 8 sets of parameters.
Feature:?
?1. The automatic liquid packaging machine can automatically complete the products of fasteners conveying, measuring, filling, bag making, date printing, heat sealing and cutting etc.?
2.Imported servo film driving system and color sensor enable accurate position, beautiful packaging and excellent performance.?
3. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.?
4.The volume of the liquid sauce is determined by the length of the cylinder stroke to achieve accurate metering.
Spare Parts Brand

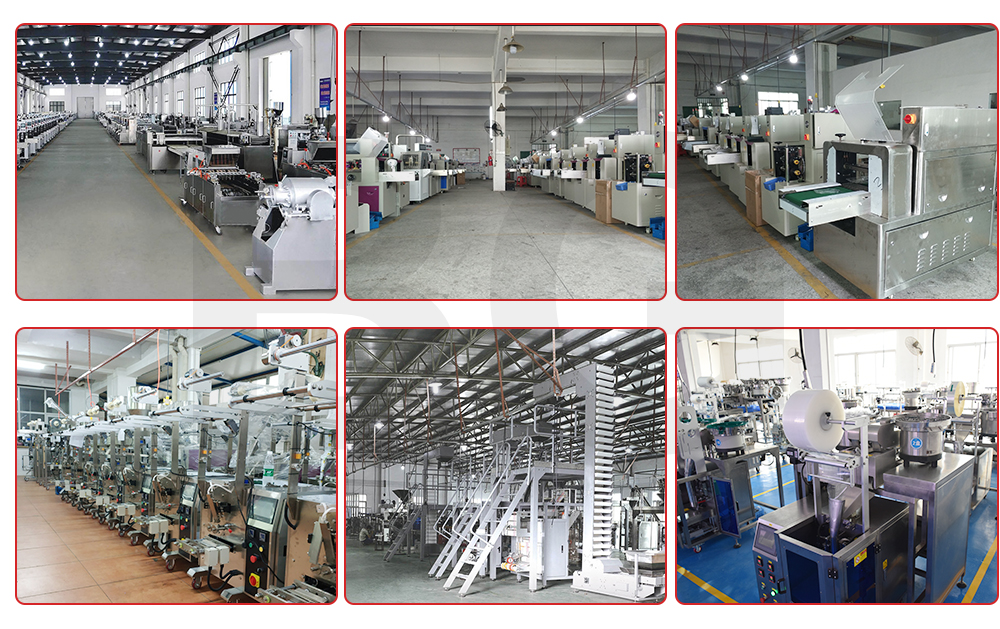

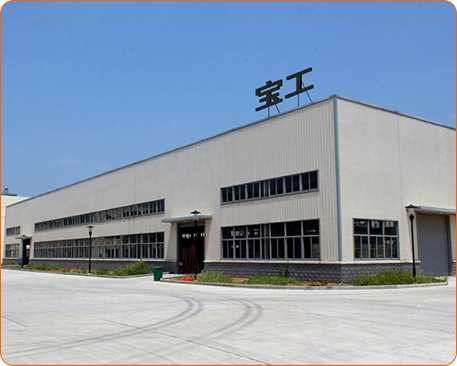

COMPANY PROFILE
?About us
We are a factory focus on manufacturing packing machine and packing film, providing one-stop solution for clients, which can largely save your time and cost on the packing business.
We have achieved SGS certification and production have CE certification.We have perfect pre-sales, sales, after-sales service, provide technical advice, product optimization consulting and customer service.?
→ Our Team
PACKING&DELIVERY
If have?any special requirements?can be discussed,we will pack it as requested.
Delivery Time: Machine will be shipped in?15 working days?after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
Delivery Time: Machine will be shipped in?15 working days?after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
WHY CHOOSE US
Q&A
Q1: What information should I tell you to help me?choose the most suitable packaging machine?
A1: product to be packaged, bag size or film width, bag shape (pillow bag, guesset bag or four bags), package weight and net weight, what kind of film material, product photo, bag photo,Quantity, production, and your true and correct contact details.
Q2: Can you provide?after-sales service?
A2: We provide?lifetime?after-sales service. We provide free Internet technical help, English technical manual, detailed operation video, and we can also provide engineers with on-site machine operation and machine maintenance training.
Q3:Why should we?choose your company?
A3: We specialize in R&D, manufacturing and sales of various packaging equipment for more than 10 years and provide the best after-sales service.
Q4: How long is the?warranty period?for the machine??
A4: The warranty period is one year (nonhuman damage).?
Q5: What's your usual?payment term for orders?
A5: We accept terms of T/T 30% in advance as down payment and 70% before loading in factory.
