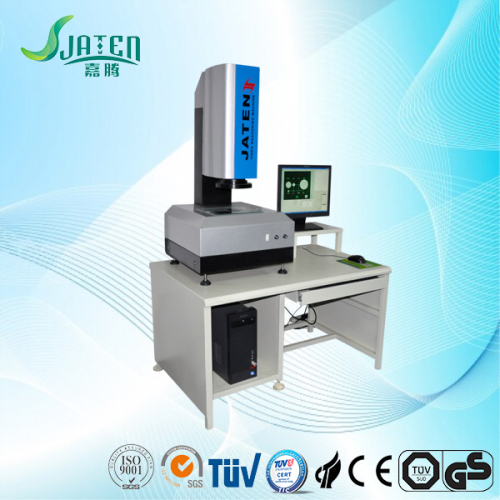

automatic image muti-functional measuring range machine

Get Latest Price

You might also like

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

1 Piece/Pieces (MOQ)

Basic Info

Model No.	IM-120
Brand Name	JATEN
Standard Accessories	Host Machine,CCD,Lens,Light,workbench...
Lens	0.2X-0.088X
Max Working Heigh	15mm-26mm
CCD	Daheng 2/3 〞 5 Mega-pixel CCD
Other Accessories	21.5" Computer& Quick Measuring Software

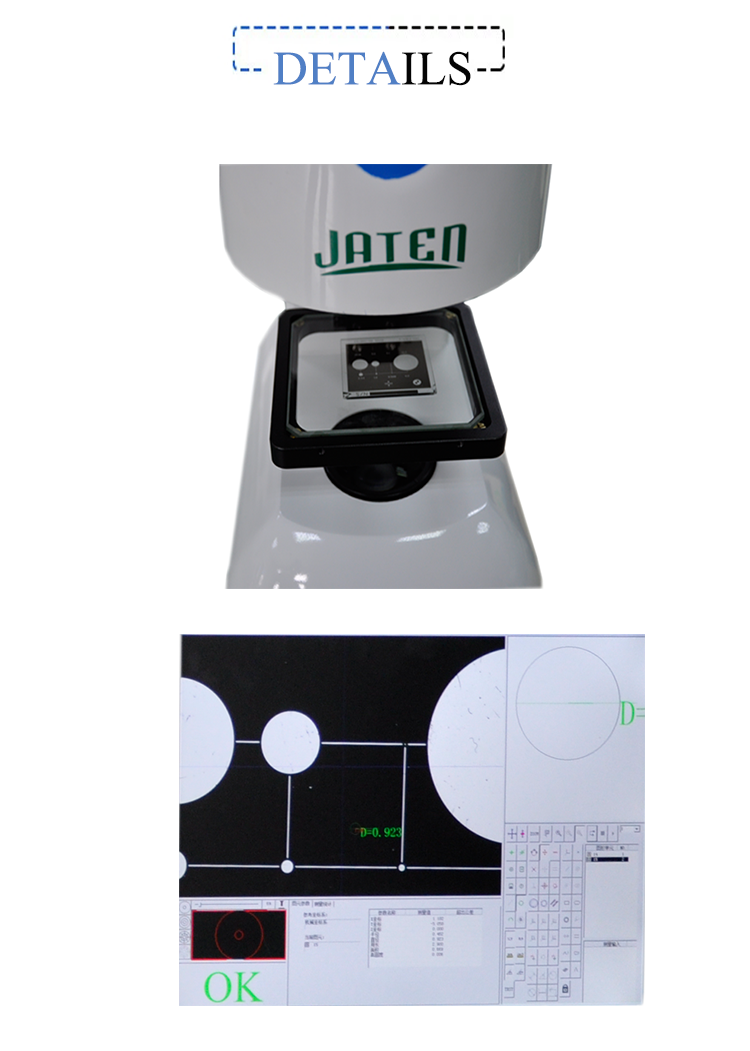

Type	One Key Quick Measuring Type

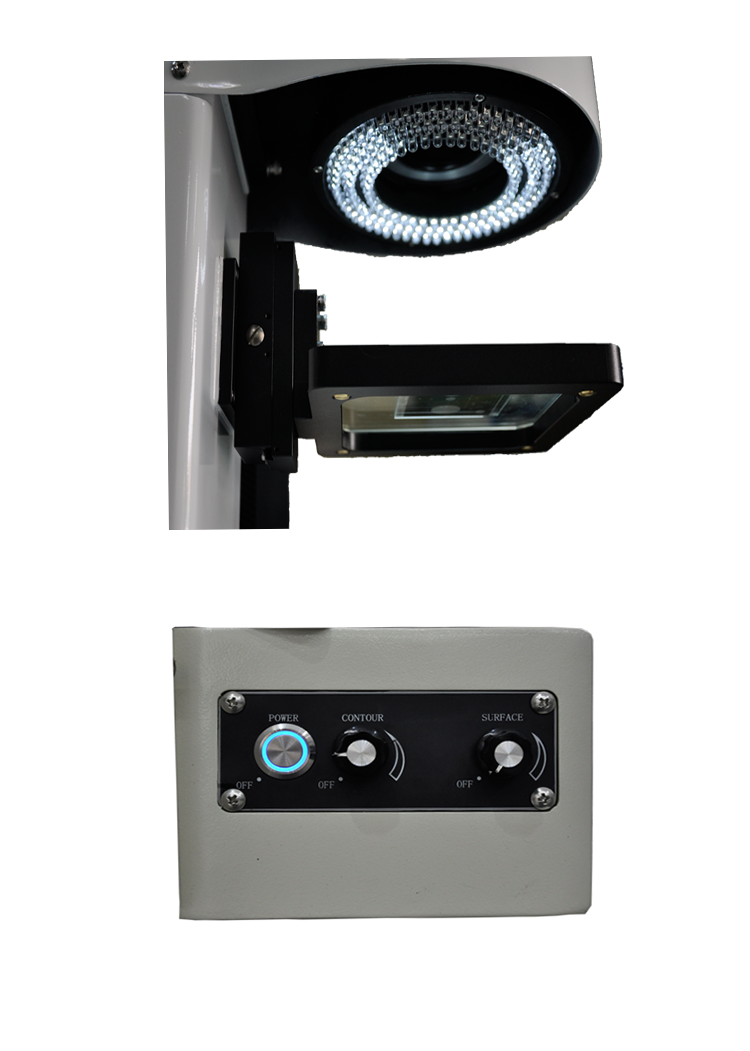

Light Source	Telecentric Light Source + Programmable Surface Light Source
Size(mm)	400300785(mm)
Traveling Size(mm)	88*66mm

Product description

Universal Micro dimension measuring machine

FEATURES

The whole control system is safe and high reliability;
Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves;
Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers can be transferred out after the test, you can know the testing process through the testing curvers, or compare with others curves, or amplify the curvers;
The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curve.

Main performance technical specifications

Model	IM30	IM60	IM100	IM150	IM-4055
Measuring range	44mm*33mm	88mm*66m	96mm*72mm	142mm*96mm	62mm*42mm
Instrument Dimensions(mm)	320240630(mm)	400300785(mm)	5005001000(mm)	4606201440(mm)	550400895(mm)
Camera	Daheng 2/3 〞 5 mega-pixel CCD		Vision 2/3〞 5 mega-pixel CCD	Vision 2/3〞 5 mega-pixel CCD	Imaging 1/2.5〞 5 mega-pixel CCD
Lens	0.2X-0.088X		0.093X	0.061X	0.138X
Measurement Accuracy	0.01MM
Max working height	15mm-26mm		200mm	200mm	200mm
Light source	Telecentric light source + programmable surface light source
