Automatic intelligent optical fiber Fusion Splicer Digital fusion splicer hot sell
Color:
- Orange
Options:
- External Interface:USB interface
- ?Weight：1.17kg (without battery) 2.14kg (with
- ?Magnification：300 times (x-axis or y-axis)?
$745.00
1 Piece/Pieces (MOQ)
$730.00
1 Piece/Pieces (MOQ)
$730.00
1 Piece/Pieces (MOQ)
$720.00
1 Piece/Pieces (MOQ)
$1200.00
1 Piece/Pieces (MOQ)
Basic Info
| Model No. | XPTN-9000-A81S |
|---|---|
| Brand Name | Scodeno |
| product status | Stock |
| Communication mode | Full-Duplex &Amp; Half-Duplex |
| Certification | Fcc, Ce, Gs, Rohs, Sgs, Bis（isi） |
| place of origin | China |
| Operating?Temperature? (℃) | -10~50°c |
Product description

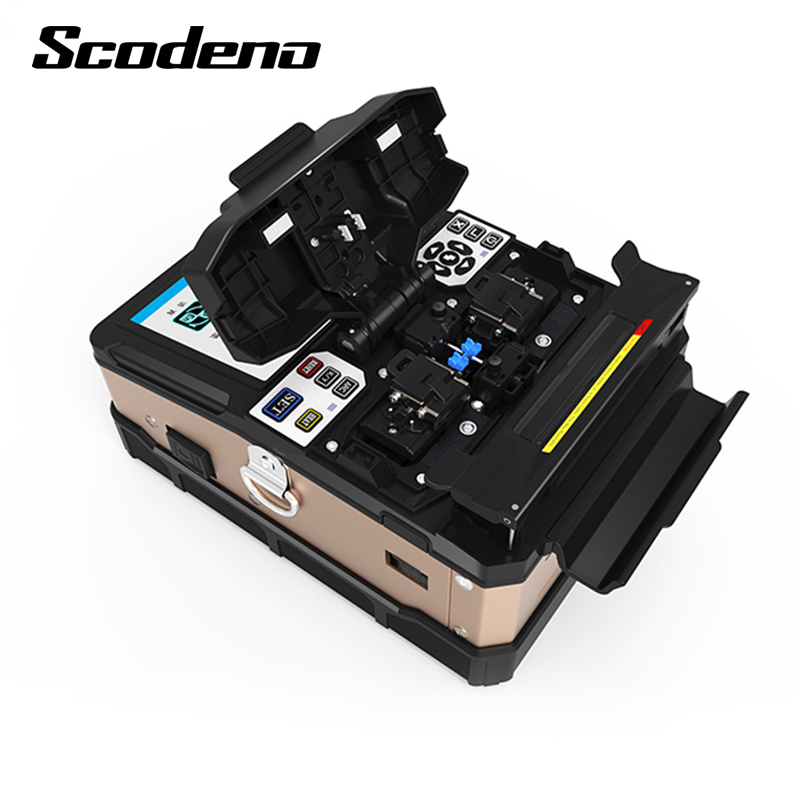

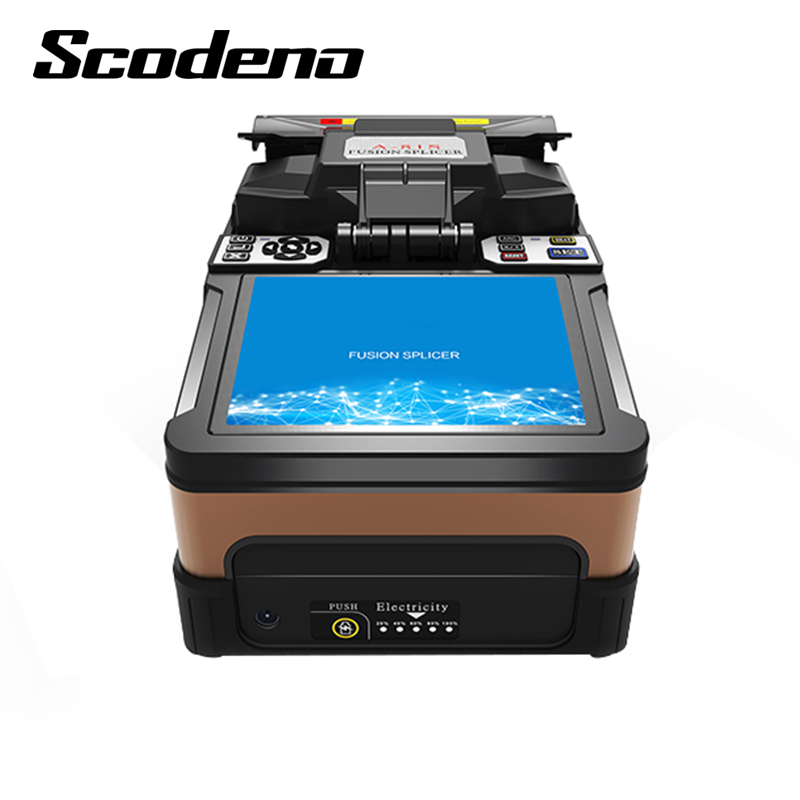

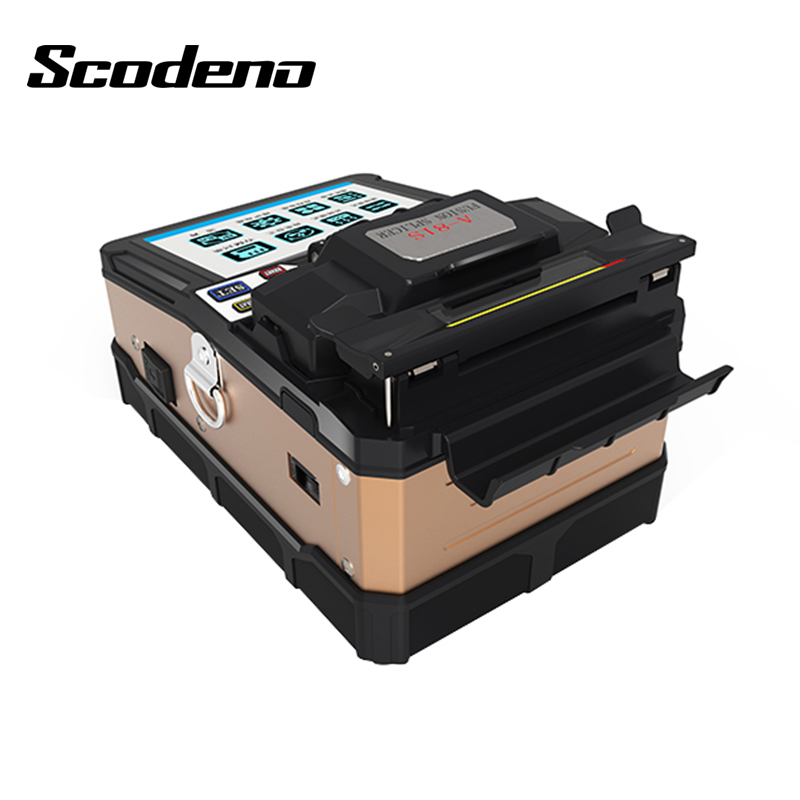

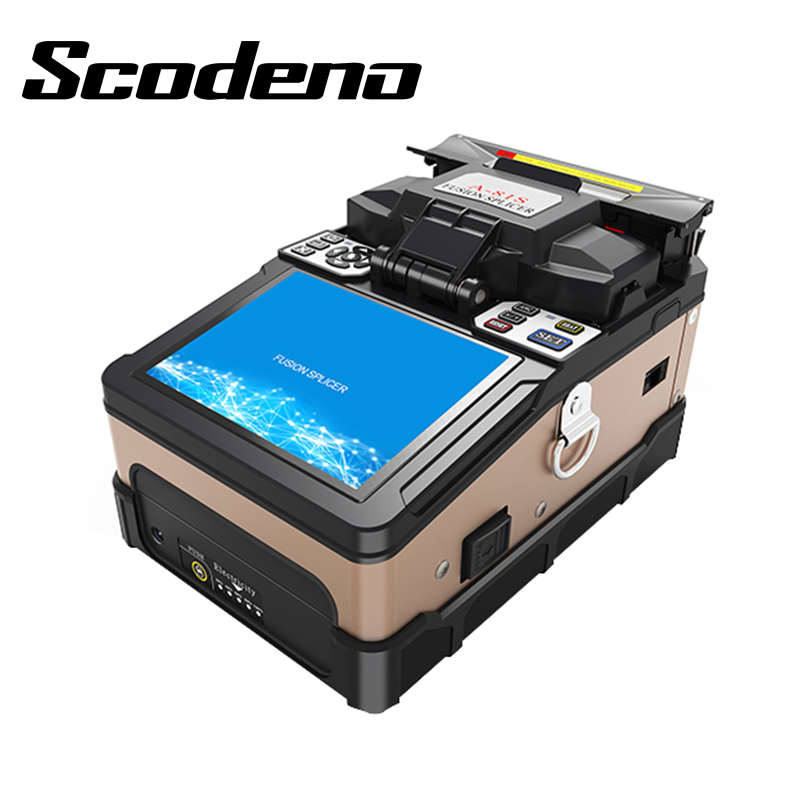

Scodeno Shockproof Drop Resistance Optical Fiber Splicer Fusion Fiber Optic cable Fusion Splicing Machine
Product Description:
|
Applicable fibers |
SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types |
|
Splicing Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS) |
|
Return Loss |
≥60dB |
|
Tension Test |
Standard 2N (optional) |
|
Fiber Diameter |
Cladding diameter 80-150um, coating layer 250-1000um; 16mm |
|
Cutting Length |
Coating≤250um: 8-16mm; Coating 250-1000um;16mm |
|
Magnification |
400 times (x-axis or y-axis) |
|
Heat Shrink Sleeve |
60mm, 40mm and a series of micro shrink sleeves |
|
Display |
5.0-inch TFT color LCD display, reversible content, convenient for two-way operation |
|
External Interface |
USB interface |
|
Fusion Mode |
17 group of operation modes |
|
Heating Mode |
9 group of operation modes |
|
Continuous Loss Storage |
Built-in memory holds 5000 latest continuous results |
|
Power Saving Function |
15% lithium battery capacity can be saved in typical environment |
|
Power Supply |
Built-in lithium battery 11.8V, charging time ≤3.5 hours. IExternal power adapter, Input AC100-240V 50/60HZ, Output DC 13.5V/4.81A |
|
Operating Environment |
-10~50°C, humidity < 95%RH (no condensation) Working altitude 0-5000m, maximum wind speed 15m/s |
|
Dimensions |
158*130*156mm(L*W*H) |
|
Weight |
1.17kg (without battery) 2.14kg (with battery) |
FAQ :
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
