There are several names for linear modules, linear modules, rectangular coordinate robots, linear slides, etc., which are automatic upgrade units following linear guides, linear motion modules, and ball screw linear transmission mechanisms. The linear and curved motion of the load can be realized through the combination of each unit, making the automation of light loads more flexible and more accurate in positioning.

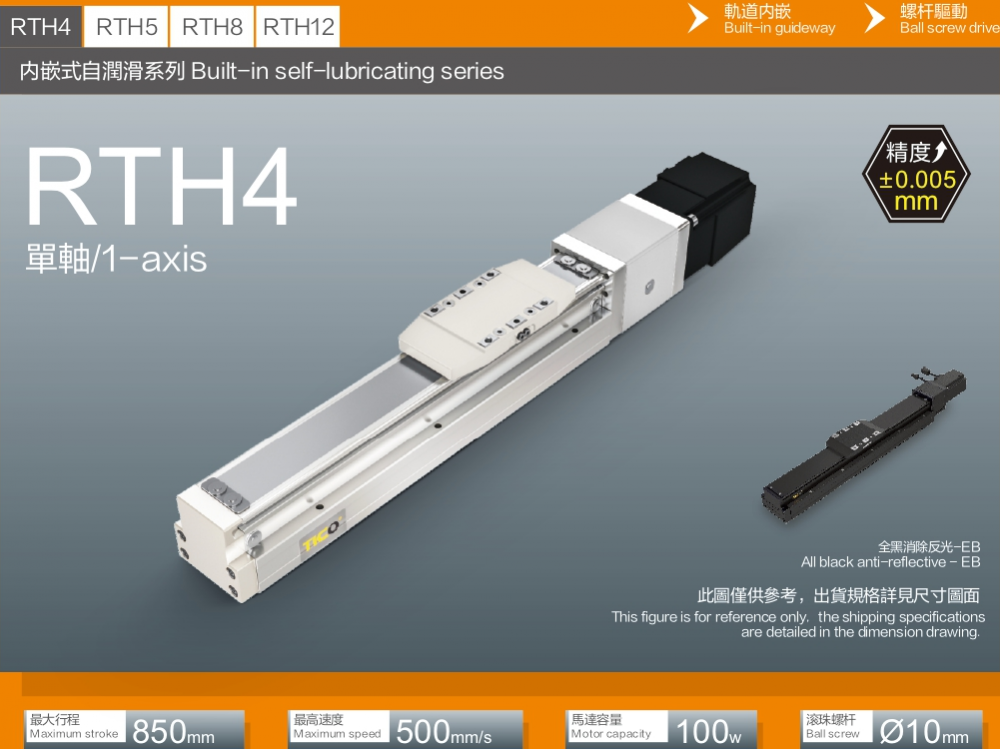

The built-in slide module is a highly integrated linear motion unit. The aluminum body and the guide rail are integrated into the design, and the slider and the sliding seat are integrated. The product is compact and lightweight to save space and high load. The linear module slide table can be equipped with self-lubricating parts, and is maintenance-free for 30,000km.
