Automatic Mail Sorting Dimension Scanner Mail Sort Conveyor Conveyor System Automated Warehouse

  • $22500.00

    ≥1 set

  • $21000.00

    ≥3 set

  • $20000.00

    ≥5 set

Options:

  • ODM
  • OEM
  • logistic
  • express
  • warehouse
Get Latest Price

Basic Info

Model No.
Brand Name
Place Of Origin Shanghai, China
Brand Name senad

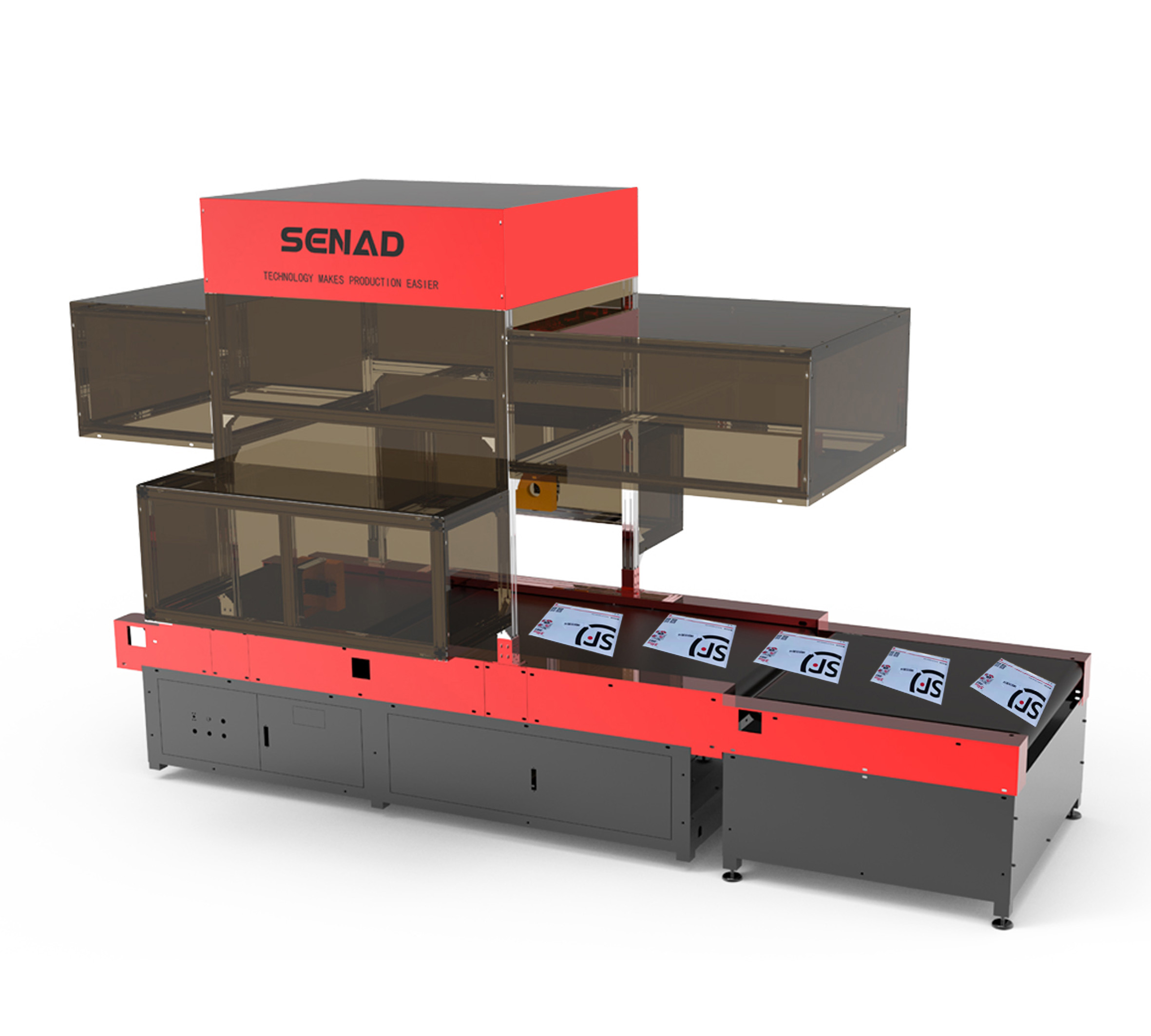

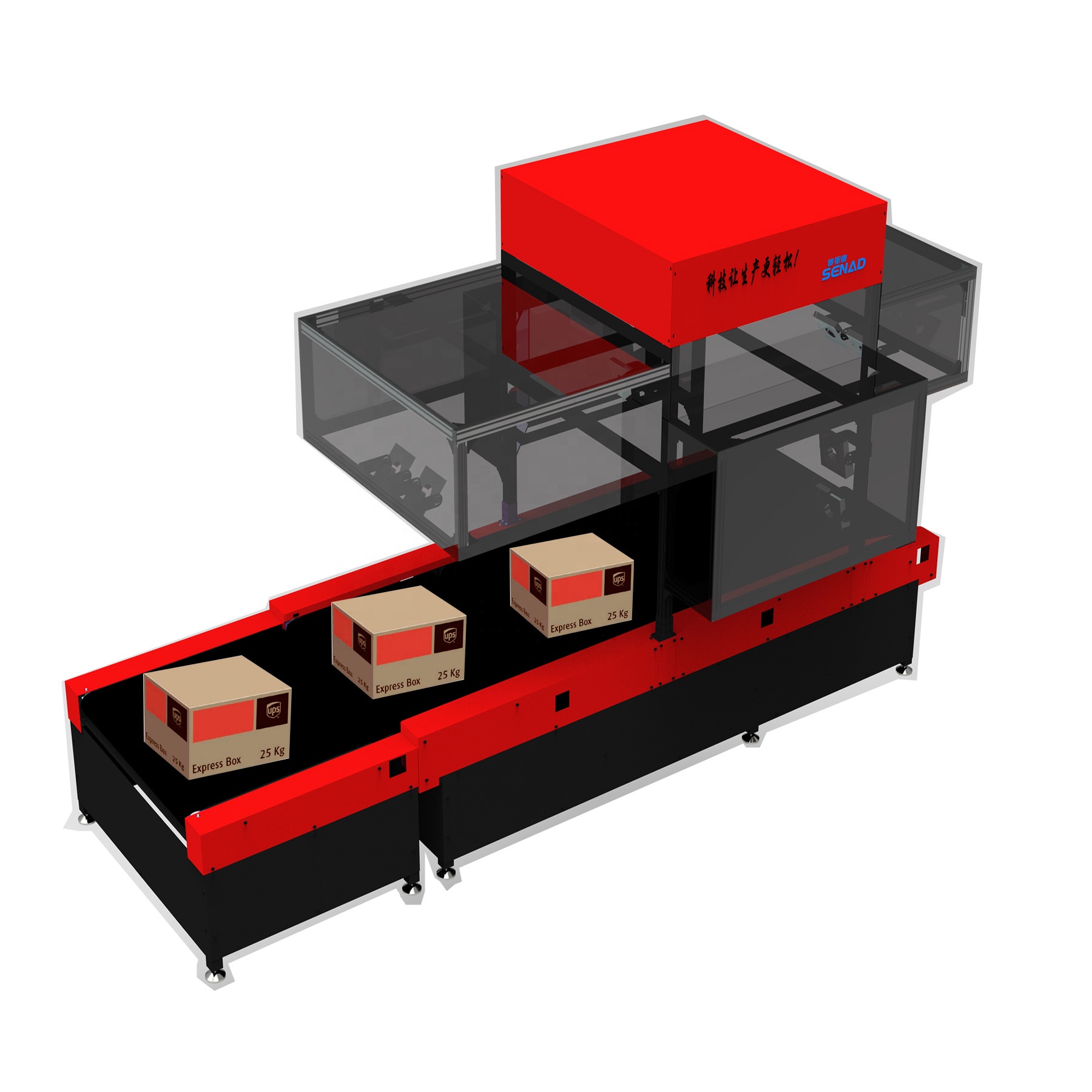

Product Name 6-side scanning weighing dimensioning machine
Applicable Area Logistic, Storage, Warehouse, Express, E-commerce
Function Code scanning; weighing;dimensioning
Core Components DWS systerm;Camera; electronical scale;
Certification ISO9001/CE
Application Area Ensure Perfectly Functioning Warehouse Logistics
Application Logistics Transportation Warehouse
Usage Material Handling
Packing Wooden Case
Advantage High-precision Contour Recognition Algorithm
Show More

Product description

Products Description

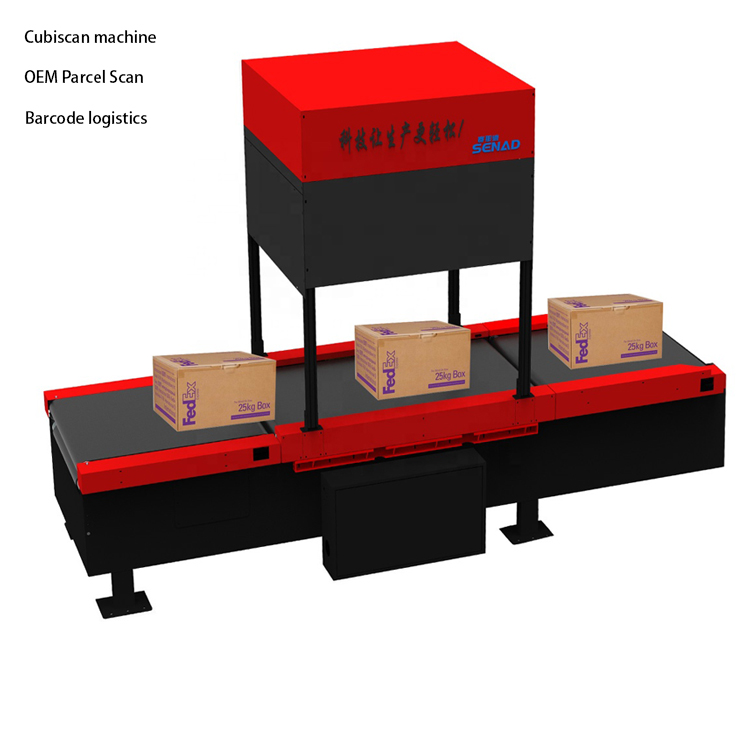

The dimensioning weighing scanning code series can provide automatic weighing, dynamic code reading, volume measurement for packages of express or e-commerce with high precision, high efficiency and simple operation. The series of equipments are widely used in express, warehouse and logistic areas.

SENAD SPECIAL:?
1, Senad's unique DWS systerm could share logistic information by 100% integrating with customer's running system;
2, Ours own 24-hour real-time monitoring systerm could find the equipment's working abnormality in time ;
3, Remote diagnosis and technical support;
4, Free customized intellgent logistic package sorting solution;
Product Paramenters
Items
Reference
Main functions
1D/2D code scanning(Five-side scanning); weighting &volume measurement;
Package type
paper box; soft package; nylon bag; plastic bag; hard wooden box,.etc.
Scanning size
Mim. 50*50*20mm----Max. 800*800*800mm(L*W*H)
Rating power
≤3.5KW
Working voltage
220V/380V~50HZ
Temperature
0~50℃
Fix Capability
2600--3600 Ps/hour
Code identify accuracy
99.9%
Weighing range
20g~100kg
Weighing accuracy
±20g
Remarks
Equipment size
1660*1100*2600mm (L*W*H)
Application software
Senad DWS software
Support systerm
windows 7/10 or above; 32/64 bits
Software interface
HTTP; TCP; 485;
Product Details

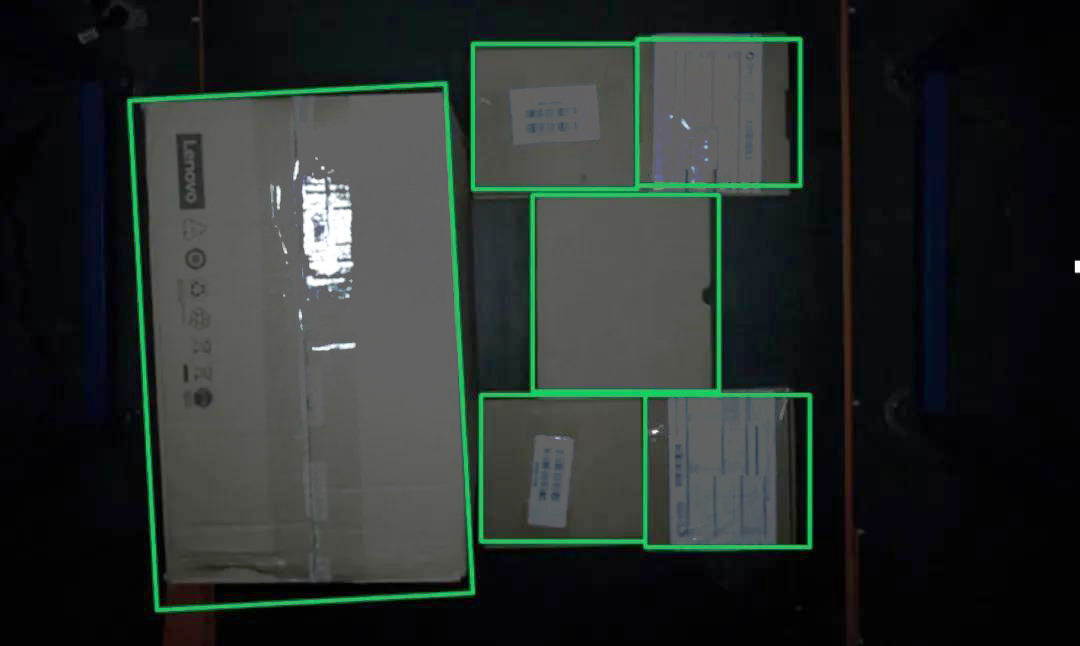

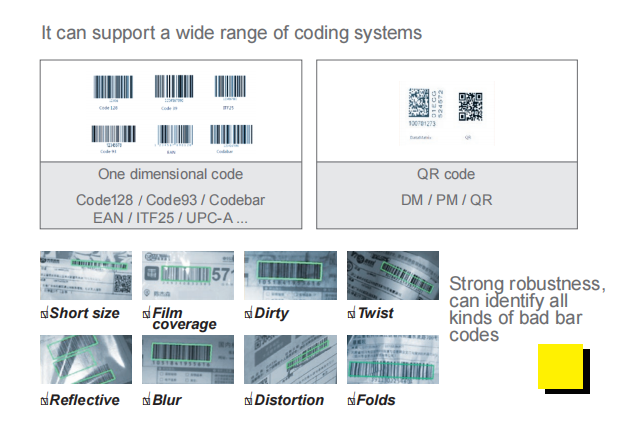

Accurate identification scan
__________

Multiple packages pass through at the same time, and the information of each package is accurately scanned and identified

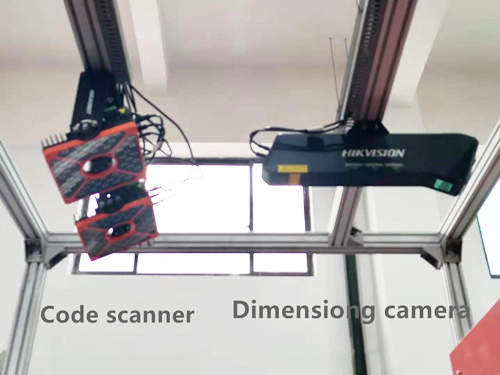

? ? ? ? HD camera
? ? ? ? __________

Accurately identify item information, the accuracy rate can reach 99.99%

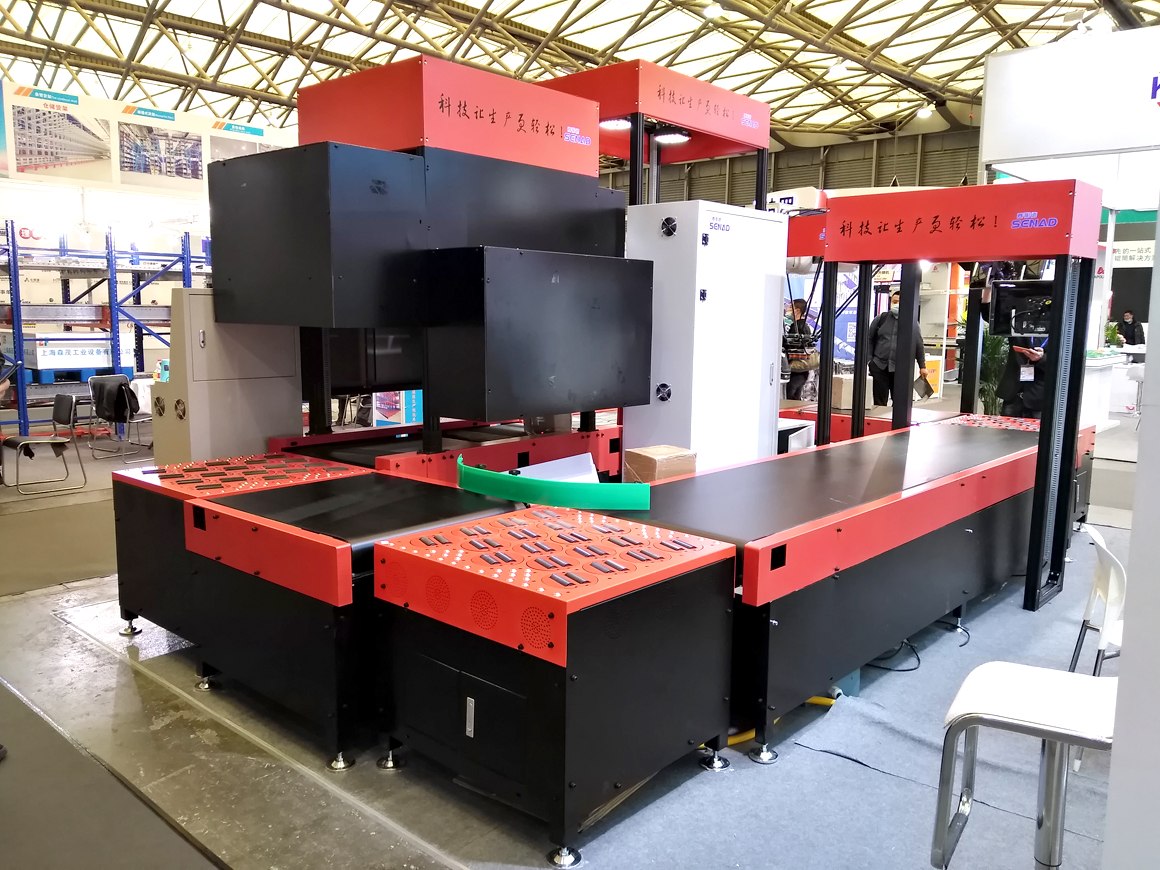

Precise and efficient
__________

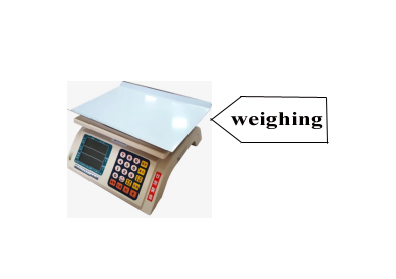

It can realize automatic weighing,high precision dynamiccode reading,volume measurement information integration,and can automatically load goods

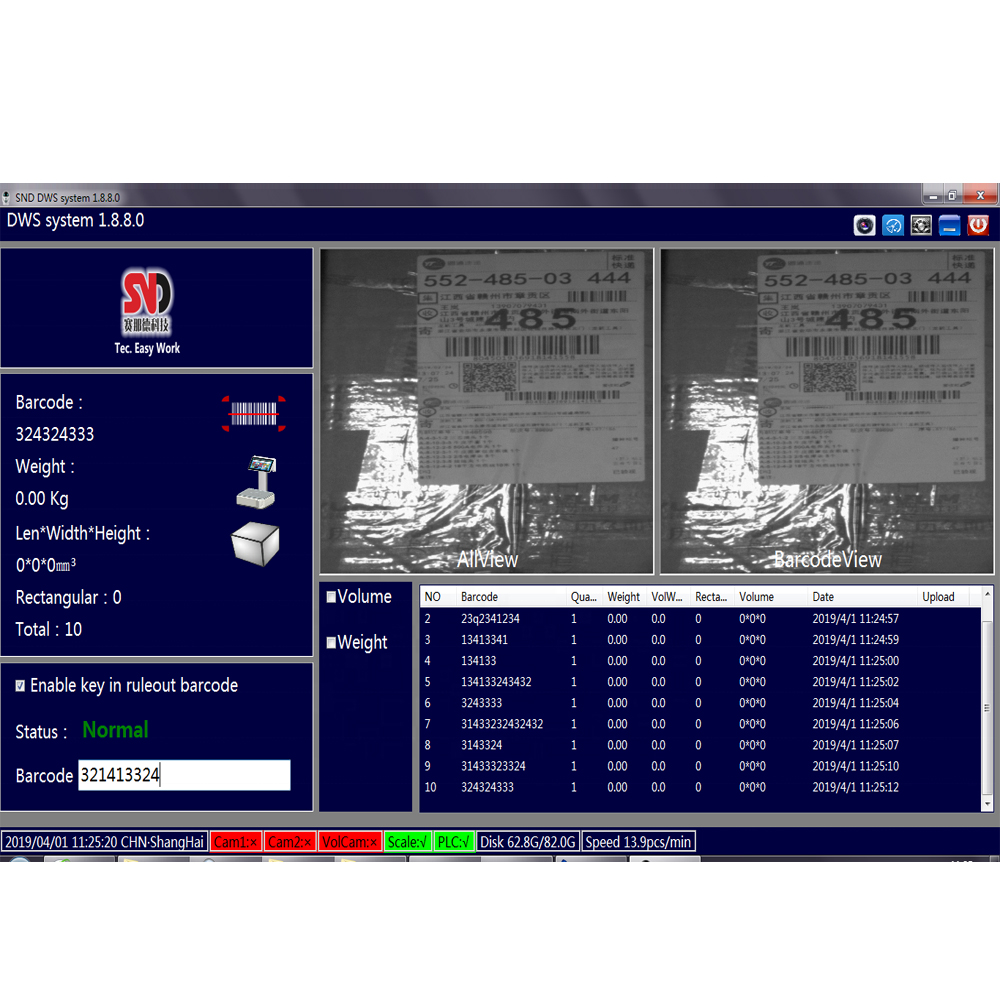

Clear record interface
__________

The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information
Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery 2. Respond within 24 hours and proceed to deal with the problem. 3. 1 year free repair service (no-human damage only). 4. Overall warehousing solution provided
Why Choose Us
◆ High-tech manufacturer with research and design capacity

◆ Concentrated on DWS equipments and sorting warehousing system overall solution

◆ Related software and system are with patents

◆ Stable and mature suppling system

◆ Young active sales and engineers for instant services(16-20hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Top quality sense, customers' requests come first

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenane not affect production
About Us
welcome to visit us
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,sanade is a national high-tech enterprise,with machine vision technology as the core,through deep learning algorithm,image processing algorithm,pattern recognition algorithm,video analysis algorithm,arm/FPGA/DSP embedded software and hardware development .industrial visual positioning .visual tracking,visual detection,multi-sensor information fusion and other technical means,in the field of smart logistics,we have found a suitable application scenario of machine vision to realize “machine generation”reduce costs and increase efficiency for enterprises ,and empower the smart logistics industry.
Continue R&；D and innovation in the fields of smart factory and smart storage,so that the logistics industry and manufacturing industry all over the world can enjoy the achievements of Chinese science and technology!

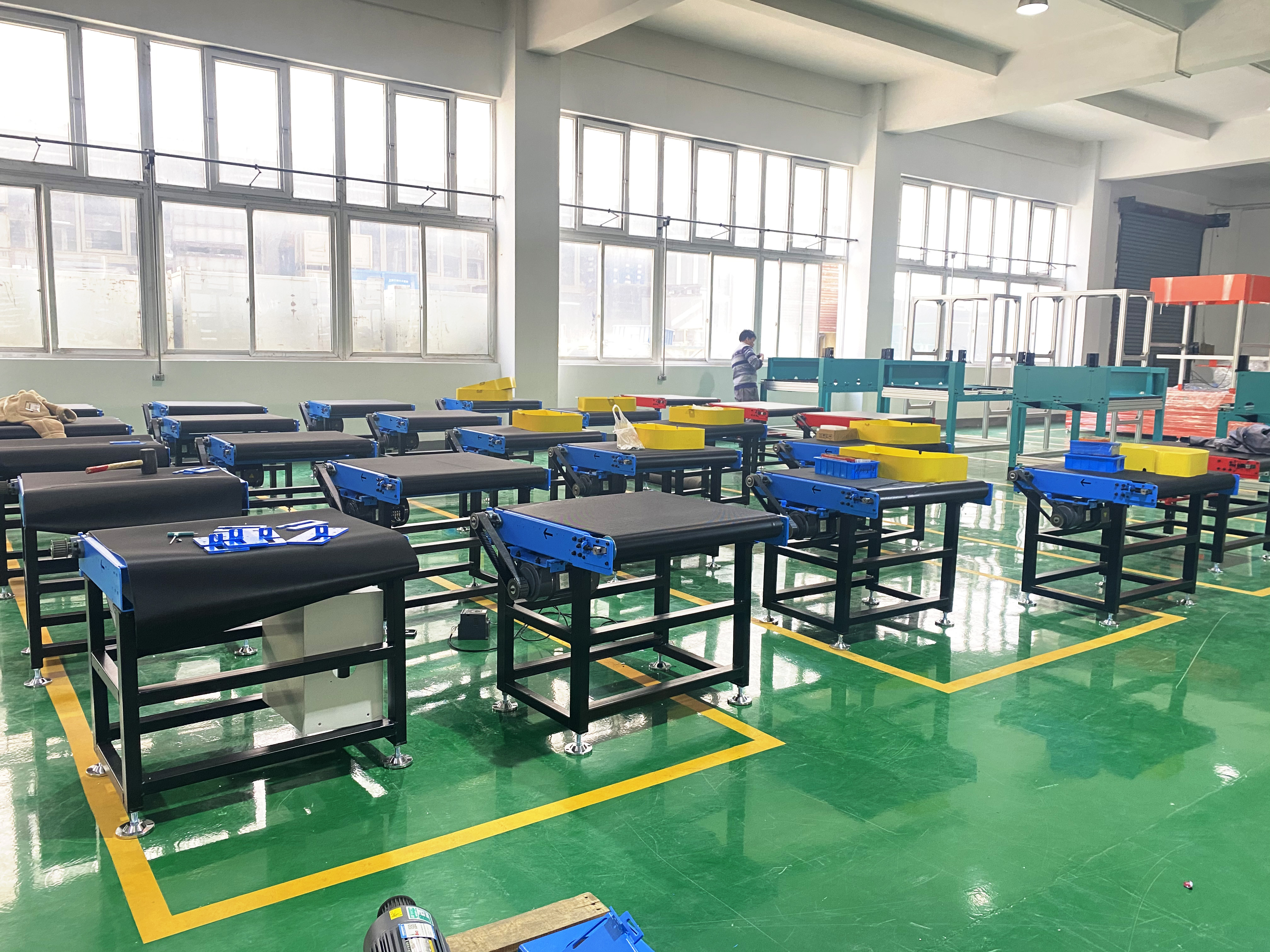

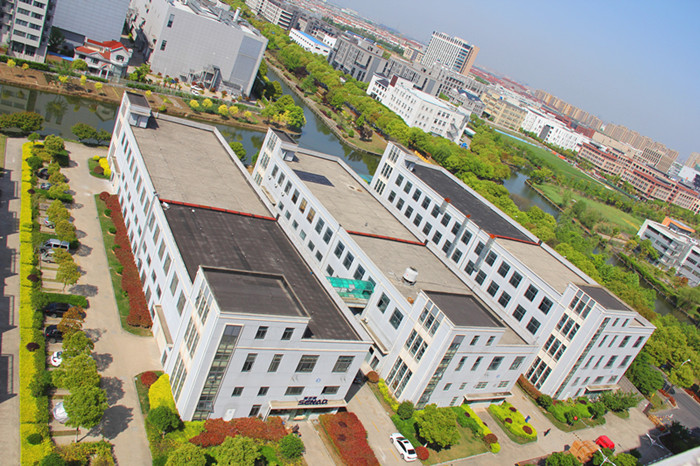

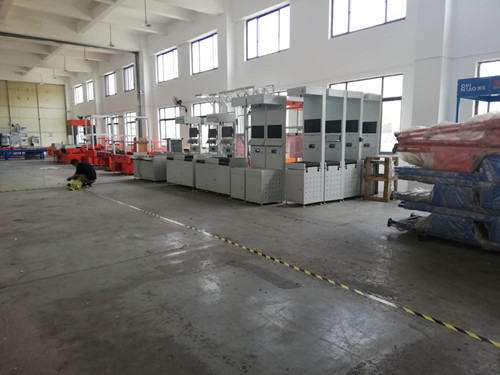

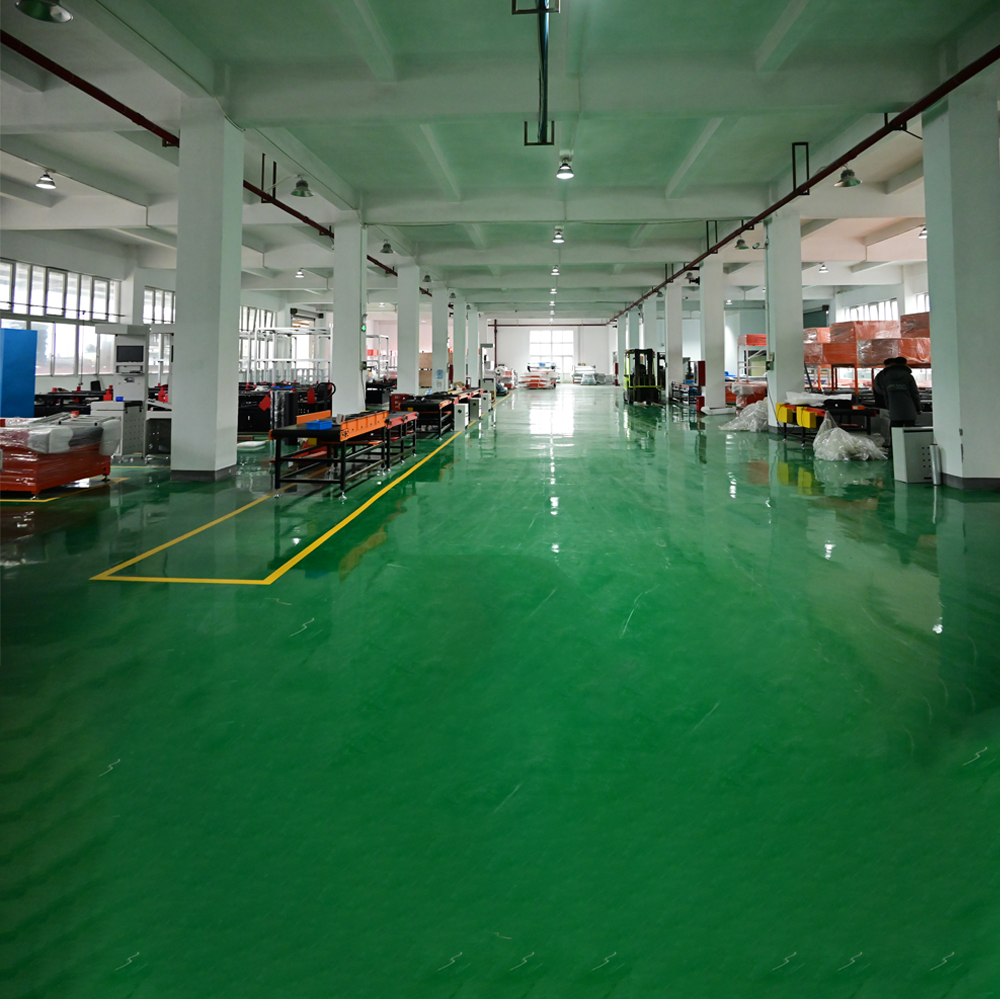

Our Factory
Development history
Our Certifications
Partners
Packaging & Delivery
1. Are you a trade company or manufacturing company?
We are a manufacturing company.

2. What's your advantage?
We have strong capacity both in hardware designing and software development. We are capable of tailoring our products to meet different customers' requirements.

3. What is the service?
7 days 24 hours on line service, Remote video.

4. Warranty of the machine?
One year warranty except the consuming spare parts.

5. What is your payment terms
Normally TT, LC and Alibaba.

6. Where does your company located?
Both our company and factory are located in Shanghai.
