Automatic Multi-Function CE Certificate Carton Box Machine for Food, Medical, and Cigarettes
power:
- 180W
Options:
- BTK-4540
Basic Info
| Max Speed | 20pcs/Min |
|---|---|
| application | Food |
| Packaging Type | Case |
| Packaging Material | Paper |
| Automatic Grade | Automatic |
Product description
?Automatic multi-function Cheap CE certificate carton box machine for food Commodity Medical Cigarettes?
?
1. Introduction:
BTK-4540 automatic carton forming and sealing machine is the latest product developed by our company. It is manufactured with international advanced technology and imported parts, electrical components and pneumatic components. It has the advantages of wide application range and high production efficiency.
The machine handles various cartons of different sizes by simply setting the box, folding into the lower wing and pasting tape. The machine has the characteristics of rational design, precision and durability of the parts, long service life and high efficiency. The tape divider has three rolls of compacting tape, and the former divider has only two rolls. Therefore, the tape operation becomes more stable, and the quality of tape sticking is impeccable. The equipment can be operated on a single machine, or can be used in conjunction with an automatic assembly line.
?

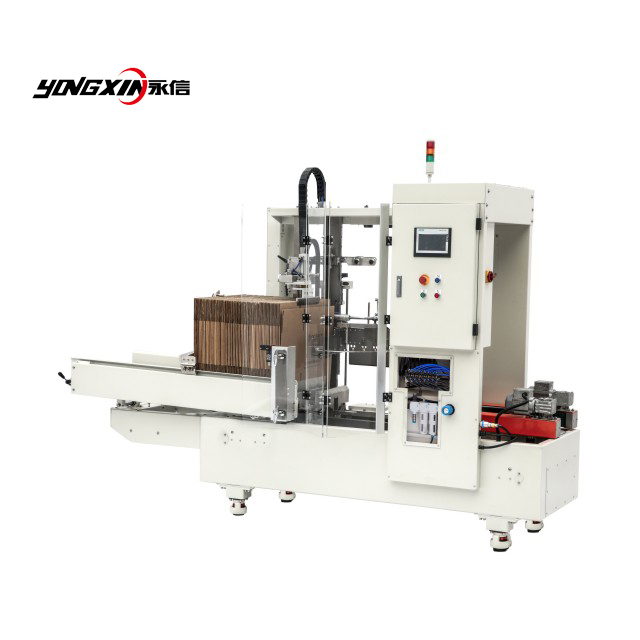

BTK-4540 High speed needle type carton erector machine
?
2. Performance characteristics:
1. Arrangement supply device: The machine sends out the shaped box directly, so it is convenient to select the loading position or packing position of the product.
2. Devices for supplying preformed boxes in turn: select a box from the stack of boxes and make boxes.

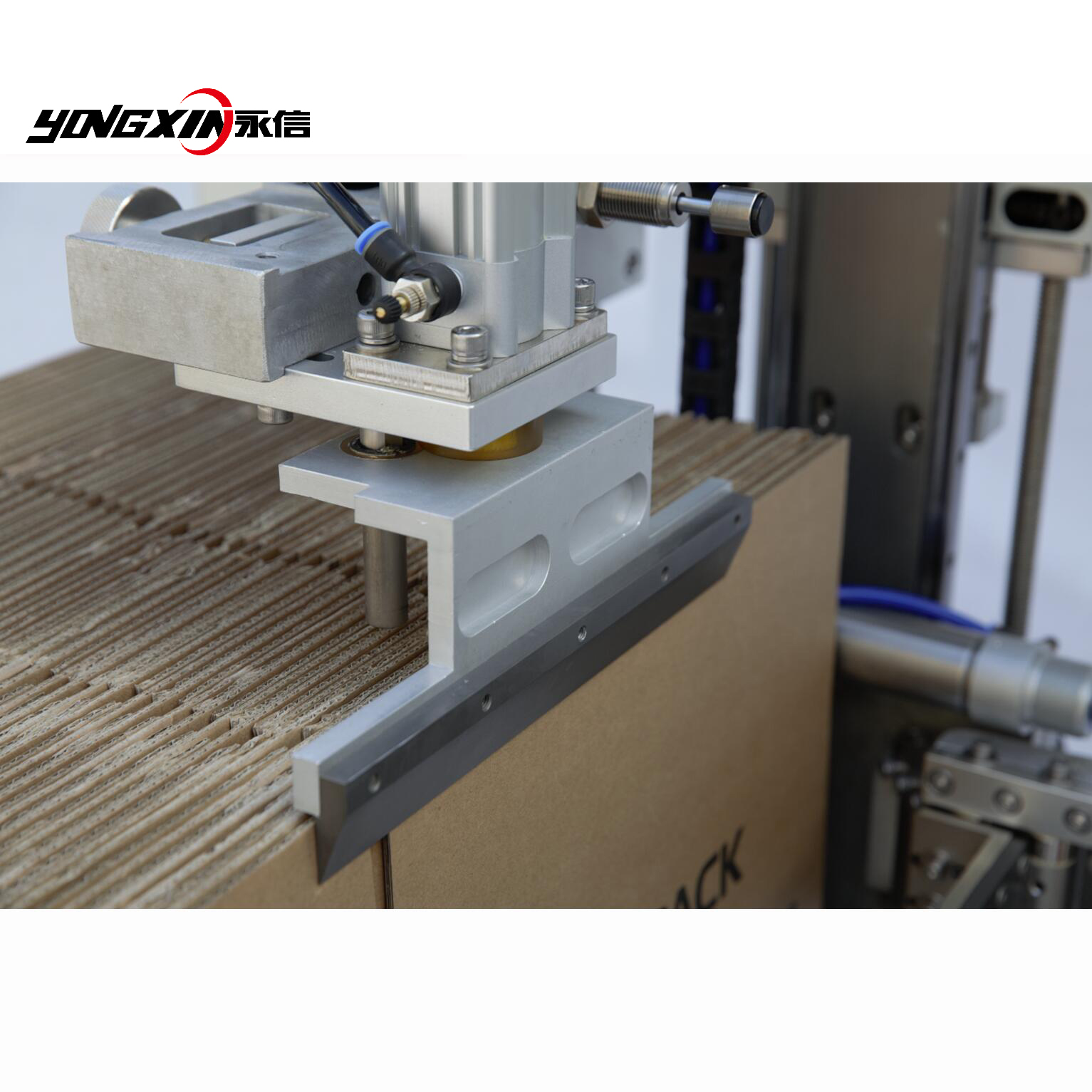

3. Pin Pick-up: Pin into the depression of corrugated cardboard and unfold the box, which is more accurate than the previous vacuum cushion.
4. Made with international advanced technology and imported parts, electrical components and pneumatic components.
5. Vertical storage of cardboard is adopted, and cardboard can be replenished at any time without shutdown.
6. The machine body is light, the performance of the parts is precise and durable, the operation process is non-vibration, the operation is stable, the service life is long, and the efficiency is high.

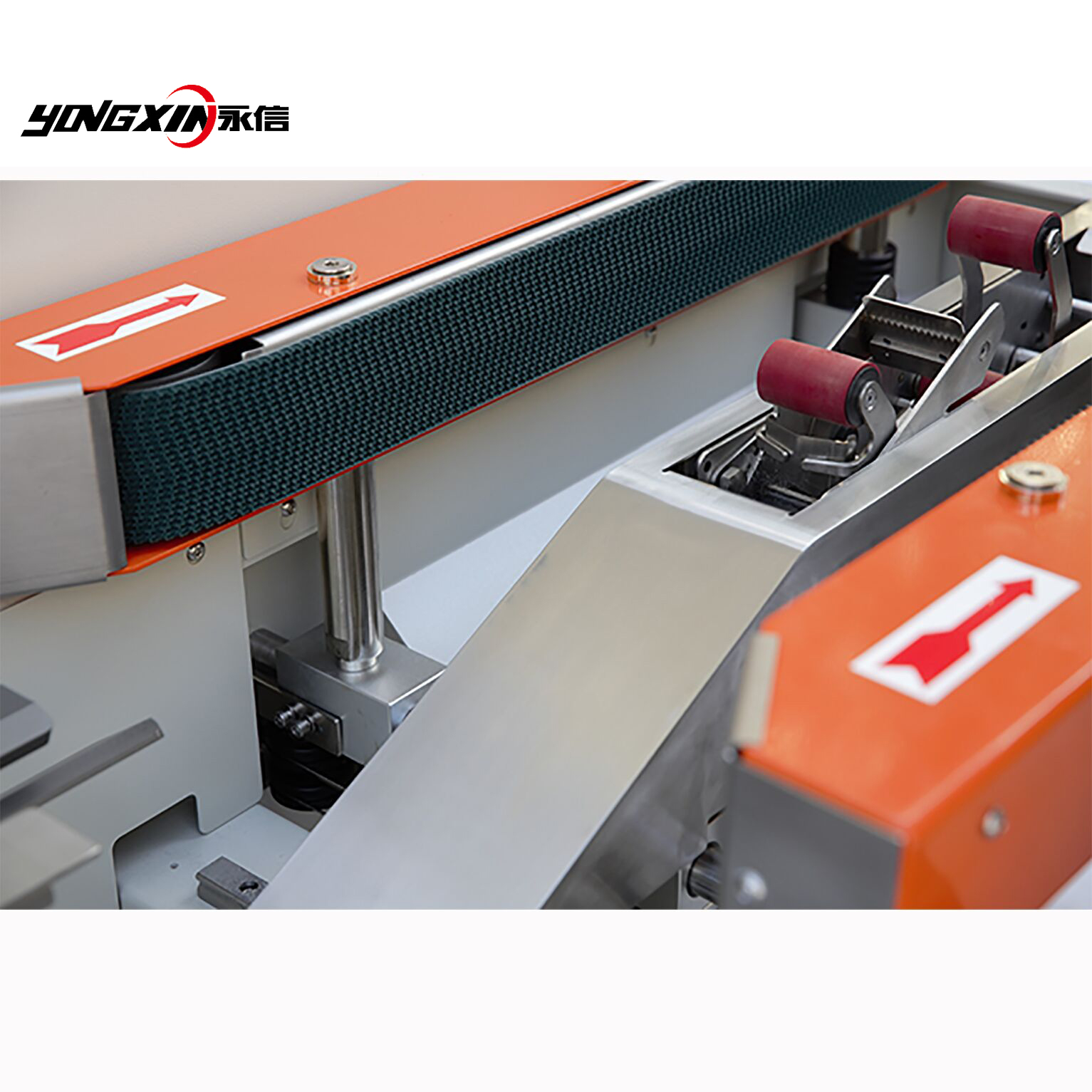

7. The lower part of the belt operation, driven by the side conveyor belt, passes through the machine, with a belt splitter to quickly and easily paste the belt.
8. Suitable for the same carton size packaging at the same time. If you need to change the specifications of cartons, you can deal with various cartons of different sizes through simple settings.
9. Rationalized design, synchronous separation of loading cartons, folding and sealing of a synchronous forming.
10. Install blade protection device to avoid accidental stabbing during operation. It can be operated on a single machine or matched with the automation pipeline, so it has strong flexibility.
11. The machine has alarm functions such as box missing, box sealing errors, no tape, safety door opening, etc. It greatly reduces the rate of box sealing errors and avoids operation accidents.
?
?
3.Main technical parameters:
?
?
|
Model |
BTK-4540 |
|
Suitable carton size |
(Max):L450×W405×H350mm (Min):L250×W190×H110mm |
|
Materials |
Aluminum, Stainless Steel and High Tension Flat Steel |
|
Sealing speed |
0~19 cartons/minute |
|
Overall dimension |
L3100*W1250*H2000mm? |
|
Worktable height |
600mm |
|
Power Supply |
380V*3?*50Hz |
|
Power consumption |
180W |
|
Control of gas source |
DC24V |
|
Air pressure |
6Kg/cm2 |
|
Mechanical weight |
600Kg |
?
?
?
?
OUR COMPANY
Ruian Yongxin Machinery Factory is located in Ruian, Zhejiang province, the famous City of Packaging Machinery in China. It always devotes itself to researching and developing packaging or pharmaceutial machineries. The Plant had successively solved many state-level and provincial level machinery technological problems, filling up several technological gaps on machineries at home. With many years' experiences on machinery design, technology and manufacture, the Plant has the capacity in designing, manufacturing, installing and debugging the single machines as well as complete equipments. The Plant is a professional machinery manufacturer integrating with scientific research, industry and trade. At the beginning of the new century, the Plant has successfully presented packaging machine for condoms, fully automatic transparent film packaging machine, semi-automatic transparent film packaging machine, electrical tape packaging machine, which are widely applied to family planning products, cosmetics, medicine, foodstuff, daily necessities and stationeries. The products are not only well distributed to all over the country, but also are exported to tens of countries and regions. All have received a lot of praises. We abide by the policy of "Survival by Quality, Development by Trustworthiness, Innovation for Challenges, Competition by Service", orientating to the aim of "Advancing with the World, Building up the Chinese Brand", working hard to offer "Quality Products, Excellent Service" to all customers. The factory director, Mr. Chen Ajin, together with all staff members, warmly welcome all circles of life to visit, negotiate business and cooperate with us to achieve more contributions.
?
OUR EXHIBTION
?
Machines in the workshop:
Transparent Film Tea Packaging Equipment

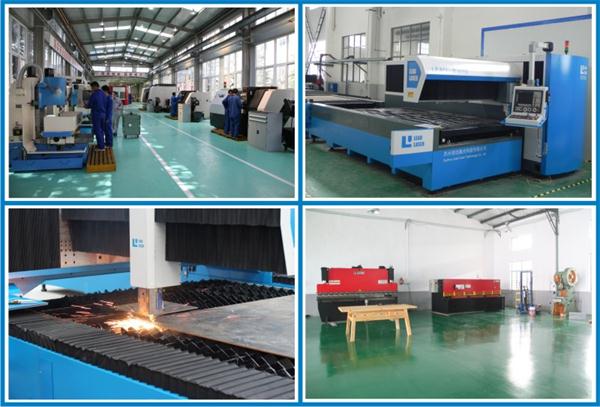

Equipment in the workshop:
?
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2 years.
2.We provide free training and answer customer's question on technology in time.?
?
