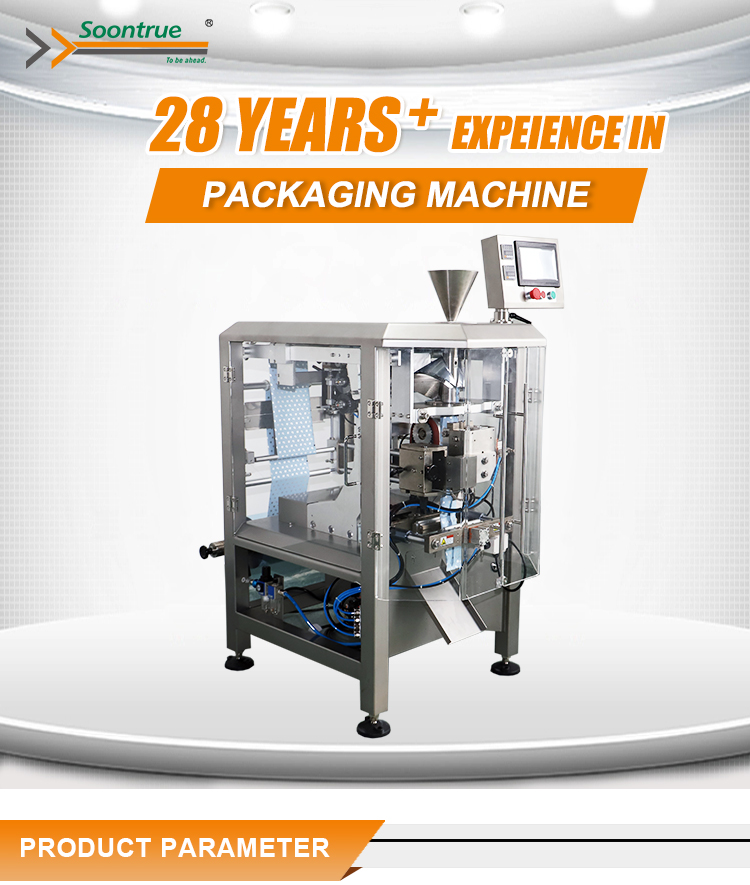

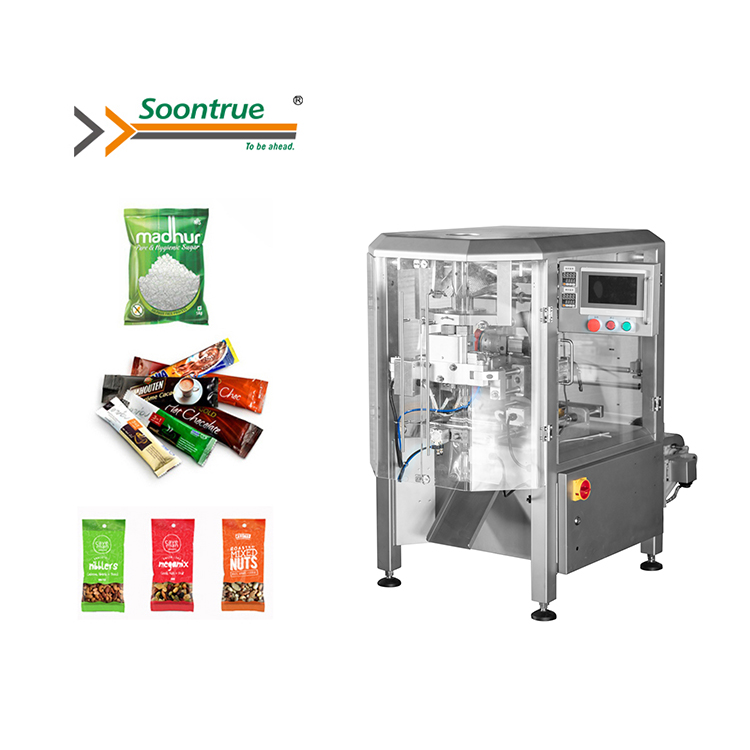

Automatic Multi-Function Continuous Motion VFFS Vertical Filling Packaging Machines

Video

1 / 7

Automatic Multi-Function Continuous Motion VFFS Vertical Filling Packaging Machines

$7500.00

≥1 set
$7300.00

≥5 set
$6500.00

≥10 set

power:

4.0 kw

Options:

ZL-180PX

Get Latest Price

You might also like

Automatic Small Sachets Pouch Filling and Vertical Packing Machine for Juice, Coffee, and Milk Powder

1 set (MOQ)

Automatic Peanut and Cashew Nuts Weighing and Packaging Machine

1 set (MOQ)

Fully Automatic 3-in-1 Coffee Packing Machine

1 set (MOQ)

Liquid Packaging Machine for Juice, Milk, and Coffee

1 set (MOQ)

Automatic Multi-Function Continuous Motion VFFS Vertical Filling Packaging Machines

1 set (MOQ)

High Efficiency Automatic Granulated Sugar Packaging Machine - Soontrue Sugar Filling Packing Equipment

1 set (MOQ)

Vertical Packaging Machine for Potato Chip Bags

1 set (MOQ)

Automatic Milk Food Supplement Powder Coffee Packing Machine

1 set (MOQ)

Multihead Weigher Vertical Packaging Machine for Meat and Fish Products

1 set (MOQ)

High Speed Multilane Powder Stick Packing Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Production Capacity	20-100bag/min
Weight (KG)	350
function	Filling, Wrapping, Sealing
application	Food
Packaging Type	Bags, Pouch
Packaging Material	Plastic
Automatic Grade	Automatic
Driven Type	Mechanical
Voltage	220v
Place Of Origin	Guangdong, China
Brand Name	SOONTRUE
Warranty	1 Year
Key Selling Points	Automatic
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Core components	Other
Model	ZL-180PX
Packing speed	20-100bags/min.
Packing Film Width	120-320mm
General power	4.0kw
Machine weight	350KG
Measurement	1270x910x1485mm
Type	Multi-Function Packaging Machine
Applicable Industries	Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location	None
Condition	New
Marketing type	Ordinary Product
Warranty Of Core Components	1 Year

Product description

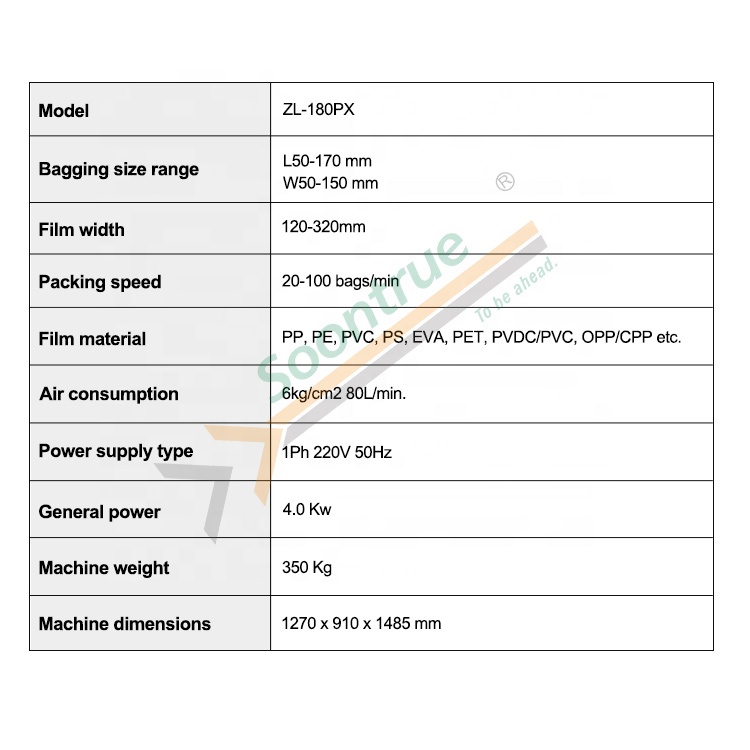

Model			ZL180	ZL200	ZL300	ZL350
Bagging size range	L(mm)	50-170	100-300	80-400	80-430
Bagging size range		W(mm)	50-150	100-200	80-280	90-350
Packing film width(mm)			120-320	200-420	230-630	380-790
Packing speed(bags/min)			20-100	20-100	15-70	15-70
Machine weight(kg)			350	400	900	1050

Application:

Mainly used for packing granules, strips, slice, liquid,lumps, powder with different

packing types.

1. Entire machine design is more optimized for more convenient operation.? 2. Compact?machine structure for more stable working. 3. SS304 machine frame with sand blasted treatment realizes nice appearance. 4. Key components are specially designed, fast packing speed. 5. Servo controlling system:?Intelligent adjustment with higher accuracy is more

flexible for packing different products.? 6. Bag types: 3 sides seal bag, pillow bag (w/o hanging hole, and chain pack

option)

7. Filling systems: multi-head weigher, auger scale, volumetric cup filler, liquid

pump and so on.

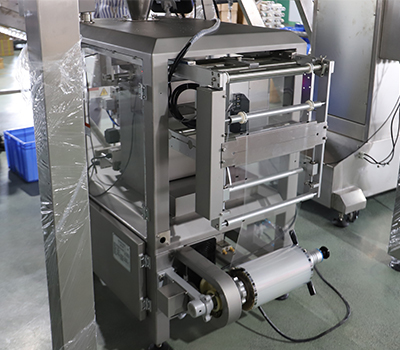

Film loader

Servo film-pulling and film-loading assembly, with dancing arm moves up and down, realizing dynamic control of the film tension. Film travels above eye mark sensor, realizing precise film tracking and positioning.

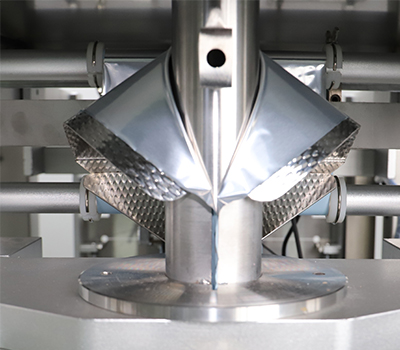

? Bag former

Drawn down by servo drive friction

pull-down belt, packing film enters to

bag former, realizing nice and neat

packaging performance. With user-

friendly design, it is easy to change the

bag former ffor different film width.

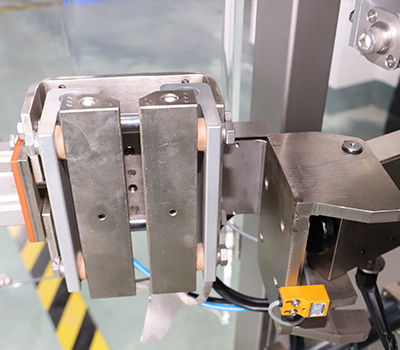

Mid sealing assembly

Cylinder control mid sealing assembly, with independent temperature control， realizing precise and nice sealing appearance.

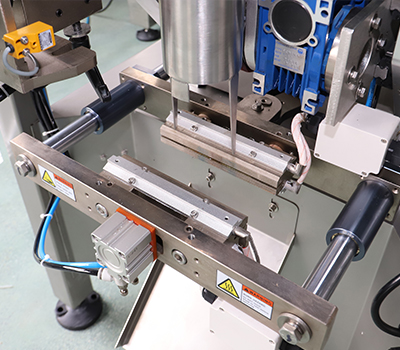

?End sealing assembly

Servo control end sealing jaws move

in open-close motion, with independent

temperature control. Heated sealing

jaws will make top seal of one bag and

bottom seal of next bag at the same

time. Then Finished pillow bag will be

discharged.

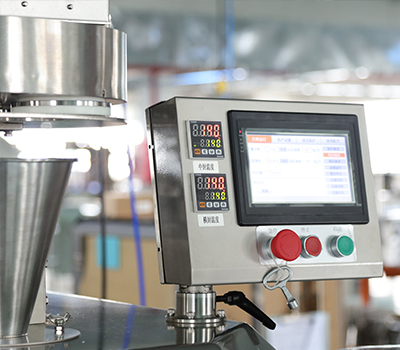

Intuitive HMI display

Different settings for set up,

commissioning, daily operation and maintenance can be conducted via the touch screen. With memory function, easy for different packing size change over.

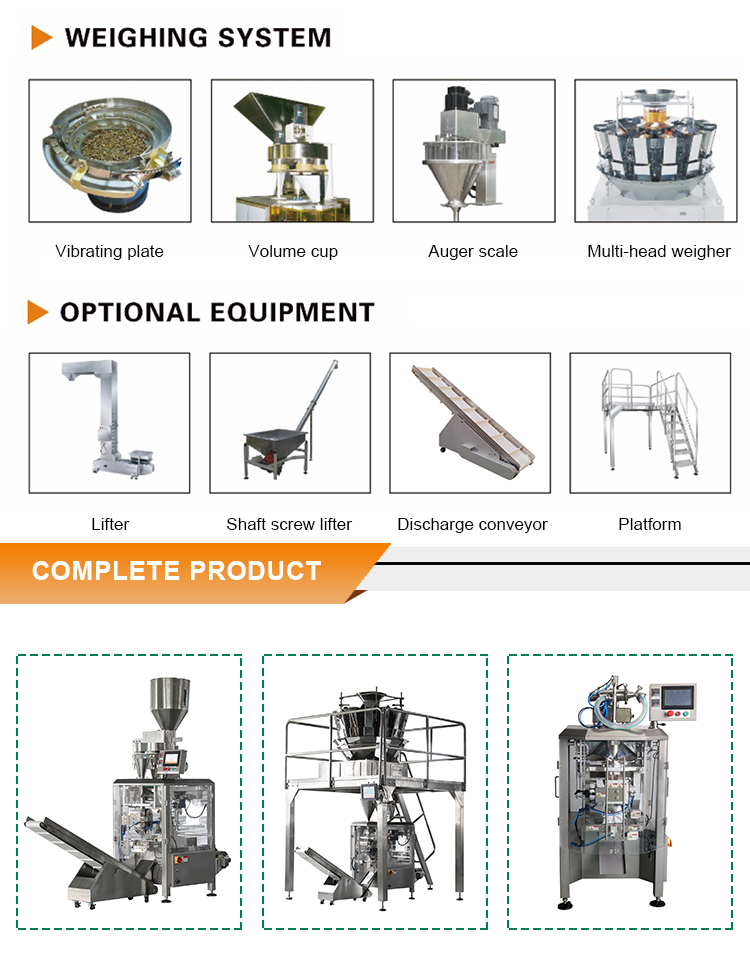

Different types of filling apparatus are optional to work with the packaging machine, such

as multi-head weigher, auger scale, volumetric cup filler, liquid pump etc. Also,

configuration with different kinds of lifter, working platform and discharge conveyor is

preference choice for most of businesses.

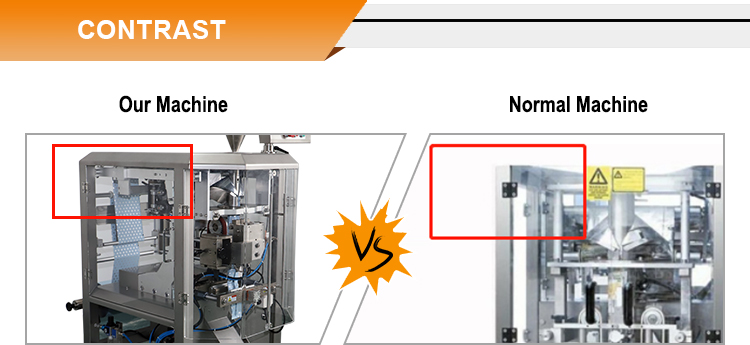

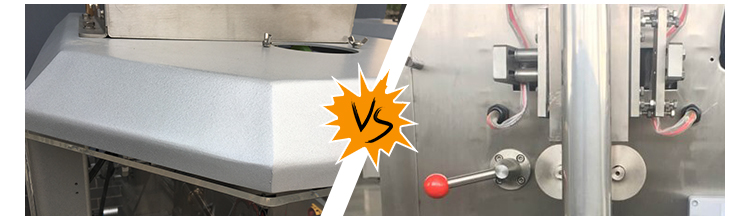

Machine frame made of 3mm & 5mm thickness stainless steel, realizing strong protection and steady operation.

SS304 machine body with non-finger surface treatment, nice appearance.

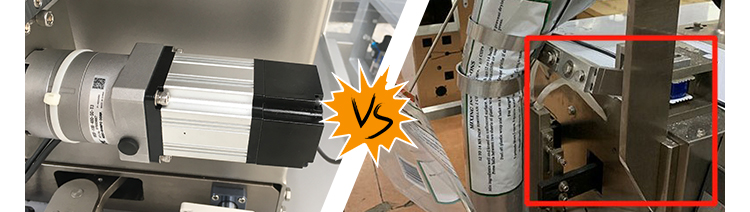

Machine with servo driven film pulling and film loading design, achieving accurate, fast and stable film feeding.

Foshan Soontrue Machinery Equipment Co., Ltd, established in 1993, is a leading

manufacturer engaged in the research & development, production, sales and service of

Horizontal packing machine, vertical packing machine and fully automatic packing system,

which are mainly applicable in bakery industry. Soontrue supplies more than 3000 packing

solutions to customers all over the world every year.

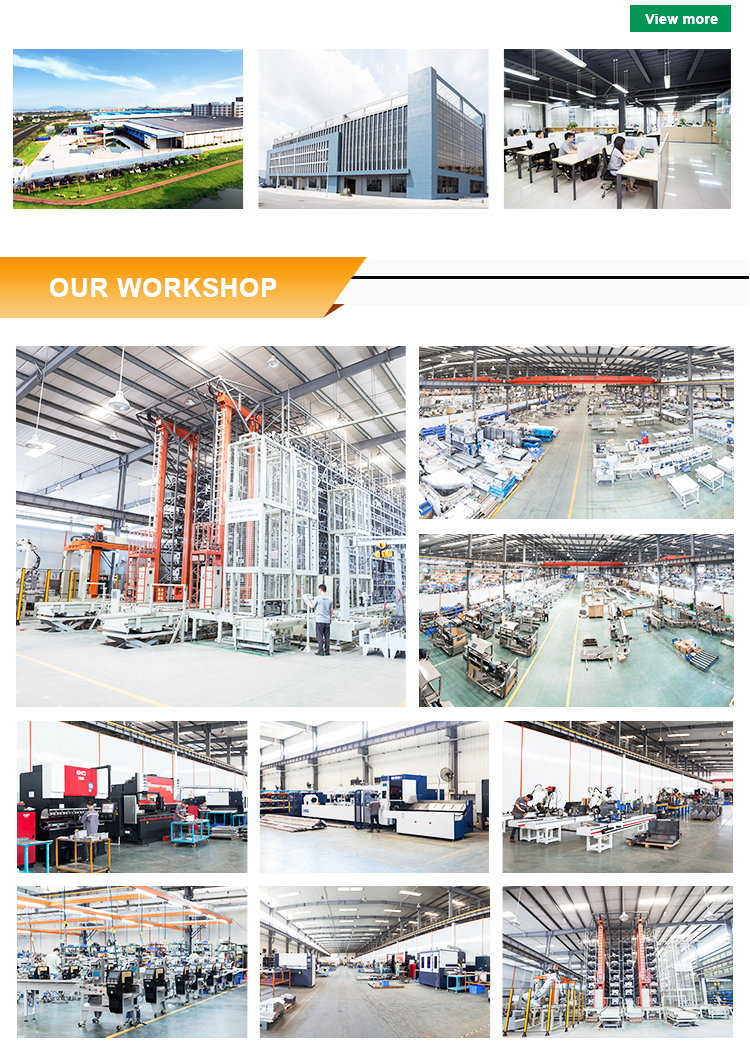

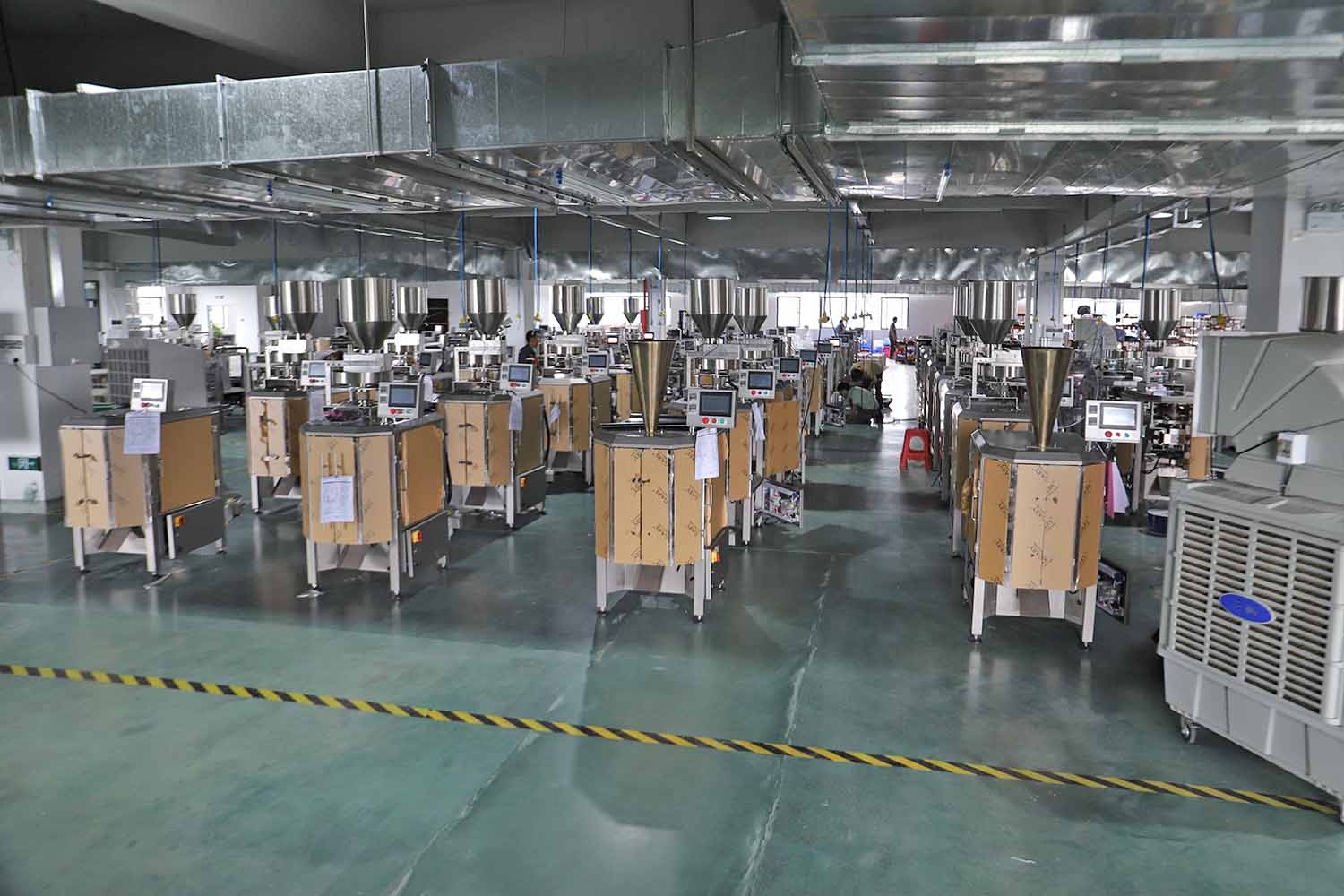

Foshan Soontrue has grown into a company with more than 400 staffs and 41,000 square

meters along with well improved factory management.

Q1:Do you have manual or operation video for us to know more about the machine?
?Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make oftesting the material from our packaging machine if your packing goods easier for us to find from our local market.
?Q2:How can I trust you for the first time business ?
?Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
