Automatic Multi-function Packaging Machines for Soft Tube Medical Industry Cartoners

Video

1 / 7

Automatic Multi-function Packaging Machines for Soft Tube Medical Industry Cartoners

$45000.00

≥1 set
$35000.00

≥3 set
$15000.00

≥10 set

power:

2.1KW

Options:

80-120Bags/Min
HDZ-120

Get Latest Price

You might also like

High Speed Continuous Automatic Carton Box Packaging Machine

1 set (MOQ)

Multi-Function Cartoning Machines for Soap Packaging

1 set (MOQ)

Automatic Horizontal Cartoning Machine for Blister Packaging Equipment - Box Packing Machine

1 set (MOQ)

China Factory Multi-Function Packaging Machines for Hose Soft Tube Cartoning Machine

1 set (MOQ)

China-Made Multi-Function Automatic Blister Bottle Ampule Box Cartoning Machines

1 set (MOQ)

HDZ-100 Automatic Vertical Carton Packaging Machine for Bottles/Blister Cartoner with CE ISO Certification

1 set (MOQ)

HDZ-100P Automatic Vertical Packaging Machine for Bottles

1 set (MOQ)

Chinese-Made Multi-Function Automatic Food Packaging Machine

1 set (MOQ)

Automatic Multi-function Packaging Machines for Soft Tube Medical Industry Cartoners

1 set (MOQ)

Automatic Vertical Multi-Function Packaging Machines for Cartoning Small Boxes

1 set (MOQ)

Basic Info

Model No.
Brand Name
Weight (KG)	1200
function	FILLING, Wrapping, Labeling, COATING, Sealing, boxing, Gluing, SLITTING
application	Food
Packaging Type	Cartons
Packaging Material	Paper
Automatic Grade	Automatic
Driven Type	Electric
Voltage	380V/50HZ
Place Of Origin	shanghai
Brand Name	Wanshen
Dimension(LWH)	380015501700
Warranty	1 Year
Key Selling Points	Long Service Life
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Core components	Motor
After-sales Service Provided	Video Technical Support, Online Support
Speed	50-80Cartons/Min
Carton size	(85-230)(25-120)(12-75)mm
Weight	1500kg
Compressed Air	0.6Mpa
Air Consumption	30-90L/Min
After Warranty Service	Spare Parts
Local Service Location	None
Condition	New
Warranty Of Core Components	1 Year

Product description

Food Medicine Beverage Stationery Cosmetic Industry Cartoning Machine

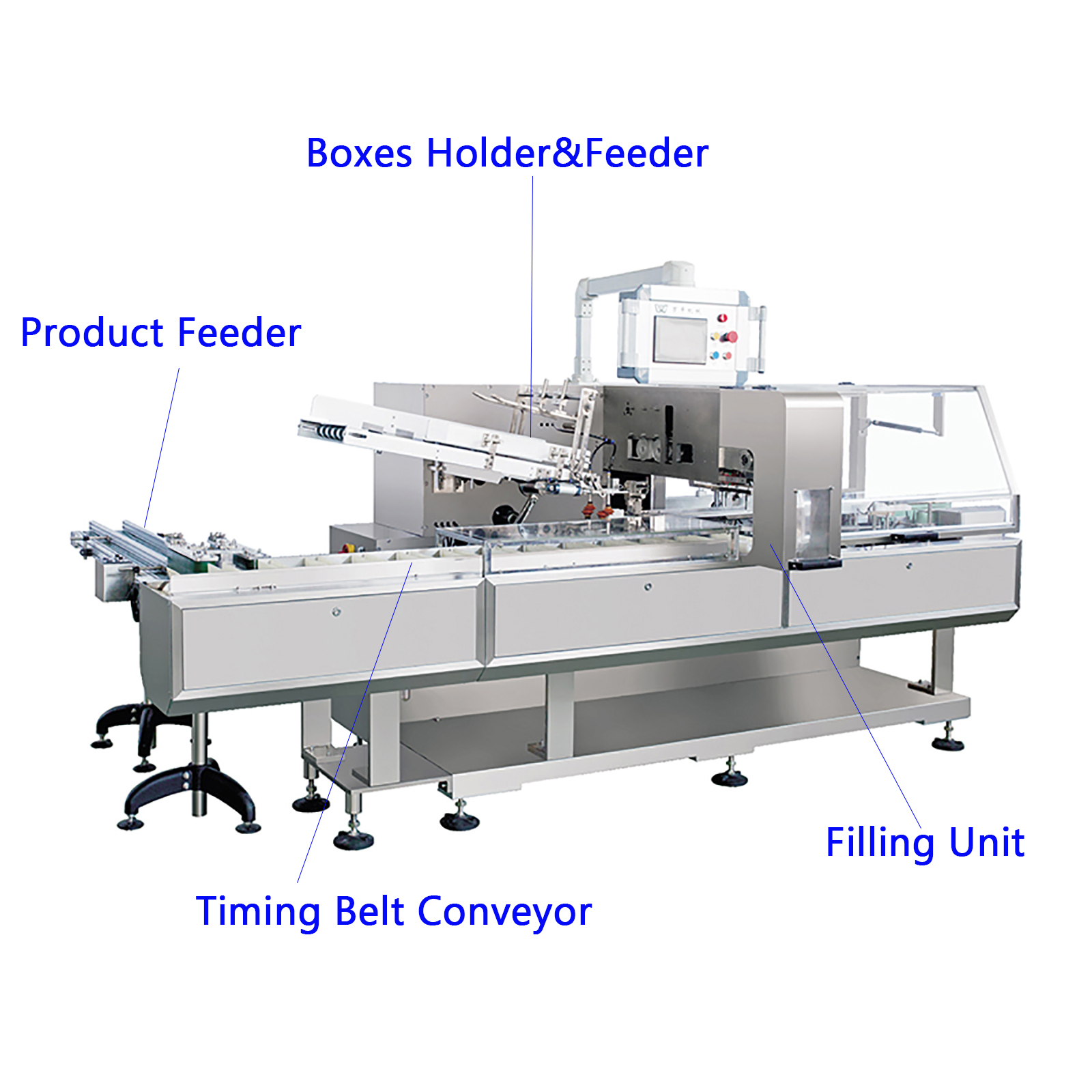

Box Former

Filling Unit

Box Holder

Closing Unit

Leaflet Feeder

Human Machine Interface

Application:

MAIN FEATURES

1. Adopt variable frequency speed regulation,PLC automatic control system.

2. Human machine interface can display production information such as cartoning speed, quantity, and cause of failure, and built-in operation and maintenance methods.

3. Multi-size products can be packed on the same equipment within specified scope.

4. Using humanized mechanical memory device, quickly and easily make changeover for different carton specifications through the dial handwheel adjustment.

5.Manual and automatic conversion function.

6.With device of embossing stamp, can make batch NO., production date and expiry date on box.

7.With auto detection system, can perform positioning stop and online rejecting for unqualified products.

8.It can be equipped with hot melt glue machine to realize the sealing by dotting adhesive.

9.It can be installed with folding machine to complete the folding, conveying and cartoning of leaflet.

Data Sheet

Model No.	HDZ-120A	HDZ-120B	HDZ-120C	HDZ-120D
Suitable Box Size (mm)	L:70-225 W:25-80 H:12-75	L:70-225 W:40-120 H:12-75	L:70-225 W:80-160 H:25-90	L:100-300 W:120-200 H:50-100
Speed (Boxes/Min)	120	80	60	50
Machine Dimension（mm)	315015001800	350015001800			400015001800
Weight(kg)	1200	1500			1800
Voltage	380 V/50 HZ
Power	2.1 KW
Air Pressure	0.6 Mpa
Air consumption	30-90 L/min

Our Certificates: we have ISO certificate , CE certificate and 79 Patents Certificates.

We have cooperated with over 1200 factories from medicine and food factory. As them you can you choose good partner as my factory.

FAQ:

1.Q:Why should we choose you ? A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty. 2.Q:I'm not familiar with the machine,how to choose? A:Just tell us your box size,speed or show us material feeding picture or field video , I will recommend the suitable machine. 3.How to operate the machine? A:We will deliver English manual and video with the machine to you.If you still need our further help,please contact us. 4.Q:Can I get the sample to check quality of machine ? A:Of course.Please provide your logo or design to us, free samples can be provided for you. 5.Q:Can the machine be customized according my requirements? A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied. 6.Q:Can you arrange the shipment for us? A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.

Shanghai Wanshen Packaging Machinery Co., Ltd.
