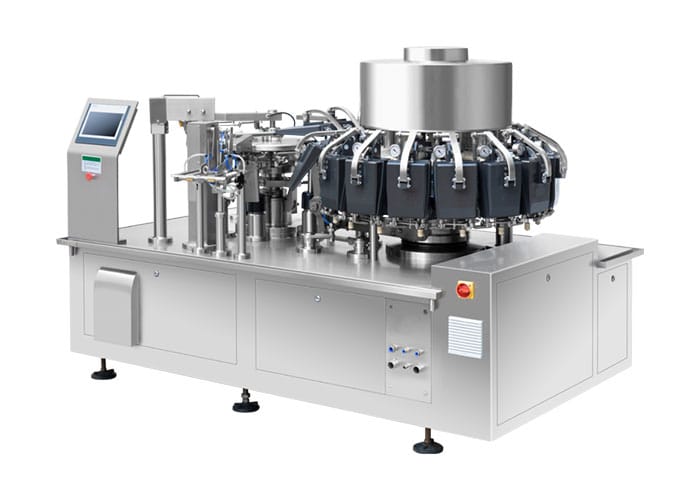

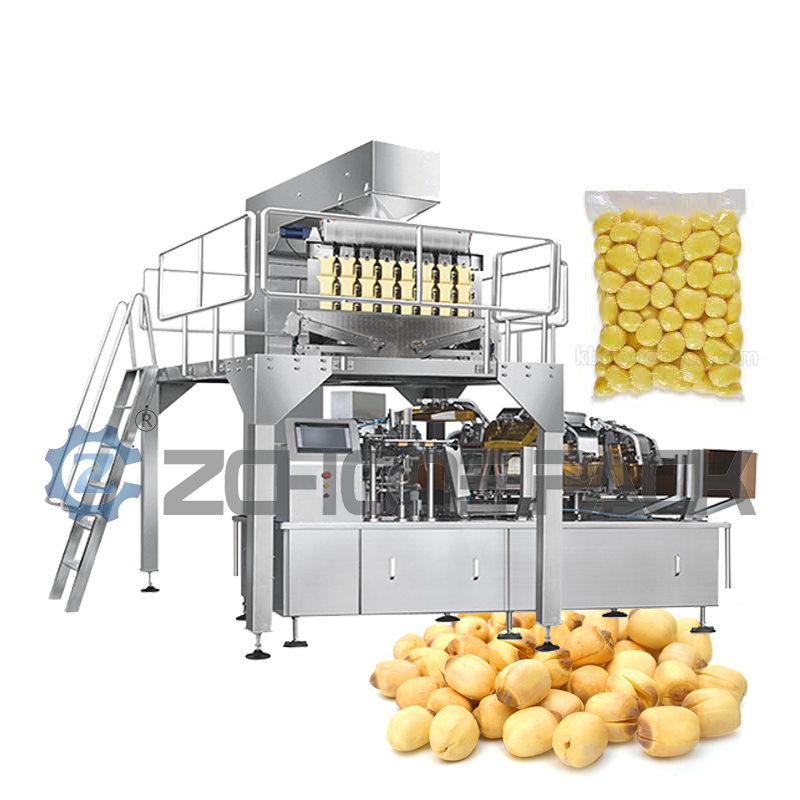

Automatic Multi-Function Rotary Vacuum Packing Machines for Food Packaging
$39900.00
≥1 set
power:
- 10KW
Options:
- ZC-ZK120
Get Latest Price
You might also like
Basic Info
| Production Capacity | 20bag/Min, 50bag/Min, 30bag/Min |
|---|---|
| Weight (KG) | 1300 |
| function | Filling, Labeling, Sealing |
| application | Food |
| Packaging Type | Bags, Pouch |
Show More
Product description
Features
1.Adopt new type of integration to simplified single-axis matching inner wheel groove cam structure of main part. Adopting electronic numerical control to control the vacuum heating seal.
2.When the bag is opened, it will be not be filled without heat sealing, when the bag is filled without material, the heating sealing station will not work, to avoiding wasting the bag.
3.Used the cylinder to control the sealing knife to run.

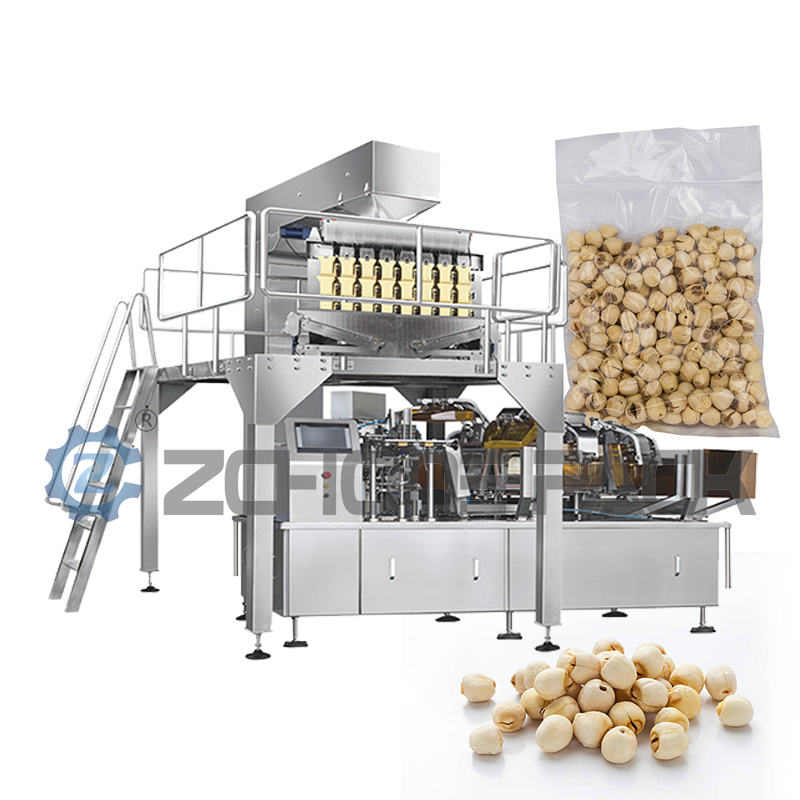

4.Full automatic metering filling and sealing.
5.The bag compartment has no bag automatic alarm.
6.The whole machine adopting mechanical control.
7.More reasonable overall size.
8.Wear resistant gears
9.Most of the whole machine adopt improved parts from Germary

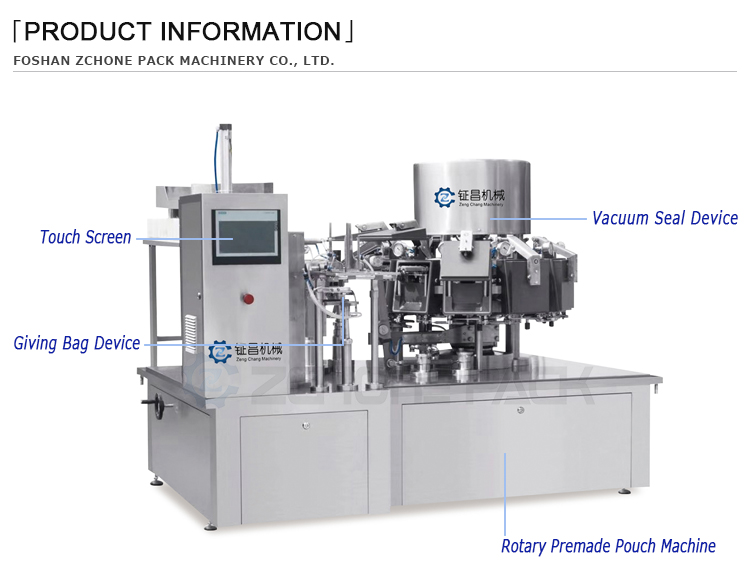

Product Information
Specification

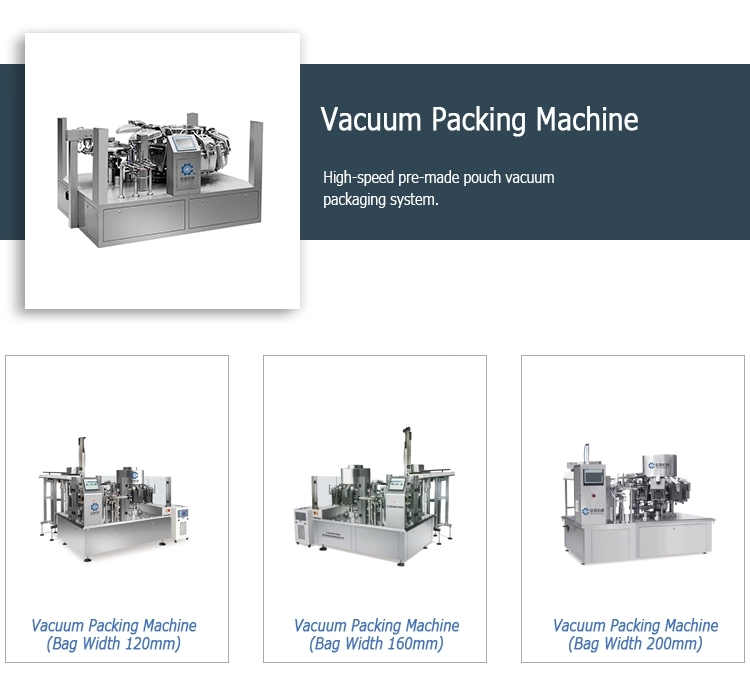

Item | ZK120 | ZK160 | ZK200 | ||
Packing Speed | Max 60 bags / min | ||||
Bag size | L80-180mm | L80-240mm | L150-300mm | ||
W50-120mm | W80-160mm | W120-200mm | |||
Bag Type | Alumiem foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc. | ||||
Weighing Range | 10g~200g | 15~500g | 20g~1kg | ||
Measurement Accuracy | ≤±0.5 ~ 1.0%，depend on the measurement equipment and materials | ||||
Maximem bag width | 120mm | 160mm | 200mm | ||
Gas consumption | 0.8Mpa 0.3m3/min | ||||
Total power/ voltage | 10kw 380v 50/60hz | 10kw 380v 50/60hz | 10kw 380v 50/60hz | ||
Air compressor | Not less than 1 CBM | ||||
Dimension | L2100*W1400 *H1700mm | L2500*W1550 *H1700mm | L2600*W1900* H1700mm | ||
Machine Weight | 2000kg | 2200kg | 3000kg | ||
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the videowe can make oftesting the material from our packaging machine if your packing goods easier for us to findfrom our local market.
Q2:How can I trust you for the first time business?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba tradeassurance service, guarantee your money, and guarantee your machine's on-time delivery and machinequality.
Q3:ls engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full detailsmachine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you canarrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see ifit available, and most of thearea is ok for us to clearing and sending in your countries.
