Automatic Packaging Bagging Machine - Poly Bag Heat Sealer

$5000.00 ~ $15000.00 / set

power:

  • 3.75kw

Options:

  • FBH-32
  • FBH-32D
  • FBH-42
  • FBH-42D
  • FBP-3W
  • FBP-S
  • FBC-2
  • FBC-2D
  • FBF-32A
  • FBF-32B
  • FBF-32BD
Get Latest Price

Basic Info

Model No.
Brand Name
Max Speed 12m/min, 20M/MIN, 10m/min, 14m/min, 7m/min, 16m/min
application Food
Packaging Type Stand-up Pouch, Bags, Film, Foil, Pouch
Packaging Material Plastic
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 220v/50hz
Place Of Origin Jiangxi, China
Brand Name NIUMACHINERY
Dimension(L*W*H) 2830*950*1800
Warranty 1 Year
Key Selling Points Long Service Life
Machinery Test Report Provided
Video Outgoing-inspection Provided
Core components Plc
Product Name Continuous Sealing Machine
Function Band Sealing
Keyword Plastic Sealer Machine
Usage Pp Bag Sealer
Suitable For Plastic Bag Packing
Sealing Type Heating Hot Sealing
Advantage Sealing Faster
Color Customzied
Speed 24m/min
Machine Type Sealing Equipment
Type Sealing Machine
Applicable Industries hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works?, Energy & Mining, Food & Beverage Shops
Showroom Location None
Condition New
Marketing type Ordinary Product
Warranty Of Core Components 1 Year
Weight 320 KG
Show More

Product description

Product Description
?

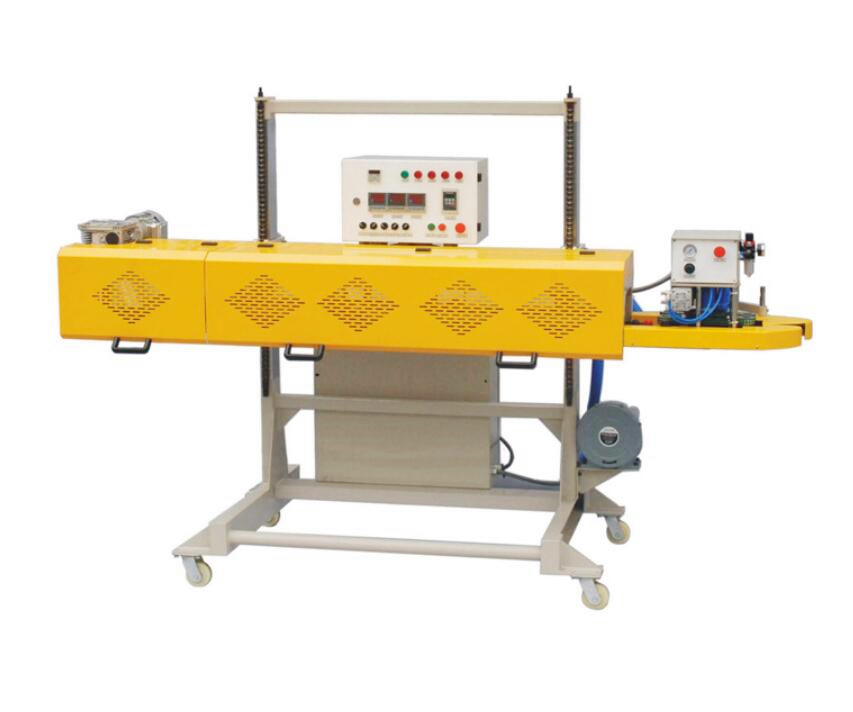

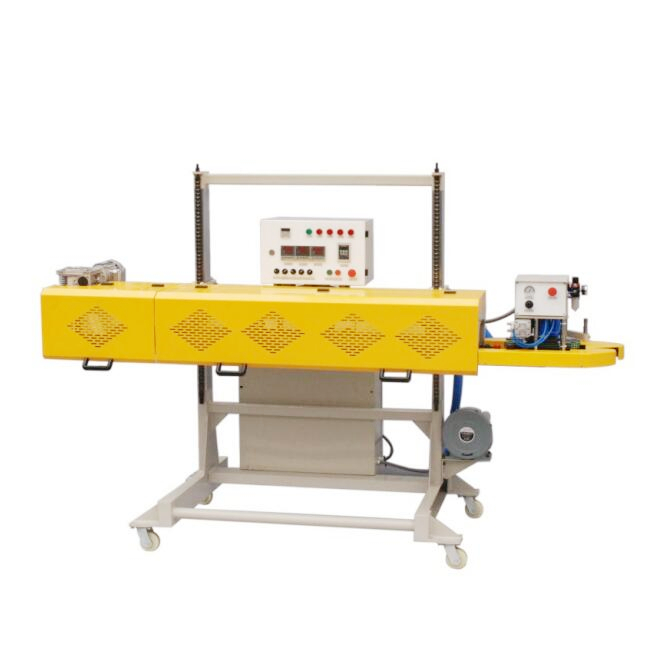

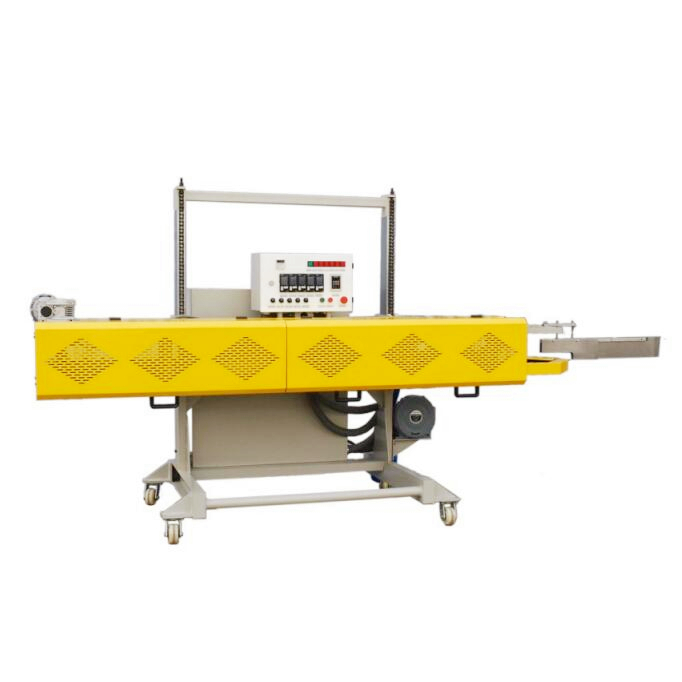

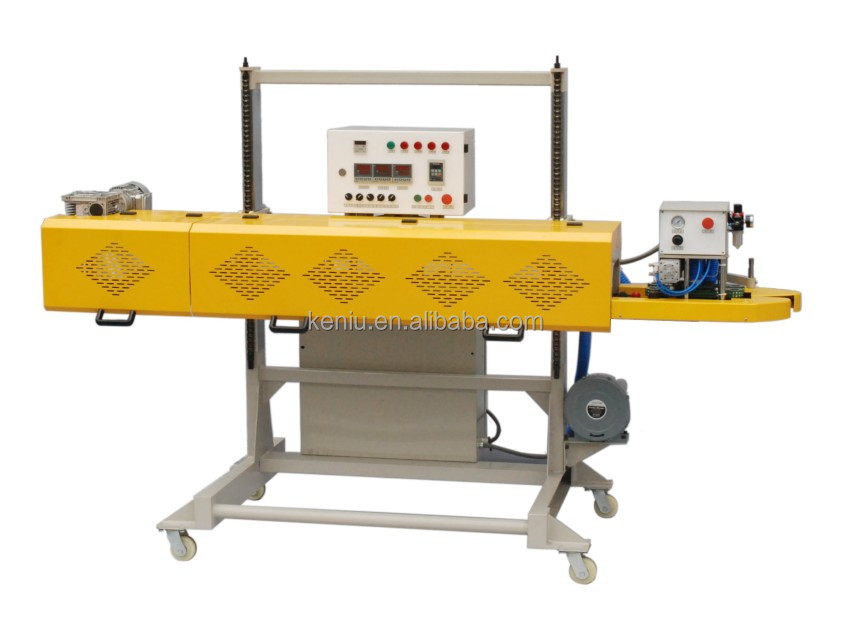

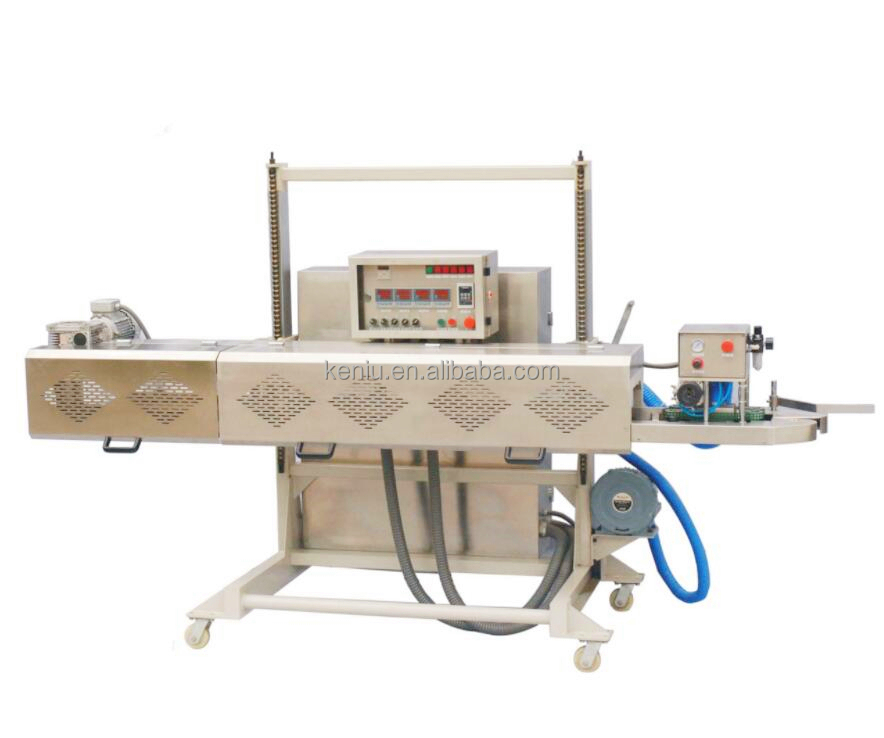

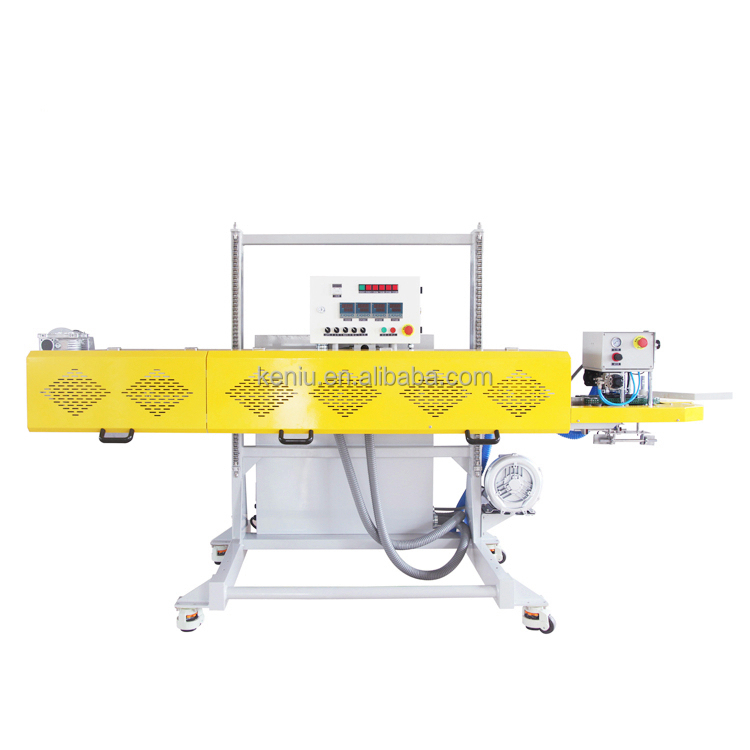

AUTOMATIC HEAT SEALING FOR HEAVY-DUTY BAGS, PLASTIC BAGS
It can suitable for PE or PP bags with thicnkness of 0.18-0.5mm
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
?
Product Paramenters
?

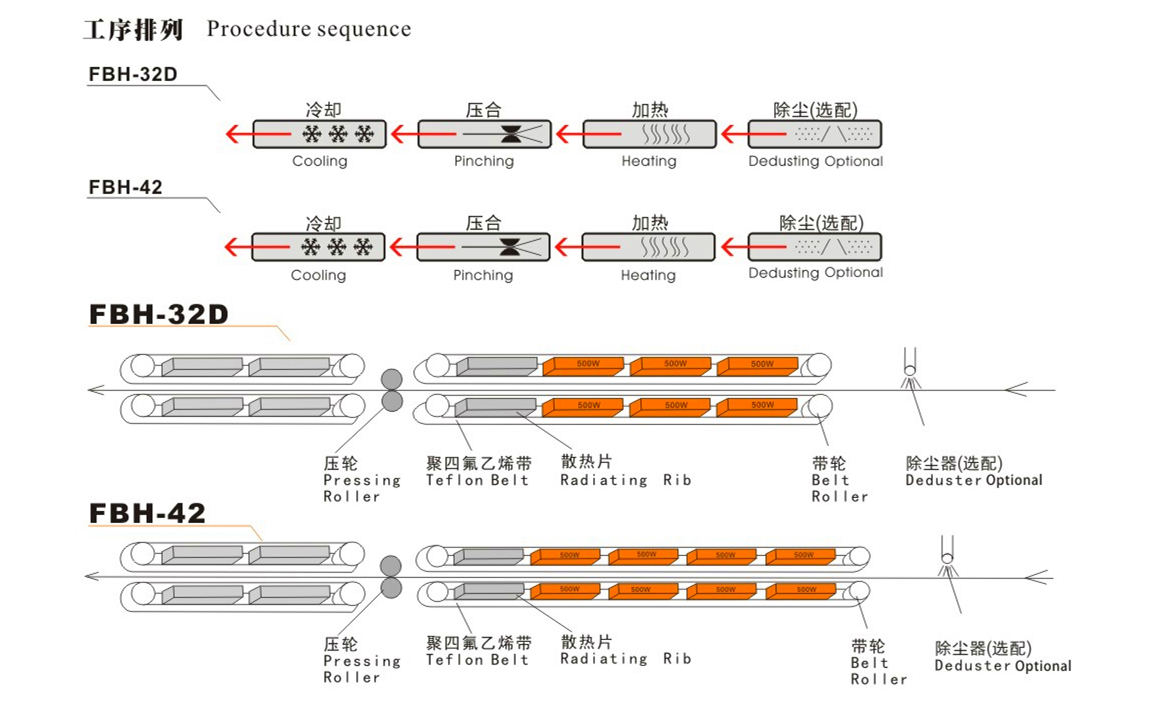

FBH Series heavy-duty plastic bags heat sealing machine techical parameter,
This machine suitable for heavy duty plastic bags closed by heat sealing.
Parameters FBH-32 FBH-42 ?FBH-42D
Voltage v/hz 3P AC380V/50HZ 3P AC380V/50HZ ?3P AC380V/50HZ
Gross power kw 4 5 550
Transmission power kw 0.75 0.75 0.75
Heating power kw 0.5*6 ?0.5*8 0.5*8
Deduster power ? ? 0.6
Speed m/min 0-12 0-12 0-12
Film materials PE PP FILM PE PP FILM PE PP FILM
Bag thickness ≤0.8mm 0.8mm 0.8mm
Seal width mm 10 or customized 10 or customized 10
Temperature range ℃ 0-400 0-400 0-400
Air source pressure 0.6Mpa ?0.6Mpa ?0.6Mpa

Height from sealing center to the floor

750-1450 750-1450 750-1450

?

The minimum distance between the top of bag
180 180 180
Cooling type air cooling air cooling air cooling
Dimensions l*w*h mm 2830*950*1800 3015*950*1800 3015*950*1800
Net weight kg 320 350 350

?

Detailed Images
?
?

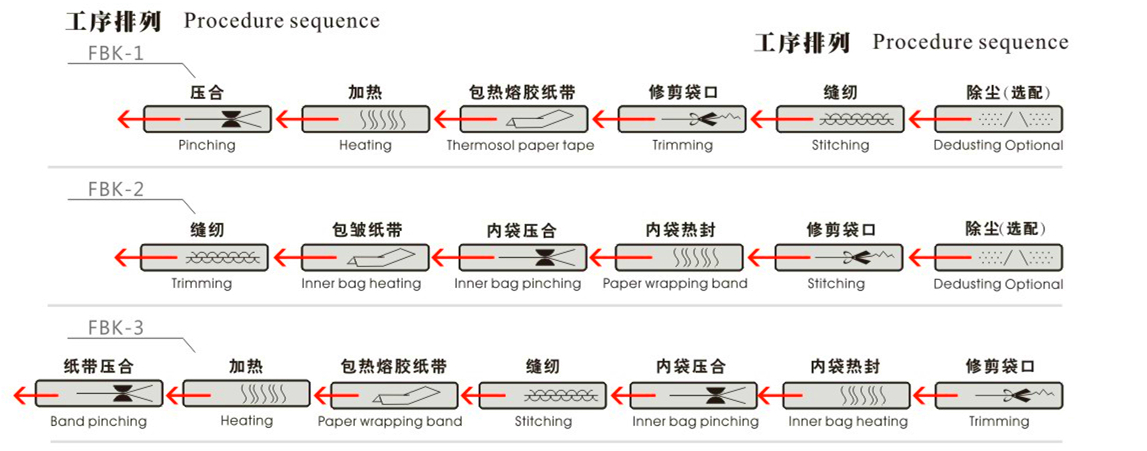

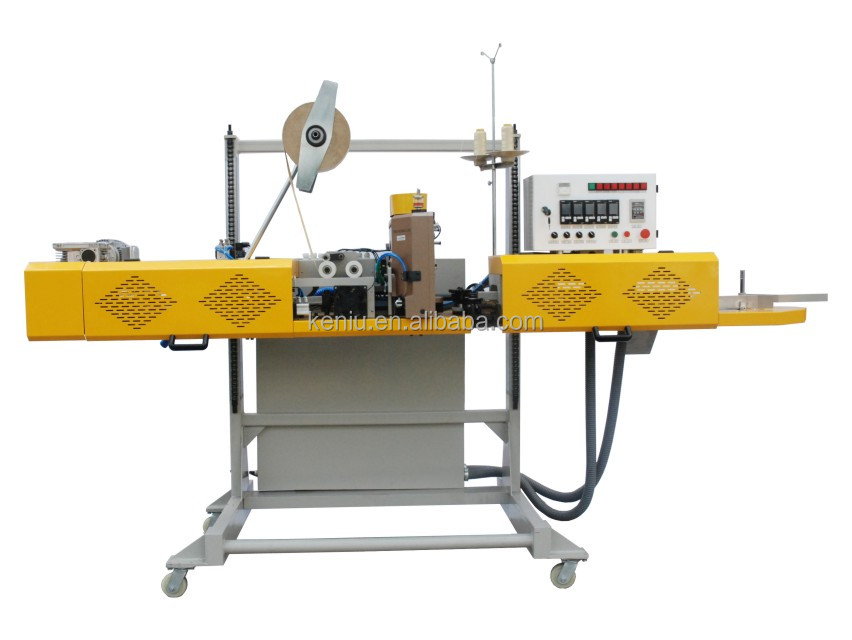

?FBK series one-line automatic sealing and stitching packaging machine for paper bags with PE lining film
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines

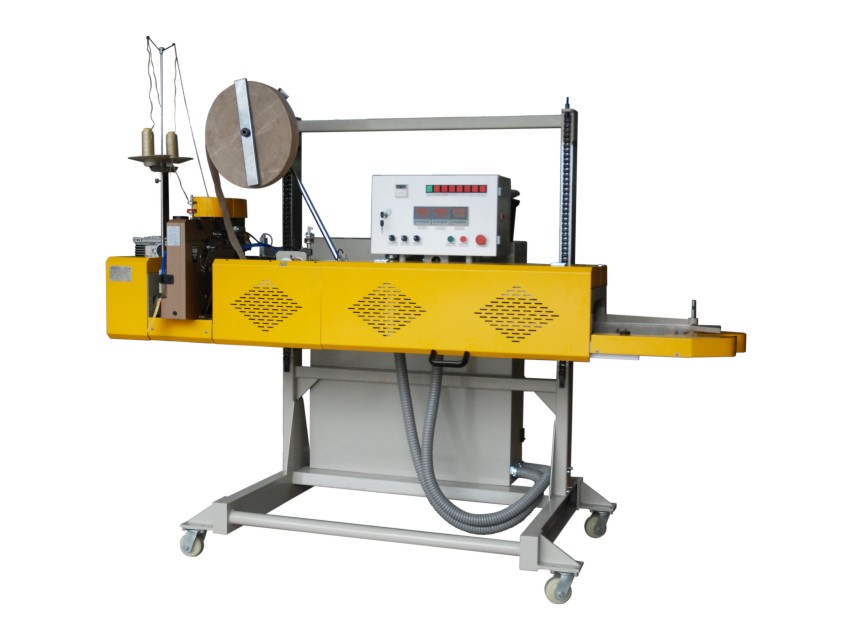

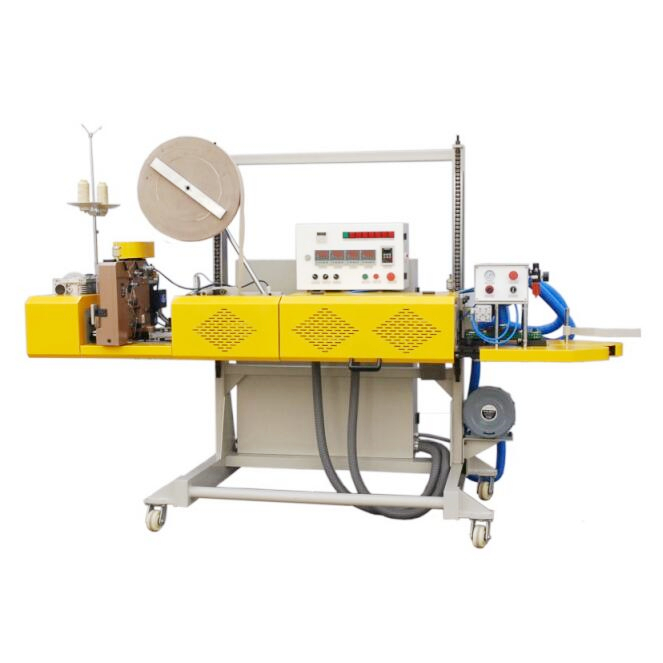

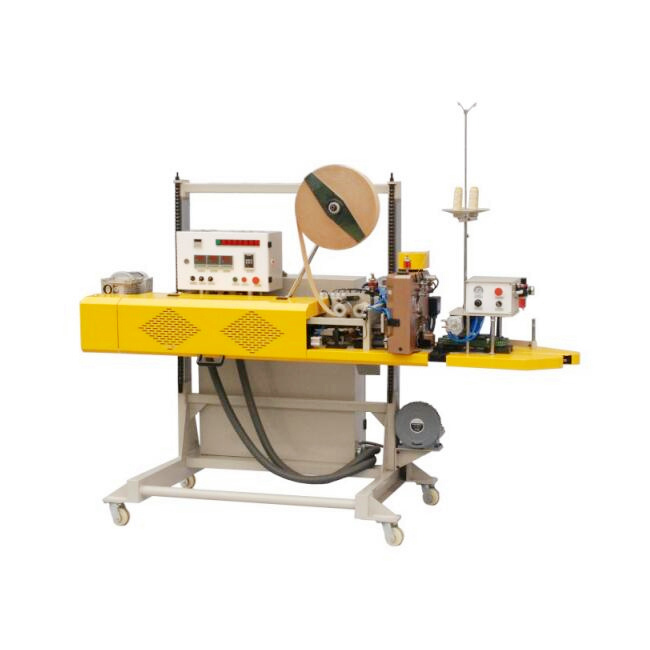

FBHK/FBHS Series automatic sealing & Edge folding & sewing packing machine for woven bags with plastic PE-lined film
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines

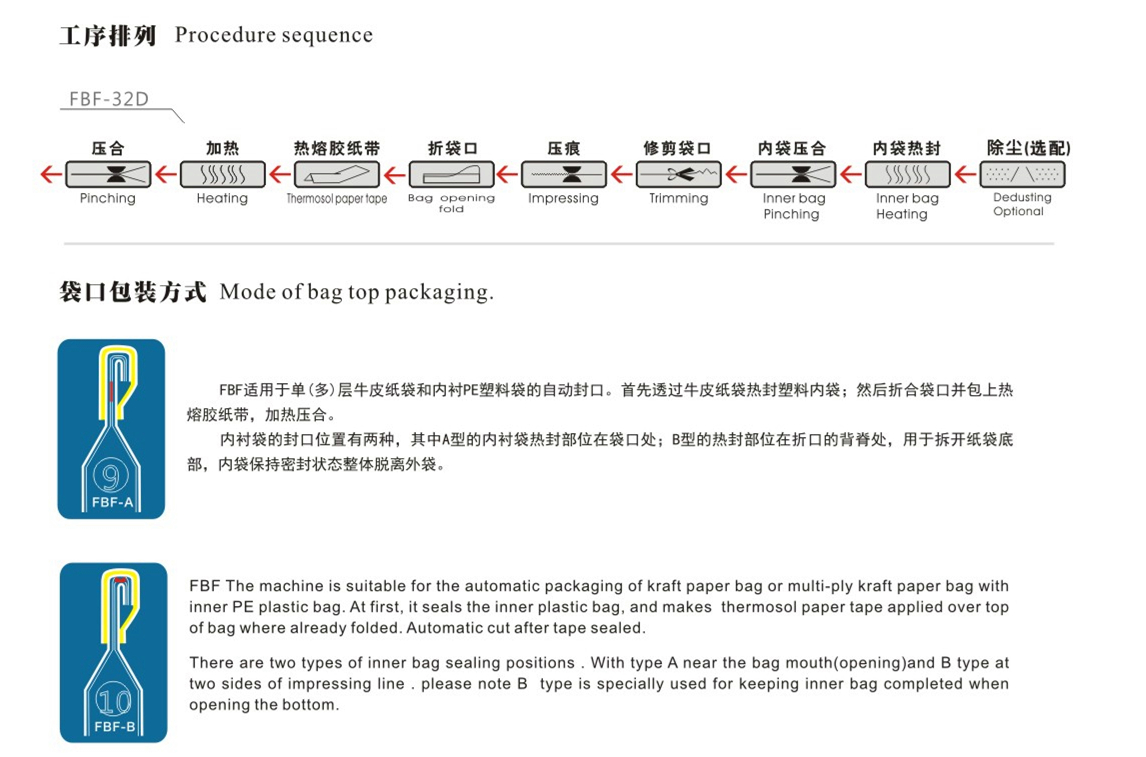

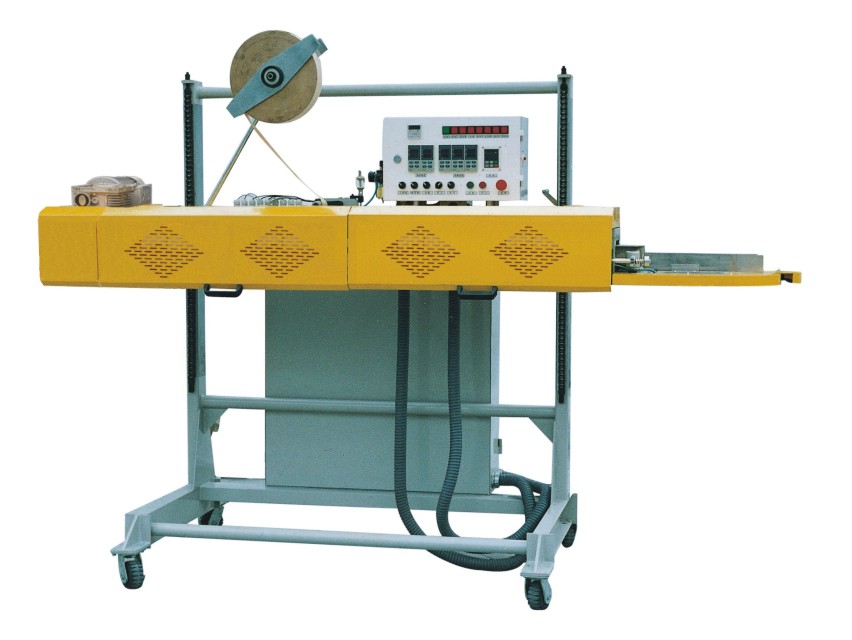

FBF series one-line folding and sealing automatic packaging machine for kraft paper bags
This machine is suitable for automatic packaging of kraft paper bags or multi-ply kraft paper bag with inner PE plastic bag. At first, it seals the inner plastic bags,
and makes the thermosol paper tap applied over top of bag where already folded. Automatic cut after tape sealed.
There are two types of inner bag sealing position. With type A near the bag mouth(opening) and B type at two side of impressing line.Please note B type is specially used for keeping inner bag completed when openin the bottom
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines
-One-stop full-category packaging equipment/palletizing/robot supplier
-20 years of experience in packaging solutions
-Complete production line with high production capacity and short delivery time.
- Free program drawing design to meet any of your needs.
-10 person sales team and 10 person engineers team provide 24hours service.
-Onsite installation and debuging, spare parts provide.
-All products got the CE, CMC, B.V, patent certificate.
After Sales Service
?
Machine installation service
The machine before sent to you will installation and testeing welled in our factory. When the machine arrived you, we can provide the following service to help you installation, debugging and opeation the machine:
1,?Field installation, commissioning and worker training
2, Video technical support
3, Online support
4, Free spare parts
5, Field maintenance and repair service
Packing&Shipping
?
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1, inner package with stretch film for anti-rust and avoid the machine surface broken.
2, the machine before send to you will installation and testing welled then whole set package in?export wooden box or bulk loading in container based on your order.
Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines

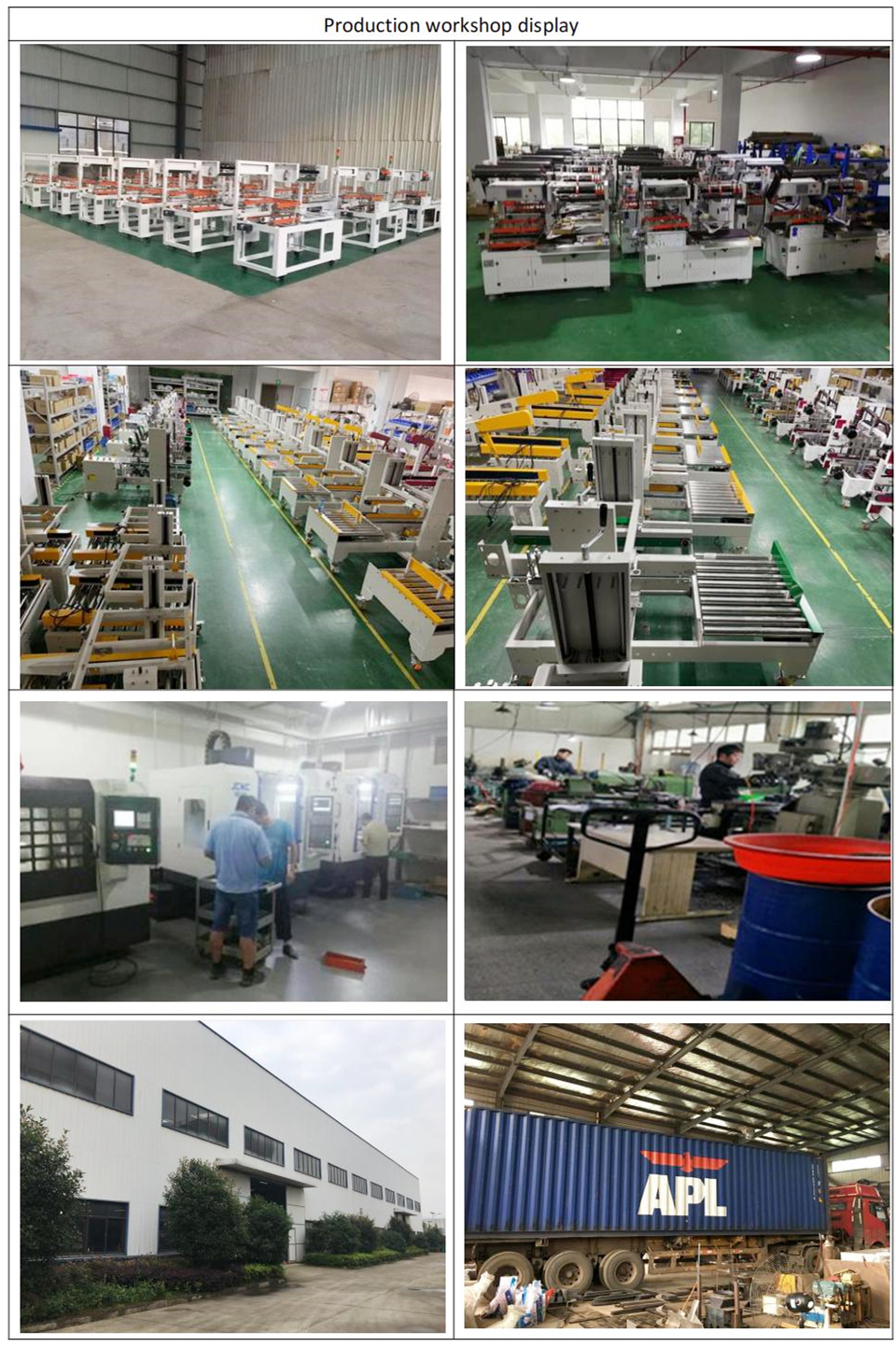

Company Introduction
?

Jiangxi Keniu Machinery Equipment Co., Ltd. is a manufacturer that has focused on R&D, production and sales of packaging machinery for 15 years. The company adheres to the concept of "making packaging easier" and provides customers with more professional, simpler and more extensive packaging machinery.

Our products include various open bag packaging machines, automatic bagging machines, automatic palletizers, robots, automatic stretch film machines, automatic strapping machines, valve bag packaging machines, food packaging machines, small bag packaging machines, tons Bag packaging machines, conveying equipment, lifting equipment, sealing equipment and various packaging supporting equipment.

At present, the products have been exported to more than 30 countries in Europe, America, Southeast Asia, Middle East, Africa and Latin America, and are deeply loved and supported by customers for their stable performance, high-quality price-performance and excellent after-sales service.

The company's products have obtained CE, SGS, BV and other certifications and are widely used in more than 2,000 materials in more than 30 industries such as feed, fertilizer, grain, rubber and plastics, food, mining, chemicals, environmental protection, and building materials.

The company has a high-quality design and installation team that can provide you with one-stop packaging solutions and equipment installation to solve your packaging worries.

If you have any packaging needs, please feel free to contact us, we will serve you wholeheartedly.

Automatic Packaging Bagging Machine Hot Sealer Poly Bag Heat Sealing Machines

1. Can you offer oversea service?
Engineers available to service overseas. Also we will provide you manual, photos, video to help you operation the machine and 24hour online service if you have any problem about the packaging machine.
2. How to use the machine?
Before send to you the machines, we will installation and testing welled then
whole set packed in the wooden box, so you no need installation again, when you received it, you can start working, also we will supply the installation catalogue or video
online, if necessary we can dispatch enigneers to your site.
3. How about the guarantee period?
One year whole machine guarantee, and spare parts provide.
4. What is the lead time?
15-30days days after received the deposit, final as per your order.
