Automatic Packaging Zero Drop Testing Machine

Video

1 / 7

Automatic Packaging Zero Drop Testing Machine

$18000.00 ~ $20000.00 / unit

use:

Drop Tester

Get Latest Price

Model No.
Brand Name
Warranty	14 months, One Year
Customized Support	Oem, Odm, Obm
Place Of Origin	Guangdong, China
Brand Name	OTS
Model Number	XB-OTS-220C
power	Electronic
Product name	Machinery Machine Automatic Packaging Zero Drop Testing Equipment
Drop Height	150~1500 mm( Can Be Customized)
Specimen Max. Weight	100 Kg(Can Be Customized)
Specimen Max. Size(WDH)	100010001000mm
Outside dimension (lwh)	220017002300mm
Protection Devices	Above and below are inductive protection devices
Arm Structure	45 # steel, welded by the side

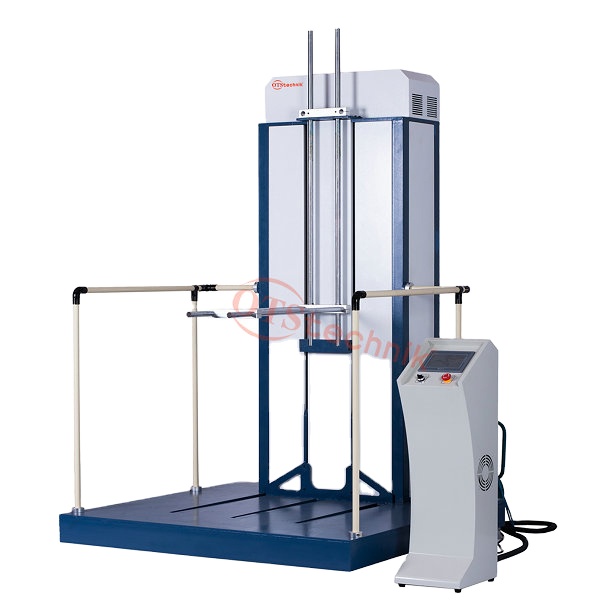

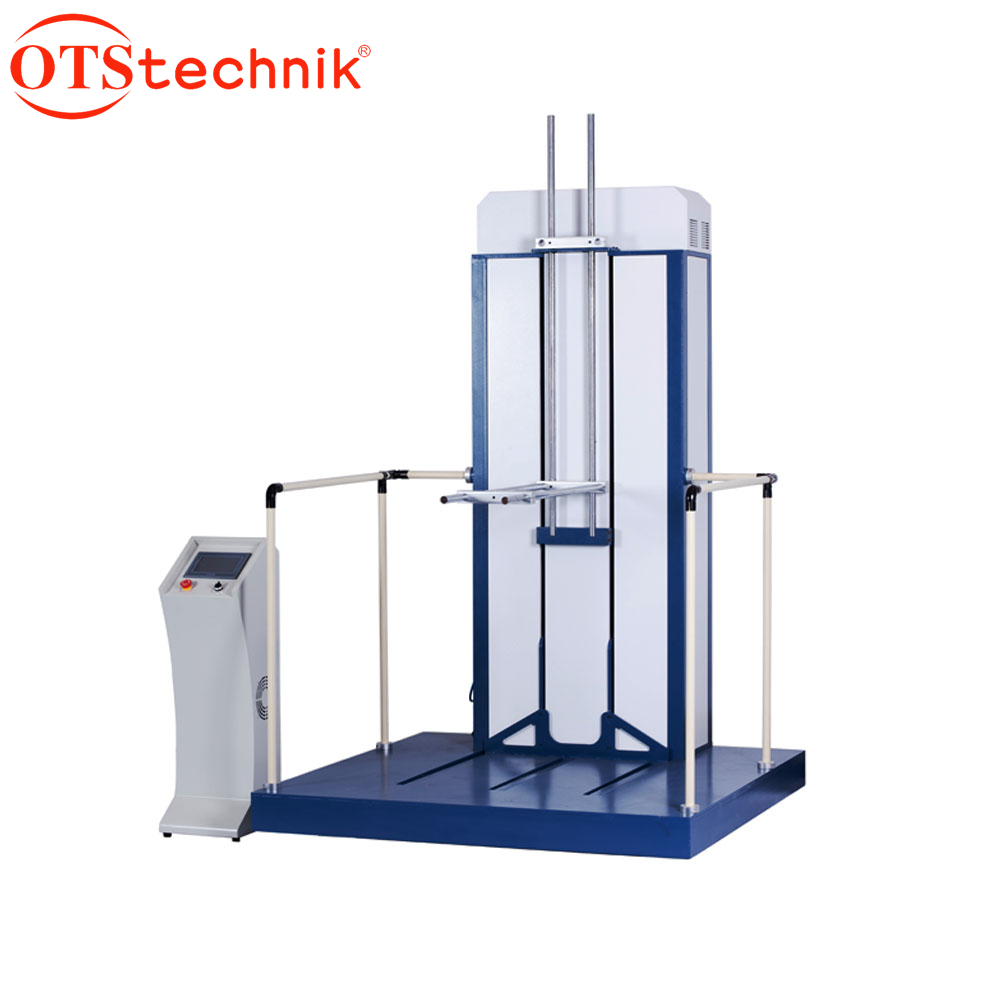

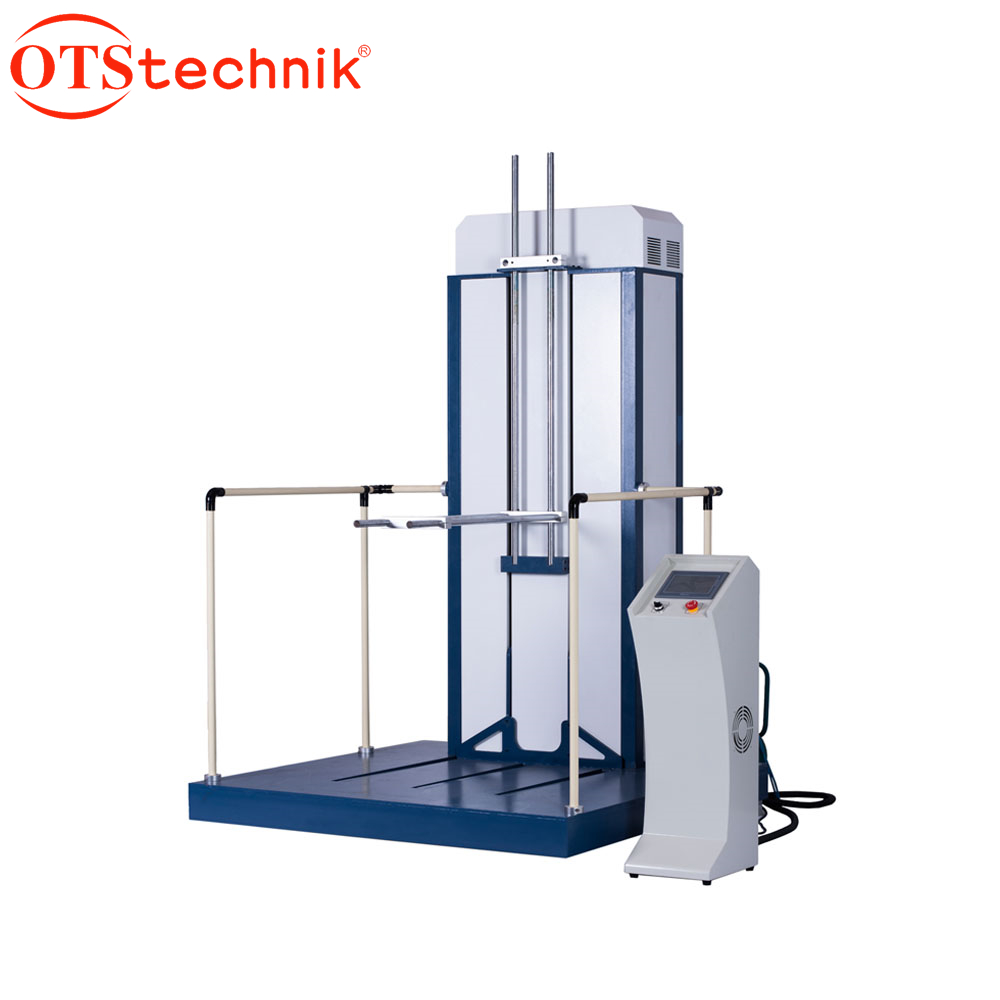

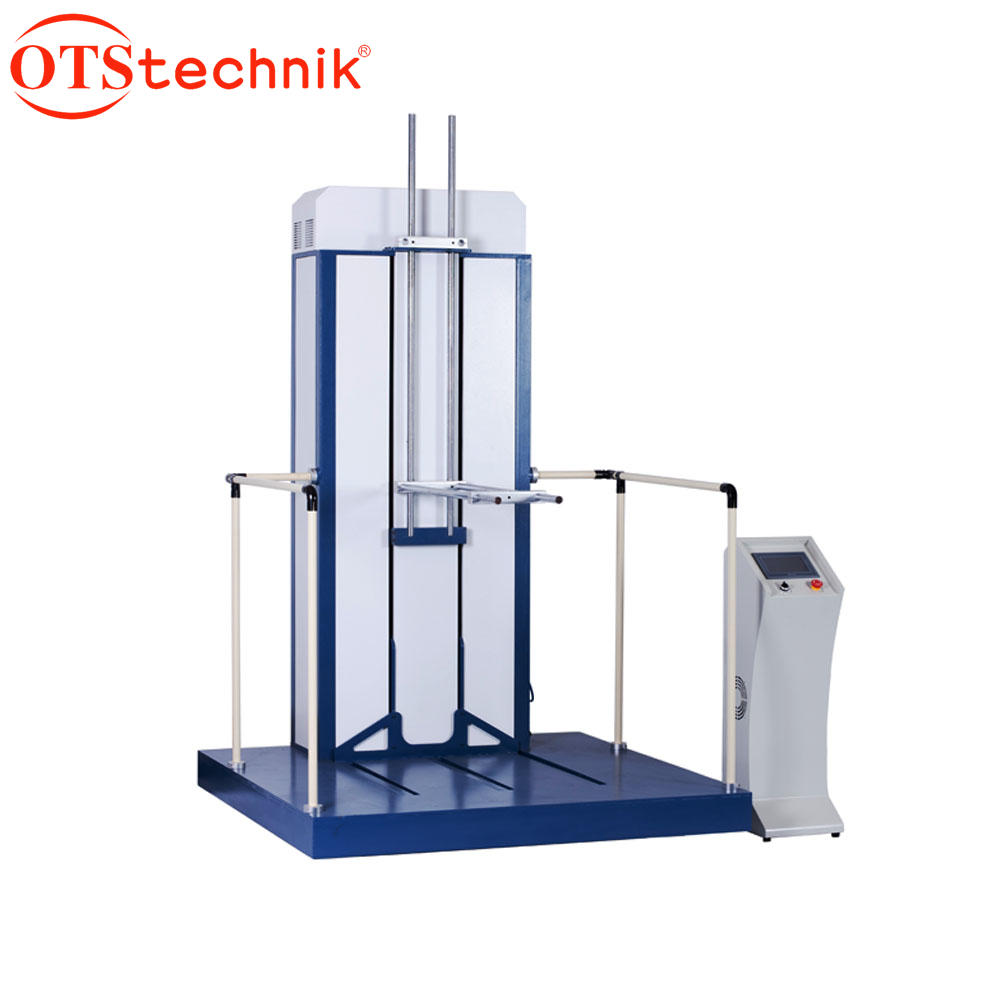

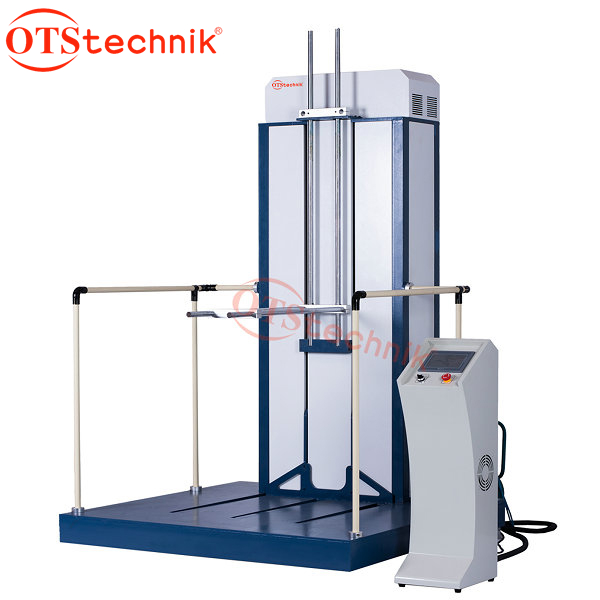

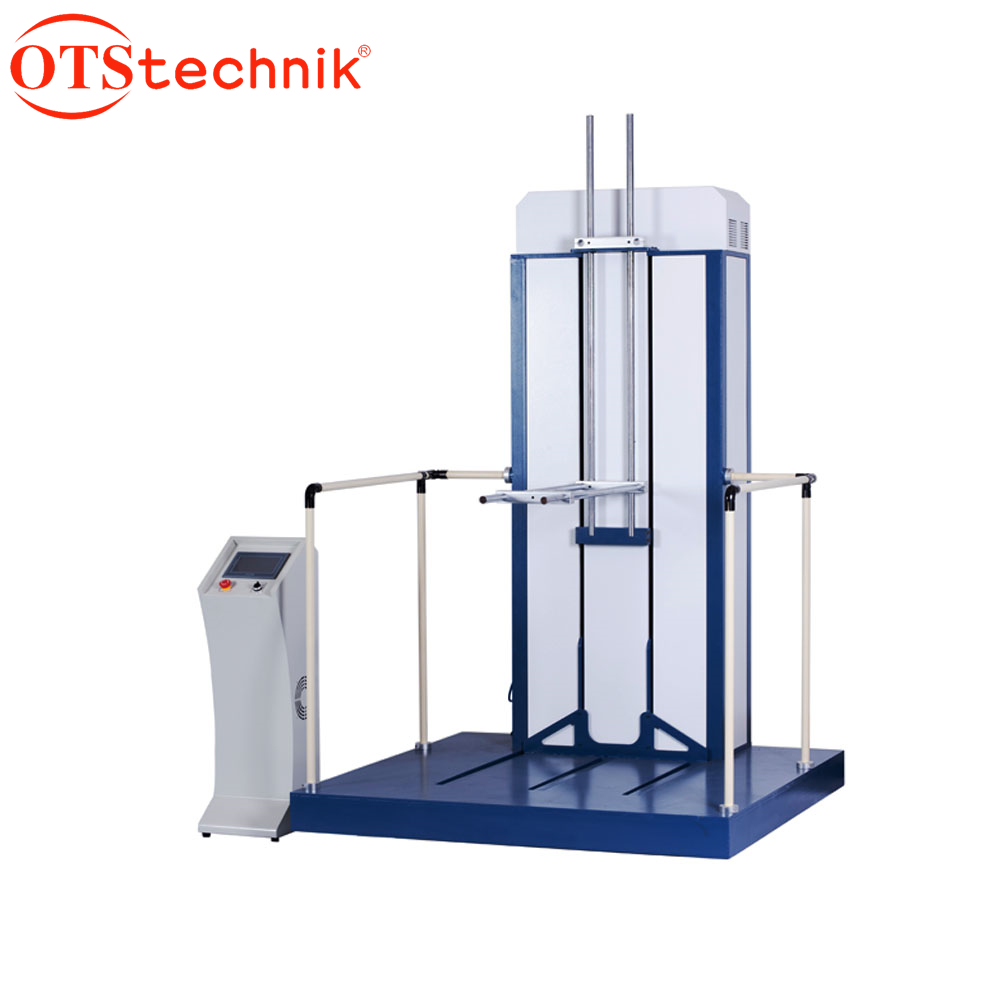

Zero Drop Impact Test Machine

This test bench is mainly used to assess the package during the actual transport, loading and unloading process by the impact of the impact of drop to assess the packaging process in the handling of impact strength and packaging design of the rationality of zero drop test machine is mainly used for larger packaging drop test The zero drop tester consists of an "E" type fork that can move rapidly downwards as the specimen holder. The goods to be tested are balanced according to the test requirements (face, edge and angle experiments). During the test, the pallet moves downward at a high speed and departs from the test piece.

Application Mainly for large furniture (furniture), large-scale household appliances such as LCD TVs, air conditioners, washing machines, refrigerators and other products packaging zero drop test.

Design standard Zero drop impact tester complied with national standards such as GB/T1019-2008.

Control principle

The use of imported computer electrical design, complete free fall, edge, angle, face all aspects of design

The main technical parameters are as follows

Drop Height	150~1500mm (Adjustable)
Machine Dimensions	220017002300mm
Max. Specimen Weight	100kg
Height Display	LED digital display, and can be set to stop the height function
Impact Plate Material	45 # steel, (120 mm thick)
Drop Height Mark	Use markings scale
Arm Structure	45 # steel, welded by the side
Test method	Ling, angle, surface
Transmission	Taiwan imported linear slider and copper guide, 45 # chrome steel
Accelerator	Pneumatic
Max Size of Specimen	100010001000mm
Drop Method	Integrated with electromagnetic and pneumatic
Drive Mode	Motor drive
Protection Devices	Above and below are inductive protection devices
Net Weight	3000KG
Impact Countertops:	Steel
Voltage	3 phase 380V 50Hz ，5KW

Advantage

? 24 hours online
? 35 years experiences
? Sample chamber of each model
? Best price, fast delivery
? OEM,ODM
? Oversea offices
? Own import and export business license
?ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

? Installation
? Training (Training customer employees)
? Calibration
? Preventative maintenance
? Replacement parts
? Assistance via phone or internet
? On-site diagnosis and repair/online diagnosis and repair

Recommend Products

_{Dongguan Xinbao Instrument Co.,?Ltd,?with its own brand--OTS,?has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers?and mechanical test machines like?temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers?and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality?inspection institutions,?universities,electronics,?communications,?instrumentation,?automobile,?plastic,?metal, building materials, aviation, etc.}

Manufacturing Technique

Customer Photos

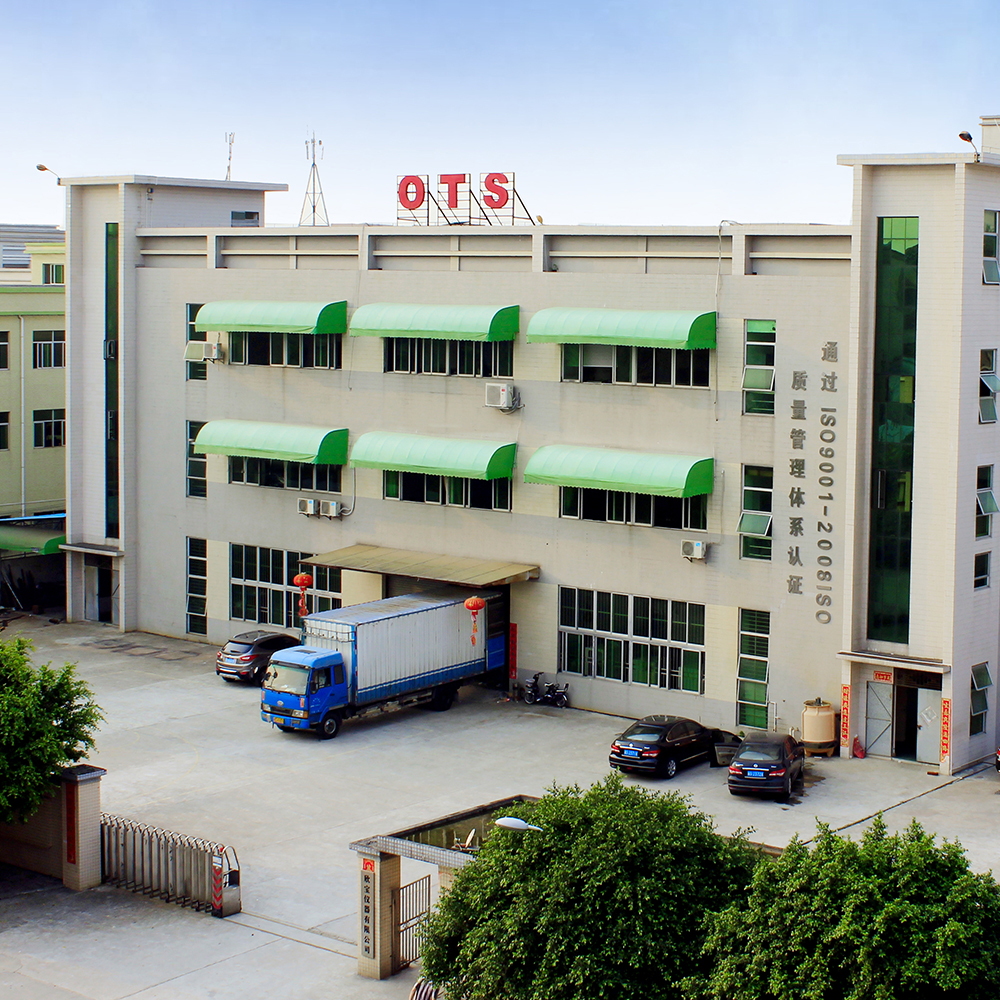

Now OTS has its?main production base?in Dongguan, a branch?in Suzhou and offices in South Asia, Europe, USA. OTS also owns?an?independent laboratory which exhibits all currently produced machines?under CNAS calibration,?so customers can check the function and quality immediately.?Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What’s more,?OTS has?enough stock to satisfy customers need in time. In the meanwhile, every machine?must be examined for 3~days before shipment and with lifetime maintenance service.

Packing&Shiping

1. Do you offer after-sales service? How can I ask for that? And how about the warranty? Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. ? If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair. ? 2. What’s?the?delivery?term? At?most?of?time,?we?have?stock?in?the?factory.?If?there?is?no?stock,?normally,?the?delivery?time?is?15-20?working?days?after?deposit?receipt.?If?you?are?in?urgent?need,?we?can?consider?making?a special?arrangement?for?you. 3. Do?you?accept?customization?service? Can I have my logo on the machine? Yes,?of?course.?We?can?not?only?offer?standard?machines,?but?also?customized? machines?according?to?your?requirements. And we can also put your logo on the machine.??

4.?How?to?install?and?use?the?product? We will send you?operating?instructions, English??video?by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. ?And if possible, we can also install your machine at site.
