1.Introduction for Thread rolling machine:

Thread rolling machine is mainly used for rolling various types of precision external thread, high-strength standard parts and anchor bolts and T-shaped screws and other workpieces with larger screw pitch



2.Application for Thread rolling machine:

Automatic thread rolling machine is mainly used for radial cold roll forming, cold rolling process is an advanced non-chip processing technology, the process uses rolling tool extrusion, rolling metal fibers are continuous, rolling generated when pressure should be able to effectively improve the surface roughness, hardness and strength of the workpiece, improve work efficiency than cutting times, even a few times, it can save the material easier to automate processing.Rebar thread rolling machine

Screw thread rolling machine Rolling dies as rolling tool, special strong, suitable for rolling of the workpiece material is not higher than the hardness of HRC37, preferably HRC25 or less, the elongation should be greater than 10%, the tensile strength should be less than 100Kgf/mm (square) various carbon steel, alloy steel and non-ferrous metals, with the improvement of the material hardness of the rolling tool life dramatically



3.Technical parameters for Thread rolling machine:

Maximum Rolling Force:                        150KN

Wall thickness of the Processing:           not less than 2 mm(3-8mm)

Rolling Material Diameter:                      Φ30-Φ80mm

No Thread Length Limits:                       No Limits(Additional Protection)

Roller outer Diameter:                            Φ120-Φ170mm

Active force:                                            5.5kw

Roller inner Diameter:                            Φ54mm

Hydraulic Power:                                    4kw

Maximum Roller Thickness:                   100mm

Cooling Power:                                       100w

Spindle Inclination Angle:                        ±3°

Active Spindle Feed Rate:                      20mm/s

Machine Size:                                         1750×1600×1900 mm

Electrical Cabinet Size:                           750×450×1100mm

Weight:                                                    2900kg±50kg

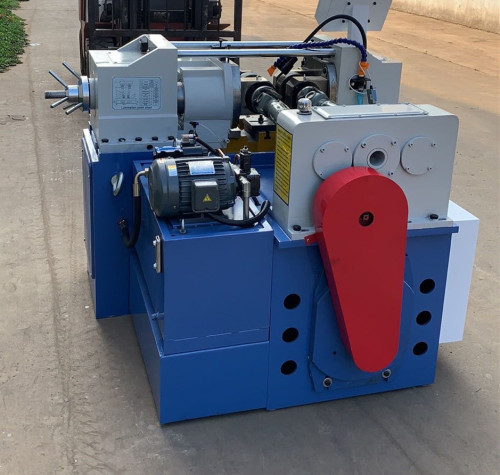

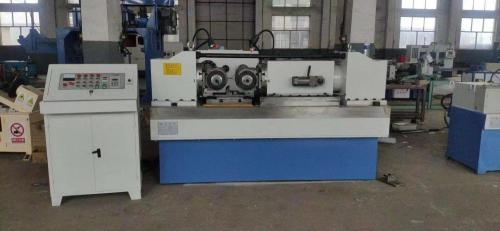

4.More details for Thread rolling machine:



5.Thread rolling machine Workpiece display:



6.Customer visiting for Thread rolling machine:



7.Packing and shipping for Thread rolling machine:

8.Our Clients:



9.Our Exhibition:

10.Why choosing us:
