The material collection system is used to collect bulk or bagged raw materials into storage silos in various ways.
Bulk materials can be sent directly to the storage tank through the pneumatic conveying device on the tanker, and the bag materials is collected by the bag opening station.
Search
Sign In Join Free
Video
1 / 7
Automatic Plastic Loader Feed System with Core Motor Components
$512336.00
≥1 piece
$509645.00
≥3 piece
$505978.00
≥5 piece
Get Latest Price
You might also like
Basic Info
| Place of Origin | Jiangsu, China, Jiangsu China |
|---|---|
| Capacity (kg/h) | 20500 kg/h |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core components | Plc |
Show More
Product description
Company information
Our services
7/24 Onlie Service
1.Machine running video
2.Watch our factory online
3.More service contact us
3.More service contact us
Installation / Debug / Training
1.We will arrange seasoned technician for equipment installation, debug and test production.
2.Our company offers technology training to the customer in his factory.
3.We promise that our goods are all new and not used.
3.We promise that our goods are all new and not used.
Products Description

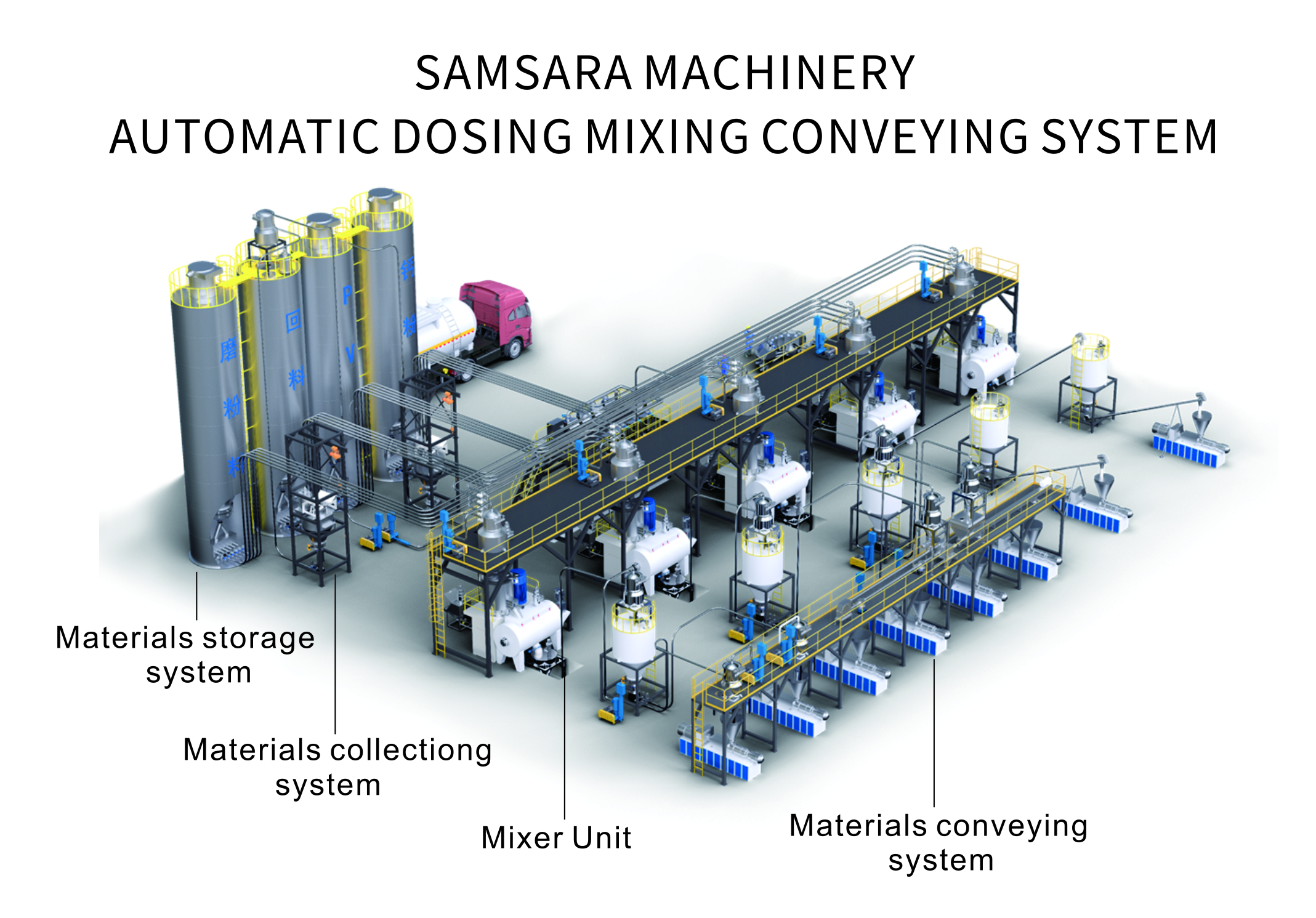

Automatic weighing,mixing,conveying,feeding system
We provide integrated solutions in conveying and batch weighing systems. Based on the key technologies of weighing and measuring, we deliver systems for various processes like feeding, storing, metering, and controls through to complete material handling systems for both bulk materials and liquid materials. Our products and services meet the needs of various industries, including foods, pharmaceuticals, plastics, chemicals, and even the new energy industry. Relying on the different material properties, we select the proper transmission method to combine with the hotcold mixer as well as the devices of automatic metering, dosing system, transfer hopper, and recycling hopper in connection with the extruder, which shapes a fully-enclosed and dust-free producing chain. In such a way, we get the improvement of mixing work environment and capability to meet the production requirements in large quantity, high quality, low cost, and high efficiency.

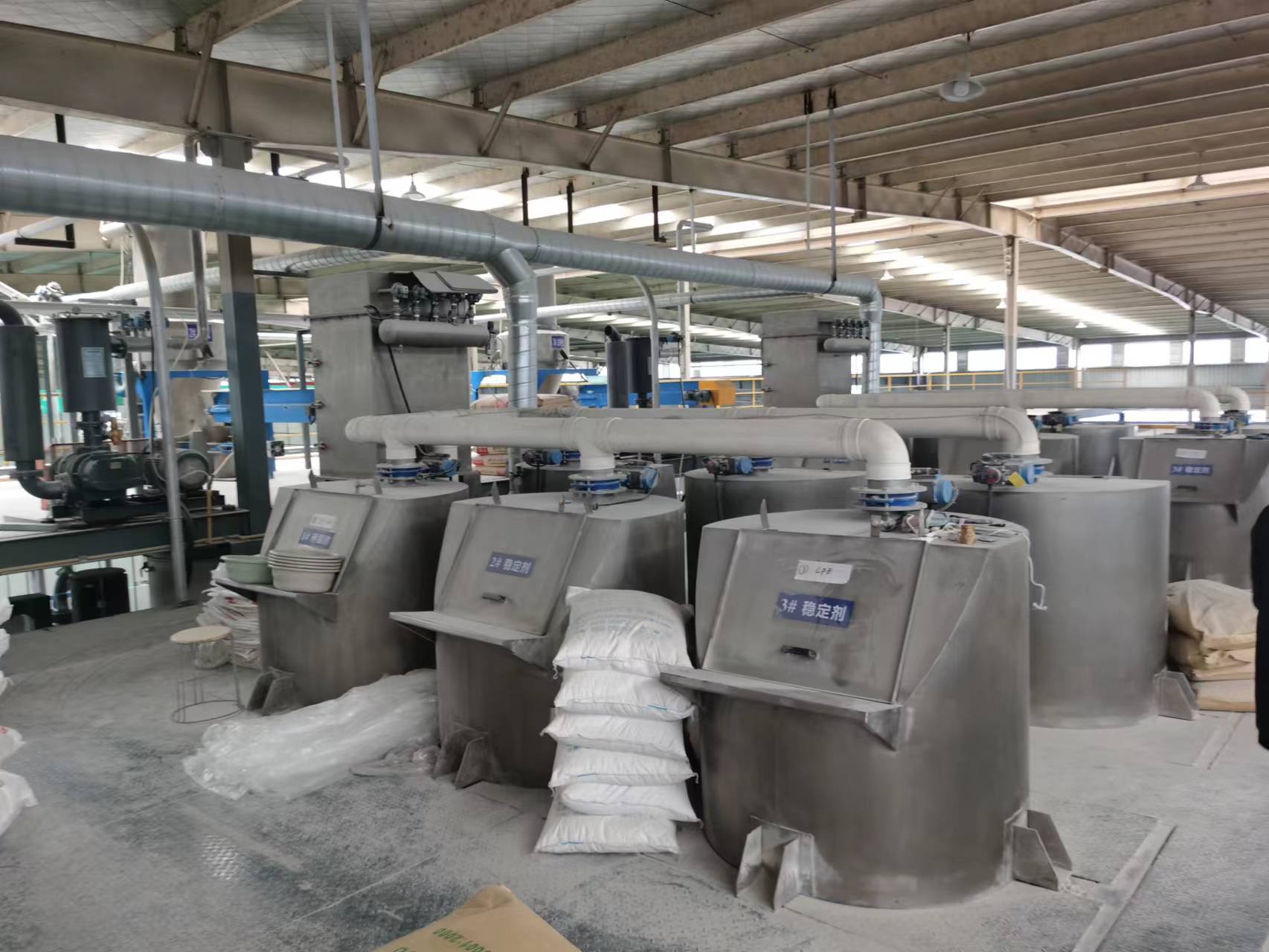

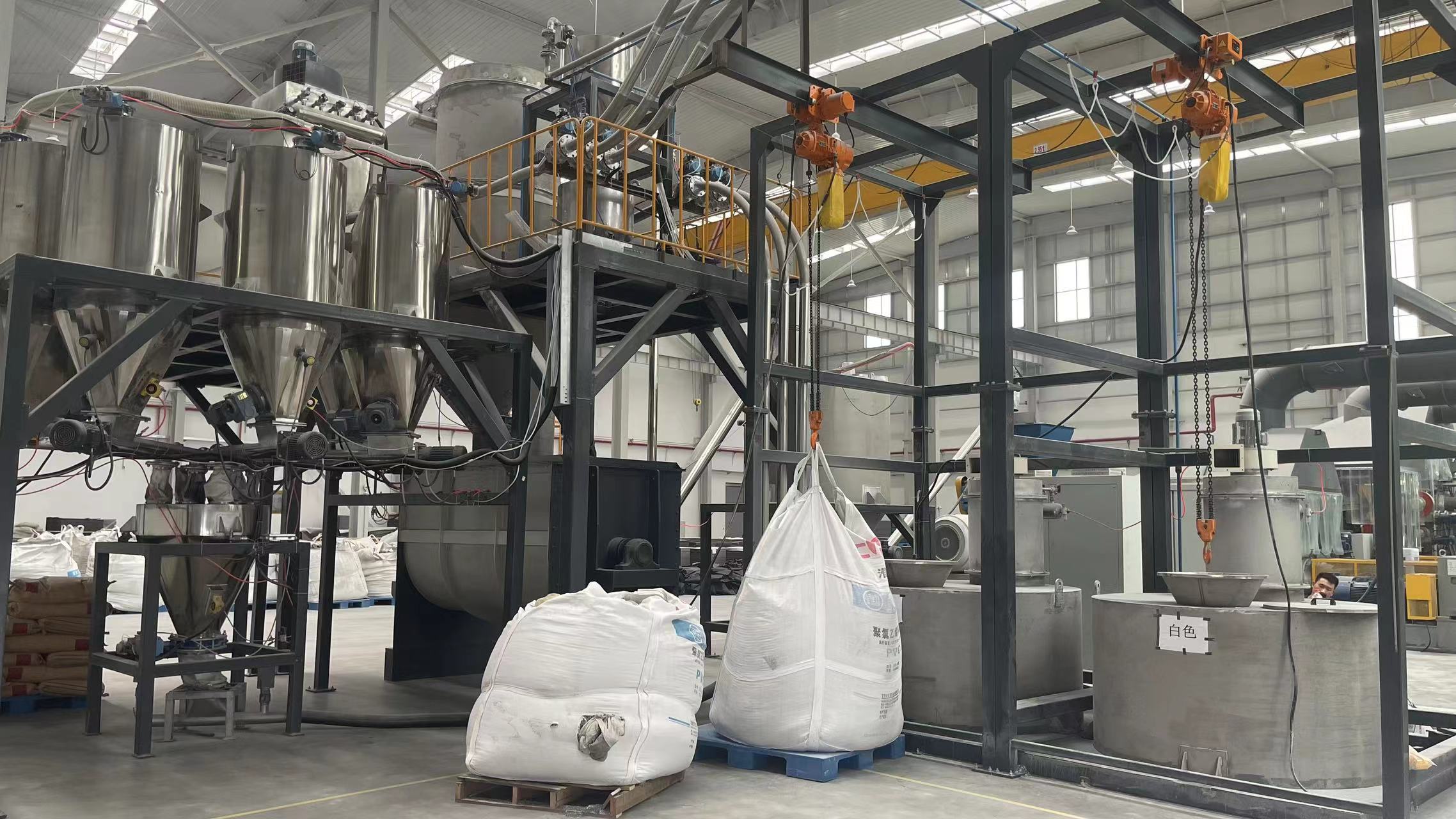

Material collection system

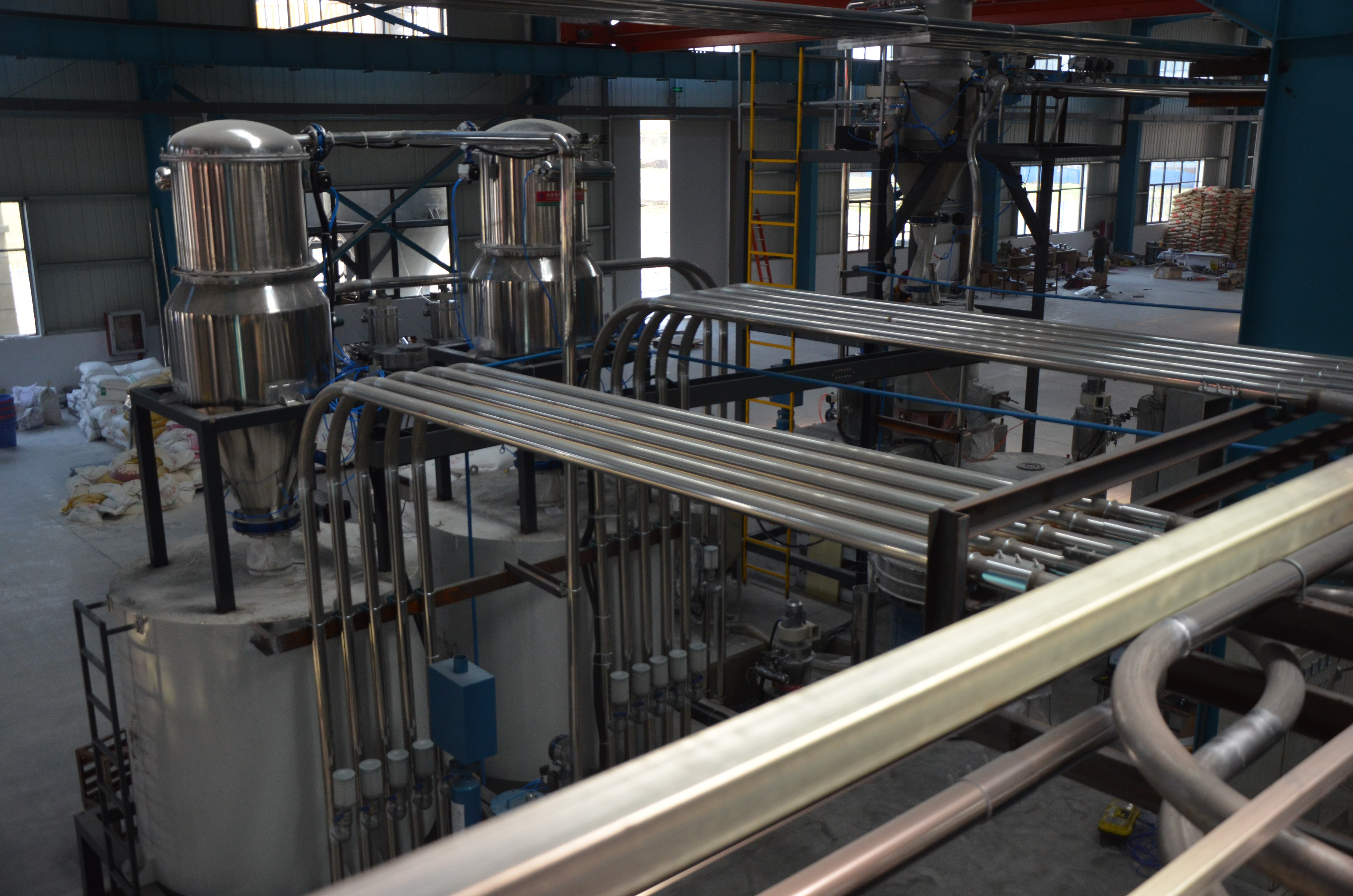

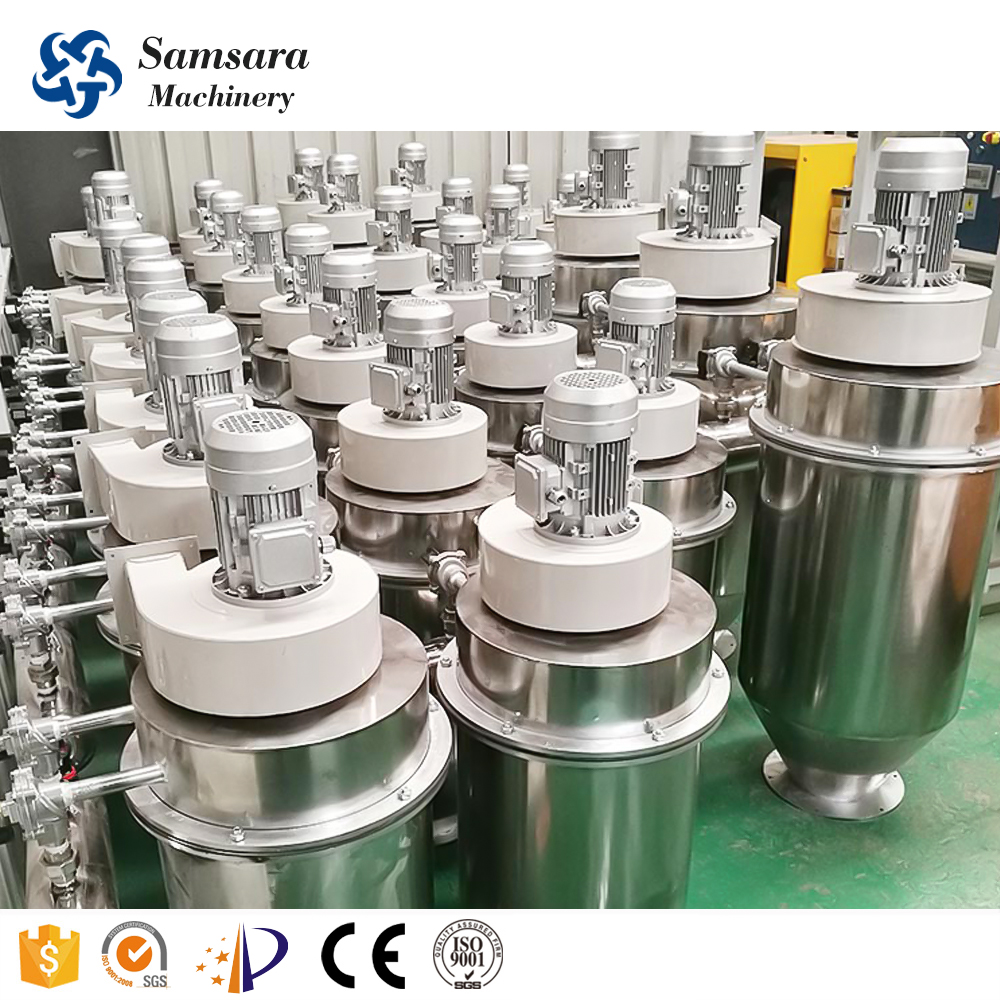

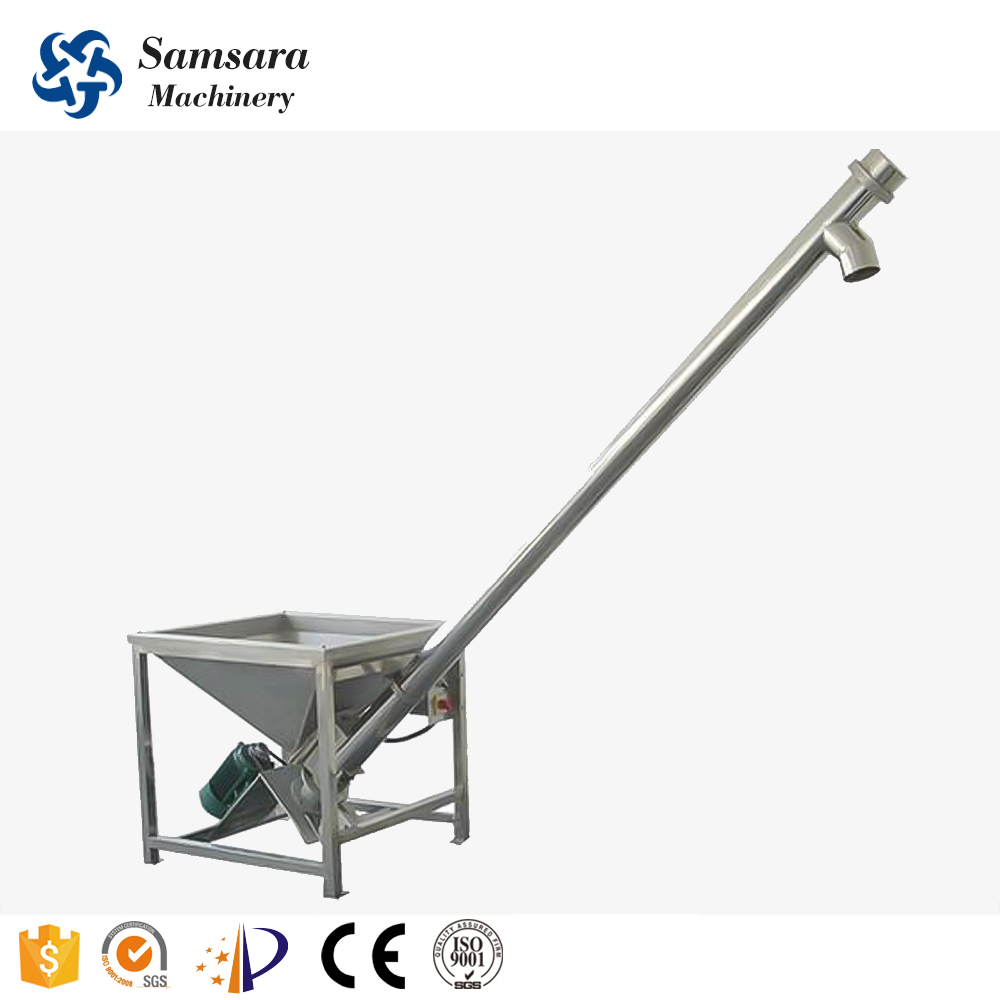

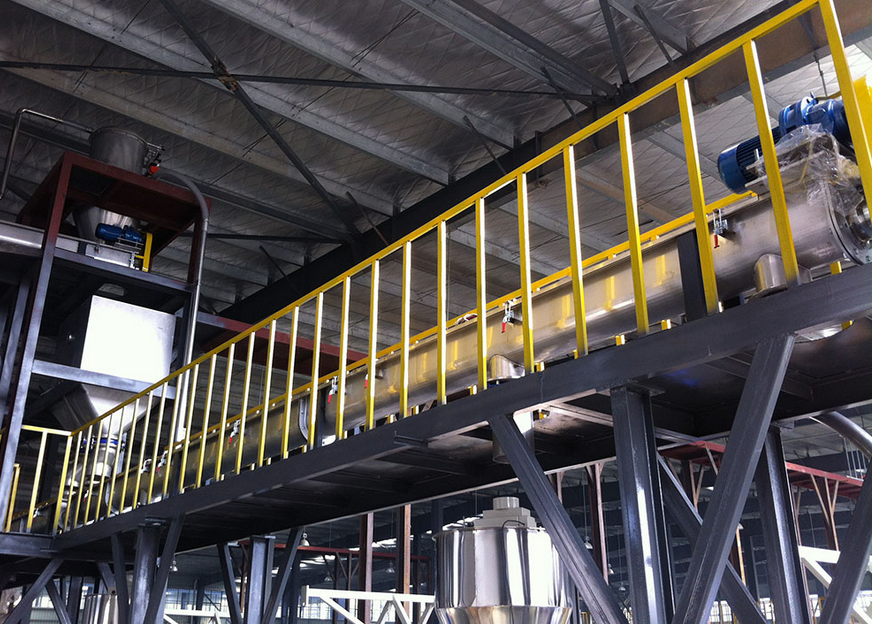

Material conveying system

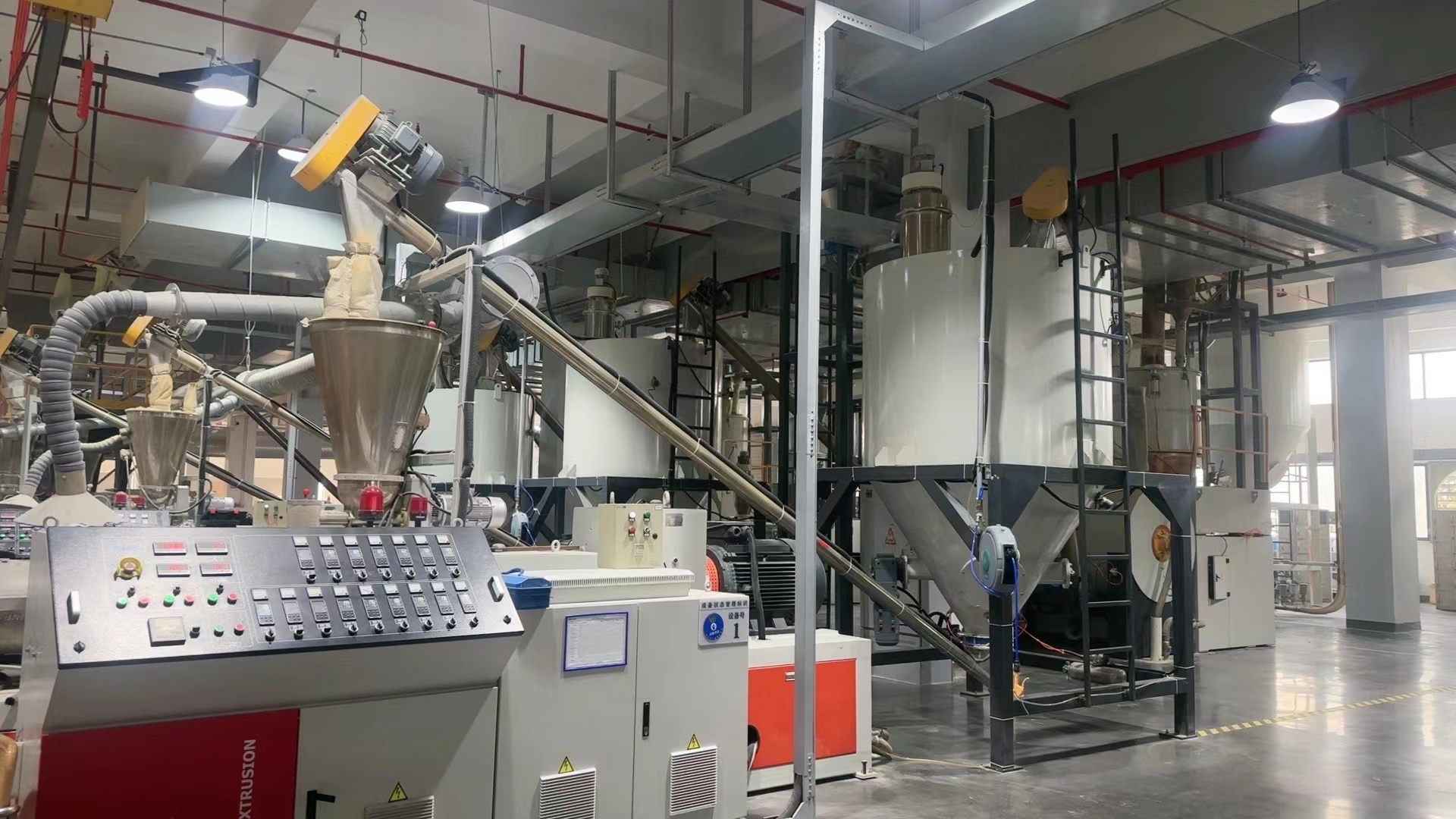

The conveying of the materials is the key to the automation of the compounding and feeding system. In the PVC automatic compounding system, the conveying system occupies a large proportion:Including the conveying from the bagging station to the transition silo upon the batching scales,the finished materials conveying from the mixer to the finished silo ,and also the finished materials conveying from the finished silo to the extruder.

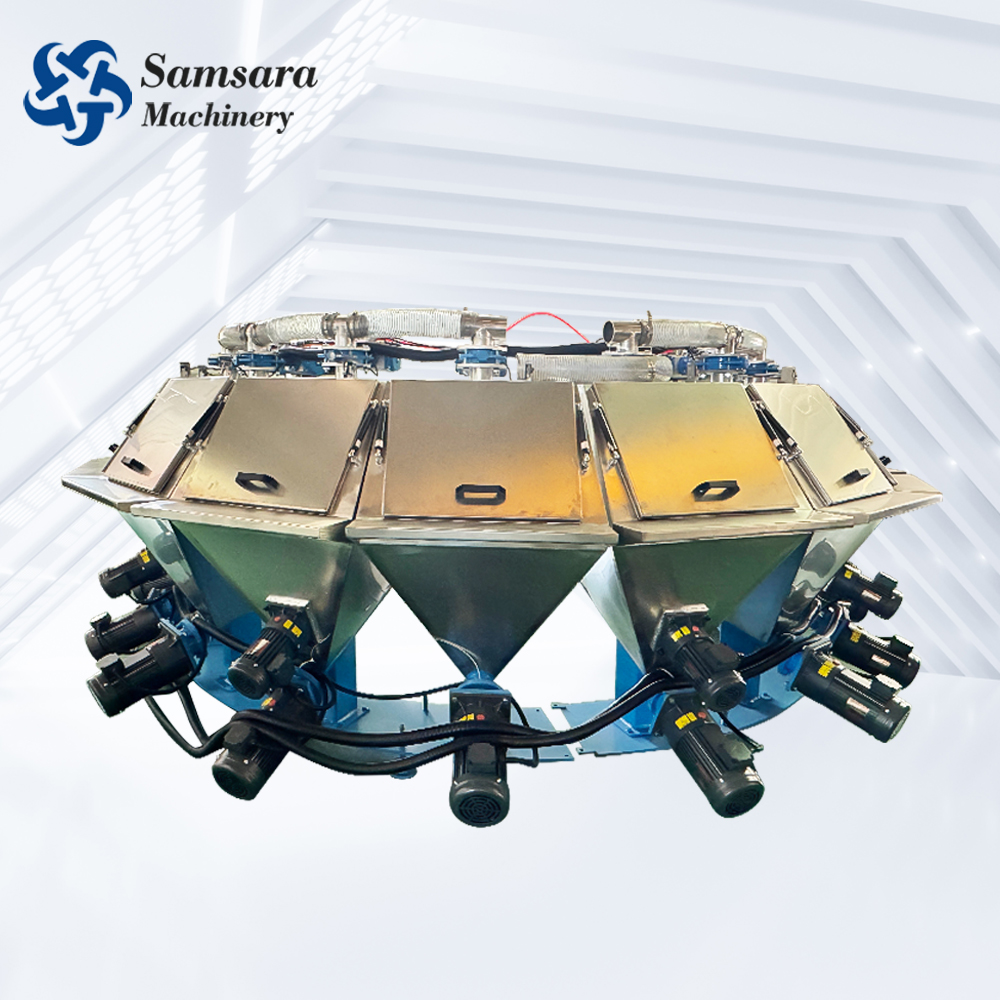

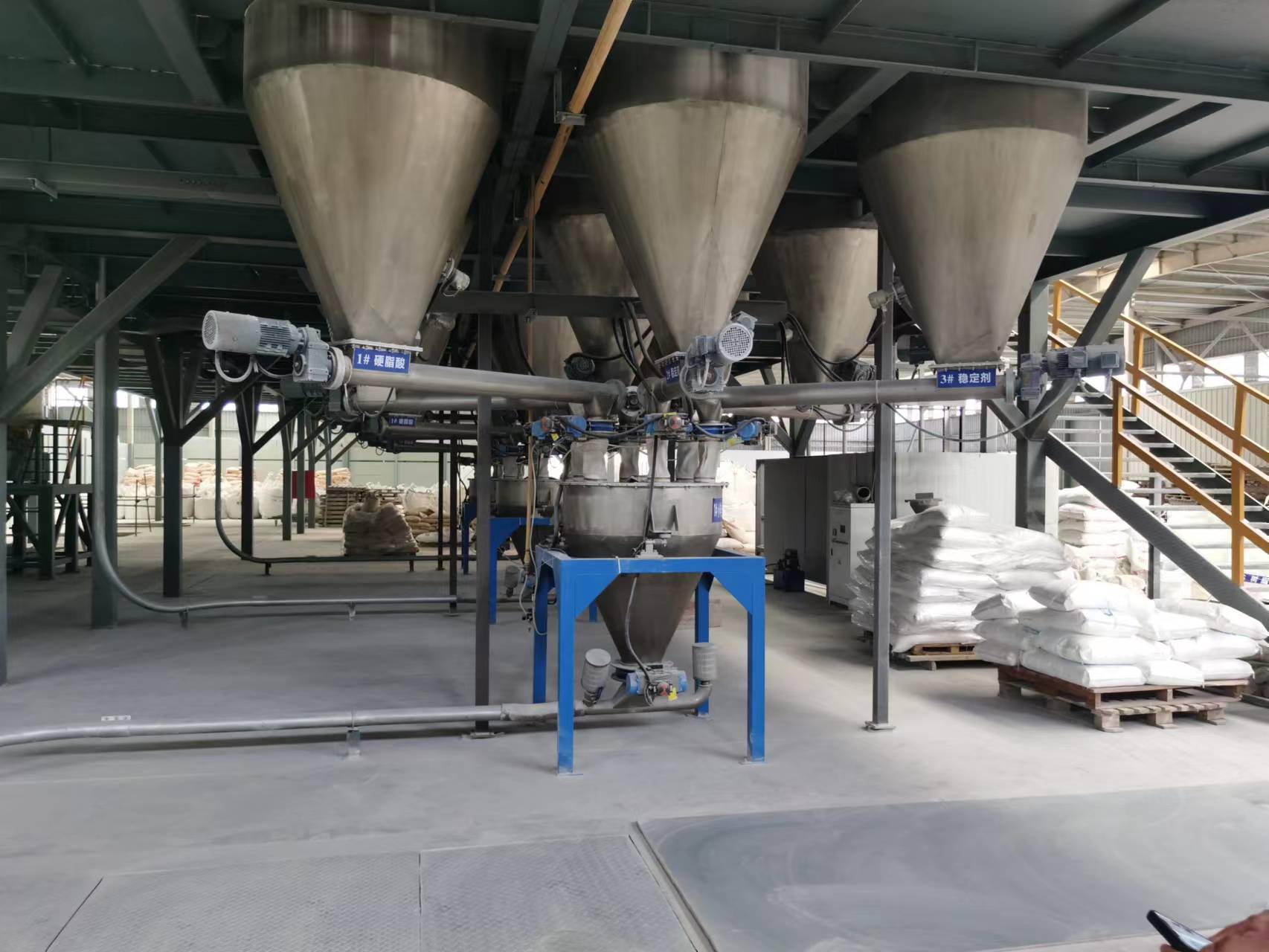

Weighing batching system
In the PVC automatic compounding system, the weighing batching system is normally composed of two separate subsystems: a set of main materials weighing batching system and a set of auxiliary materials weighing batching system. Each batching system has the feeding silo for each material,also with the screw conveyor,batching sales and etc.

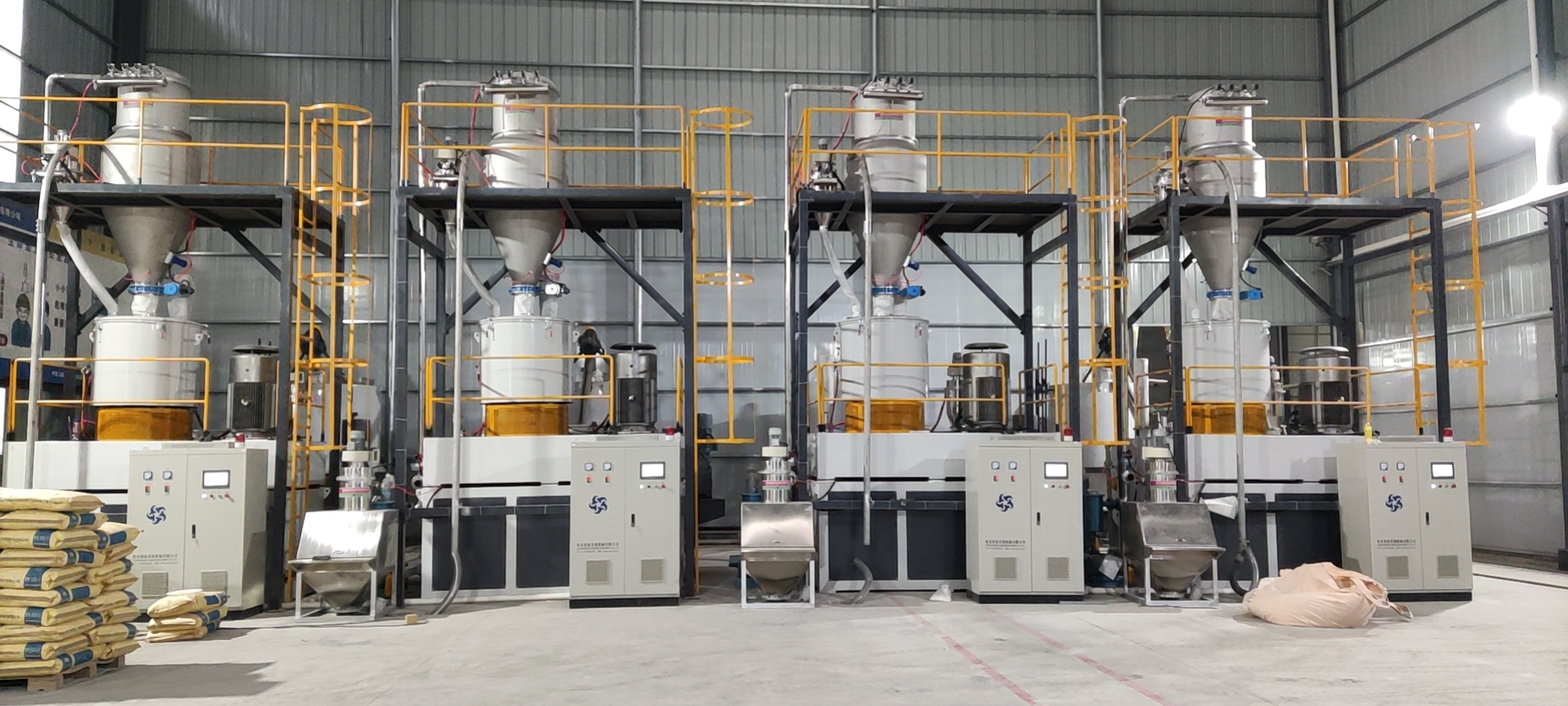

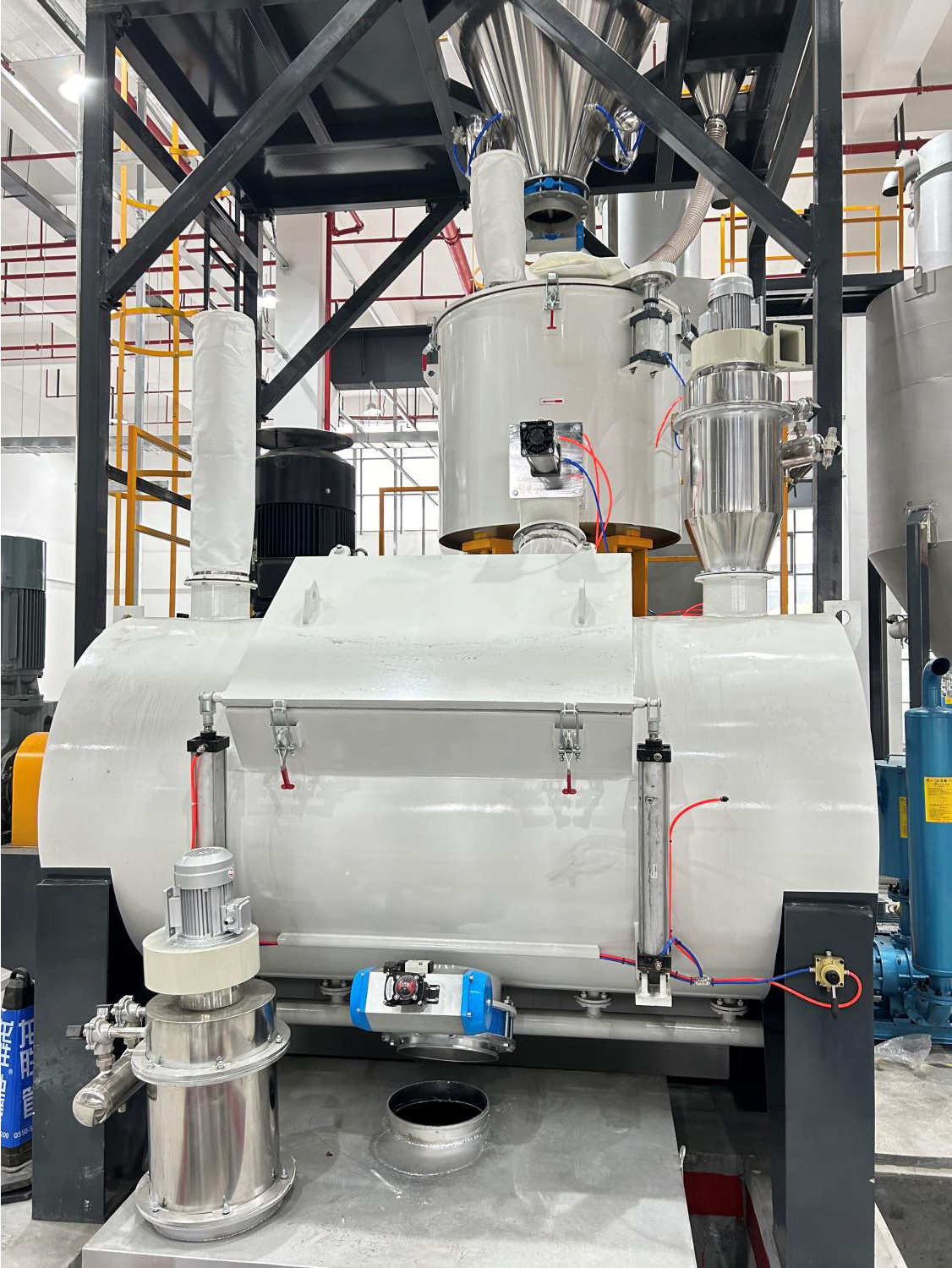

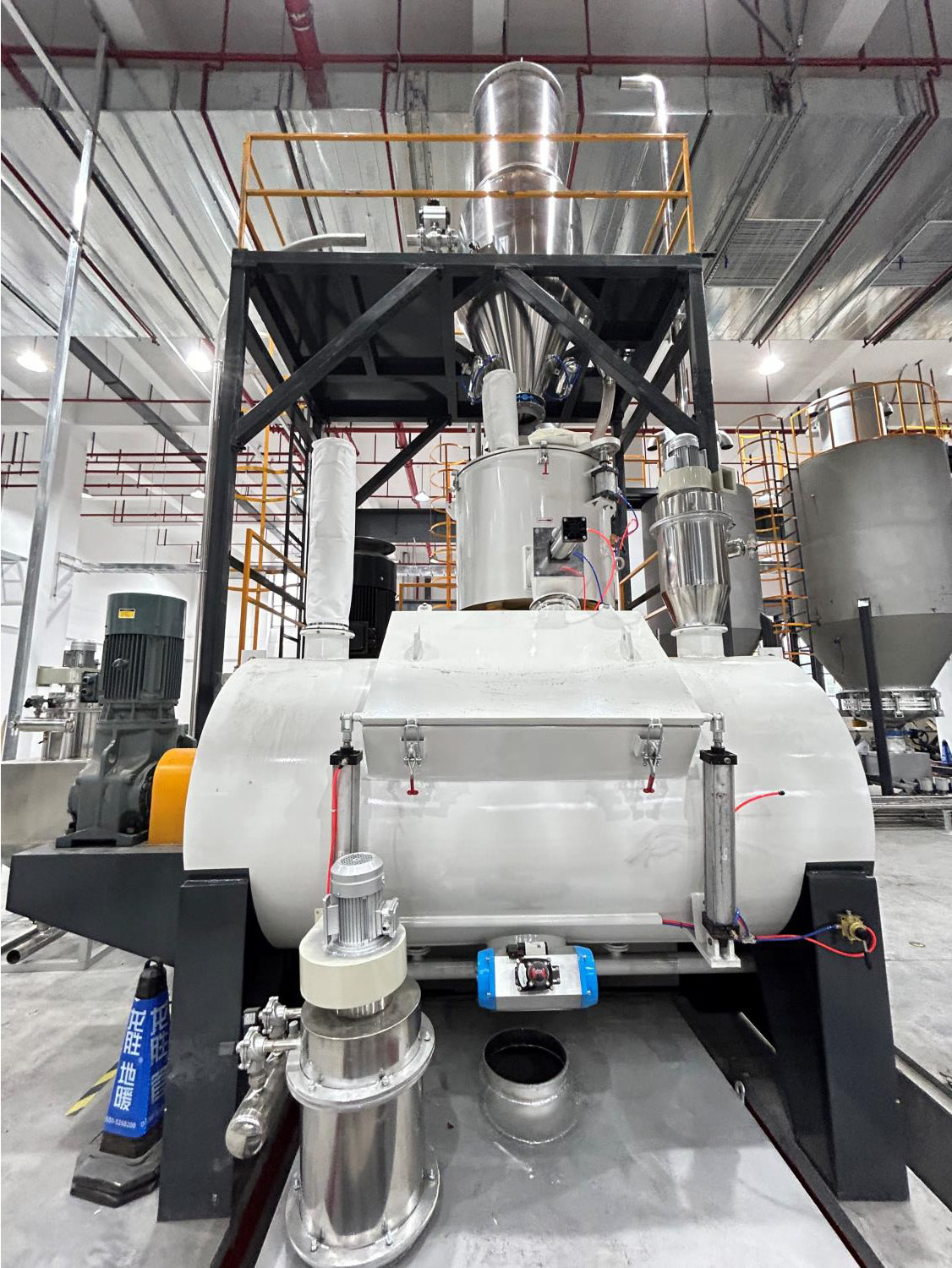

Mixer Unit
The high speed hot and cooling mixer is a preferred equipment suitable for the PVC blending process, which is a combination of a high speed hot mixer and a horizontal cooling mixer. The high speed hot mixer has three mixing blades and diversion section etc.Under its action, materials will rotate ,flip and other complex movement with high speed,so that the temperature will rise rapidly to meet the requirements of the material mixing process.Then materials enter the horizontal cooling mixer,it will cool down quickly to meet the production process requirement by low-speed mixing blade movement and heat exchange with the water cooling system.

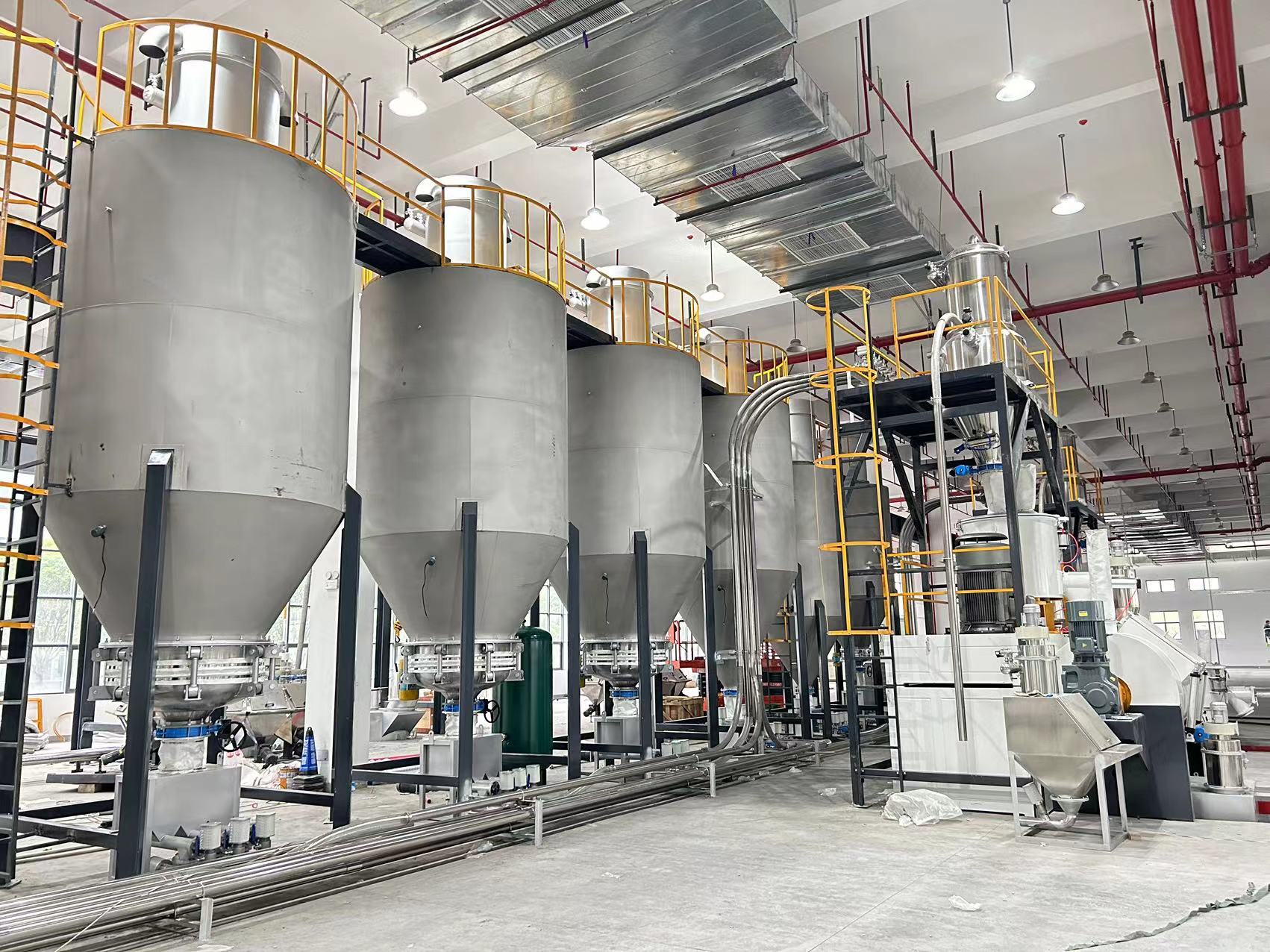

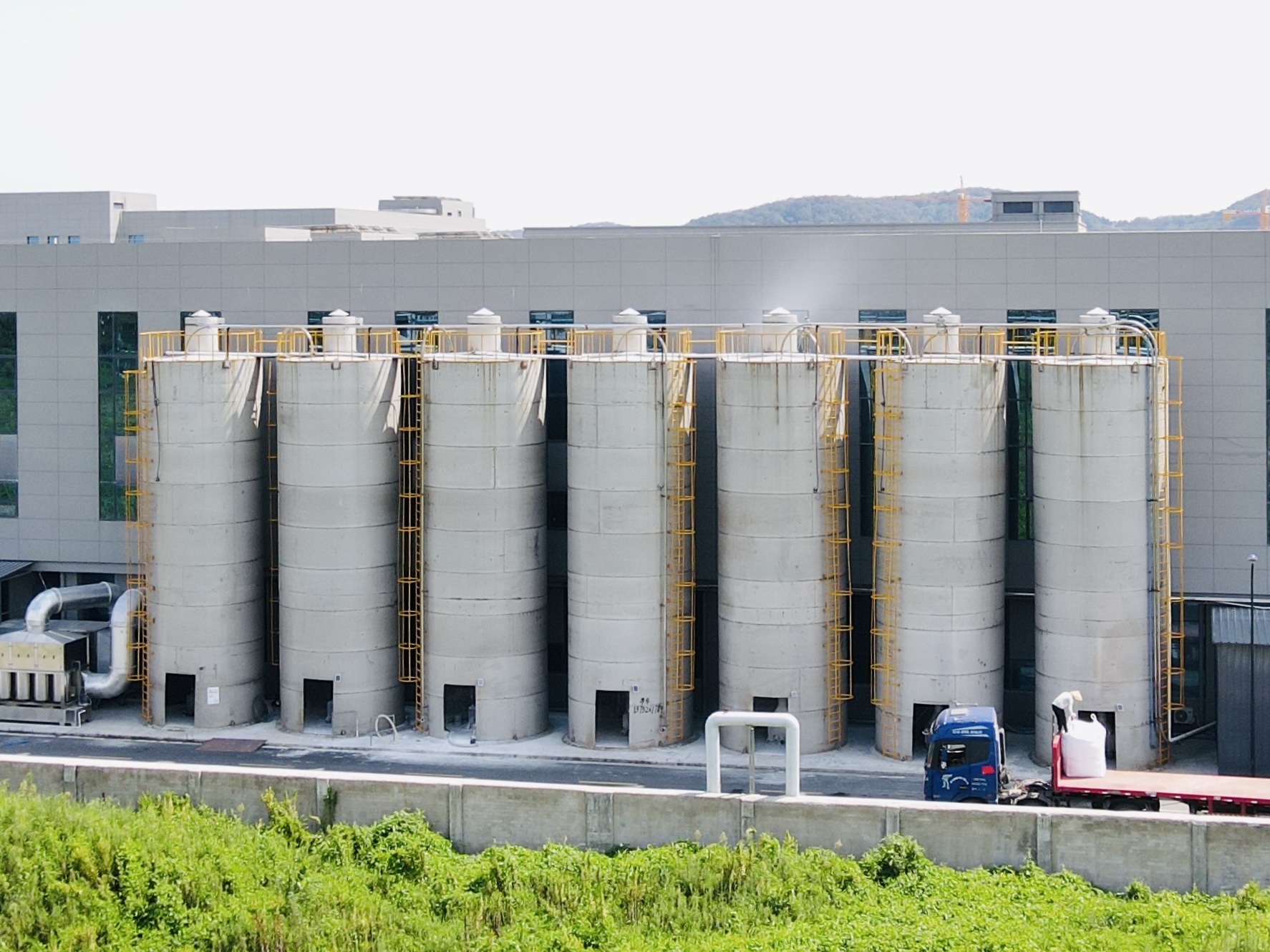

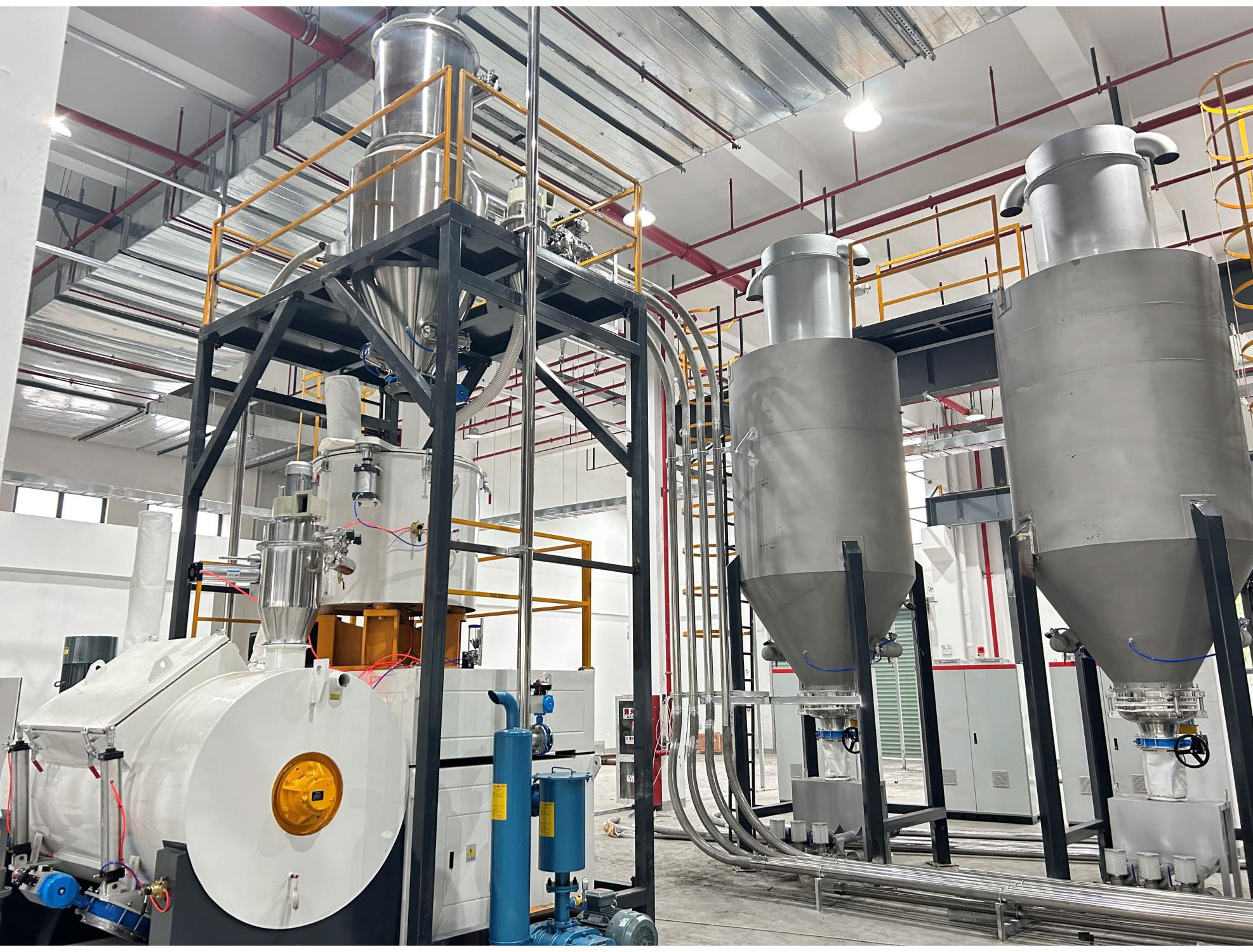

Material storage equipment
Material storage equipment are separately silos mainly used for storing raw materials and finished materials.
PVC raw material storage silo has 150m3 of effective volume.The material touching storage materials are all stainless steel,and polished . The outside surface is done with pickling passivation treatment.Consist with silos,dust removal equipment upon the silos ,steel ladder,fences,decompression cap,gate,and other components etc.
Can automatically control the materials incoming and outgoing by setting the level gauge, it has nice appearance,strong structure,wind proof and other features.
In order to ensure the qualified rate of the finished tubes, it is necessary to consider the surplus volume of the finishedmaterial’s silos, normally not less than 12 hours, and also the finished material silos’ design adopts the homogenized structure to ensure that the materials are not separated from the stratification.
PVC raw material storage silo has 150m3 of effective volume.The material touching storage materials are all stainless steel,and polished . The outside surface is done with pickling passivation treatment.Consist with silos,dust removal equipment upon the silos ,steel ladder,fences,decompression cap,gate,and other components etc.
Can automatically control the materials incoming and outgoing by setting the level gauge, it has nice appearance,strong structure,wind proof and other features.
In order to ensure the qualified rate of the finished tubes, it is necessary to consider the surplus volume of the finishedmaterial’s silos, normally not less than 12 hours, and also the finished material silos’ design adopts the homogenized structure to ensure that the materials are not separated from the stratification.

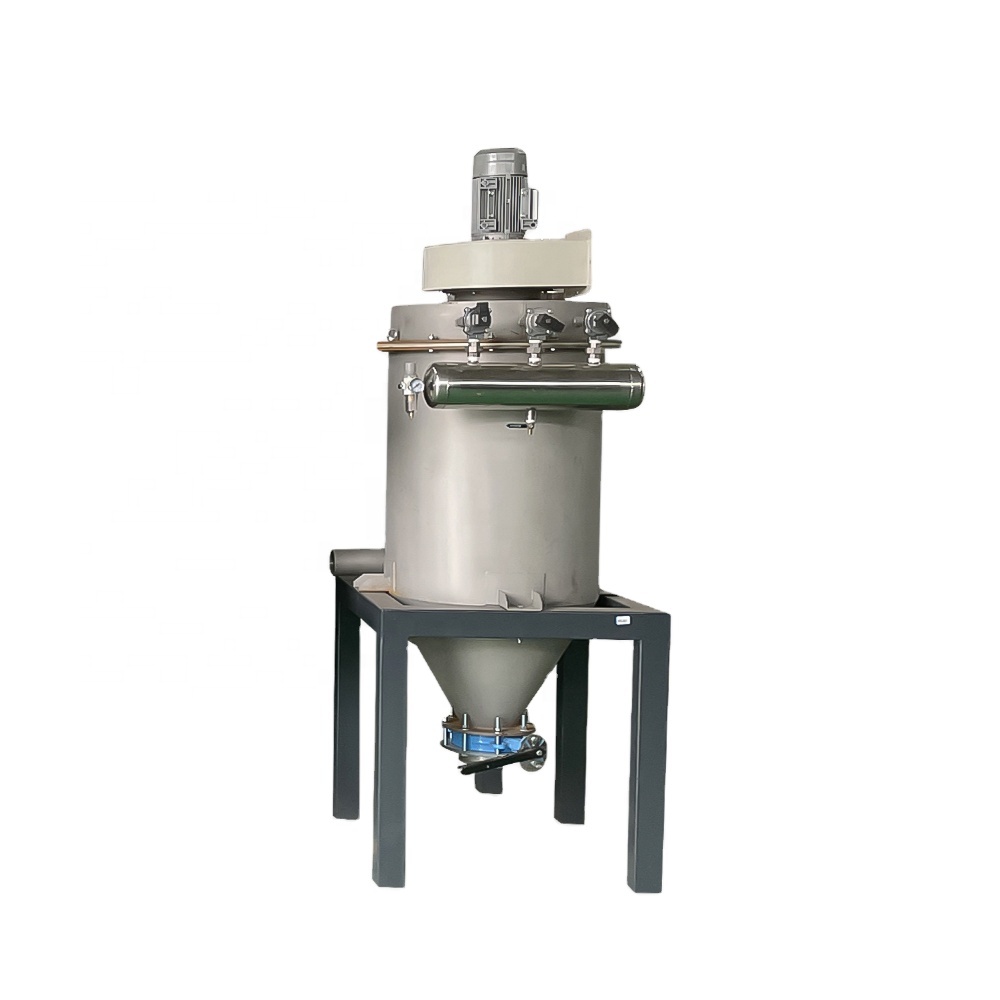

Dust removal system
The model of the dust collector is varies depending on the case of use.We use the imported coating materials as the filter material in dust collector,the filter aperture’s size should less than 0.5 microns, which is the most advanced filter material in the world.
The service life can be extended to more than 10 years and don’t need to change if choose the sintered filter.
The service life can be extended to more than 10 years and don’t need to change if choose the sintered filter.

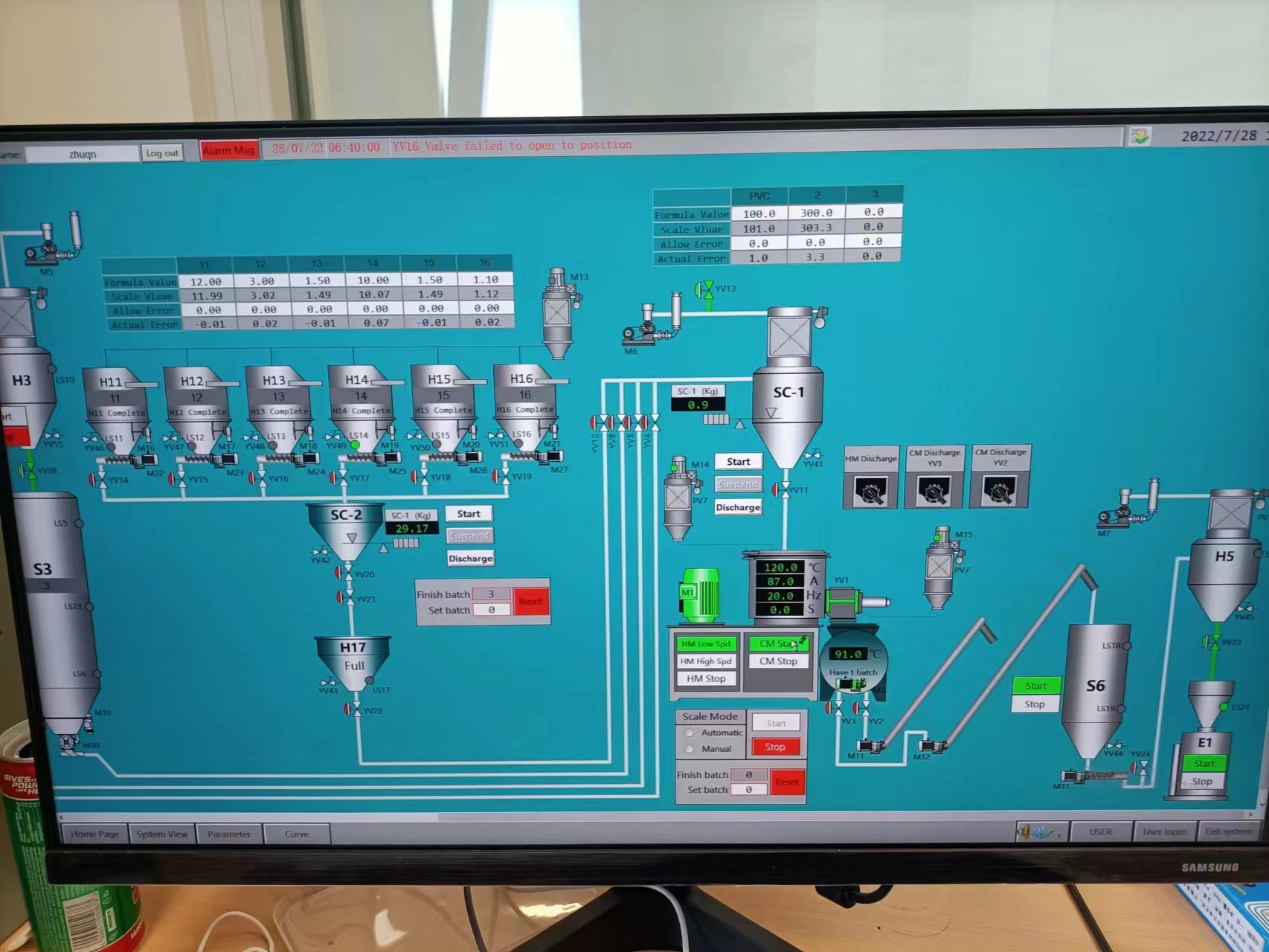

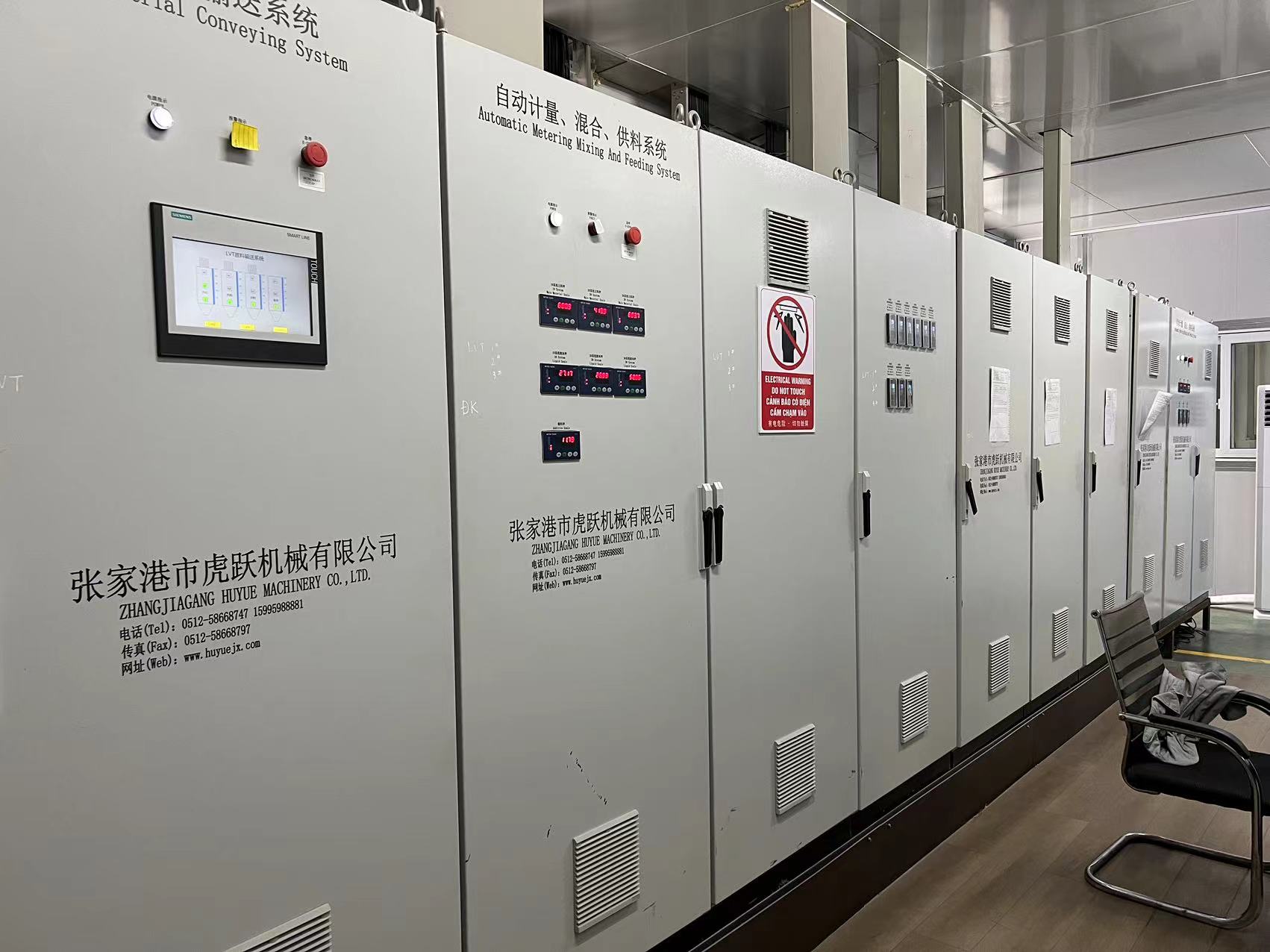

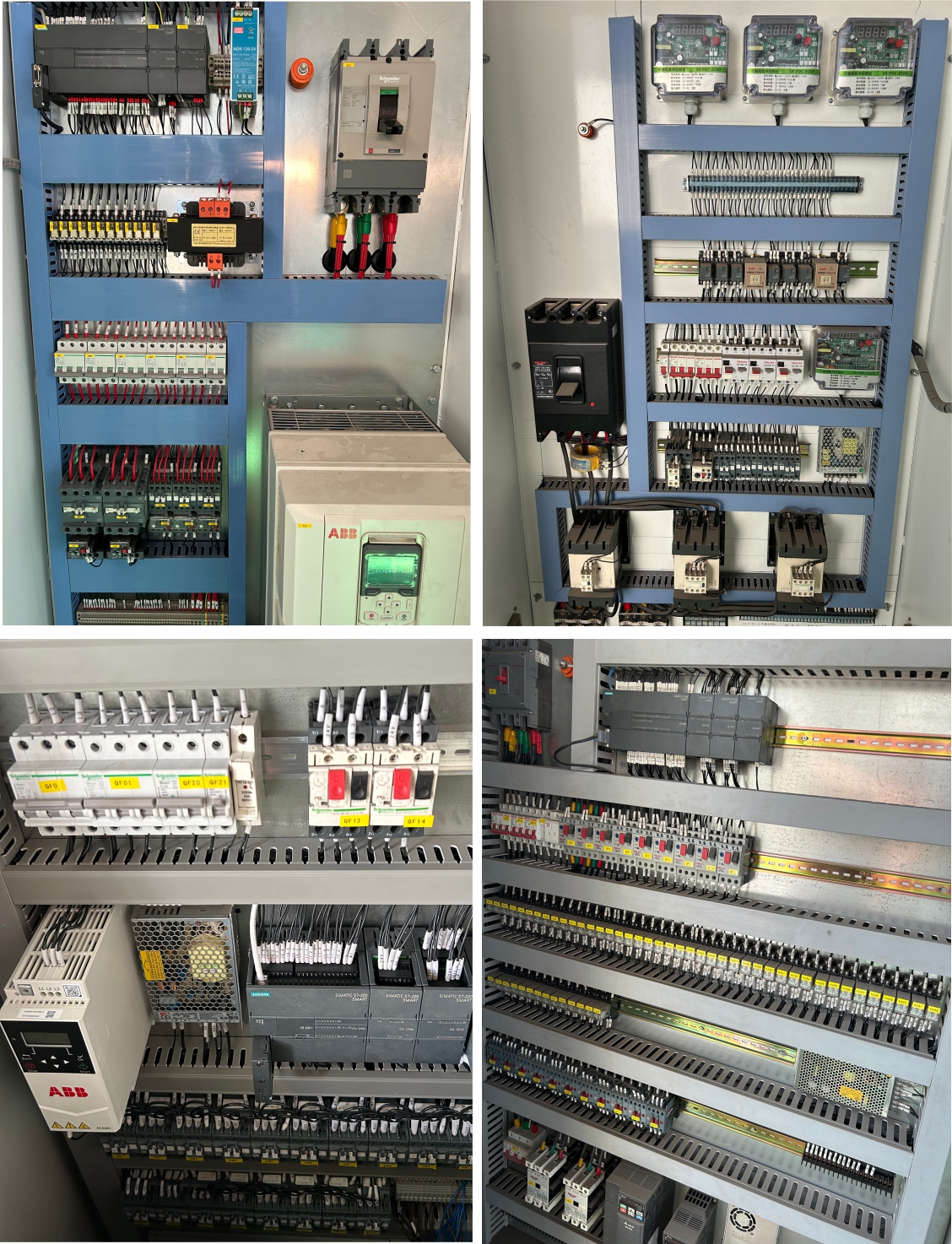

Electrical Control System
The electrical control system connects the complete set of equipment together.It is the guarantee of long-term stable operation of the compound mixing line.We designs the electronic control system including the on-site operation cabinet and the central control system, and can realize the following functions:
Automatic detection functions:
Control functions (the entire system achieve three-level control):
Automatic alarm,Interlock functions:
Self-diagnostic functions:
Management functions:
Automatic detection functions:
Control functions (the entire system achieve three-level control):
Automatic alarm,Interlock functions:
Self-diagnostic functions:
Management functions:

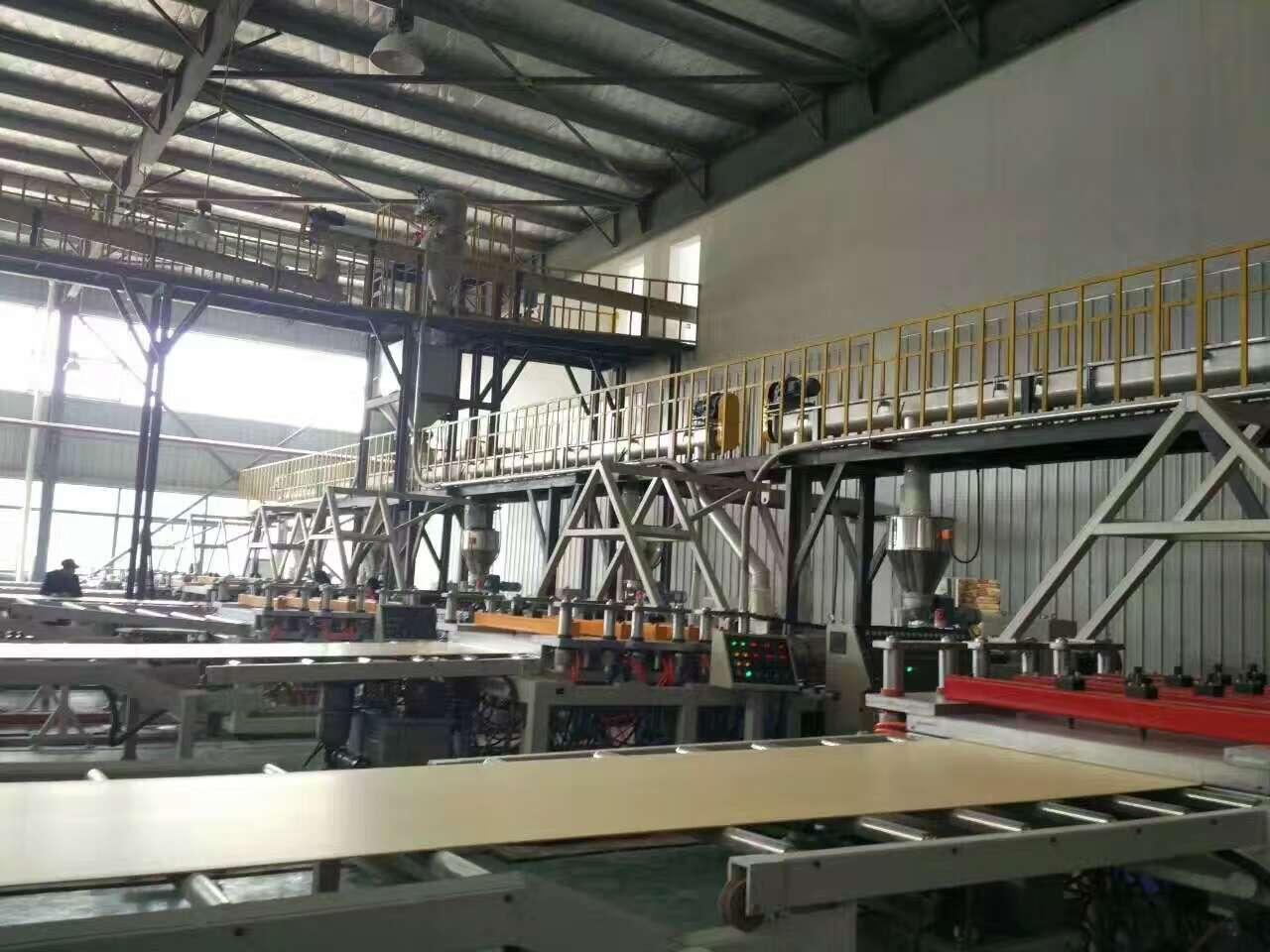

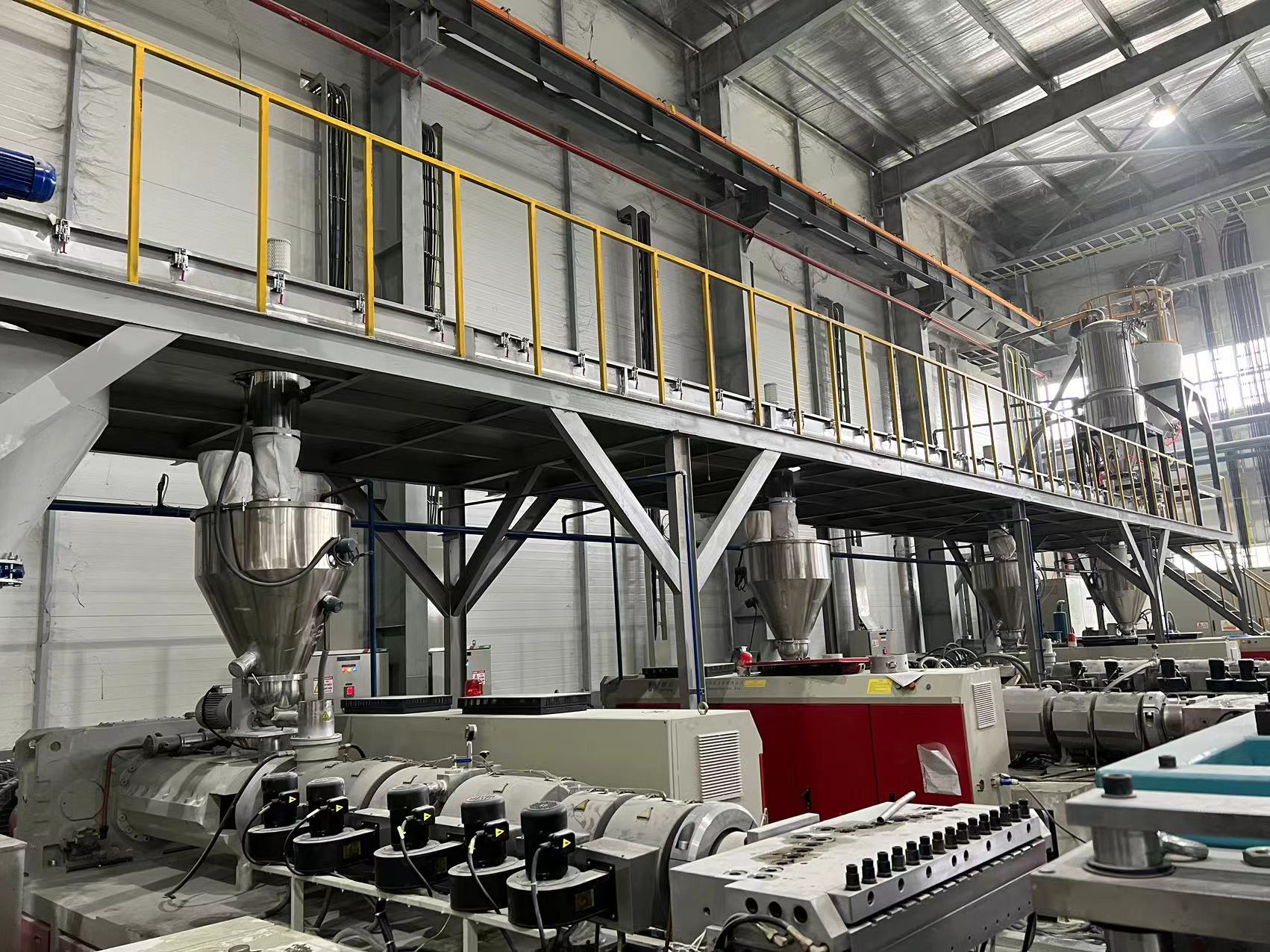

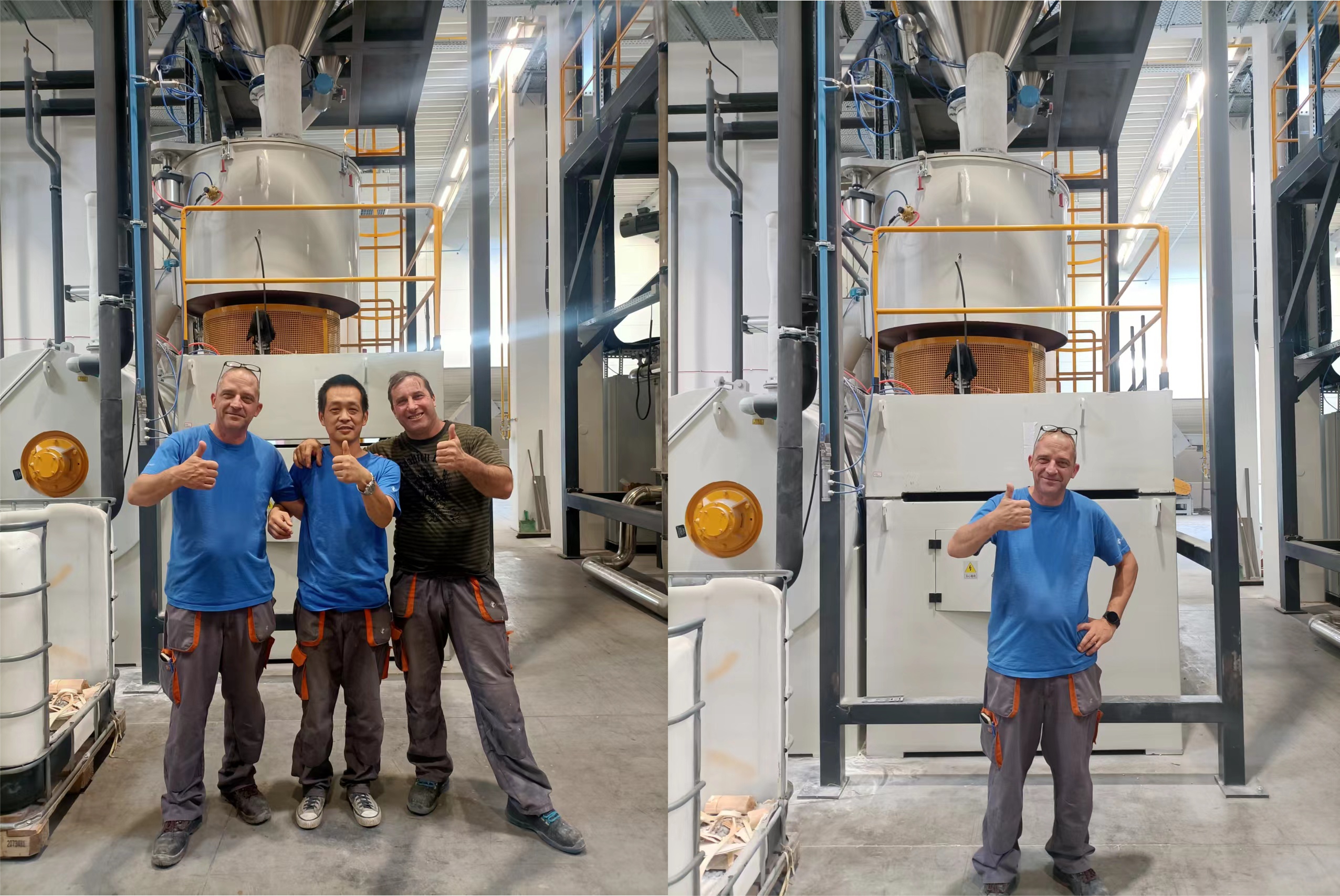

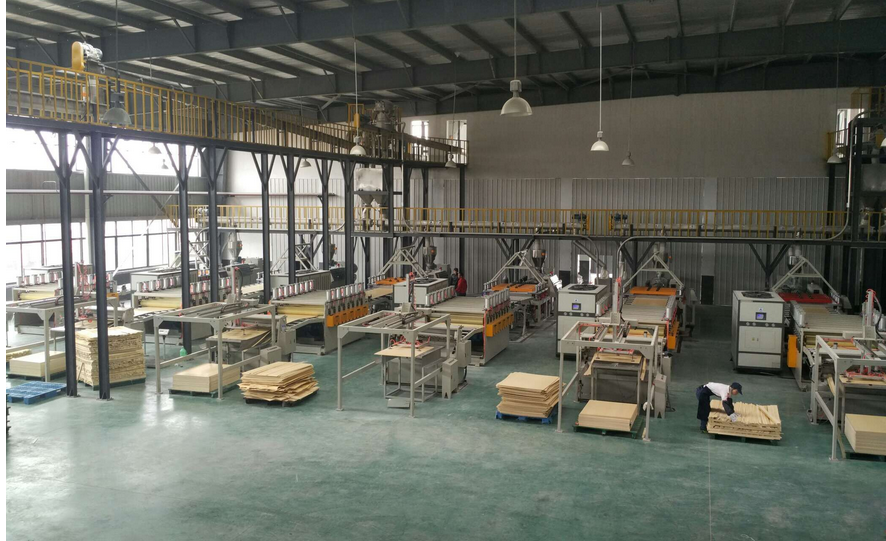

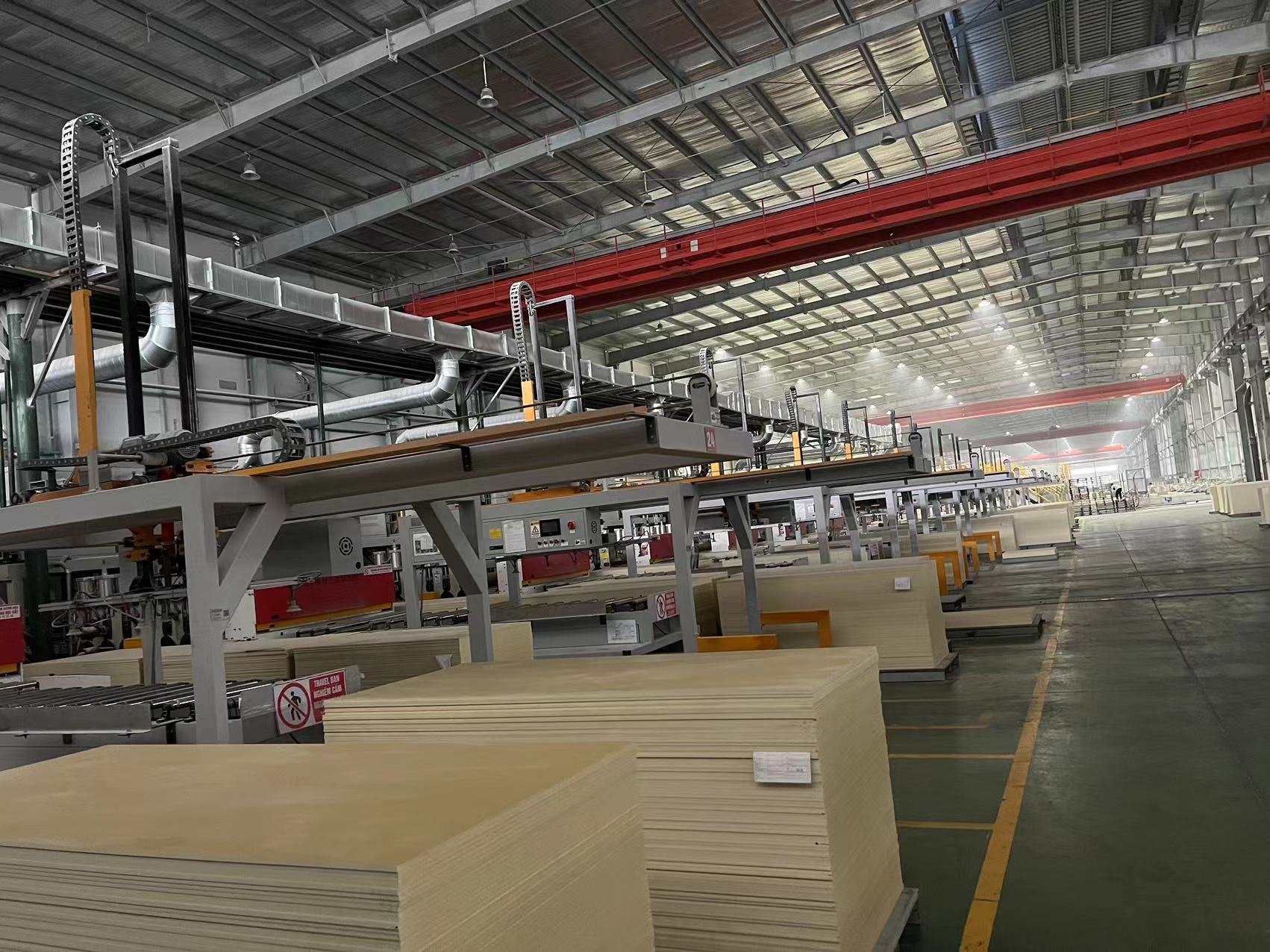

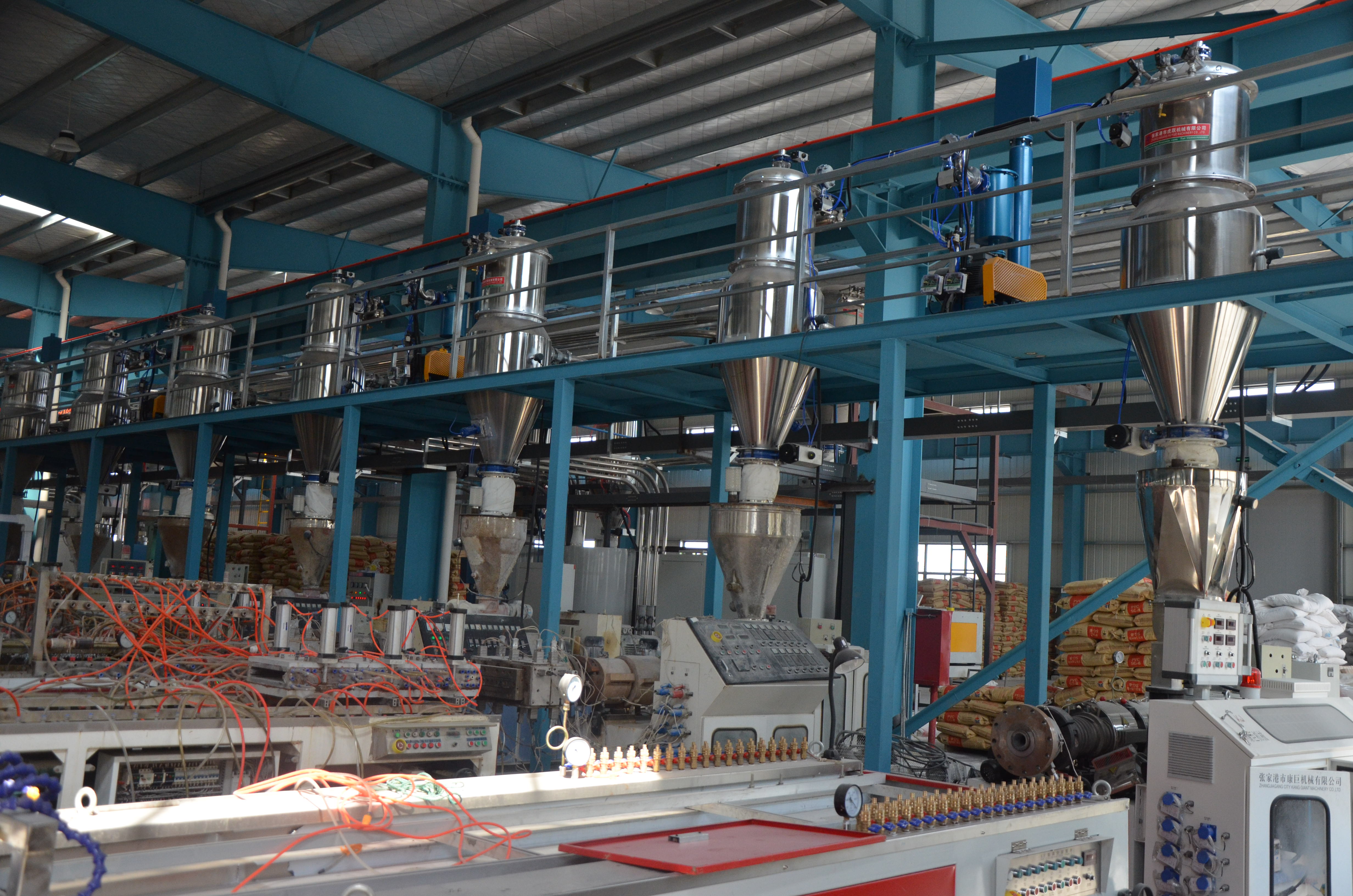

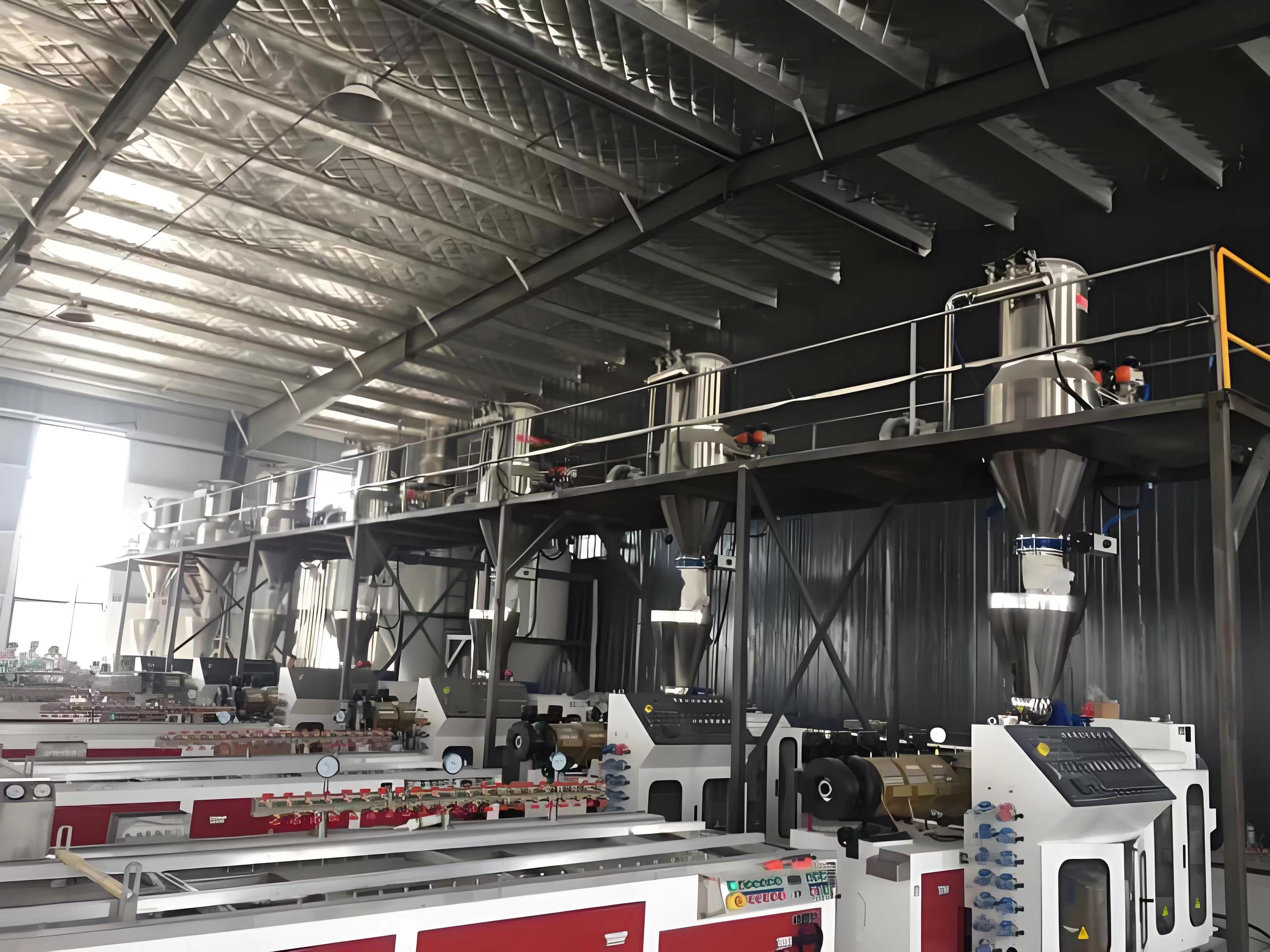

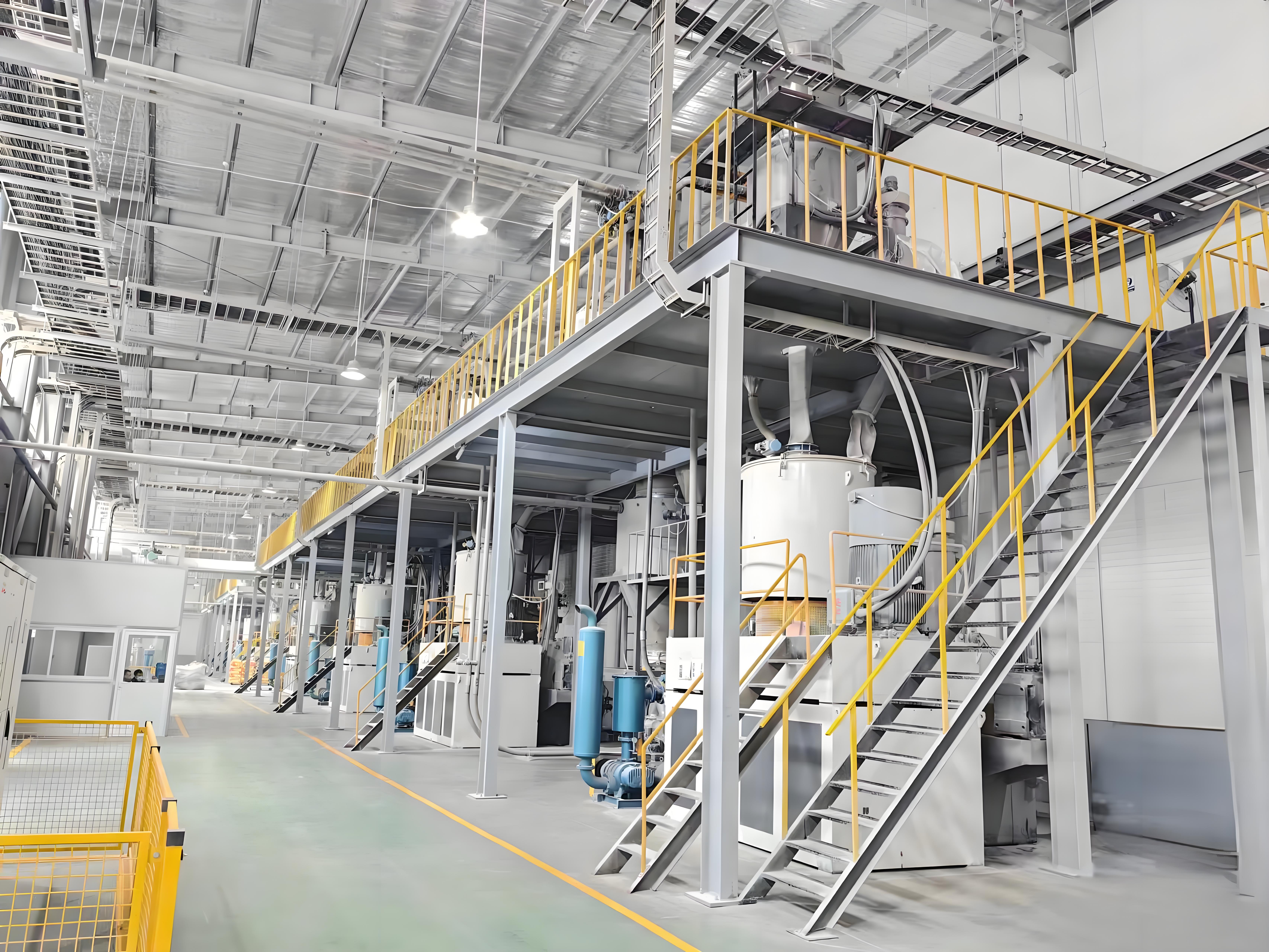

Customer case

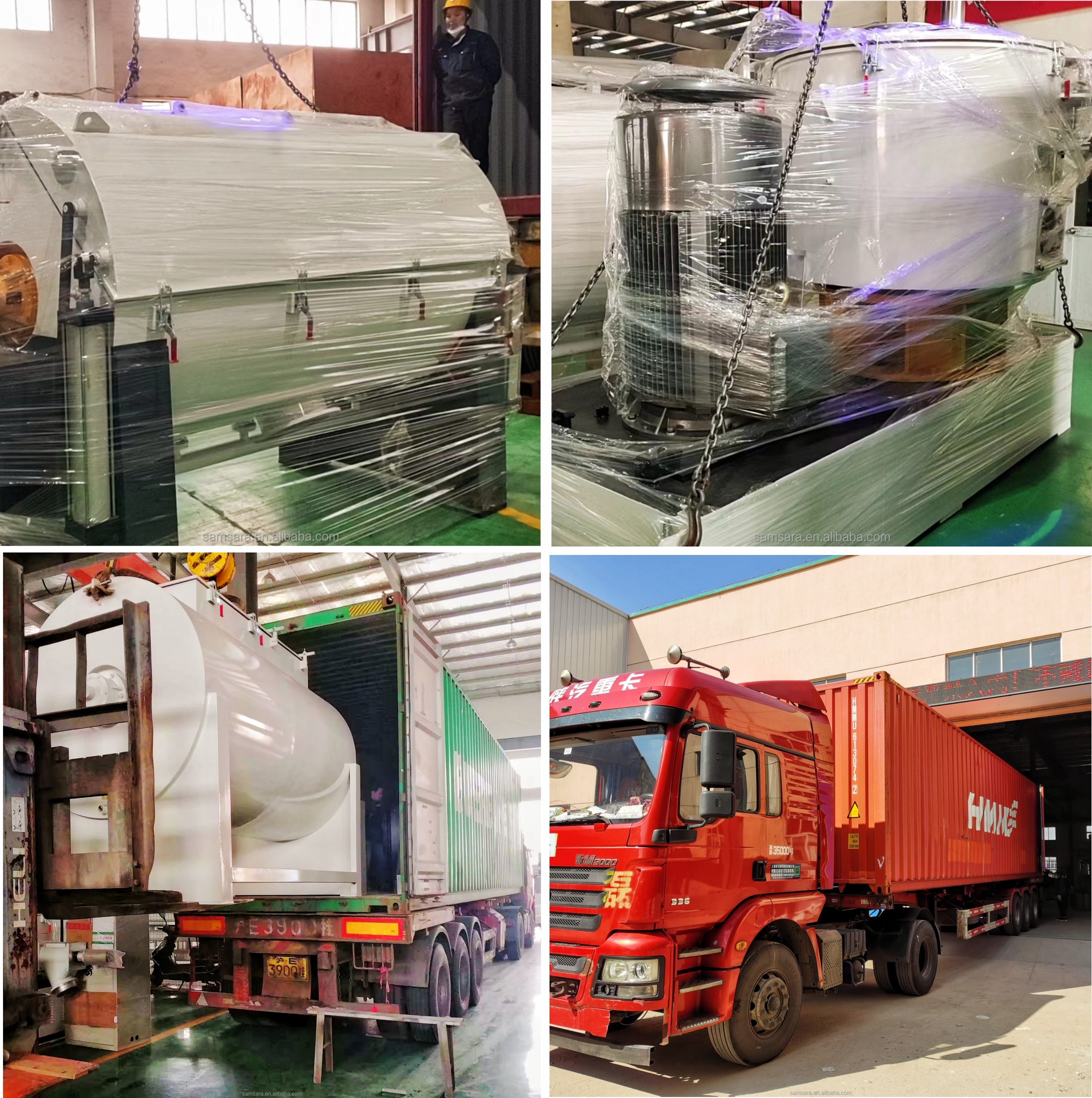

Packaging and Delievery
Exhibition&Customer
Q:All of your products are made by your self or compacted via purchas
ing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price is reasonable with stable machine quality .
Q:How to guarantee your funds to be safe and delivery to be on time?
A:Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
By letter of credit, you can lock the delivery time easily.
After the factory visit, You can ensure the facticity of our bank account.
After the factory visit, You can ensure the facticity of our bank account.
>>After-sales service:
A:Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
By letter of credit, you can lock the delivery time easily.
After the factory visit, You can ensure the facticity of our bank account.
After the factory visit, You can ensure the facticity of our bank account.
>>Installation, Debugging and Training:
We will dispatch our engineers to instruct the installation and debugging. Cost will be beared on buyer’s side (round way flight tickets, accommodation fees and salary in buyer country). The buyer should provide his site assistance for the installation and debugging.
The engineers will also train your workers for about 3 days.
The engineers will also train your workers for about 3 days.
