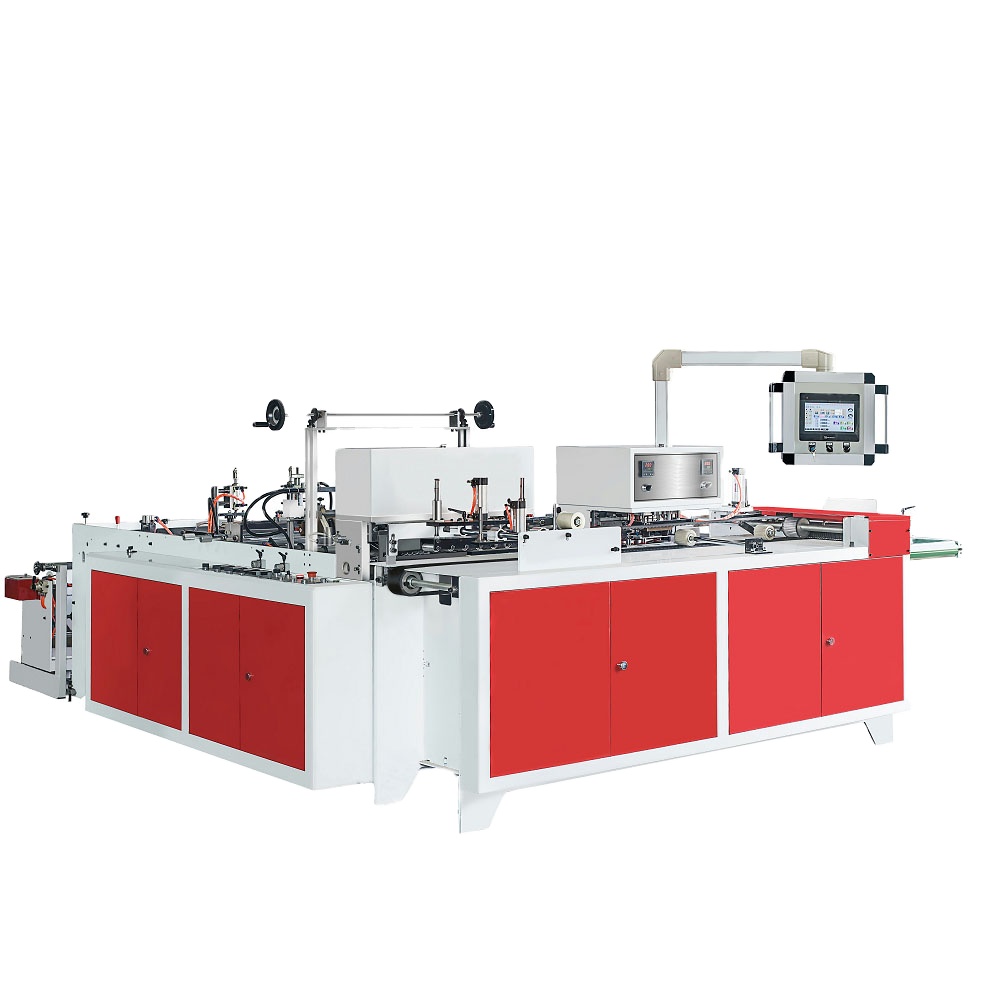

Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine
Automatic Plastic Soft Handle Loop Bag Making Machine

Video

1 / 7

Automatic Plastic Soft Handle Loop Bag Making Machine

  • $30000.00

    ≥1 set

  • $29000.00

    ≥2 set

Options:

  • 6kw
  • 8kw
  • 10kw
Get Latest Price

Basic Info

Model No.
Brand Name
Bag type Shopping Bag
Material Plastic
Place Of Origin Zhejiang, China
Brand Name Dongchen
Model Number ZXQ-600
Voltage 380V/50HZ
Dimension(L*W*H) 4000x3000x1500mm
Warranty One Year
Key Selling Points Easy To Operate
Machinery Test Report Provided
Video Outgoing-inspection Provided
Core components Motor
Max Speed 50pcs/min
After-sales Service Provided Engineers Available To Service Machinery Overseas
Applicable Industries hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works?, Energy & Mining, Food & Beverage Shops, Other
Showroom Location None
Condition New
Machine type Sewing Machine
Computerized Yes
Marketing type Ordinary Product
Warranty Of Core Components 1 Year
Weight 1000 KG
Show More

Product description

Product Overview

Product Introduction

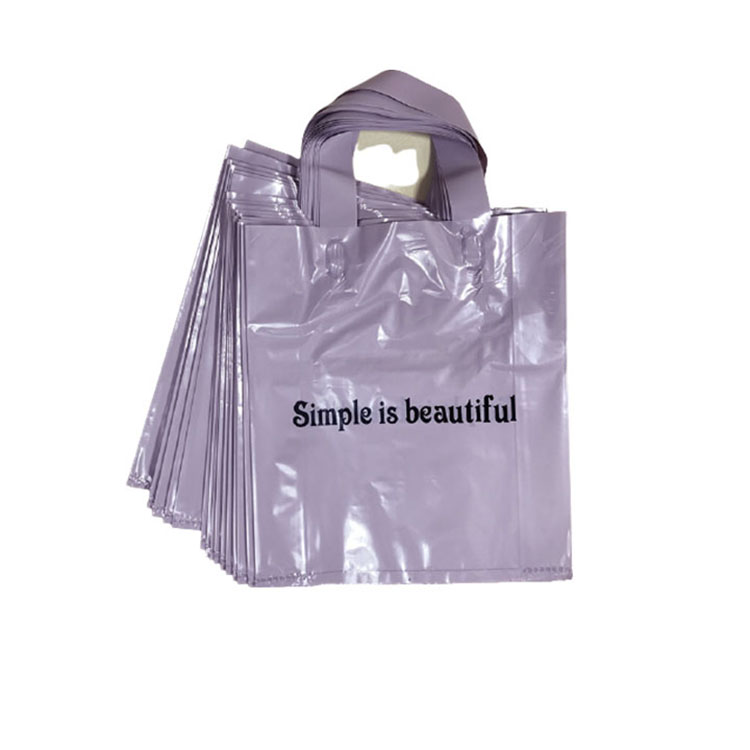

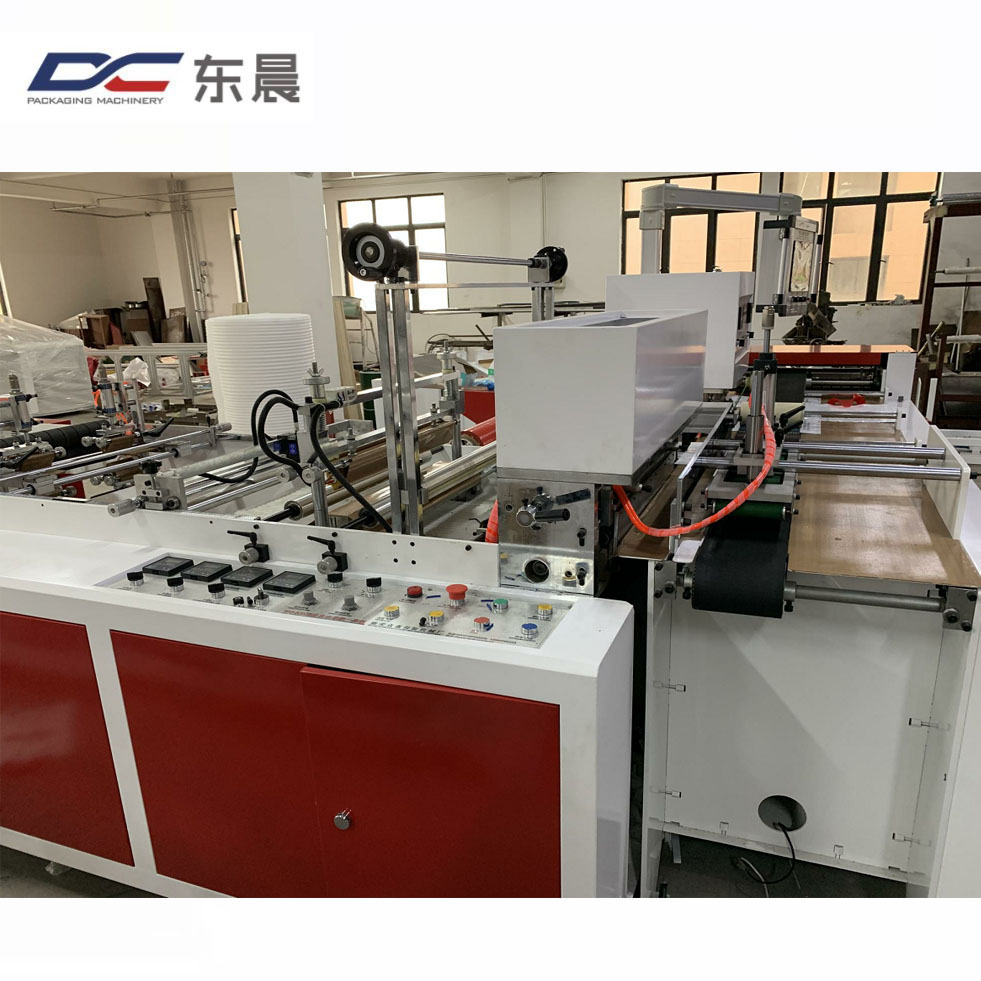

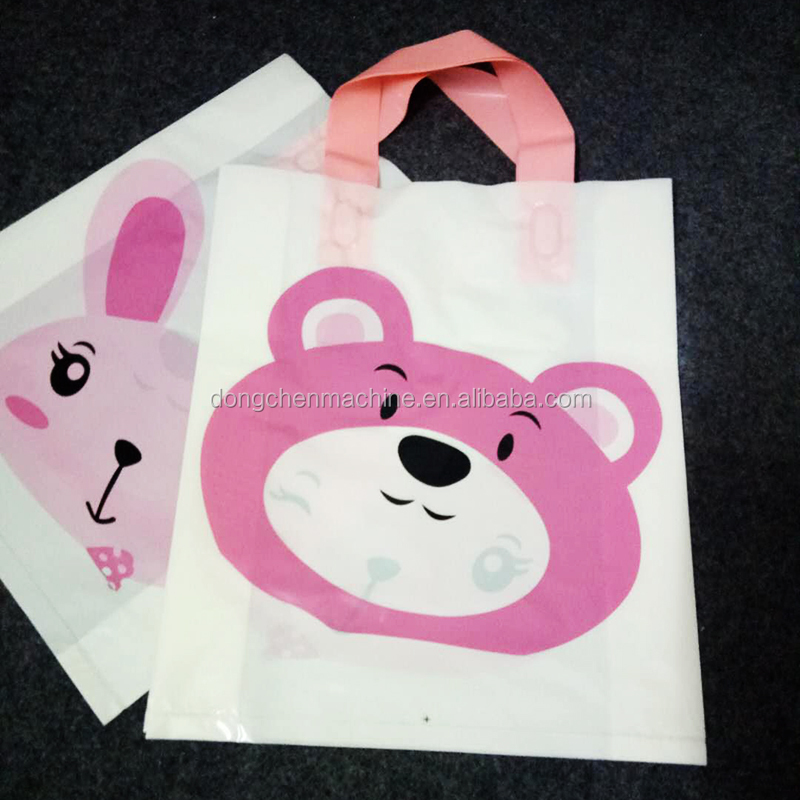

Latest research improvement Fully automatic Plastic bottom sealing and soft loop handle bag making machine.
The machine plug the suitable raw material for the plastic edge material, equipment production, bags hot position strong,
beautiful, upscale, generous, can be repeatedly used, mainly for the production of plastic bags, plastic packaging bags, shoe
boxes, garment bags and other low-grade plastic bags. The mechanical and electrical-body cylinders. used Weinview of Taiwan
touch-screen operation. Together with the optical length, photoelectric tracking, automatic orientation, deviation, accurate,
smooth, automatic counting, you can set count alarm, automatic heat knob, automatic pile of bags and other industrial devices. It is the best advanced plastic bag making equipment on the market

FEATURES AT A GLANCE
1.The Operating control switch in front and back of the machine, It’s easy to operating.
Raw material tension can be automatically adjusted if the machine running(Automatic tension control system is adopted for feeding).
2.The machine adopts pneumatic loading,Air pressure can controllable.
3.The speed of feeding is controlled by Proximity switch.
4.The sealing cut of bag making machine use three - phase asynchronous motor, frequency conversion speed regulation.
5.No Stretch by servo,Hot sealing smooth and beautiful.
6.Servo flying knife, easy to change knife;
Automatic tally , (bag making counting or loop handle counting).

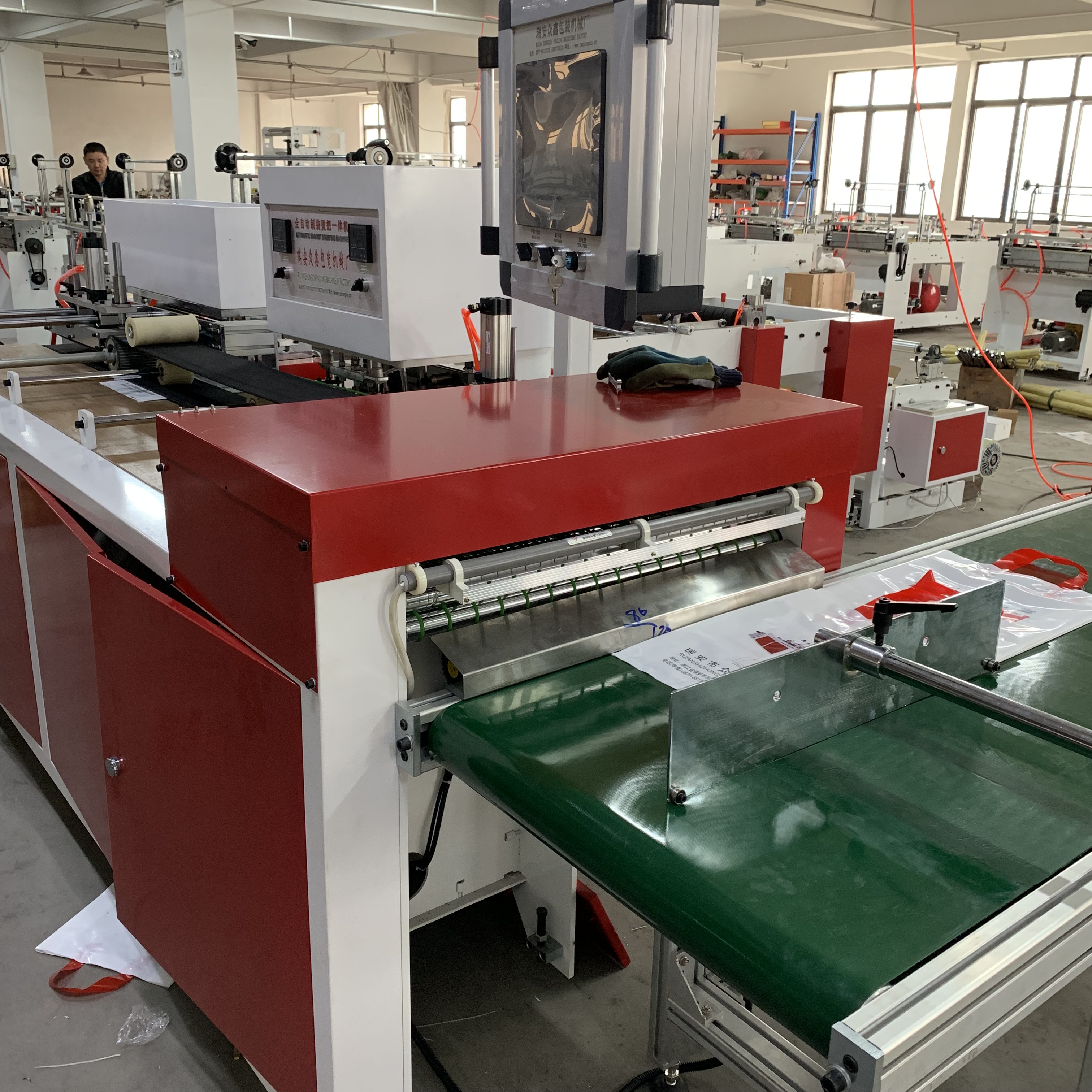

7.The speed of Transfer Belts adopt frequency conversion speed regulation , The discharging is more orderly and smooth

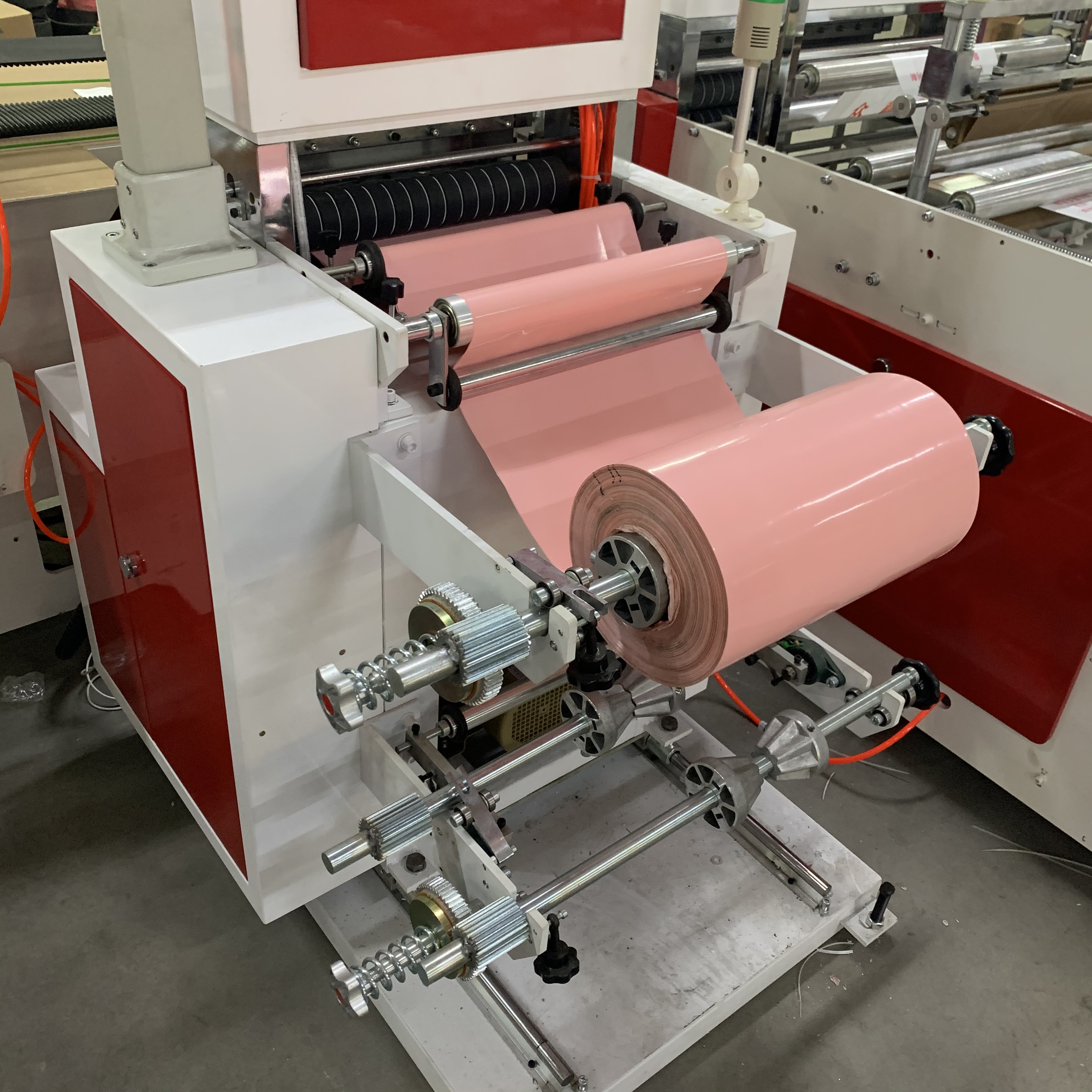

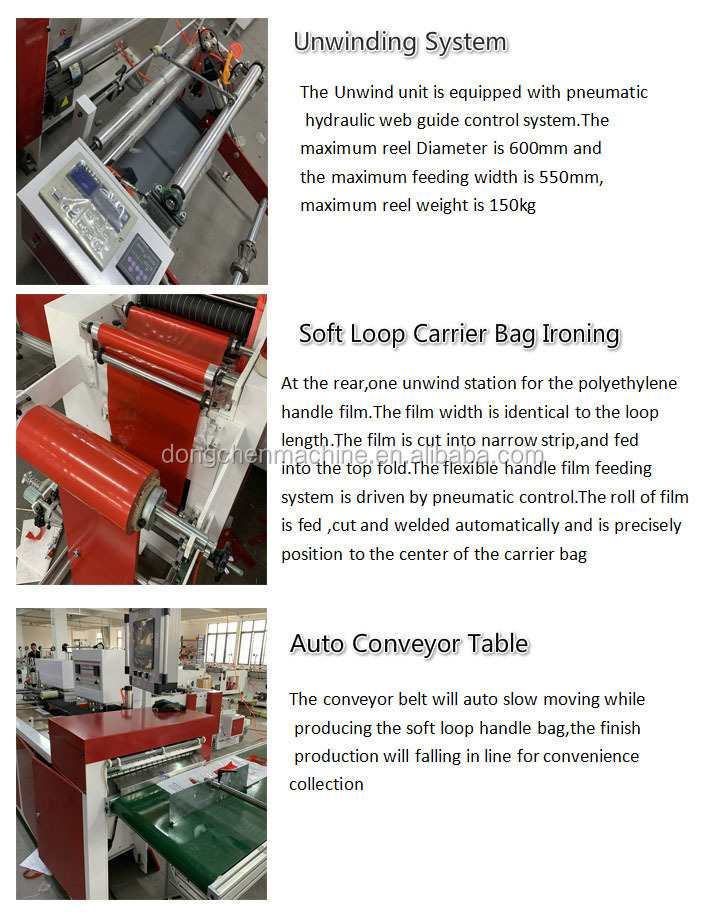

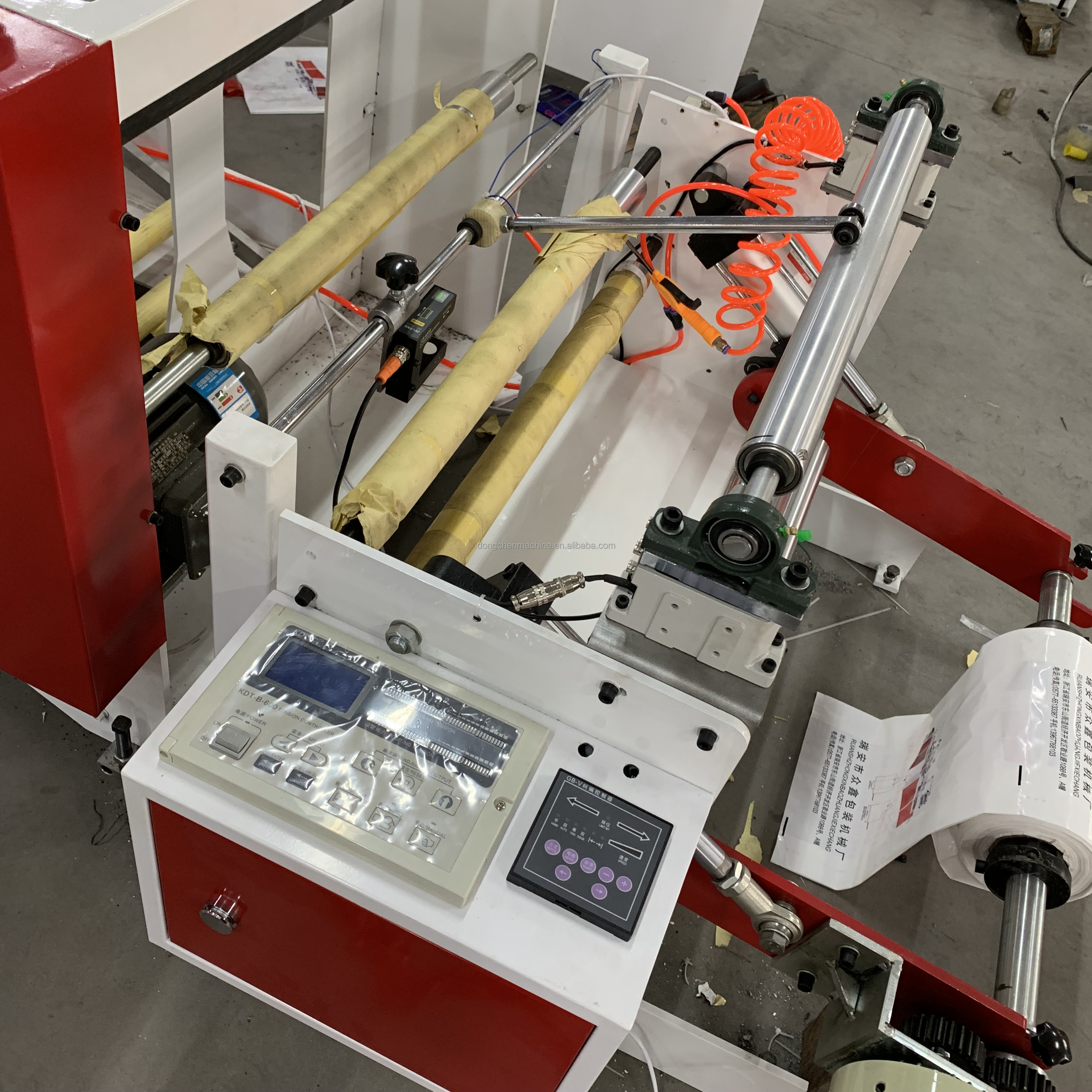

Unwinding part

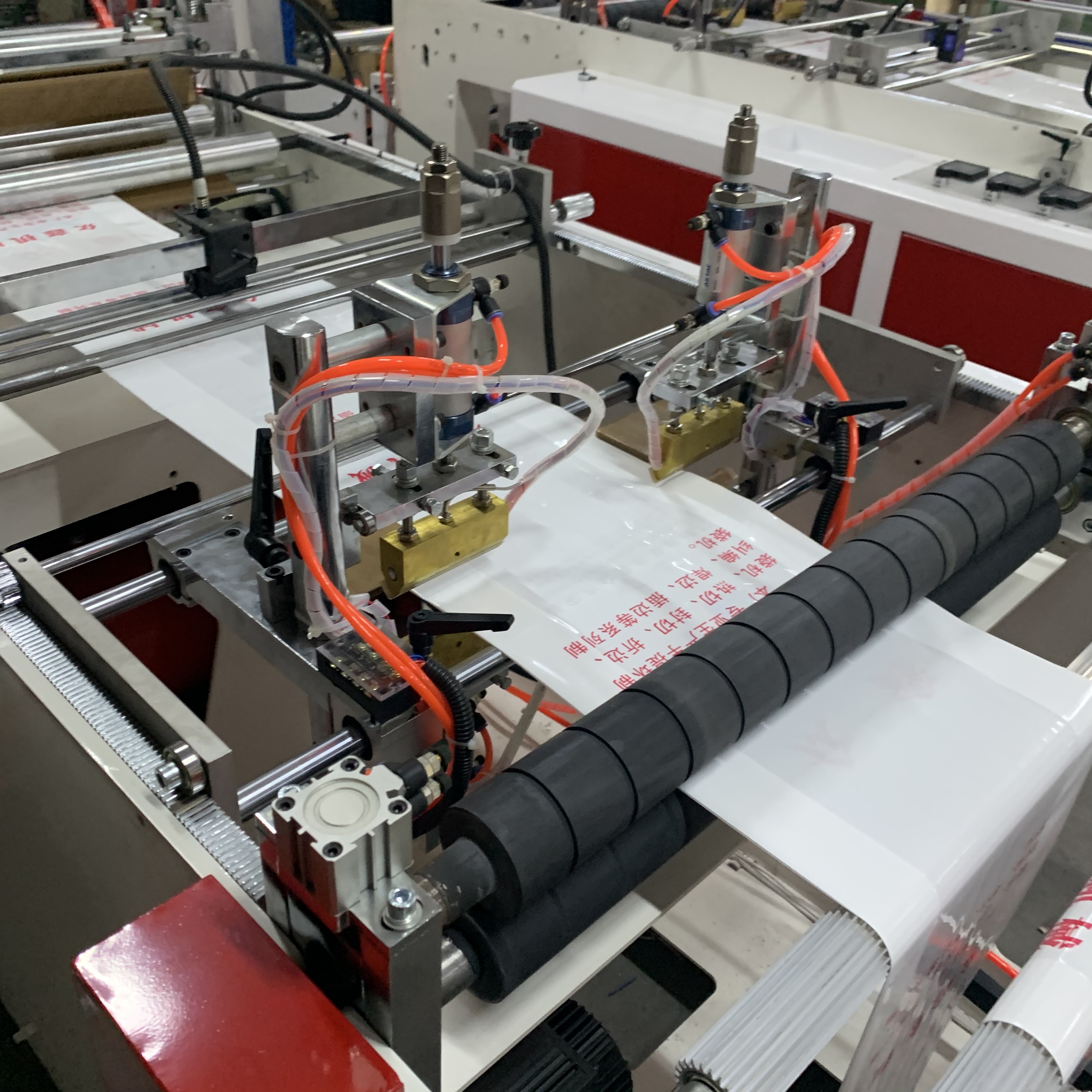

Soft loop handle welding?

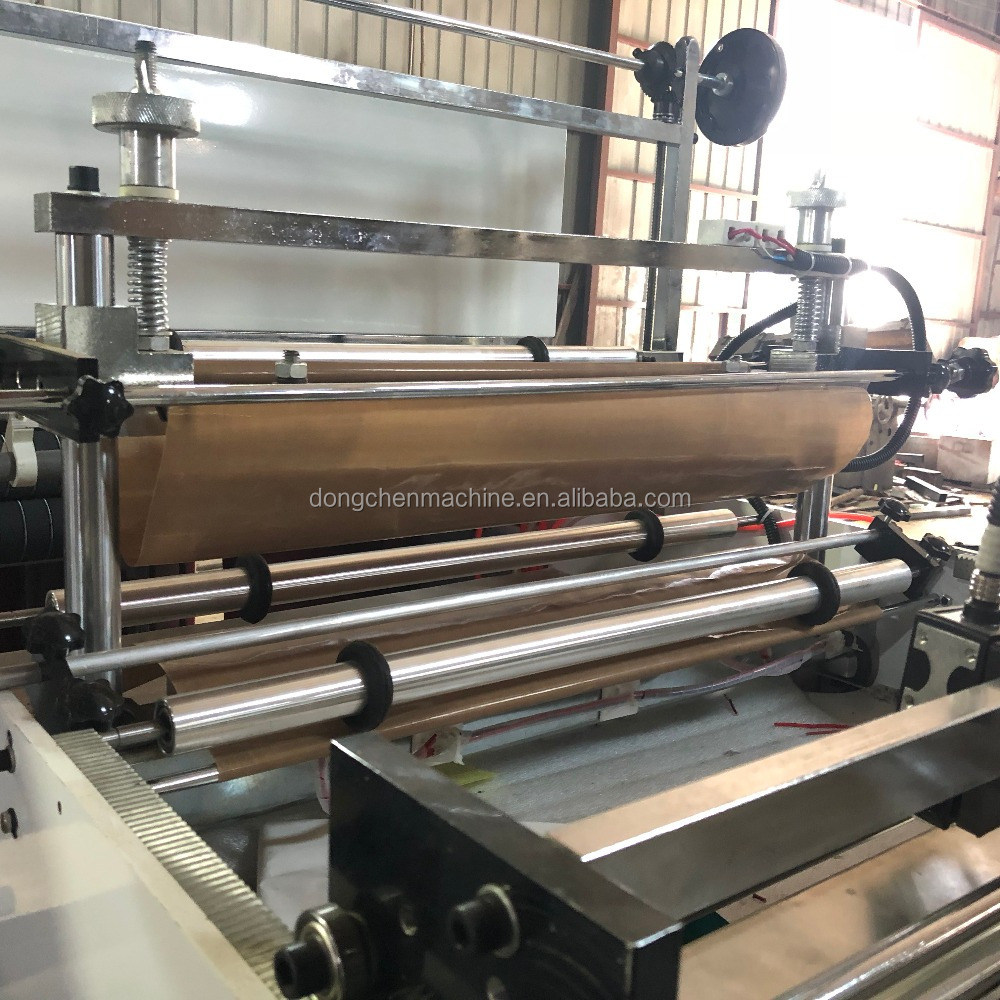

Twice sealing
PRODUCT SPECIFICATIONS
袋寬Bag width
250mm-550mm
袋長Bag Length
350mm-580mm
最大封切寬度Maximum sealing width
550mm
最大裁切長度Maximum cutting length
600mm
最大放卷卷直徑Maximum coil diameter
800mm
袋厚Bag thick
0.05-0.2mm不等
速度speed
45-60pcs/min
電源The power supply
AC380V.50Hz
機械尺寸machine dimension
4500*3600*1700
機械重量Machine weight
2600kg
軟手把長度Handle length
330-370mm usually350mm
軟手把寬度Handle width
25-50mm usually30mm
Machine Details
PRODUCT CONFIGURATION

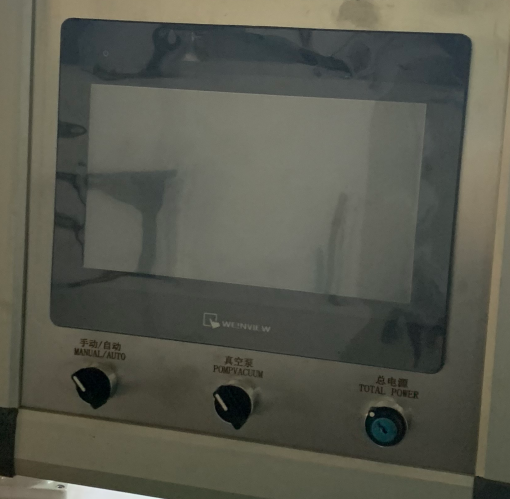

? ? ? ? ? ? ? ? ? WENIEW

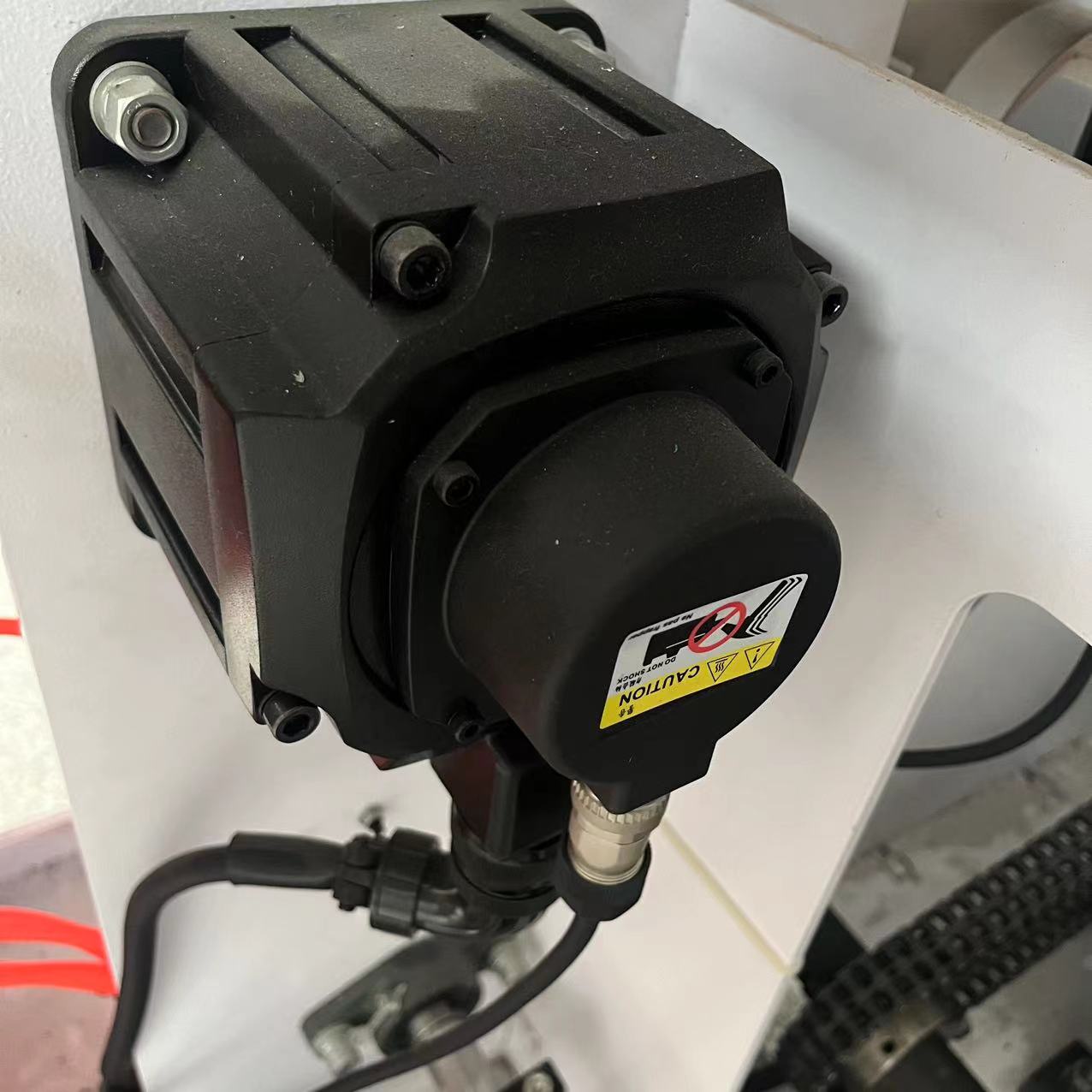

? ? ? ? ? ?Delta Servo Motor

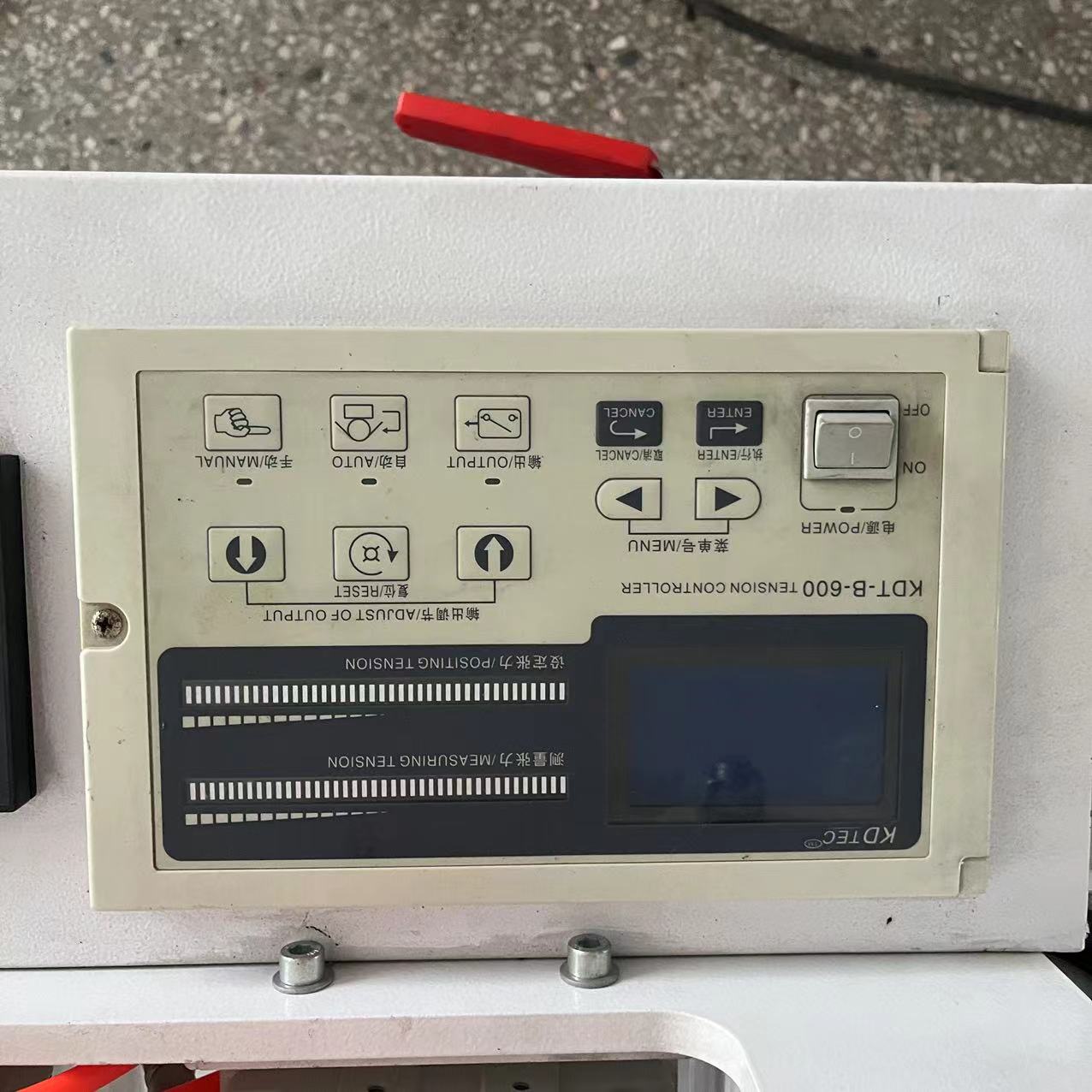

? ? ? ? ? ?Automatic tension
