Automatic PVC Card Embossing Machine
Get Latest Price
You might also like
Basic Info
| Model No. | ZX-32 |
|---|---|
| Brand Name | Innovo |
Product description

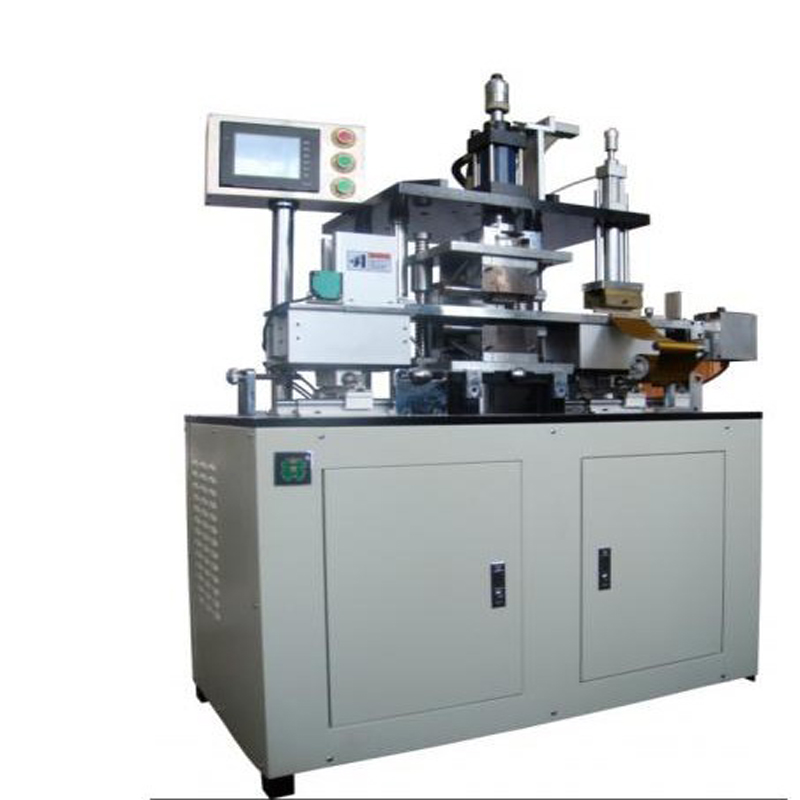

Automatic PVC Card embosser
Description:
The machine is controlled by the PLC program, in English and friendly man-machine interface touch screen operation.
It can do three functions with high speed: Embossing, stamping and collecting.
It is suitable for large-volume serial number card, such as bank cards, VIP cards, network cards, etc.
Features:
1. Embossing size and stamping mould are separate and their own positions and specifications (such as characters, digit, etc.) can be adjusted.
2. Powered by hydraulic punch. Embossing pressure and stroke are both adjustable.
3. The digit can list up to 20, so it is able to bank card.
4. Code location of the card in two long distance not less than 3.0mm anywhere within the area code for processing convex
5. Walking distance adjustable with gilt and improve the utilization of stamping supplies.
6. Program settings that can be removed without any digital processing number (e.g. 4, 7). Just inside the touch screen to jump a few good numbers, the program will automatically skip that number is not established processing.
7. Card stacking belt collection useful for automatic collection card, easy side of the income side of the check card.
8. Personalized font design, can be processed according to the requirements of customers (such as national character, currency symbol, etc.).
9. Size of the code can only increase the set of mold on the exchange on the same machine to use.
Parameters:
Control Forms: PLC program + Step system + Cylinder
Suitable card: ISO CR-80-ISO7810 international standards
Card thickness: ISO standard card
Air source: 6 kg/cm2 (absolute)
Air consumption: about 50L/min
Speed: 5500-6500 sheets / hour
Power supply: AC 380V/50 HZ
Max. Digit: 20
Operator: 1
Total power 2.5KW
Dimensions 900 * 650 * 1700 mm
Weight: about 800kg
Description:
The machine is controlled by the PLC program, in English and friendly man-machine interface touch screen operation.
It can do three functions with high speed: Embossing, stamping and collecting.
It is suitable for large-volume serial number card, such as bank cards, VIP cards, network cards, etc.
Features:
1. Embossing size and stamping mould are separate and their own positions and specifications (such as characters, digit, etc.) can be adjusted.
2. Powered by hydraulic punch. Embossing pressure and stroke are both adjustable.
3. The digit can list up to 20, so it is able to bank card.
4. Code location of the card in two long distance not less than 3.0mm anywhere within the area code for processing convex
5. Walking distance adjustable with gilt and improve the utilization of stamping supplies.
6. Program settings that can be removed without any digital processing number (e.g. 4, 7). Just inside the touch screen to jump a few good numbers, the program will automatically skip that number is not established processing.
7. Card stacking belt collection useful for automatic collection card, easy side of the income side of the check card.
8. Personalized font design, can be processed according to the requirements of customers (such as national character, currency symbol, etc.).
9. Size of the code can only increase the set of mold on the exchange on the same machine to use.
| Air source | 6 kg/cm |
| Air consumption | about 50L/min |
|
|
|
|
|
|
Parameters:
Control Forms: PLC program + Step system + Cylinder
Suitable card: ISO CR-80-ISO7810 international standards
Card thickness: ISO standard card
Air source: 6 kg/cm2 (absolute)
Air consumption: about 50L/min
Speed: 5500-6500 sheets / hour
Power supply: AC 380V/50 HZ
Max. Digit: 20
Operator: 1
Total power 2.5KW
Dimensions 900 * 650 * 1700 mm
Weight: about 800kg
