Brief Introduction:

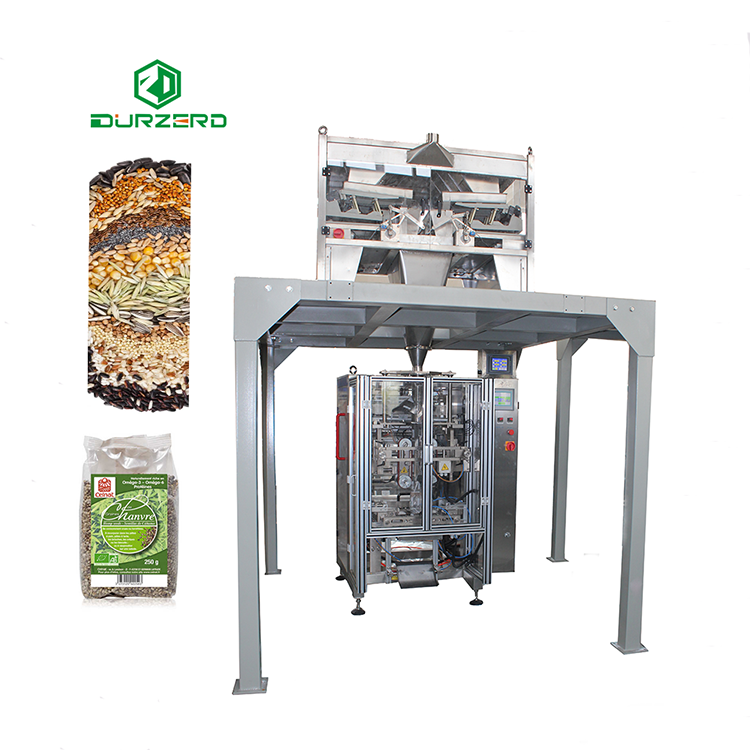

This seed packing machine is suitable for the back and pillow sealing bag. The seed packaging machine is equipped with 4-head linear weigher machine. The packaging part is completed by VFS Granule Packing Machine, which mainly includes the following functions:automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches, making continuous sachet, finished product conveying; The material conveying part is completed by Z Type Bucket Conveyor. Applicable for packing 1-5kg granule product. If want to achieve full automation of the production line, you can also add a secondary packaging mechanism, using Multi Baler and Auto Cartoner Machine to achieve automatic bagging and cartoning.

Features:

A wide range of pouches:  Pillow pouches

High speed: 15~50 bags/min

Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

Easy to adjust: only about 10 minutes to change different pouches.

Frequency control: speed can be adjusted by frequency conversion within the range.

High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

Safety and Hygiene:

No film, machine will alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.

APPLICATION:

Seed packing machine and seeds weighing machine is suitable for granule products, such as seeds, grains, rice, dried fruits, beans, nuts, salt, sugar, tea, detergent powder, etc. So this machine can also be customized as peanut packing machine and salt packing machine.

Sample bag type

Seed Packaging Machine Detailed description

Technical Parameters

Bag type	Pillow type bag; Gusseted bag (Option)
Speed	18 to 45 bags/min
Bag Length	50 to 460mm
Bag Width	80 to 350mm
Reel Film Width	≤7300mm
Film thickness	0.04-0.12mm (40-120mic.)
Reel Outer Dia.	400mm (15.7in)
Reel Inner Dia.	75mm (2.9in)
Voltage	AC220V/50Hz, 1phase or Per customer specification
Power Consumption	4.5KW
Compressed Air Requirement	0.6 MPa0.36 M3min
