Automatic Small Plastic Tubes Capping Machine
$26000.00
≥1 piece
Options:
- B.ZGF-II
Get Latest Price
You might also like
Basic Info
| Condition | New |
|---|---|
| Brand Name | Sunway |
| Year | 2022 |
| Dimension(L*W*H) | 2500*2000*1500mm |
| Weight | 800 KG |
Show More
Product description
Product Overview

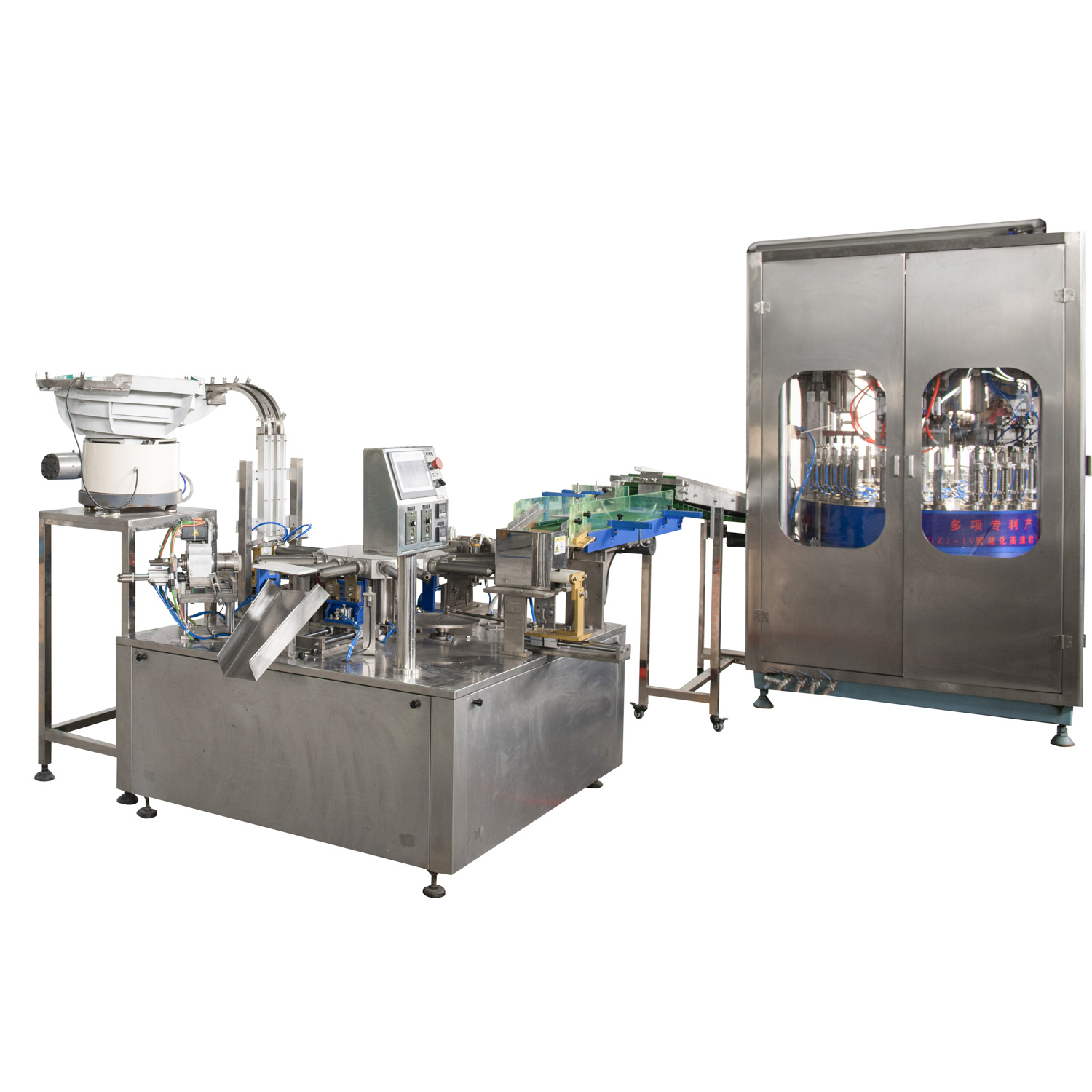

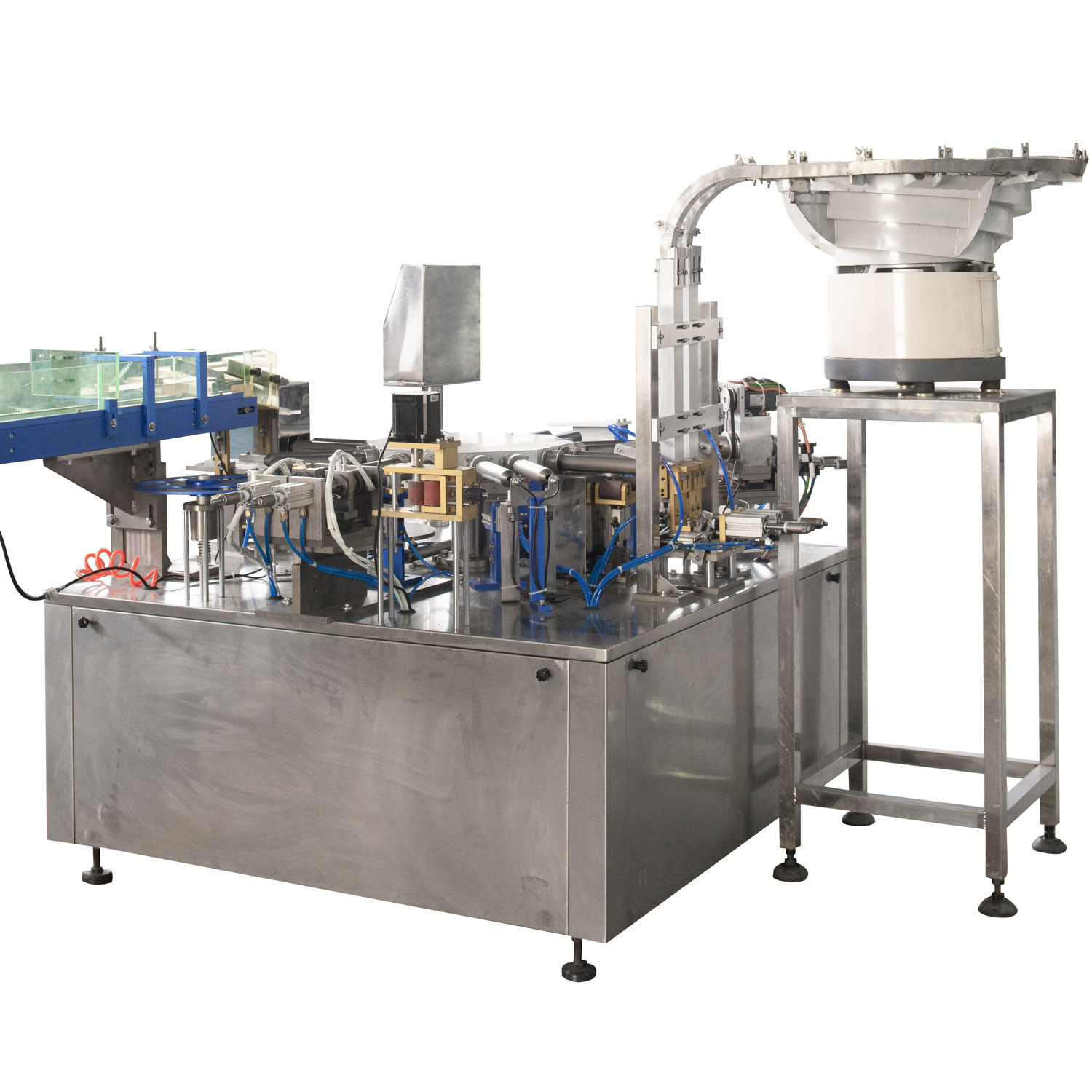

Automatic Small Plastic Tubes Capping Machine

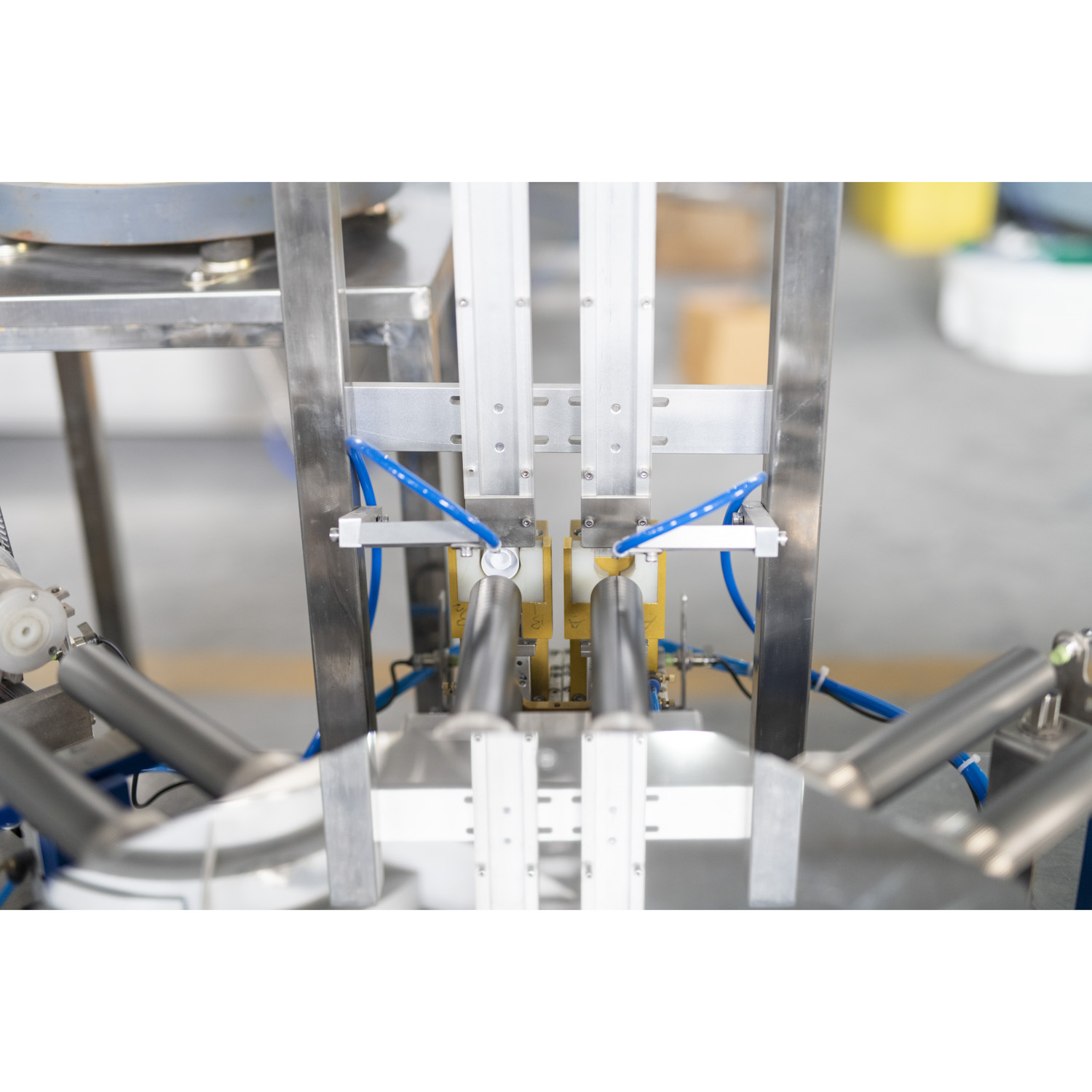

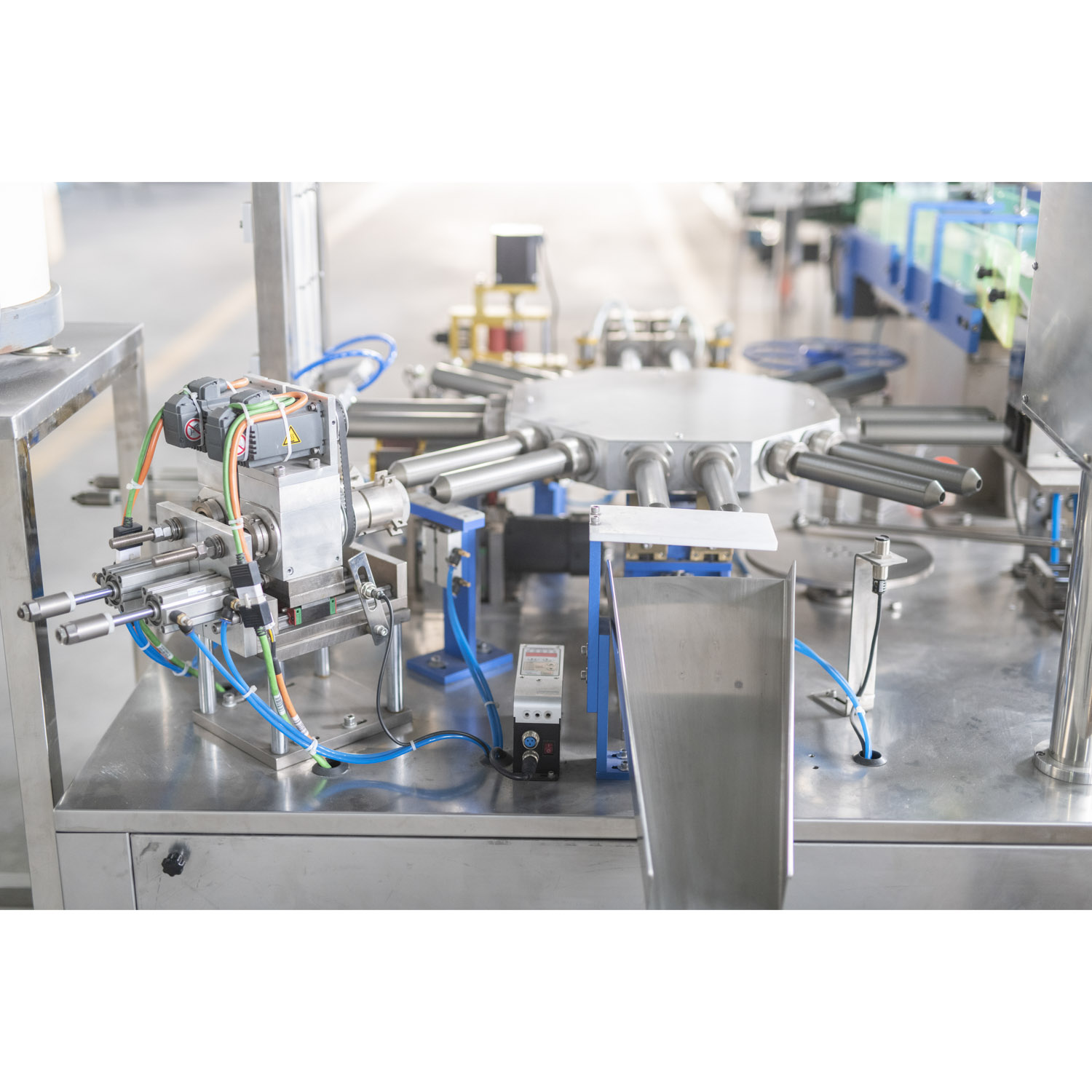

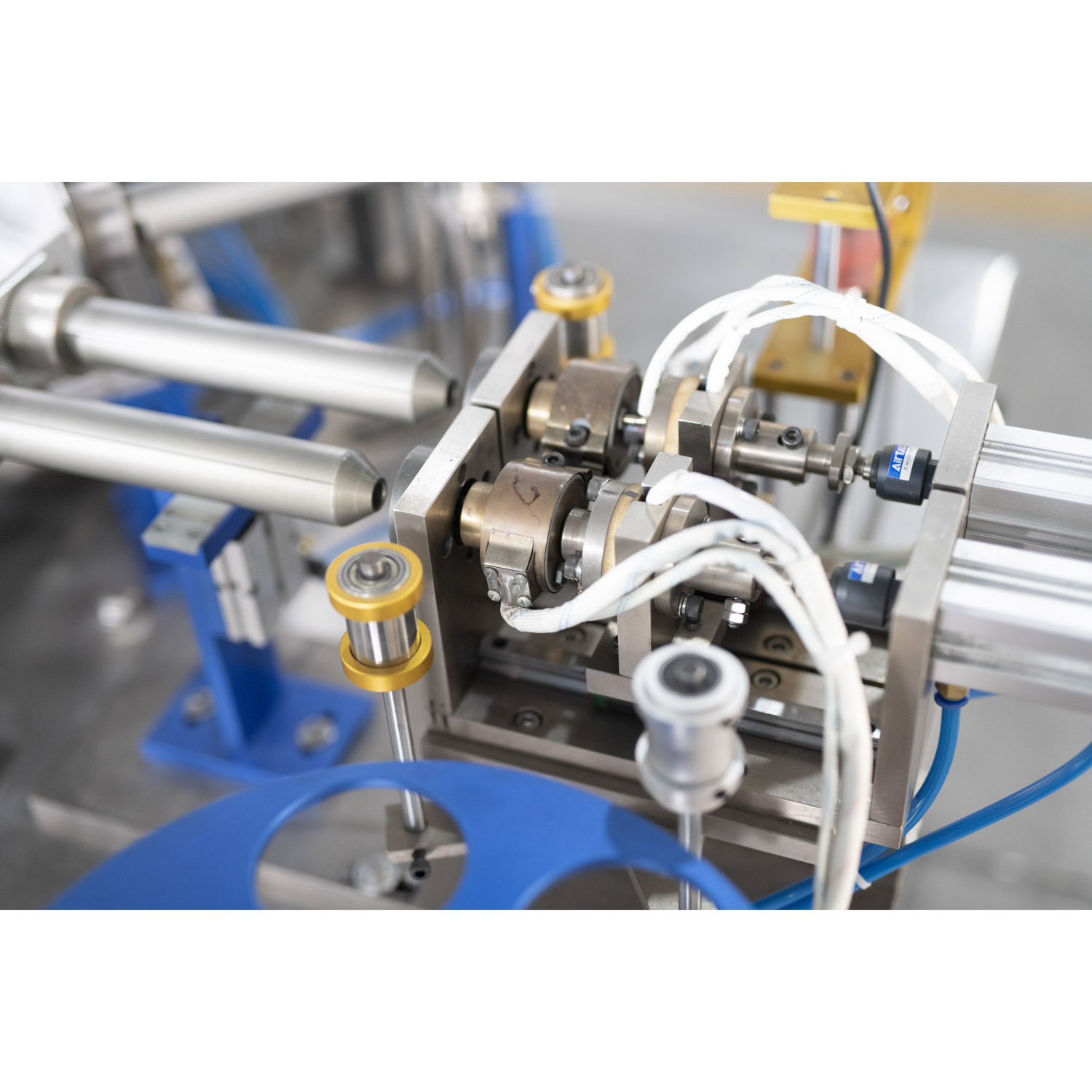

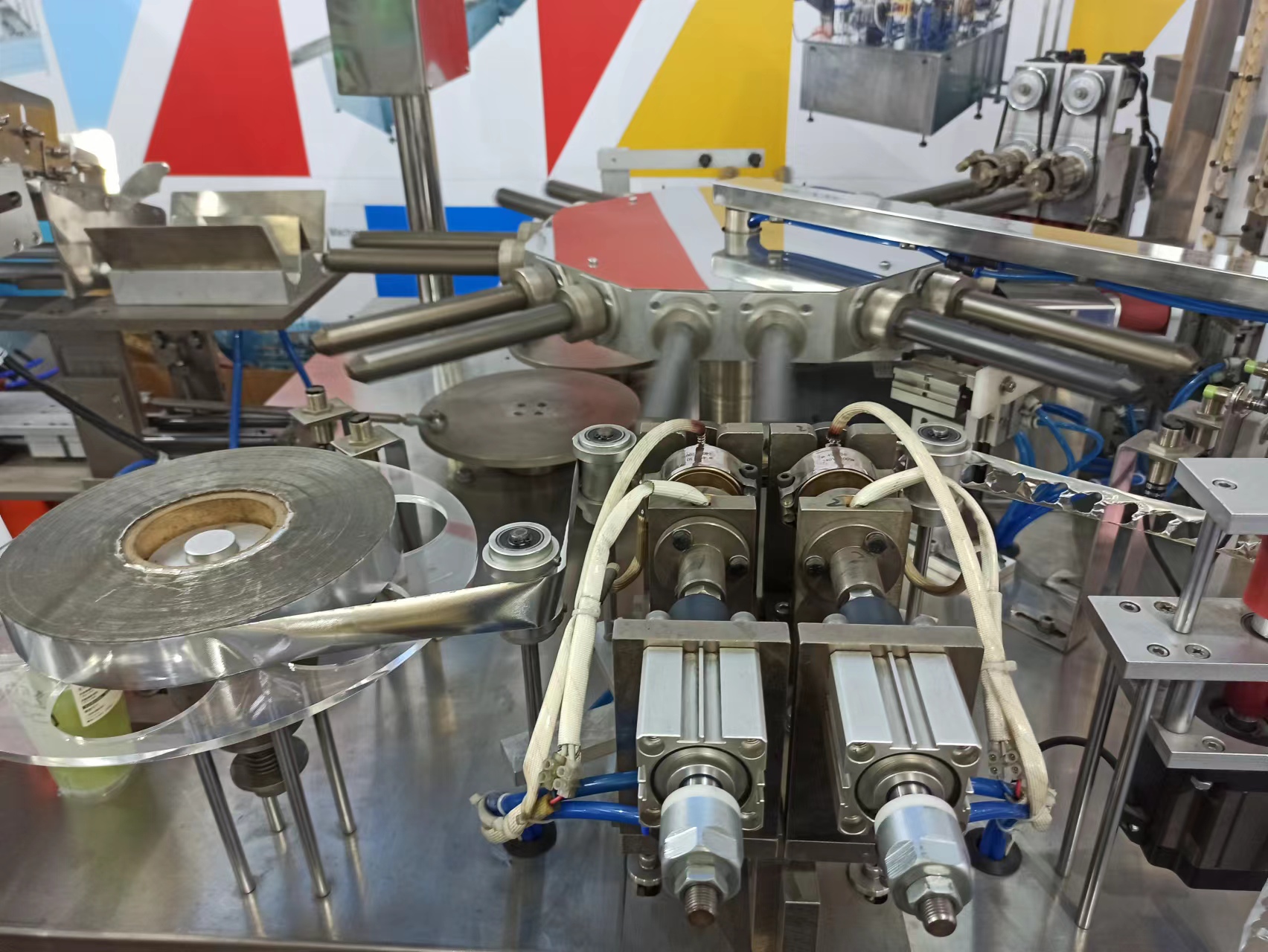

This B.ZFG-II Automatic Small Plastic Tubes Capping Machine adopts gap dividing mechanism for circular rotary mechanism, precision gap inversion, and around it there are functions: automatic tube devices, aluminum foil sealing device, secondary heating sealing device, screw capping device, and secondary screw capping device. The above institutions and device are actions under the control of PLC coordination. And to finish the work of automatic tube feed, testing tube feeding condition, aluminum foil sealing, firstly screw capping, secondary
screw capping, and tube out. gap dividing mechanism adopts precision indexing CAM. Driven by motor, and motor speed controlled by the variable frequency. Reasonable distribution the working time of transposition and institution for each station. Transfer balance. And accurate positioning. Running speed can be adjust by the user, it can meet the general requirements of customer.
screw capping, and tube out. gap dividing mechanism adopts precision indexing CAM. Driven by motor, and motor speed controlled by the variable frequency. Reasonable distribution the working time of transposition and institution for each station. Transfer balance. And accurate positioning. Running speed can be adjust by the user, it can meet the general requirements of customer.
Main Features
1. Two functions: capping and tube mouth sealing
2. Adopts advanced PLC control and screen-touch interface program
3. Servo electric drive can keep pinpoint
4. Attractive sealing and precise capping.
FEATURES AT A GLANCE
Appicable products

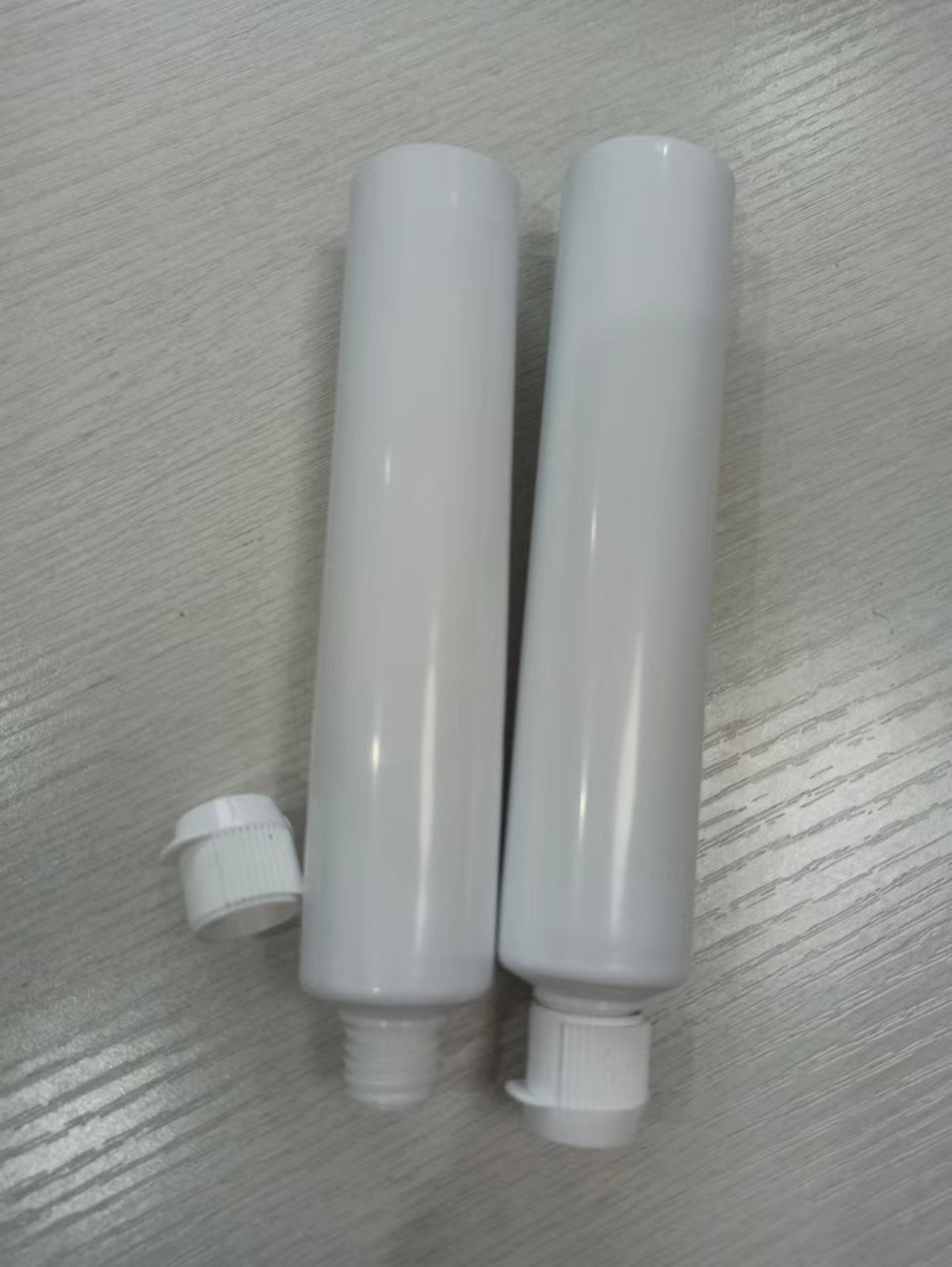

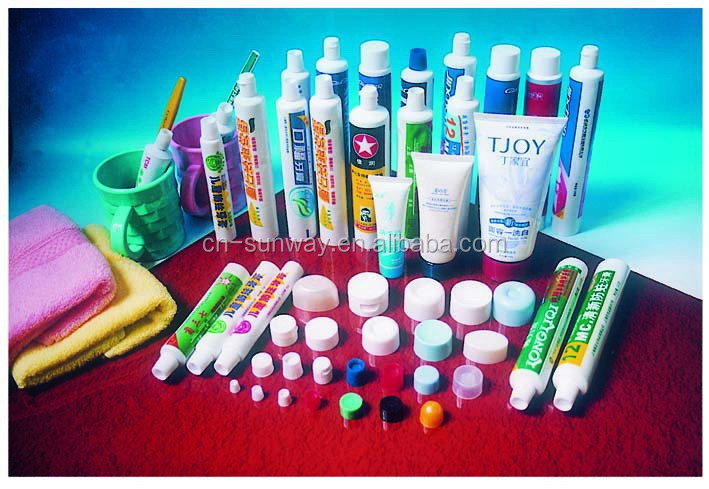

This B.ZFG-II double head tube top sealing and capping machine can stick aluminum foil/seal on tube mouth by heating way, and screw different cap types such as flat cap, top flip cap, stand-up cap used on different tube like ABL tubes, PBL tubes, PE seamless tubes.
PRODUCT SPECIFICATIONS
Power | 1.5KW | Air Pressure | 0.5MPa |
Air Consumption | 0.6m3/min | Tube Diameter | 19mm-50mm |
Film Sticking Qualification Rate | 99% | Capping Qualification Rate | 99% |
Aluminum Foil Thickness | 0.02-0.08mm | Max. capacity | 100PCS/MIN |
Weight | 800KG | Dimension | 2.5*2*1.5m |
SIMILAR PRODUCTS
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brands, best metals are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Long development, mature technology, stable machine performance, long machine life...
And more？ Please feel free to contact us.
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brands, best metals are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Long development, mature technology, stable machine performance, long machine life...
And more？ Please feel free to contact us.
